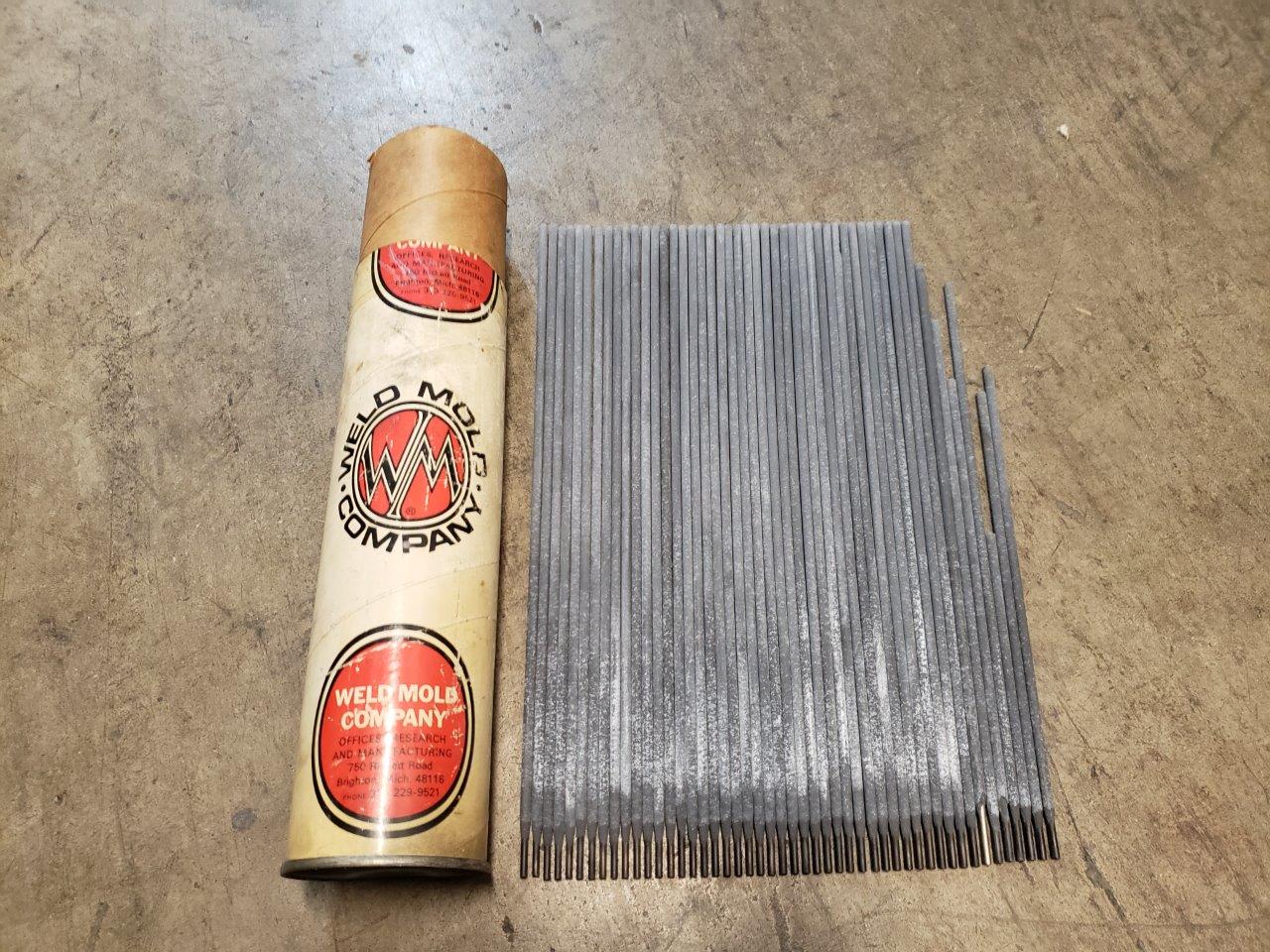

Weld Mold Co 919 5/32×14″ Stick Welding Rod Electrode

Weld Mold 919 is a typical AISI 4340 nickel, chrome, molybdenum carbon steel alloy. This material has shock resistant properties when used on cold working units where a high polish is necessary.

Applications

A versatile product when a medium hard, tough weld deposit is required. May be used on such units as die cast dies, crankshafts, gears, axles, forgings, castings, and for build up prior to overlaying with harder alloys. Weld deposits respond to the heat treatment of standard AISI 4340 steels.

Technical Data

Available Processes: SMAW, FCAW and GTAW
Tensile Strength (Heat Treated): 180,000 psi min
Harness As Welded: 35-37 RC
Heat Treatment: AISI 4340 Procedure
MImpact Resistance: Excellent
Class: AISI 4340

The Weld Mold Co 919 5/32″ x 14″ Stick Welding Rod Electrode is a specific type of stick welding rod designed for various welding applications. Here is information about its main uses, features, specifications, and keywords:

Main Use:
The Weld Mold Co 919 5/32″ x 14″ Stick Welding Rod Electrode is commonly used for shielded metal arc welding (SMAW) processes. It is suitable for welding applications that require high strength and resistance to wear, impact, and heat.

Features:

High-Strength Welds: The welding rod electrode is designed to produce high-strength welds, providing durability and reliability in demanding applications.
Versatile Use: The Weld Mold Co 919 electrode is suitable for various welding projects, including heavy machinery repairs, construction, manufacturing, and maintenance tasks.
All-Position Welding: The electrode offers all-position welding capabilities, allowing for welding in flat, horizontal, vertical, and overhead positions.
Excellent Penetration: The electrode provides excellent penetration into the base metal, ensuring proper fusion and strong weld joints.
Heat and Wear Resistance: The Weld Mold Co 919 electrode offers good heat resistance and wear resistance properties, making it suitable for applications involving high temperatures and abrasive environments.
Easy Slag Removal: The electrode produces a slag coating during welding, which can be easily removed, resulting in clean and smooth welds.
Stable Arc: The electrode provides a stable arc during welding, allowing for precise control and consistent results.
Diameter and Length: The Weld Mold Co 919 electrode has a diameter of 5/32″ (3.97mm) and a length of 14″ (355.6mm).
Specifications:

Welding Rod Type: Stick Welding Rod Electrode
Diameter: 5/32″ (3.97mm)
Length: 14″ (355.6mm)
Welding Position: All positions (suitable for flat, horizontal, vertical, and overhead welding)
Material Compatibility: Suitable for various materials, including carbon steels, low-alloy steels, and high-strength steels

Weld Mold Co 919
Stick Welding Rod Electrode
5/32″ diameter
14″ length
SMAW electrode
High-strength welds
All-position welding
Heat and wear resistance
When using the Weld Mold Co 919 5/32″ x 14″ Stick Welding Rod Electrode or any other welding consumables, it is crucial to follow proper welding procedures, safety guidelines, and manufacturer recommendations for optimal performance and safety.
