Wagner WG840466 115V Direct Drive Furnace Blower Motor 3/4–1/5 HP PSC Multi-Speed HVAC Replacement Motor

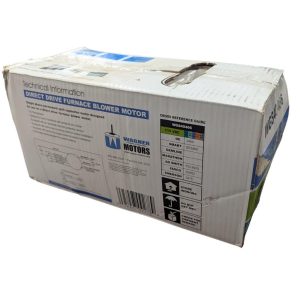

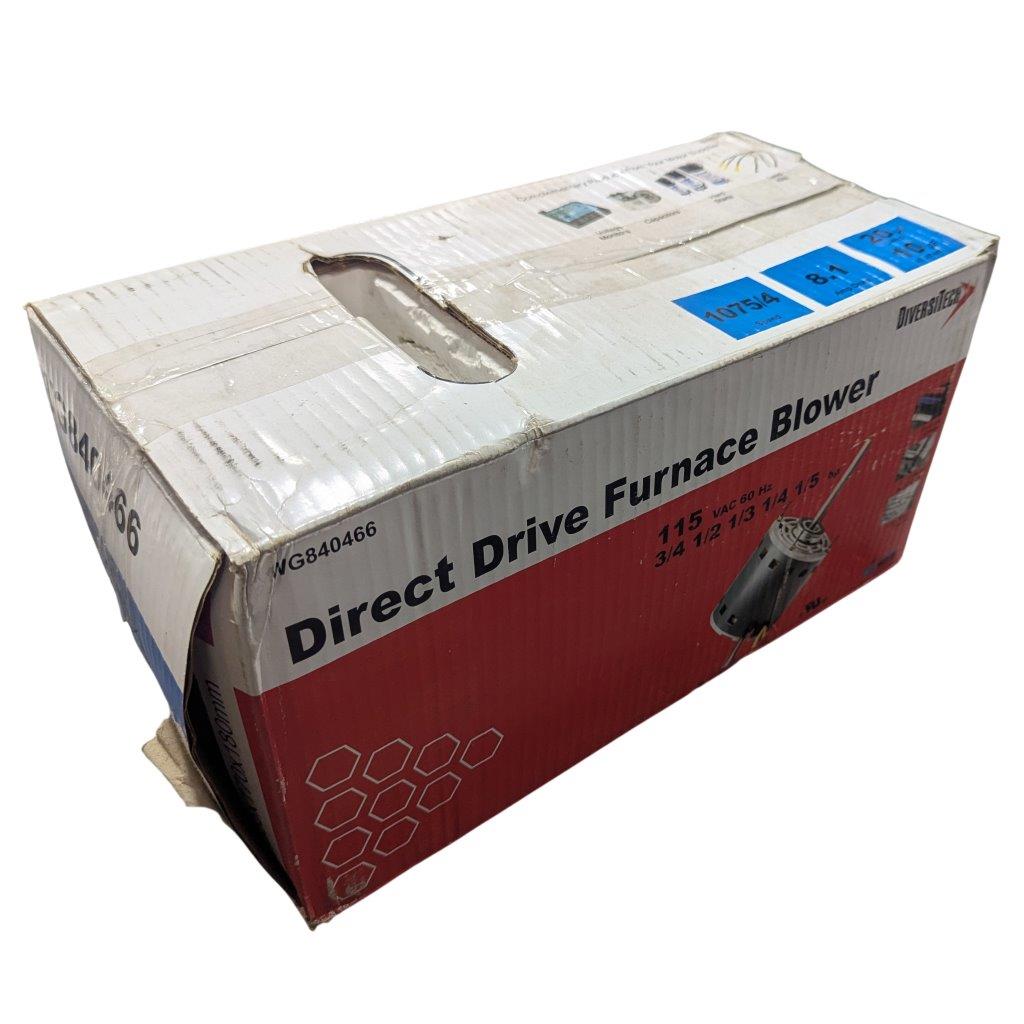

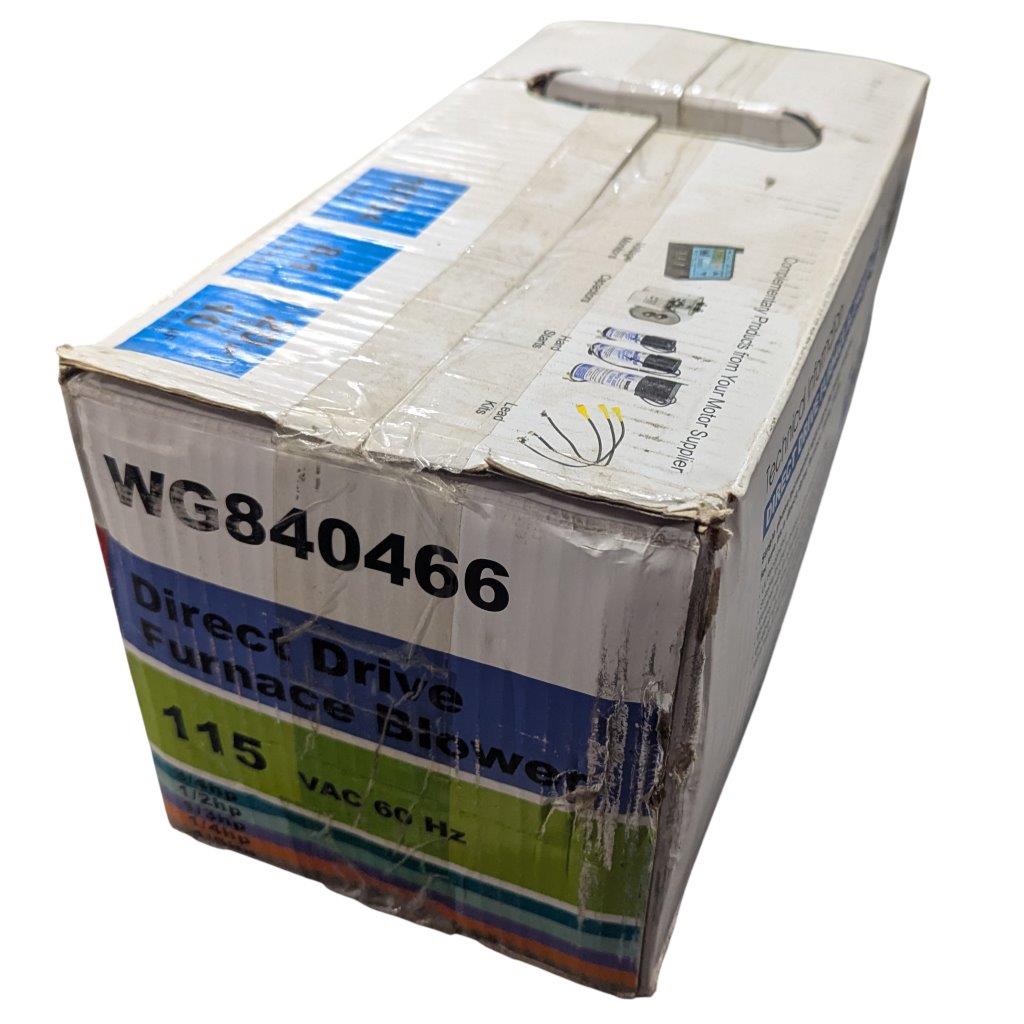

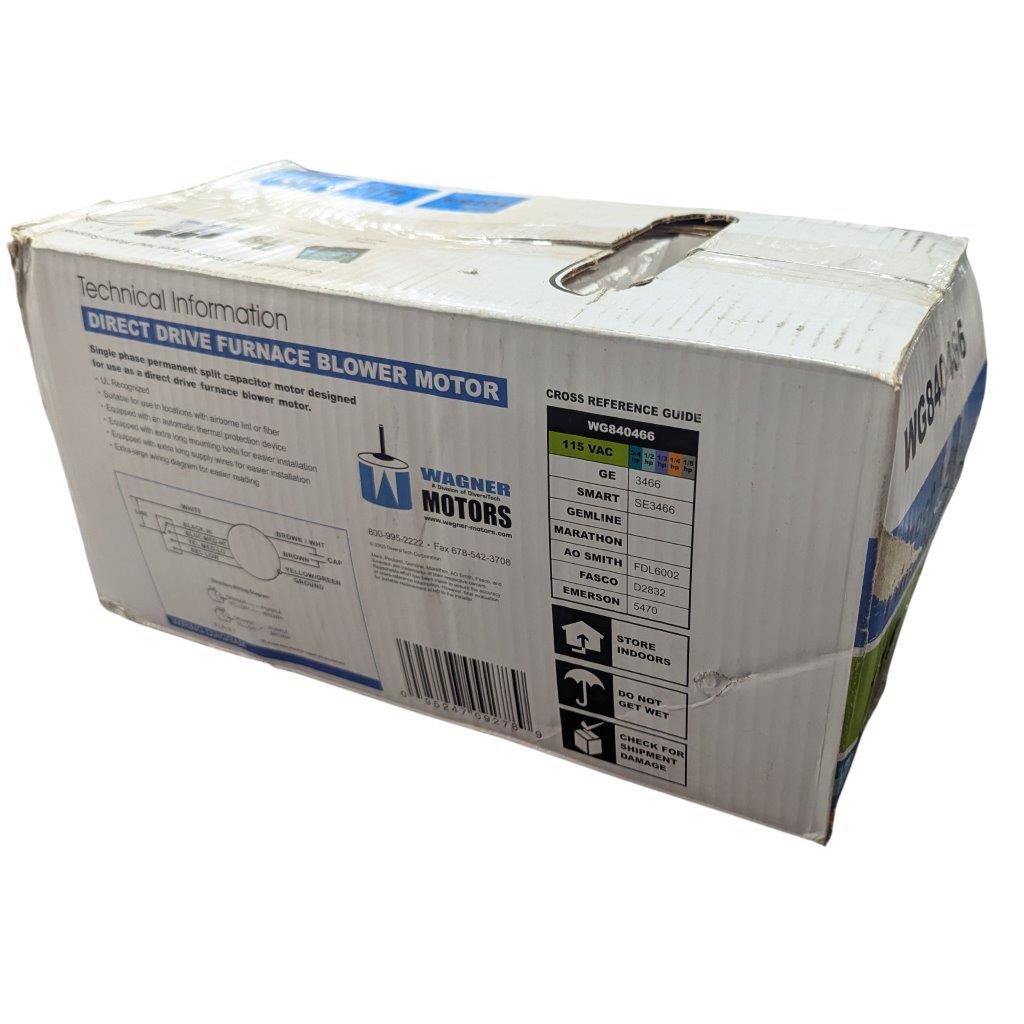

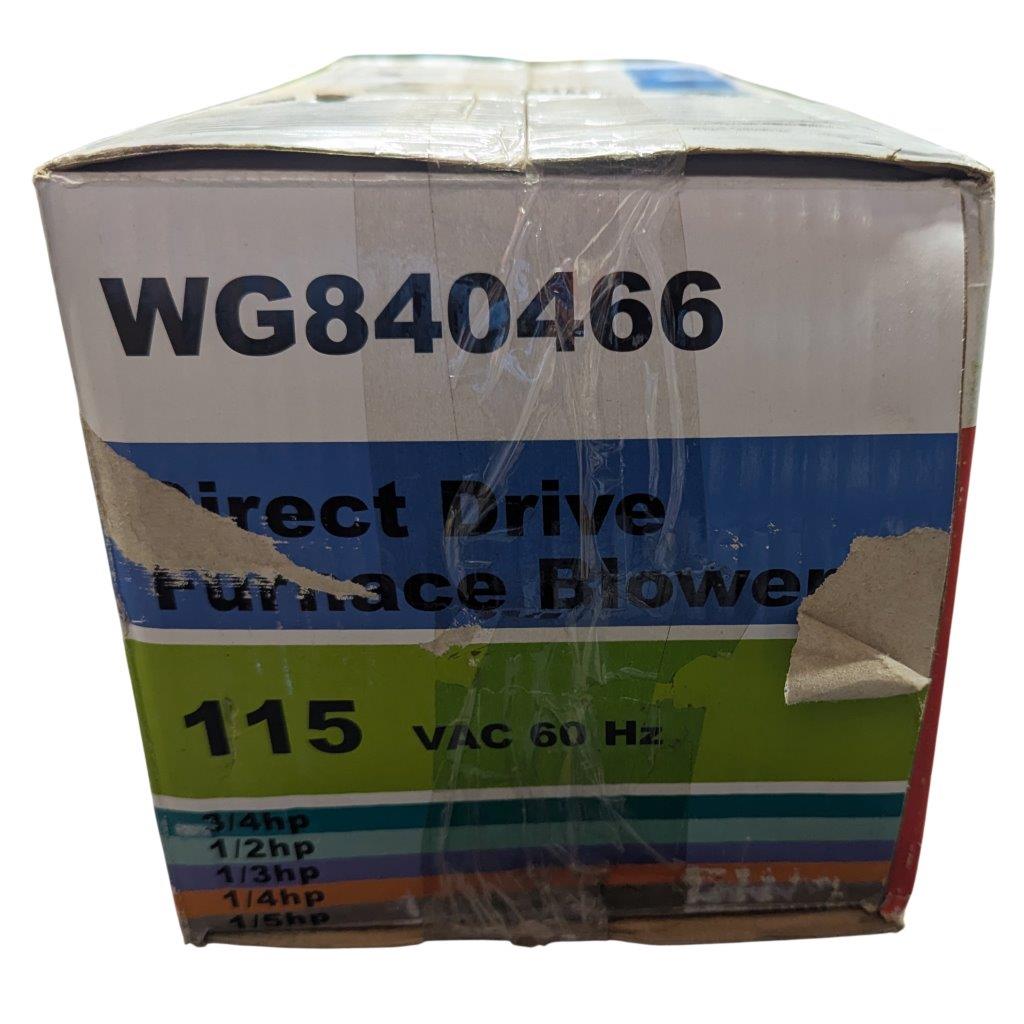

Condition: New in retail box; box shows significant shelf wear, tape, scuffs, creases, torn cardboard areas, edge wear, and handling marks.

The Wagner WG840466 Direct Drive Furnace Blower Motor is a universal-style replacement motor designed for direct-drive HVAC blower applications in residential and light commercial forced-air systems. This motor is made for furnace blower assemblies where the motor shaft directly drives the blower wheel without a belt. It is a single-phase permanent split capacitor motor rated for 115 VAC, 60 Hz operation and supports multiple horsepower applications, including 3/4 HP, 1/2 HP, 1/3 HP, 1/4 HP, and 1/5 HP. Its multi-speed wiring, reversible rotation, and broad cross-reference range make it useful for HVAC service replacement where the original motor specifications match the installation requirements.

Features

• Model: WG840466
• Brand line shown on packaging: Wagner Motors, a division of DiversiTech
• Product type: Direct Drive Furnace Blower Motor
• Motor design: Permanent Split Capacitor, PSC
• Voltage: 115 VAC
• Frequency: 60 Hz
• Phase: Single phase
• Horsepower range: 3/4 HP, 1/2 HP, 1/3 HP, 1/4 HP, 1/5 HP
• Drive type: Direct drive
• Application: Furnace blower motor replacement
• Thermal protection: Automatic thermal protection device
• Wiring: Extra-long supply wires for easier installation
• Mounting: Extra-long mounting bolts for easier installation
• Wiring diagram: Large wiring diagram printed on the packaging
• Suitable for locations with airborne lint or fiber
• UL recognized according to packaging
• Store indoors; do not get wet
• UPC / GTIN: 095247092789

Motor Characteristics

• Horsepower: Multi-HP: 3/4, 1/2, 1/3, 1/4, 1/5 HP
• Voltage: 115 VAC
• Frequency: 60 Hz
• Phase: Single-phase
• Motor design: PSC / permanent split capacitor
• Drive type: Direct drive
• Number of speeds: Packaging wiring diagram indicates 4 speed leads
• Speed leads shown: High, Medium-High, Medium-Low, Low
• Enclosure type: Commonly used in air-over blower compartments
• Capacitor: PSC motor requires a run capacitor; exact capacitor rating should be confirmed from the motor nameplate or installation sheet
• Rotation: Wiring diagram indicates reversible rotation
• Motor Shaft Rotation: Reversible — CWSE/CCWLE or CCWSE/CWLE depending on wiring configuration

Wiring Notes

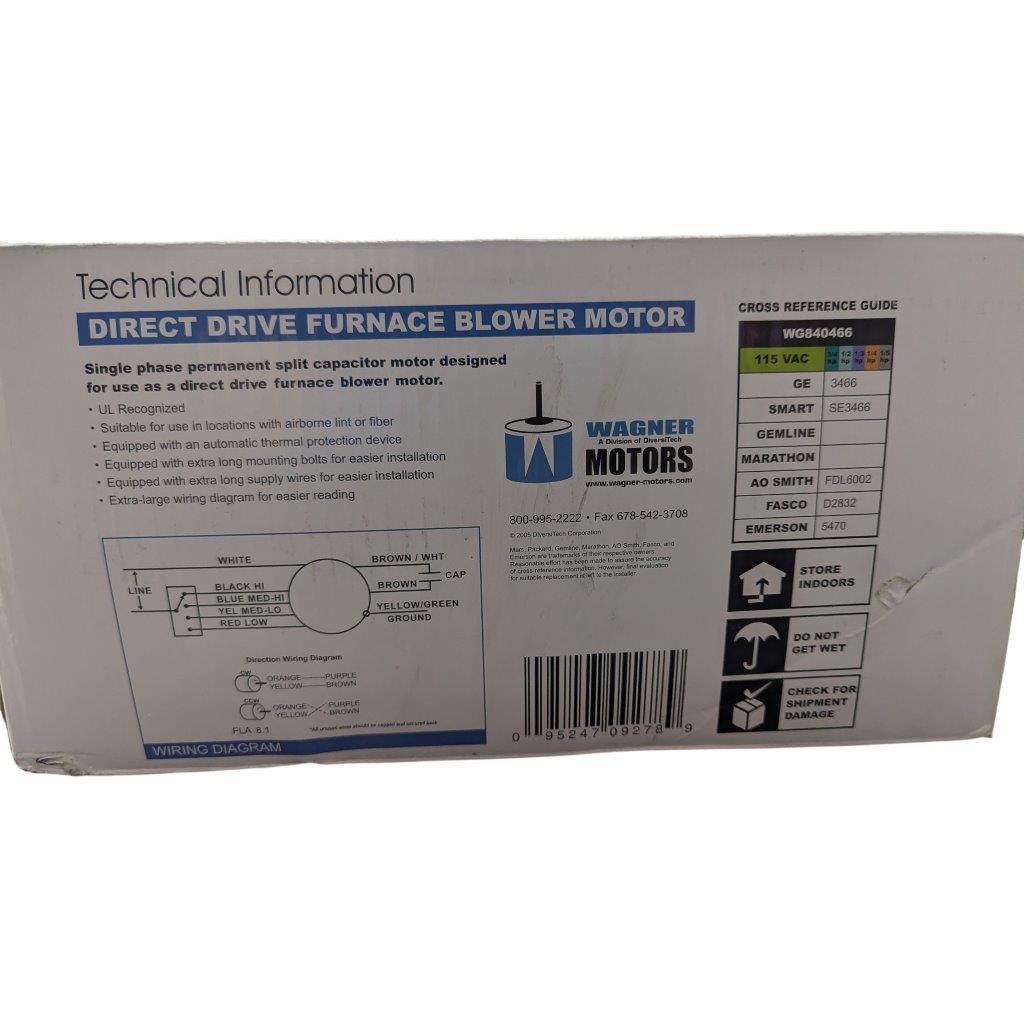

The wiring diagram on the box shows a typical PSC multi-speed blower motor layout:

• White: Line / common
• Black: High speed
• Blue: Medium-high speed
• Yellow: Medium-low speed
• Red: Low speed
• Brown and Brown/White: Capacitor leads
• Yellow/Green: Ground

The direction wiring diagram indicates that rotation can be changed by using the appropriate direction lead combination. Installation should be completed by a qualified HVAC technician, and the technician should verify wiring against the actual motor label before energizing the system.

Applications

• Residential gas furnace blower assemblies
• Electric furnace blower compartments
• Air handler blower sections
• Direct-drive squirrel cage blower assemblies
• Forced-air heating systems
• HVAC ventilation equipment
• Replacement motor service stock for HVAC contractors
• Light commercial furnace and air handler systems
• Repair of older PSC direct-drive blower systems

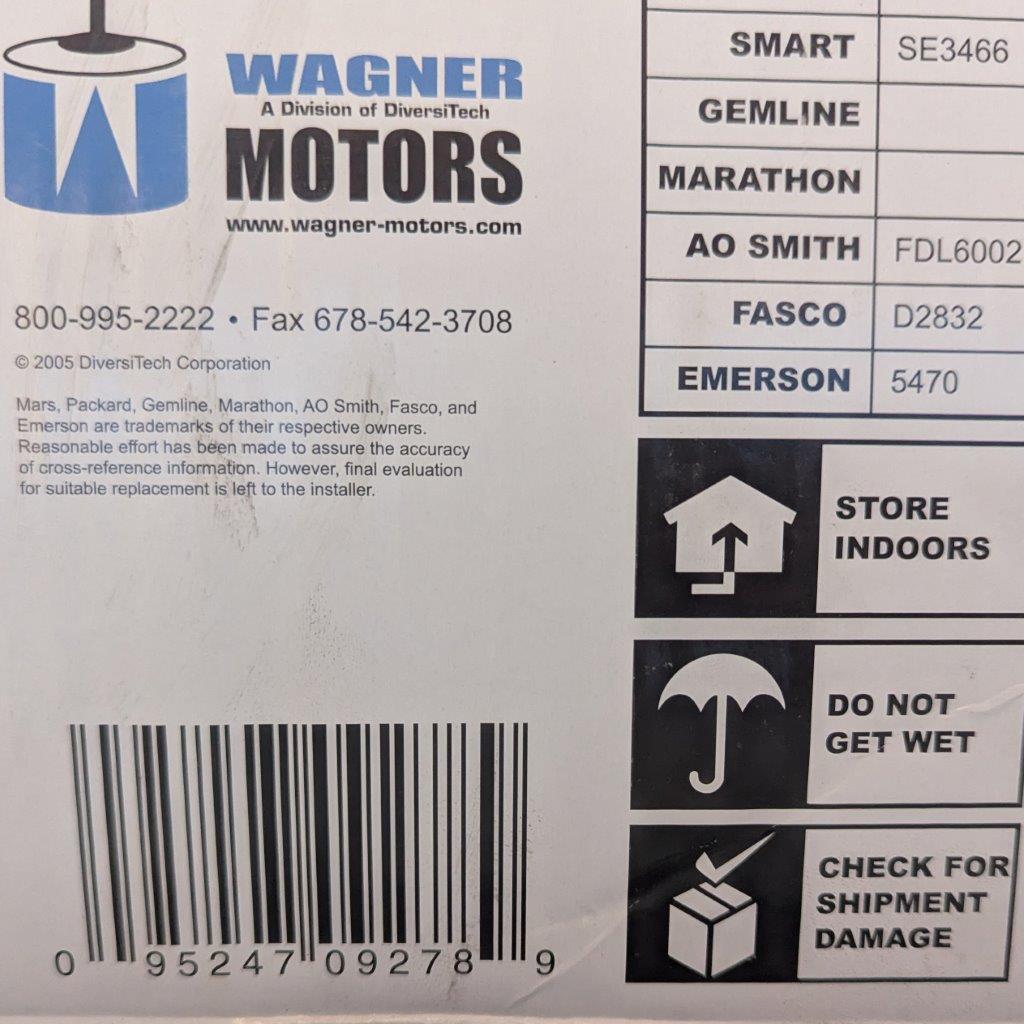

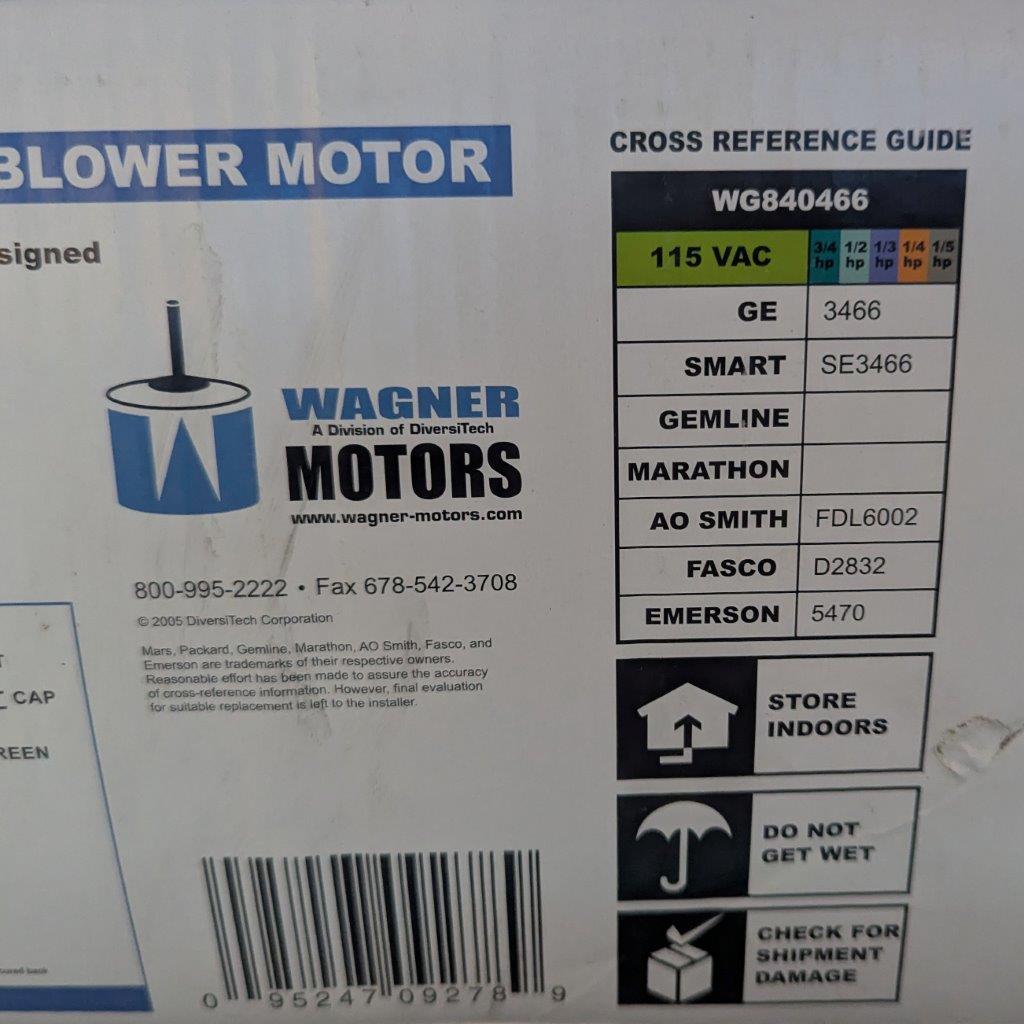

Cross-Referenced Models

The cross-reference guide shown on the packaging lists the following compatible or comparable models:

• GE 3466
• Smart Electric SE3466
• A.O. Smith FDL6002
• Fasco D2832
• Emerson 5470

Additional model references from the packaging:

• Wagner WG840466
• DiversiTech WG840466

Comparable Products

• GE 3466 direct drive furnace blower motor
• Smart Electric SE3466 PSC furnace blower motor
• A.O. Smith FDL6002 direct drive blower motor
• Fasco D2832 replacement blower motor
• Emerson 5470 furnace blower motor
• Other 115V multi-horsepower PSC direct-drive blower motors with matching horsepower, RPM, shaft size, frame, capacitor rating, rotation, and mounting configuration

Assembly and System Use

The WG840466 is intended to be used as part of a direct-drive furnace blower assembly, which may include:

• Furnace or air handler cabinet
• Blower housing / scroll assembly
• Squirrel cage blower wheel
• Motor mounting bracket or belly band
• PSC run capacitor
• Furnace control board or fan relay
• Speed tap wiring
• Ground connection

This motor may replace an existing blower motor when the original equipment requirements match the replacement motor’s voltage, horsepower range, RPM, frame size, shaft diameter, shaft length, capacitor rating, rotation, and mounting style. It should not be selected by horsepower alone.

Installation Considerations

• Verify the original motor horsepower and confirm it falls within the 3/4–1/5 HP range.
• Confirm system voltage is 115 VAC, 60 Hz.
• Match the original motor’s RPM before installation.
• Confirm frame size, mounting style, shaft diameter, and shaft length.
• Use the correct run capacitor rating specified for the motor.
• Select the correct speed tap for proper heating and cooling airflow.
• Confirm rotation before reinstalling the blower assembly.
• Inspect the blower wheel for dirt buildup, cracks, imbalance, and loose set screws.
• Replace weak, swollen, or incorrect capacitors during motor installation.
• Make sure the motor is properly grounded.
• Do not operate the motor outside the correct blower housing unless permitted by the manufacturer’s instructions.

Common Requests:

1. Replacement motor for Wagner WG840466 direct drive furnace blower
2. 115V 3/4 HP to 1/5 HP PSC furnace blower motor replacement
3. Cross reference for GE 3466 blower motor
4. Replacement motor for Fasco D2832 direct drive furnace blower
5. Universal 115 VAC multi-speed direct drive HVAC blower motor
