Wagner WG840465 208-230V Multi-HP PSC Condenser Fan Motor 1075 RPM Reversible

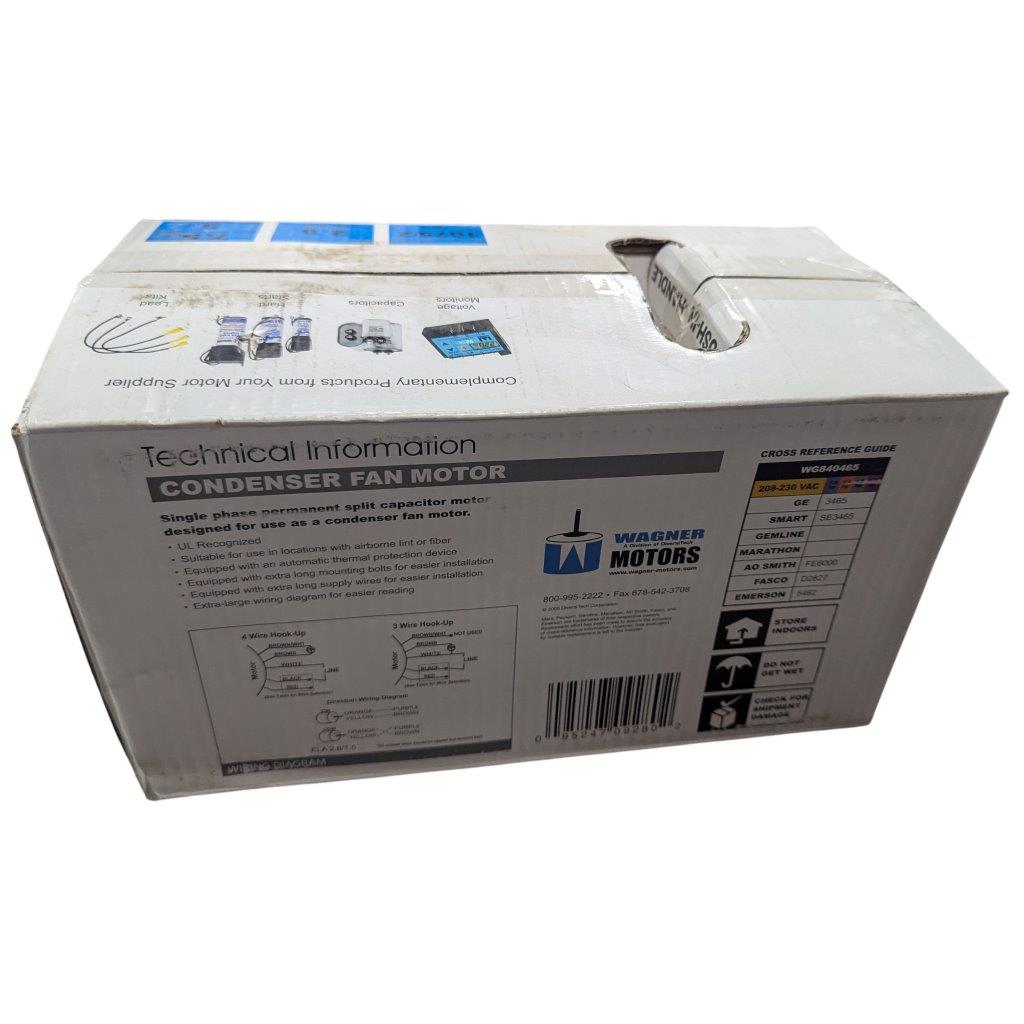

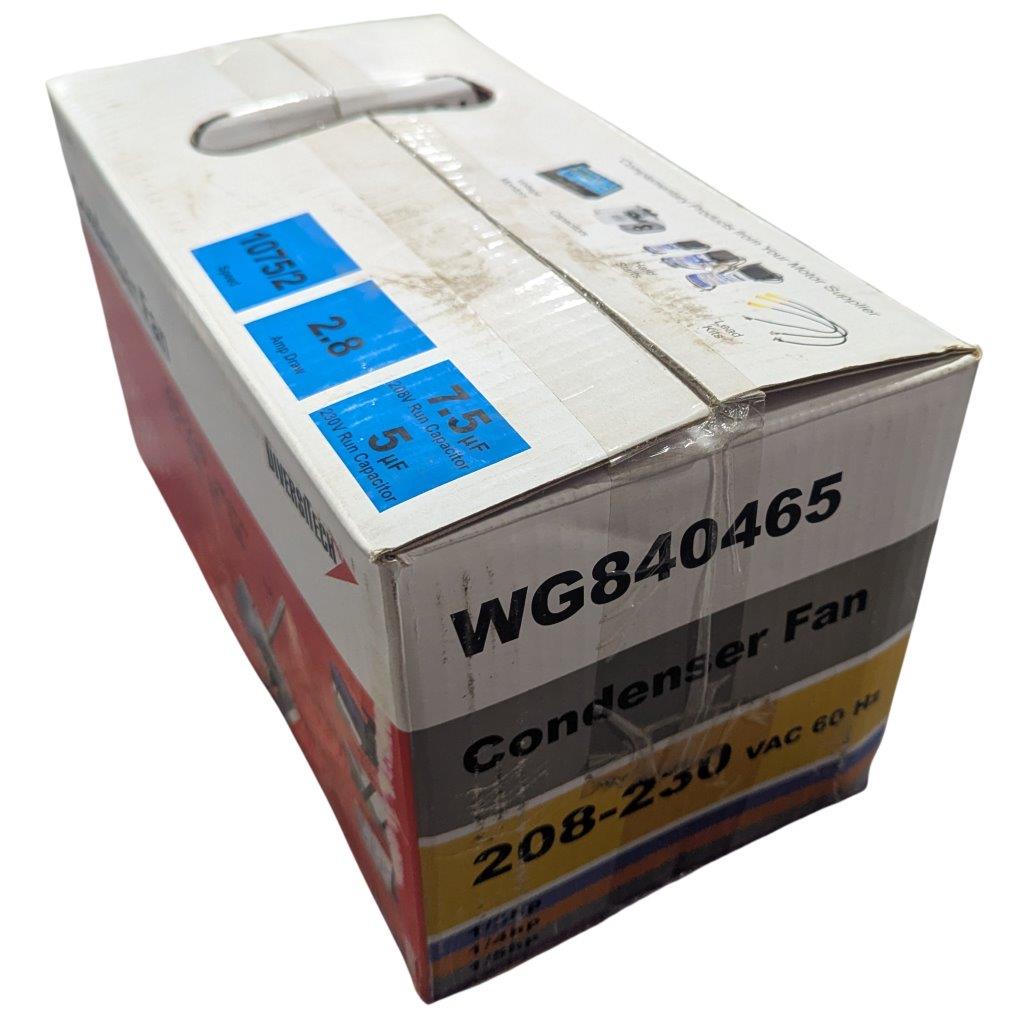

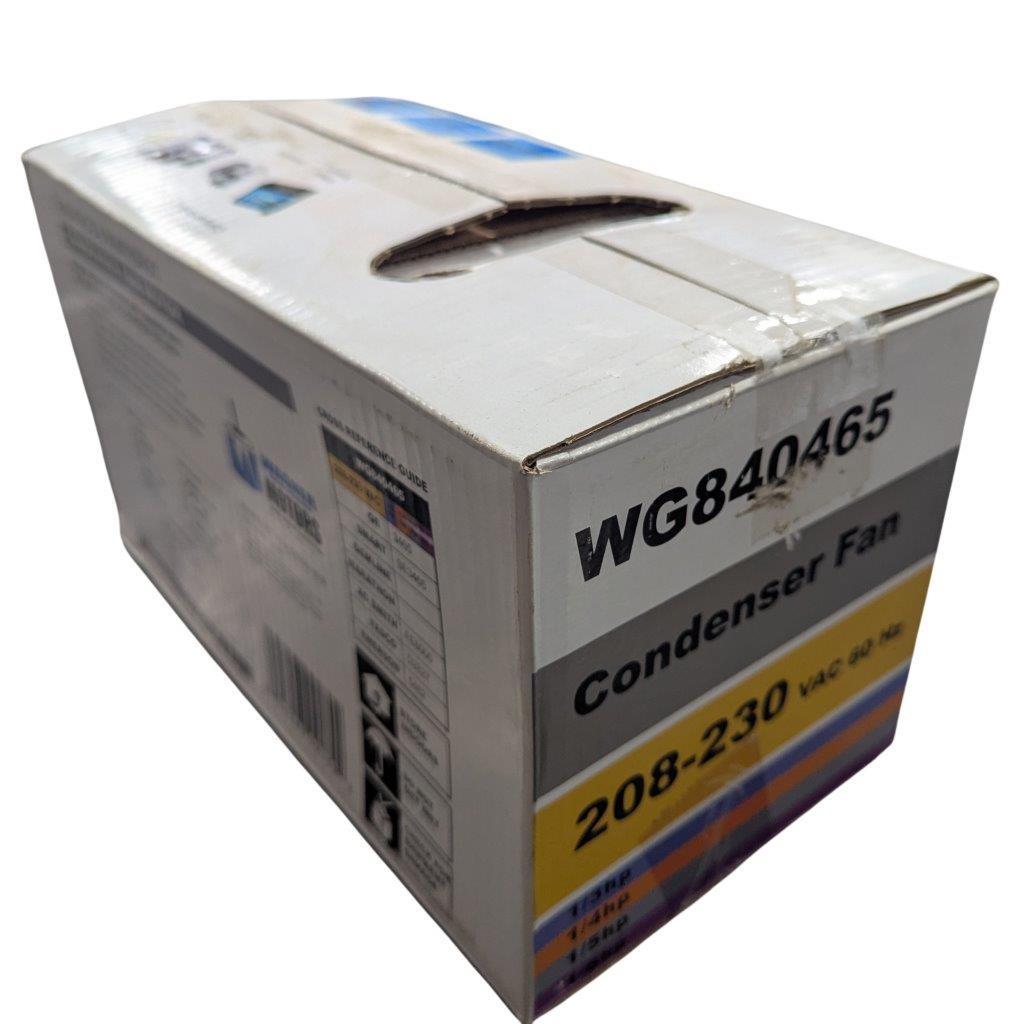

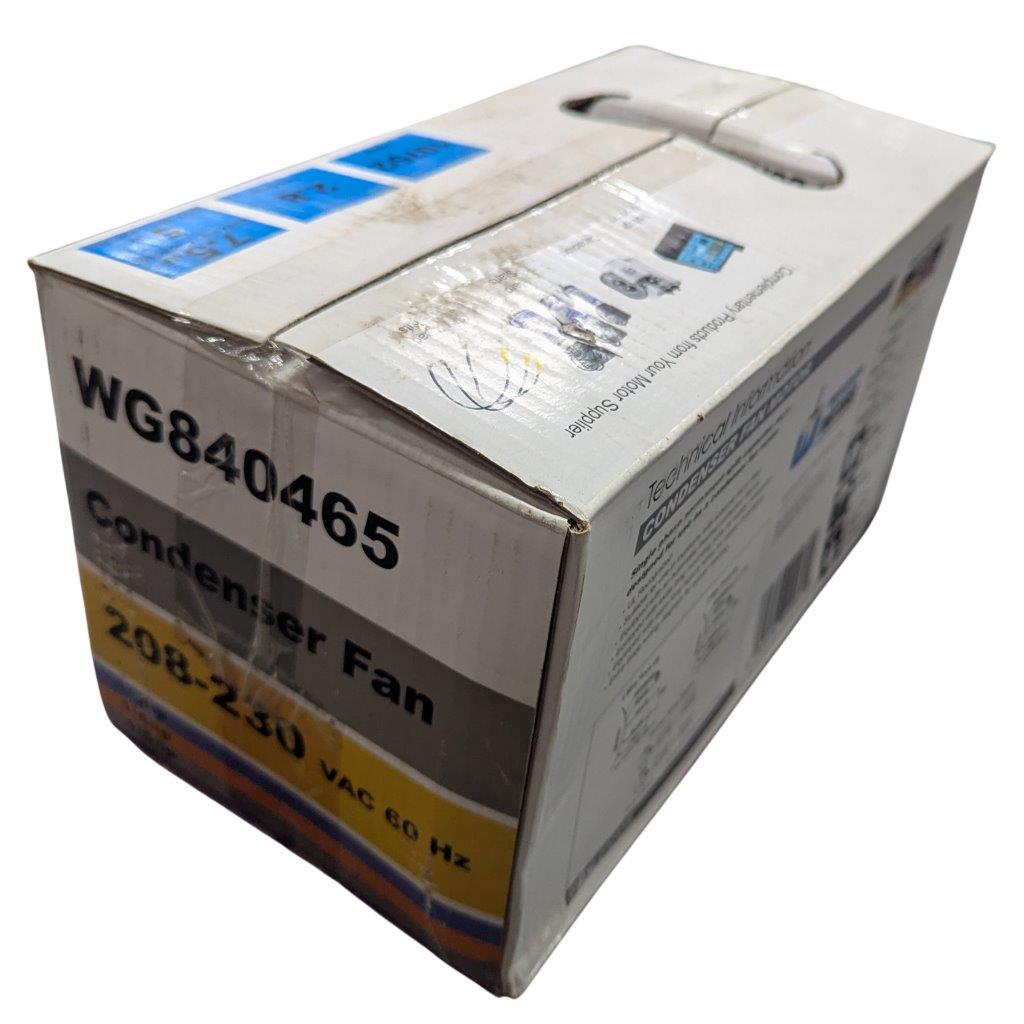

Condition: New, unused condenser fan motor in retail box; box shows storage wear, tape marks, scuffs, and minor crushing.

The Wagner WG840465 is a universal-style single-phase permanent split capacitor condenser fan motor designed for outdoor air-conditioning and heat-pump condenser applications. This motor is intended to replace several common 208-230 VAC condenser fan motors used in residential and light commercial HVAC equipment. It supports multiple horsepower configurations, includes reversible rotation wiring, and is designed for service in condenser fan assemblies where reliable outdoor airflow across the condenser coil is required.

Features

• Brand / Series: Wagner Motors, a division of DiversiTech
• Model: WG840465
• Product Type: Condenser fan motor
• Motor Type: PSC — permanent split capacitor
• Voltage: 208-230 VAC
• Frequency: 60 Hz
• Horsepower Range: Multi-HP configuration: 1/3 HP, 1/4 HP, 1/5 HP, 1/6 HP
• Speed: 1075 RPM
• Full Load Amps: 2.8 / 1.5 A shown on box diagram
• Phase: Single phase
• Capacitor Requirements: 7.5 µF / 5 µF, 370V or 440V run capacitor compatibility indicated on packaging
• Rotation: Reversible
• Motor Shaft Rotation: CWSE/CCWLE or CCWSE/CWLE depending on wiring connection
• Thermal Protection: Automatic thermal protection device
• Application Rating: Suitable for condenser fan motor use
• Installation Features: Extra-long mounting bolts and extra-long supply wires for easier installation

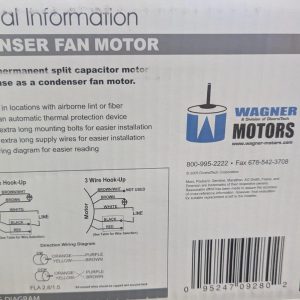

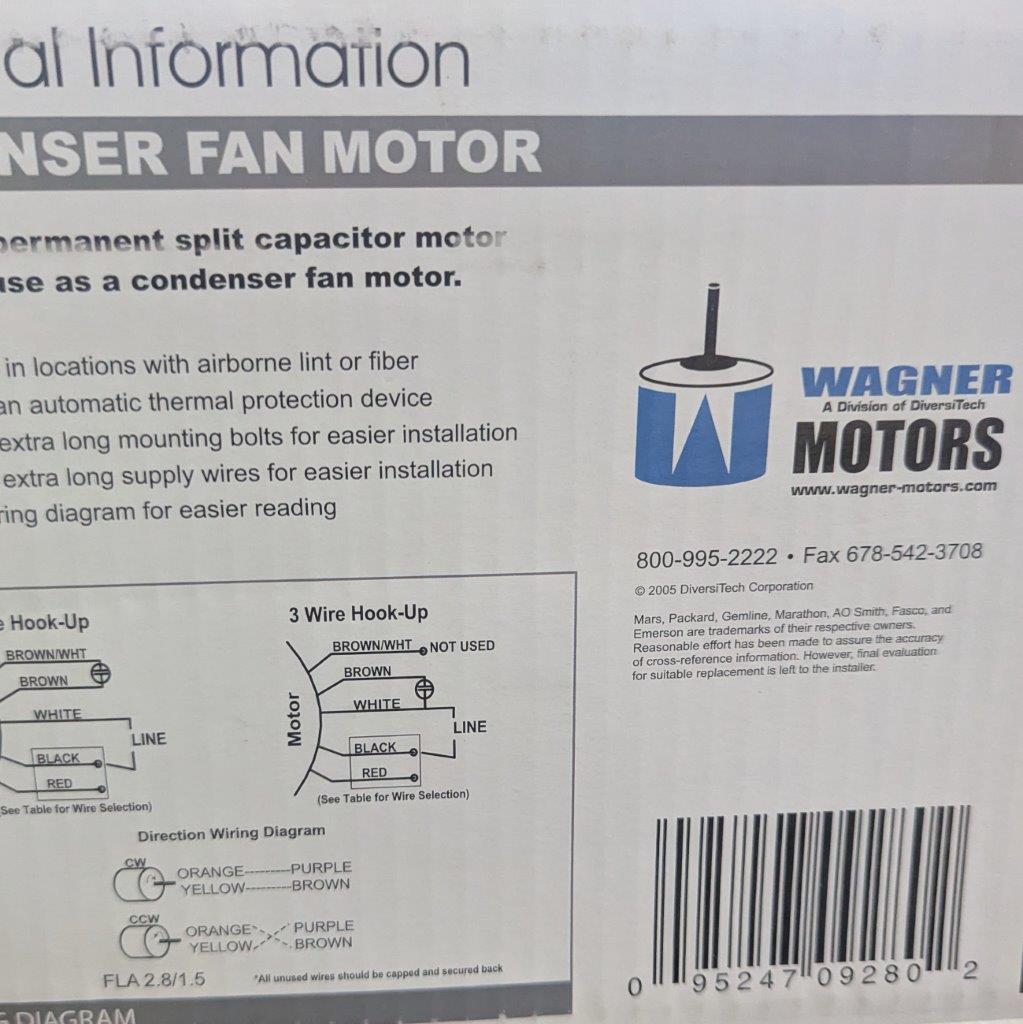

• Wiring: Includes connection diagram for 3-wire and 4-wire hook-up
• Storage Instruction: Store indoors; do not get wet
• UPC / Barcode: 095247092802

Applications

The WG840465 is used in HVAC condenser fan assemblies where the motor drives the outdoor fan blade to move air across the condenser coil. Common applications include:

• Residential central air conditioner condenser units
• Heat pump outdoor condenser sections
• Light commercial condensing units
• HVAC service replacement jobs
• Rooftop or split-system outdoor fan assemblies, when specifications match
• Maintenance inventory for HVAC contractors replacing failed condenser fan motors

This motor can be used as part of a larger outdoor condenser system that includes the fan blade, run capacitor, contactor, compressor, condenser coil, grille, and control wiring. Always match horsepower, voltage, RPM, frame size, shaft diameter, rotation, mounting style, and capacitor rating before installation.

Motor Specifications

• Horsepower: 1/3 HP, 1/4 HP, 1/5 HP, 1/6 HP selectable replacement range
• Voltage: 208-230 VAC
• Frequency: 60 Hz
• RPM: 1075 RPM
• Number of Speeds: Single speed
• Motor Type: Permanent split capacitor
• Phase: Single phase
• Enclosure Type: Condenser fan motor style; packaging references use in locations with airborne lint or fiber
• Thermal Protection: Automatic
• Capacitor: 7.5 µF or 5 µF, 370/440V as indicated on packaging
• Rotation: Reversible by wiring
• Shaft Rotation Format: CWSE/CCWLE and CCWSE/CWLE
• FLA: 2.8 / 1.5 A shown on wiring diagram
• CFM: Not rated by the motor alone; final airflow depends on condenser fan blade diameter, blade pitch, shroud, grille design, and condenser cabinet

Cross-Referenced Models

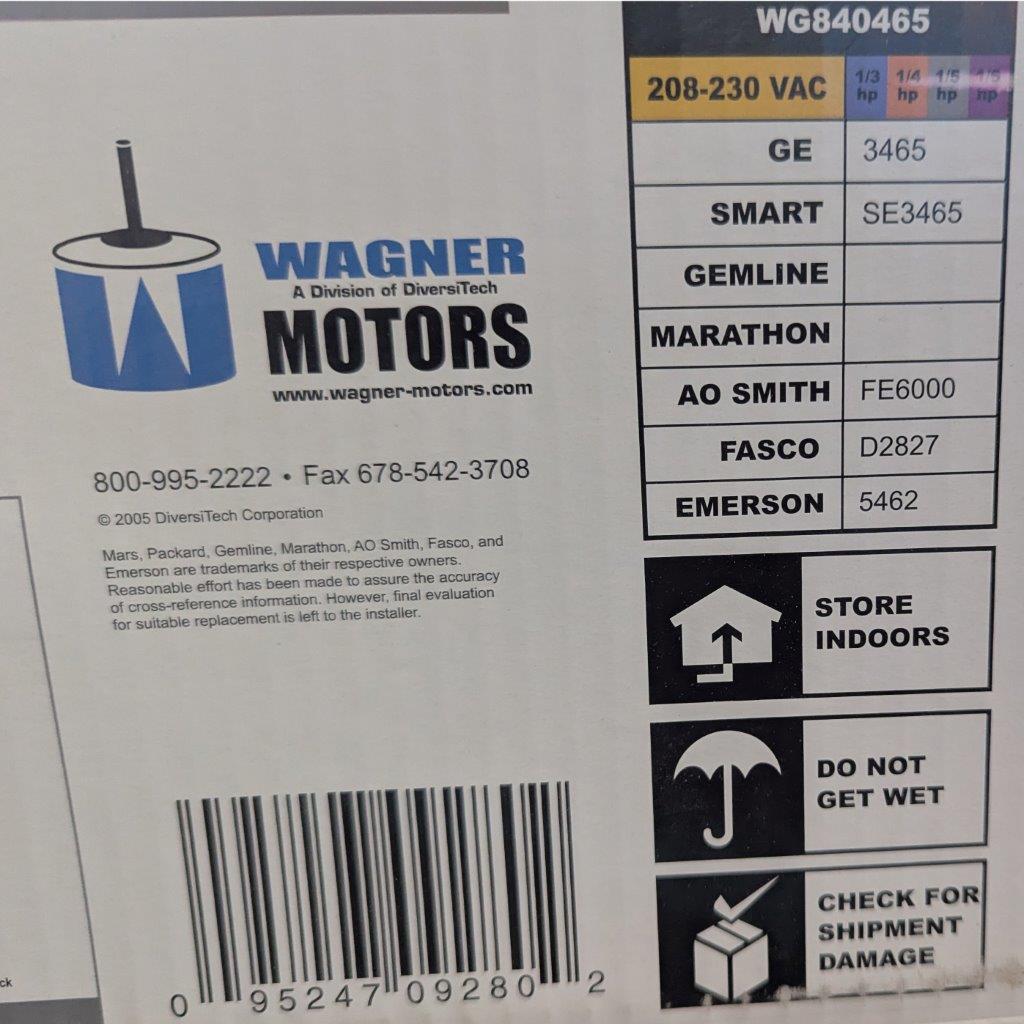

The packaging lists the following replacement references:

• GE 3465
• Smart Electric SE3465
• A.O. Smith FE6000
• Fasco D2827
• Emerson 5462

Additional manufacturer names shown in the cross-reference notice include Mars, Packard, Gemline, Marathon, A.O. Smith, Fasco, and Emerson, but only the specific model numbers visible above are listed on the box.

Comparable Products

Comparable condenser fan motors may include:

• GE 3465 — multi-HP 208-230V condenser fan motor equivalent
• Smart Electric SE3465 — comparable replacement condenser fan motor
• A.O. Smith FE6000 — PSC condenser fan motor reference
• Fasco D2827 — condenser fan motor replacement reference
• Emerson 5462 — comparable 208-230V condenser fan motor

Installation Notes

This motor should be installed by a qualified HVAC technician. Before replacement, verify the old motor’s horsepower, voltage, RPM, frame, shaft length and diameter, rotation, capacitor rating, and mounting configuration. Unused wires should be capped and secured. A properly matched run capacitor is required for PSC motor operation.
