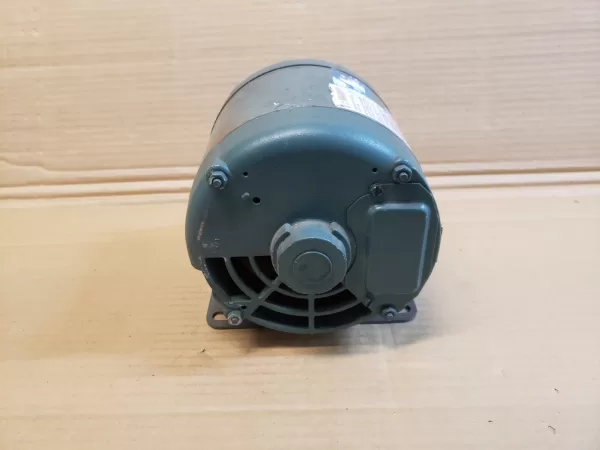

Leland Faraday Electric Motor M-660E, 8-182386-01 1725RPM 3Phase 1/2HP
Refurbished, Overstock spare reserve motor, no longer needed.
The Leland Faraday Electric Motor M-660E, with model number 8-182386-01, is a robust 3-phase motor designed for industrial applications. It operates at a speed of 1725 RPM and has a power rating of 1/2HP (horsepower).
This motor is suitable for use in various industrial settings where reliable and efficient motor operation is required. It can power machinery, equipment, or systems that require moderate horsepower and consistent rotational speed. With its durable construction and high-quality components, the Leland Faraday Electric Motor M-660E is built to withstand the demands of industrial environments and provide long-lasting performance.
Specifications:
Item Number: M-660
Brand: Leland Faraday
Item Category: Motor
Description:
Stock No: M-660E
Data Code: EF
Model: 8-182386-01
HP: 1/2
RPM: 1725
Volts: 208-230/460
FL Amps: 1.8-2.2/1.1
Hertz: 60
Phase: 3
Service Factor: 1.25
Insul. Class: B
Frame: BA56
Duty: Cont
Max. Ambient: 40
Type: SC
KVA Code Letter: L
| Weight | 15 lbs |
|---|---|
| Dimensions | 14 × 9 × 9 in |
| Horse Power (HP) | 1/2 |
| Speed | 1725 RPM |
| Voltage | 208-230V, 460V |
| Current | 1.8 A, 2.2 A |
| Brand | Leland Faraday |
| Frame Size | BA56 |
| Power Phase | Three Phase |
