Condition: Used
Product Description

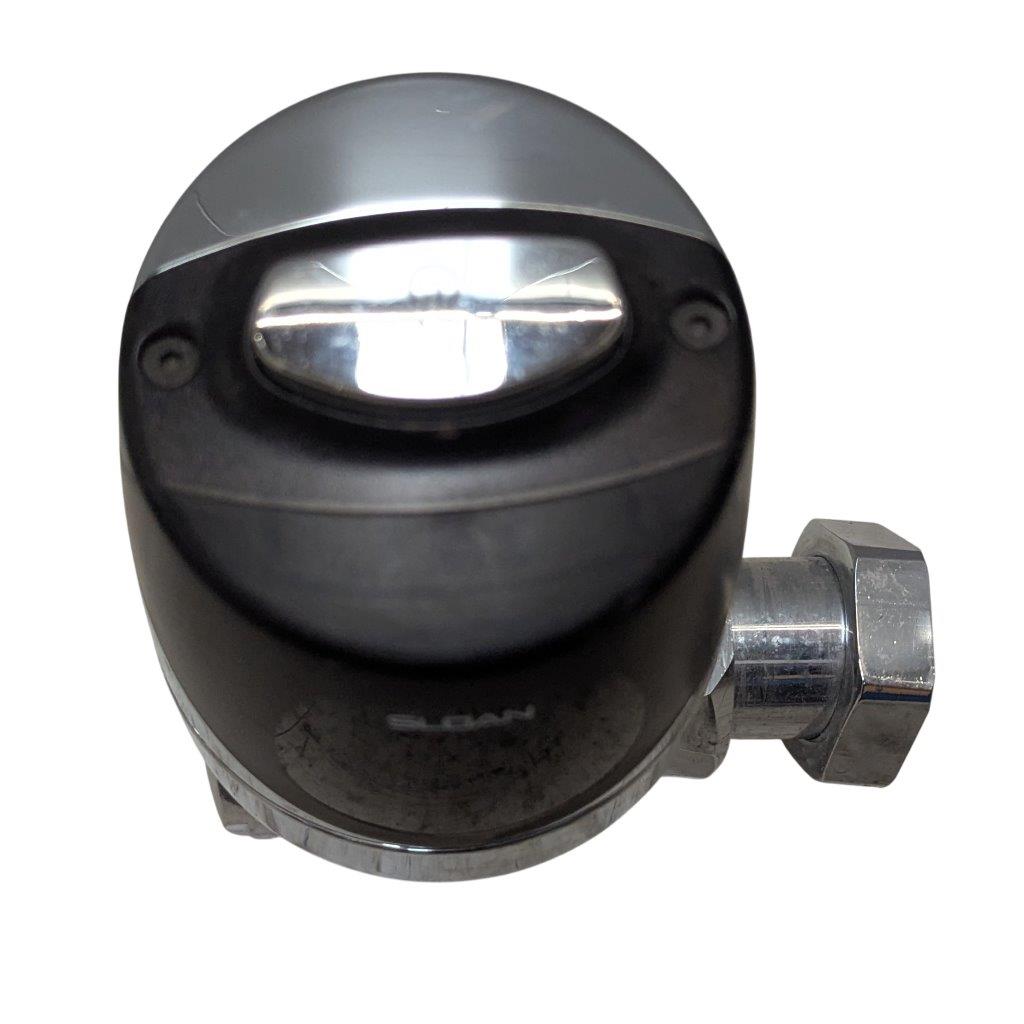

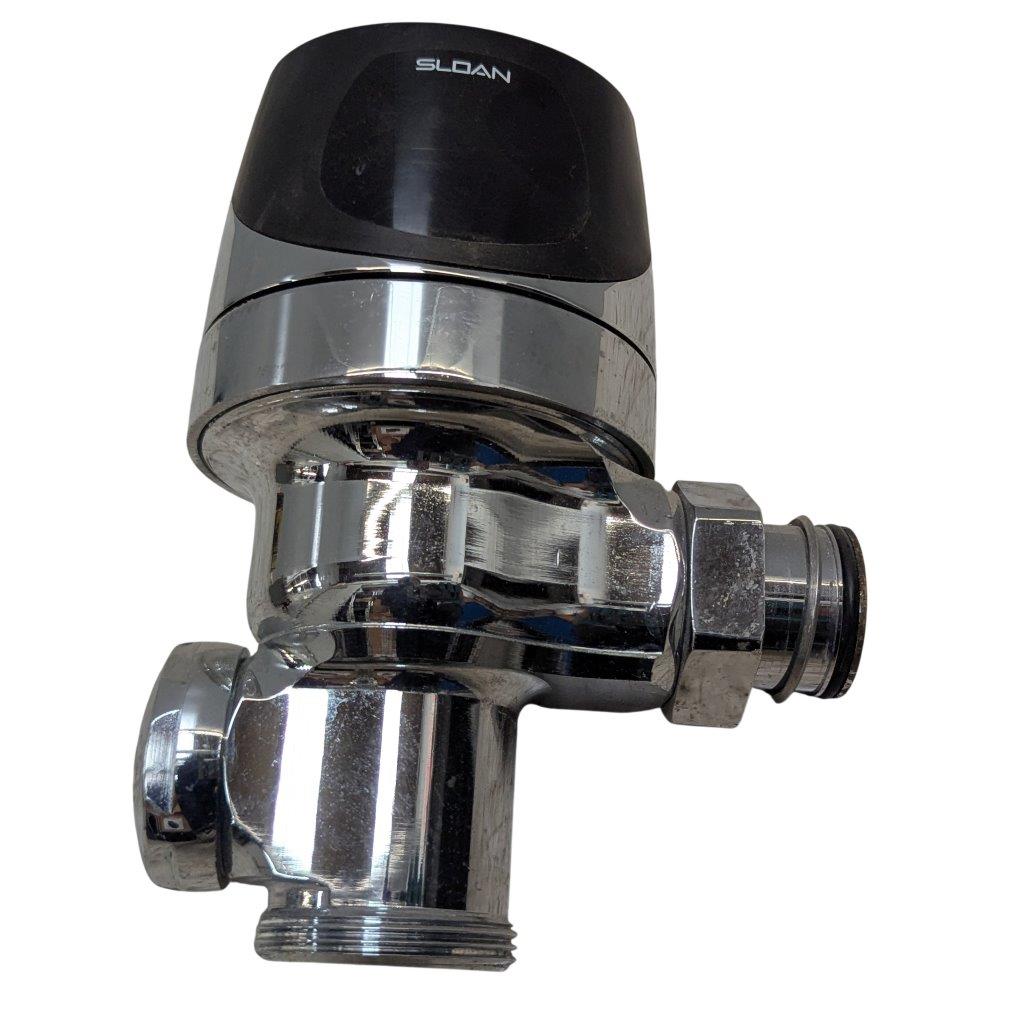

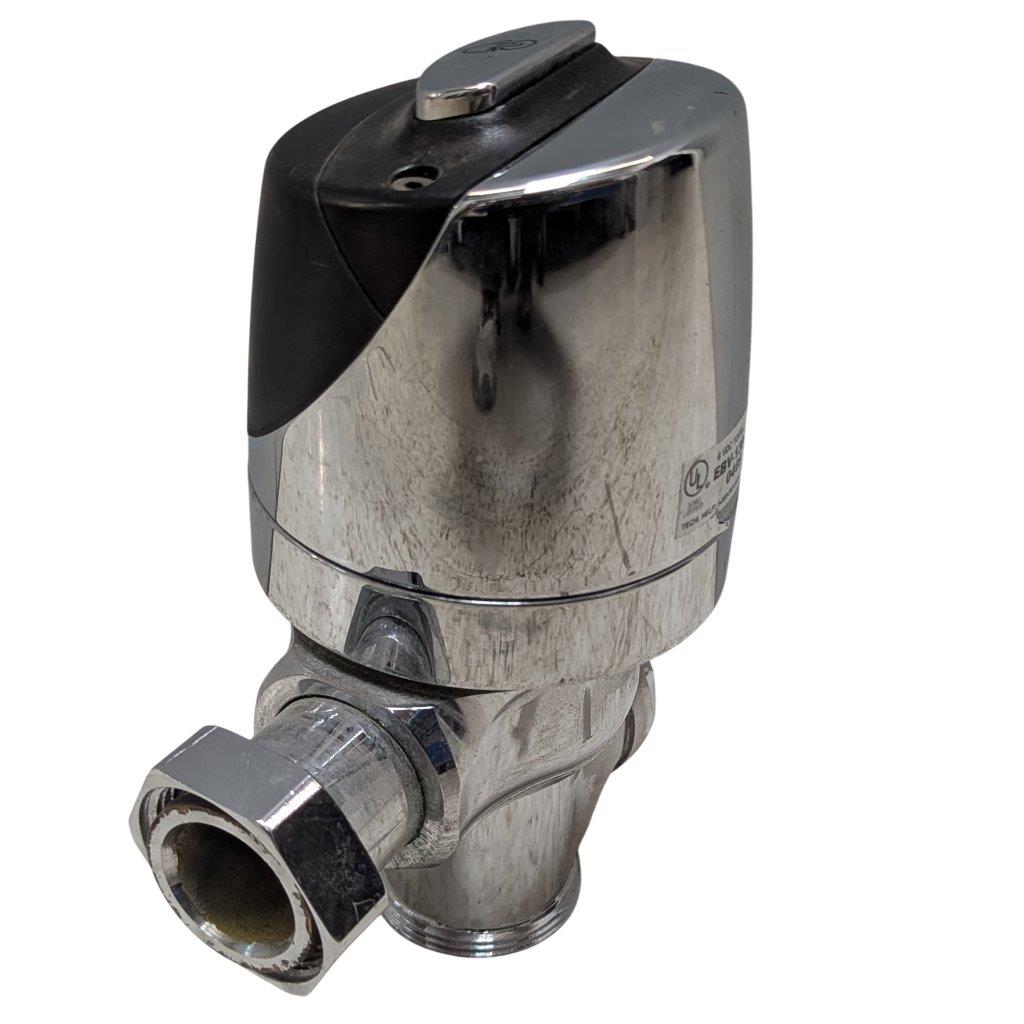

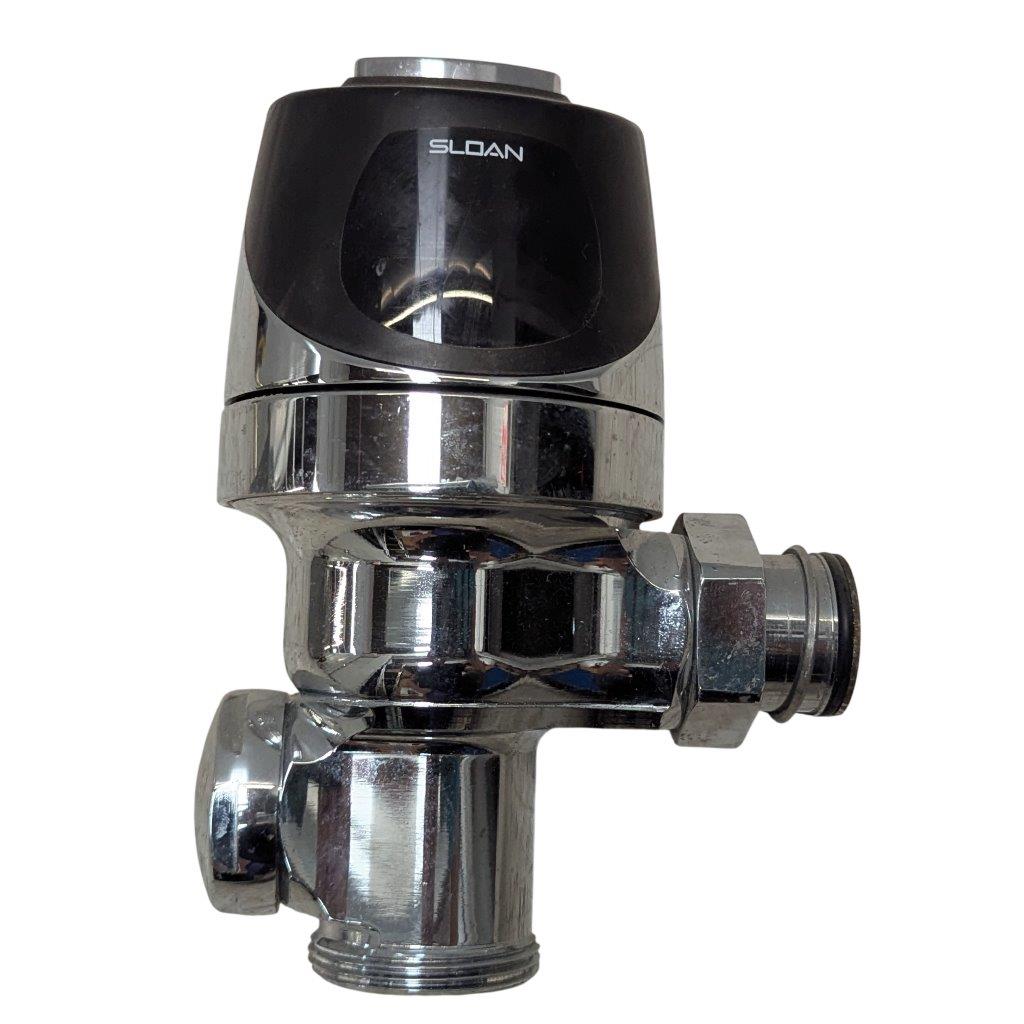

The Sloan EBV-138-A is an electronic cover, locking-ring, sensor, and actuator assembly designed for compatible Sloan ECOS and G2 single-flush water-closet flushometers. The assembly combines an infrared user sensor, manual override button, electronic control components, solenoid-operated valve interface, and chrome-plated exterior housing.
This unit is intended to repair or restore an existing automatic toilet flushometer rather than serve as a complete standalone flush valve. Sloan identifies the EBV-138-A as the single-flush water-closet sensor assembly for 1.28 GPF and 1.6 GPF applications.
Features
- Active infrared, hands-free user detection
- Automatic flush activation after the user leaves the sensing field

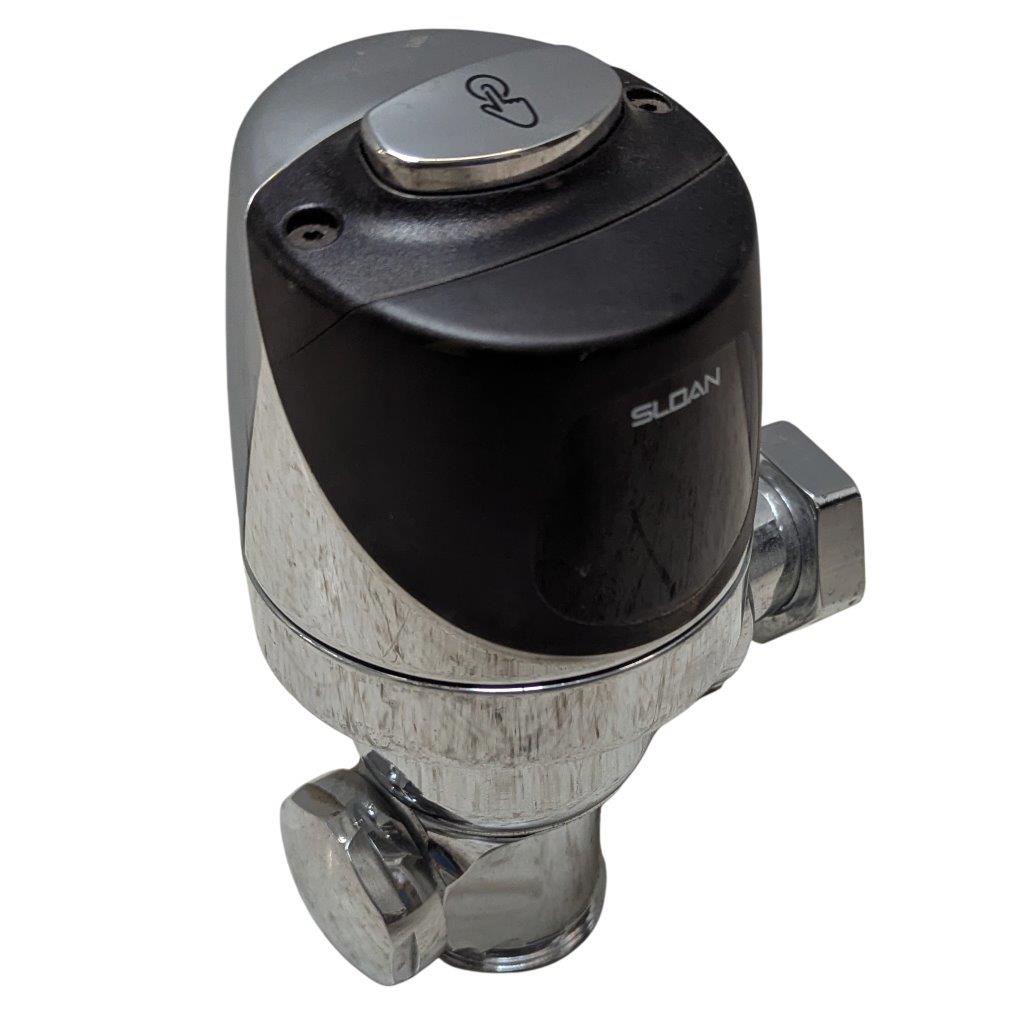

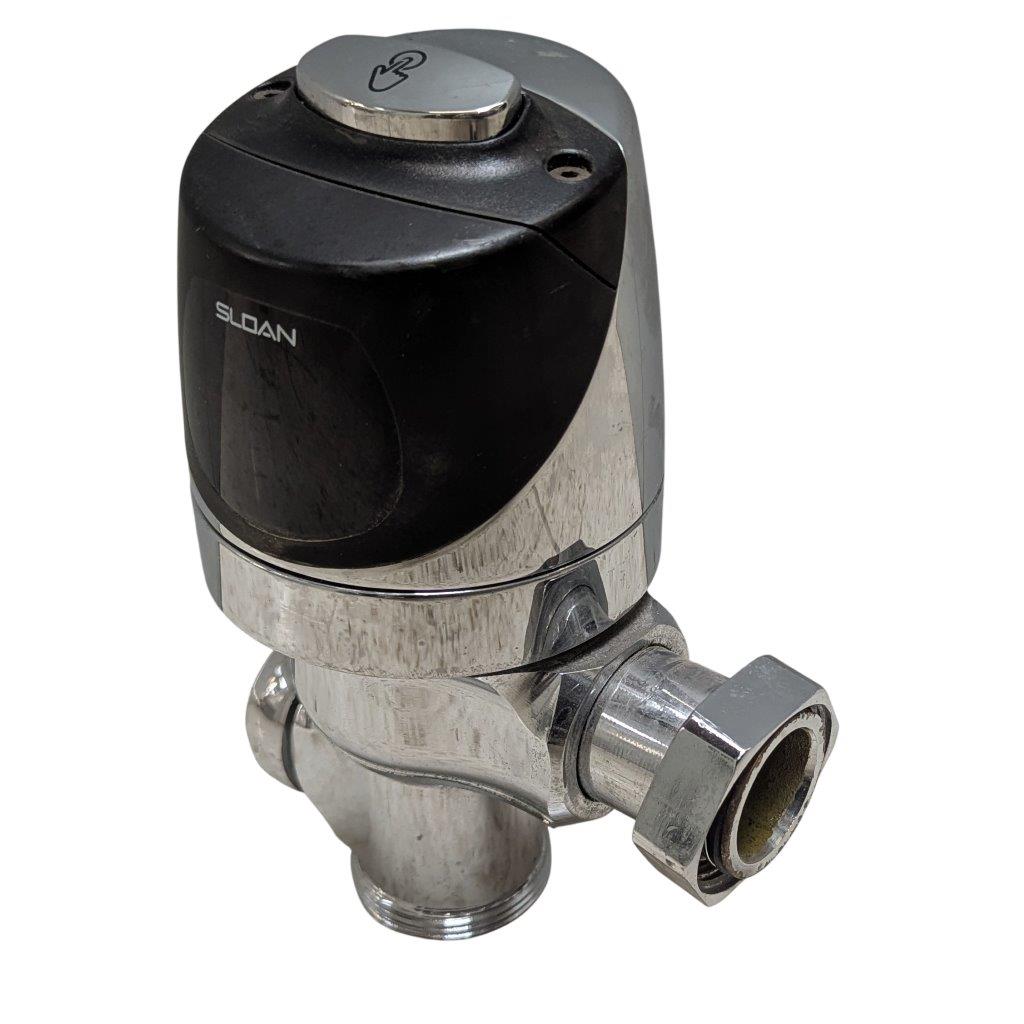

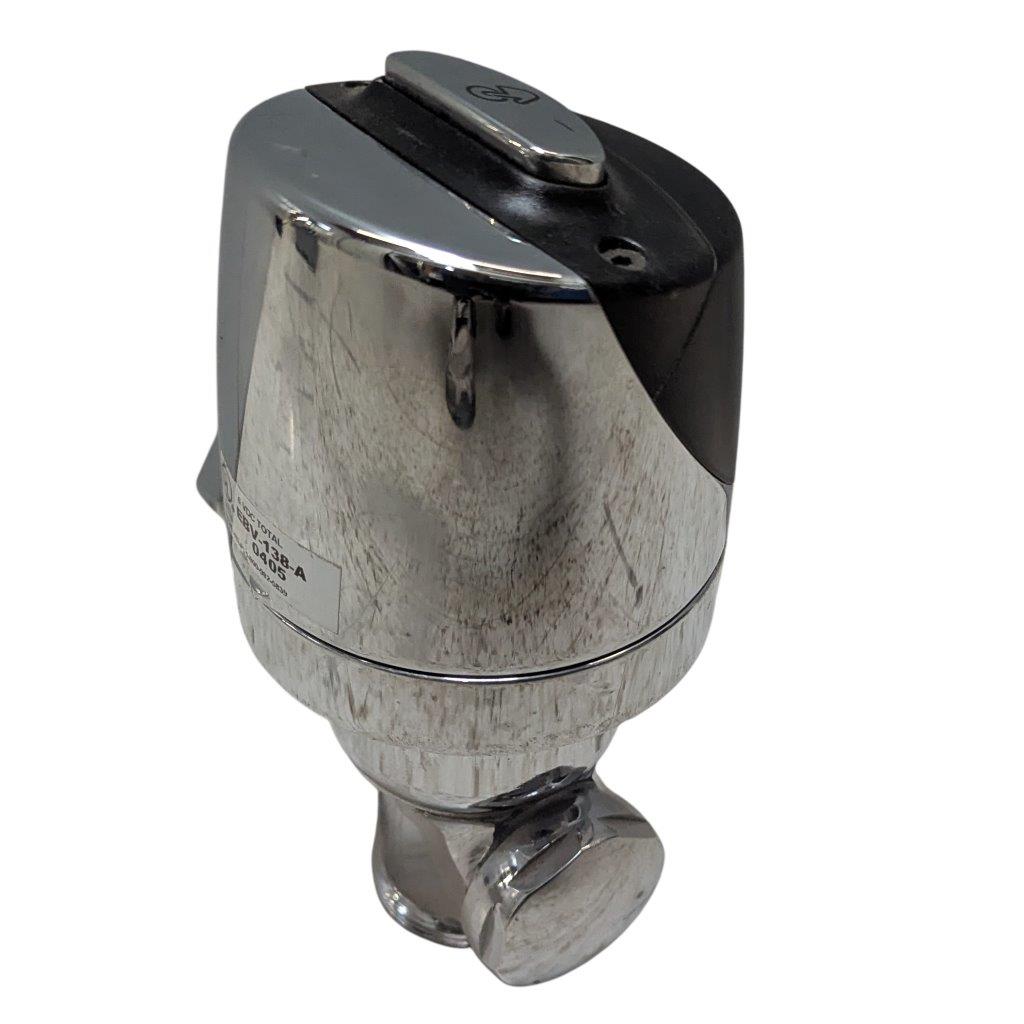

- Manual override button on top of the housing
- Designed for single-flush toilet or water-closet applications
- Compatible with 1.28 GPF and 1.6 GPF configurations
- 6 VDC operating system
- Typically powered by four AA batteries in the complete installation
- Self-adjusting infrared sensing system
- Chrome-plated commercial fixture finish
- Integrated electronic control and sensor housing
- Solenoid-operated flush activation
- Replaceable service assembly for compatible Sloan flushometers
- Suitable for retrofit and complete-valve configurations
- Touch-free operation helps reduce contact with restroom fixtures
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Sloan |
| Model | EBV-138-A |
| Ordering code | 0325160PK; earlier literature may show 0325160 |
| Product type | Electronic flushometer cover, ring, and sensor assembly |
| Fixture type | Water closet/toilet |
| Flush operation | Automatic single flush with manual override |
| Supported flush volumes | 1.28 GPF and 1.6 GPF |

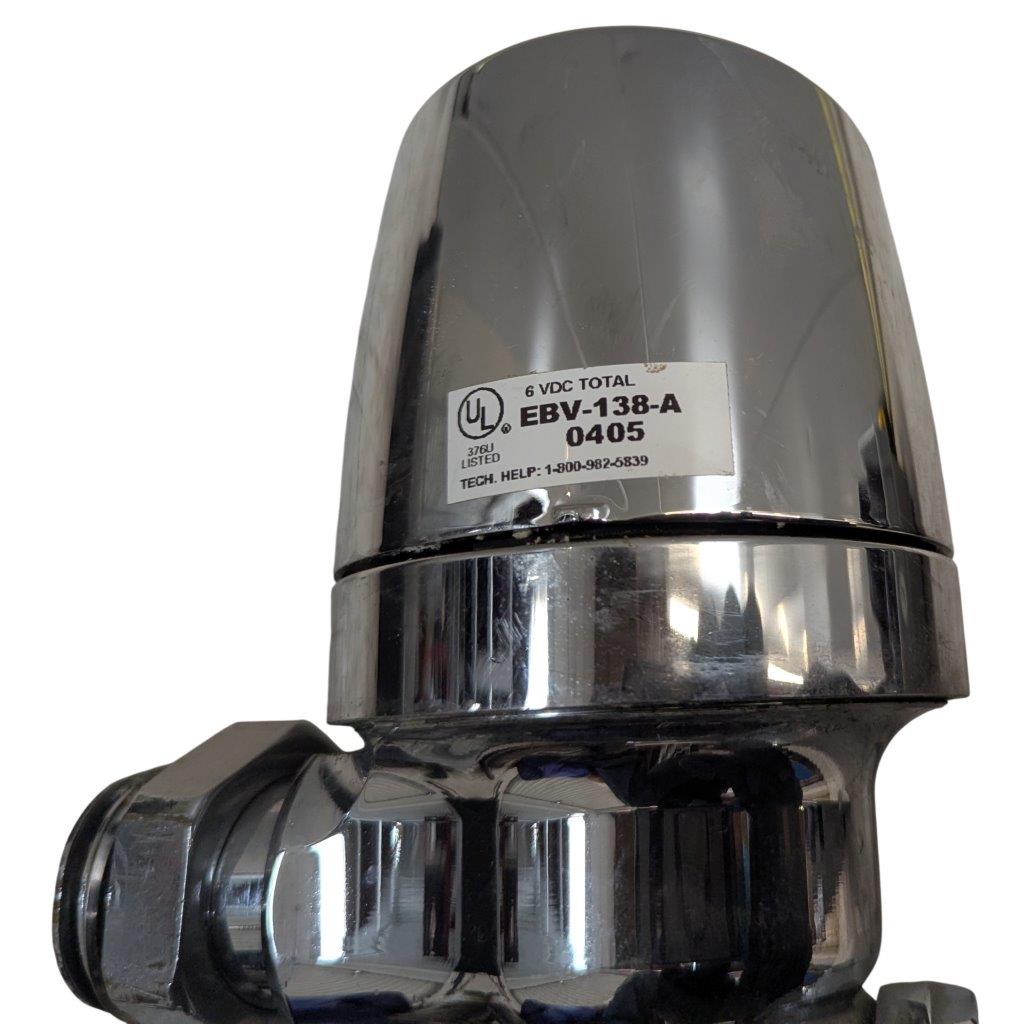

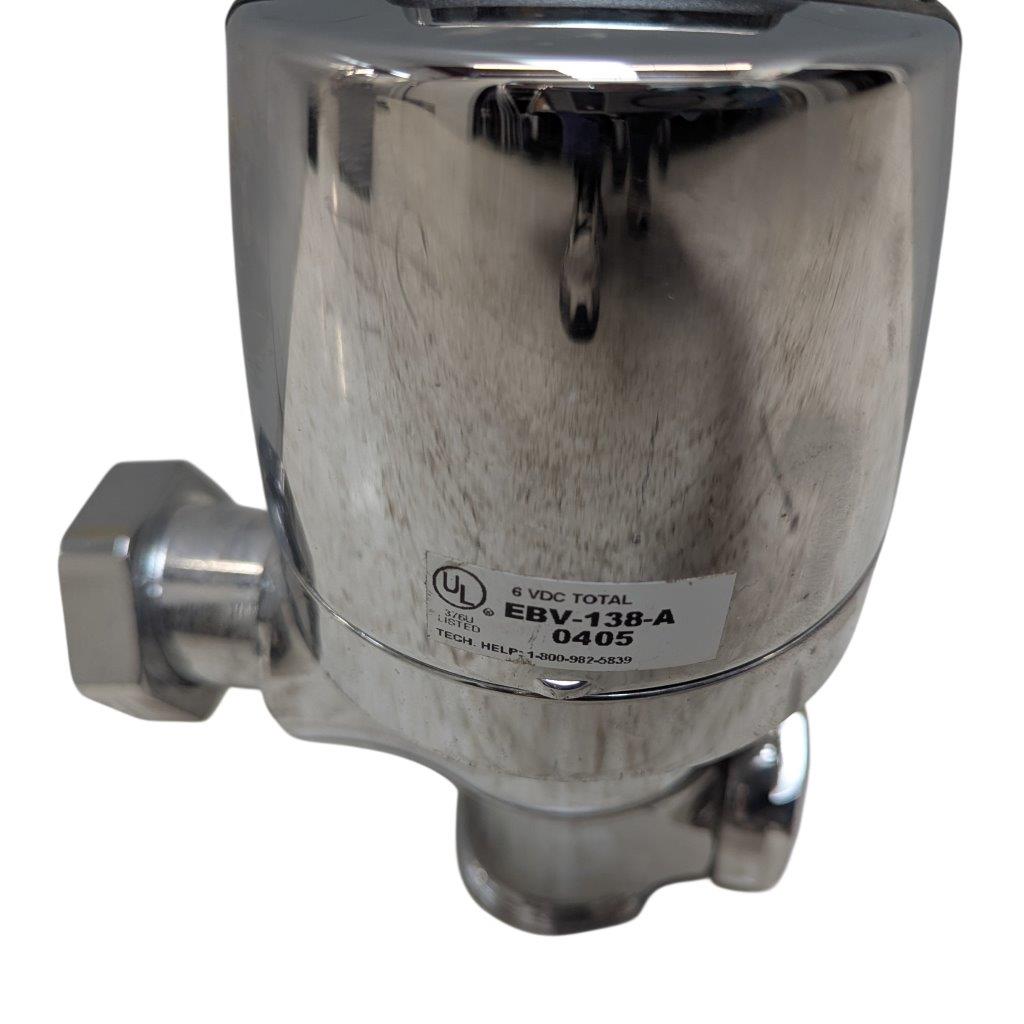

| Electrical rating | 6 VDC total |
| Typical power source | Four AA batteries |
| Sensor type | Active infrared |
| Finish | Chrome-plated housing with black sensor window |
| Installation type | Replacement or retrofit flushometer assembly |
| Valve actuation | Electronic solenoid |
| Flushometer families | Sloan G2, G2 Optima Plus, ECOS, and appropriate RESS retrofit installations |
| Complete flushometer included | No |
| Batteries shown | No |
| Security wrench shown | No |
The complete G2 flushometer platform is designed for approximately 15–100 PSI operating water pressure, although the fixture’s required minimum flowing pressure and the installed flushometer body determine actual system requirements.
Applications
The EBV-138-A is used in commercial and institutional restroom plumbing systems, including:
- Office-building restrooms
- Schools and universities
- Airports and transportation terminals
- Hotels and convention centers
- Restaurants and entertainment venues
- Municipal buildings
- Manufacturing and warehouse facilities
- Stadiums and arenas
- Retail stores and shopping centers
- Healthcare-facility public restrooms
- Correctional and public-safety facilities
- Retrofit projects converting compatible manual flushometers to sensor operation
- Maintenance replacement for failed sensor or solenoid assemblies
Cross-Referenced Models and Service Parts
Direct model and ordering references
- Sloan EBV-138-A
- Sloan 0325160
- Sloan 0325160PK
- Grainger 3EPX6
Related Sloan repair components
- EBV-142-A / 0325168 — single-flush cover assembly
- EBV-130-A / 0325172 — manual button cover assembly with screws
- EBV-132-A / 0325170 — screw set
- EBV-131 / 0325169 — sensor lens window cover
- EBV-168 / 0325210PL — locking ring
- EBV-129-A-C / 3325450 — 1.28/1.6 GPF water-closet control module
- EBV-134 / 0325171 — cover rest plate
- EBV-145-A / 3325456 — inside cover assembly with solenoid
- EBV-136-A / 3325453 — replacement solenoid
- EBV-1024-A / 3325031 — 1.28 GPF water-closet diaphragm assembly
- EBV-1020-A / 3325001 — 1.6 GPF water-closet diaphragm assembly
These parts may replace individual sections of the EBV-138-A installation, but they are not necessarily complete substitutes for the entire assembly.
Comparable Products
- Sloan EBV-149-A / 0325166 — single-flush water-closet cover, ring, and sensor assembly designed with a ring for certain Zurn valve-body retrofit applications
- Sloan WES-55-A / 0372055 — dual-flush water-closet cover, ring, and sensor assembly
- Sloan EBV-378-A — 1.1 GPF single-flush water-closet assembly
- Sloan EBV-139-A / 0325161PK — single-flush urinal sensor assembly; not a direct toilet replacement
- Sloan EBV-150-A / 0325167PK — single-flush urinal sensor assembly with Zurn-compatible ring; not a direct water-closet replacement
- Sloan EBV-341-A — 0.5 GPF single-flush urinal assembly
- Sloan EBV-329-A — 0.25 GPF single-flush urinal assembly
- Sloan EBV-324-A — 0.125 GPF single-flush urinal assembly
The EBV-149-A is the closest related assembly when adapting to certain Zurn-style valve bodies; urinal versions differ in control programming and flush-volume configuration and should not be substituted for the EBV-138-A in a toilet installation.
Related
Sloan EBV138A sensor assembly, Sloan 0325160PK, Sloan 0325160, ECOS toilet sensor, G2 Optima Plus flushometer parts, automatic toilet flush valve sensor, 6 VDC flushometer actuator, infrared toilet valve, hands-free commercial toilet flusher, single-flush water-closet module, electronic flush valve repair assembly, Sloan toilet solenoid housing, restroom proximity flush valve, commercial plumbing sensor head, device that automatically flushes a toilet, touchless toilet valve control, Grainger 3EPX6, EBV-129-A-C module, EBV-145-A inside cover, EBV-136-A solenoid.
Common Requests:
- Sloan EBV-138-A 6 VDC toilet flushometer sensor replacement assembly
- Used Sloan 0325160PK ECOS single-flush water-closet sensor head
- Replacement sensor and solenoid assembly for Sloan G2 Optima Plus toilet
- Sloan EBV138A automatic flush valve cover ring and infrared sensor
- Commercial 1.28 and 1.6 GPF Sloan electronic toilet flushometer repair part
P127-1
| Weight | 7 lbs |
|---|---|
| Dimensions | 11 × 8 × 6 in |
