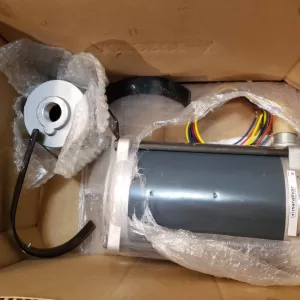

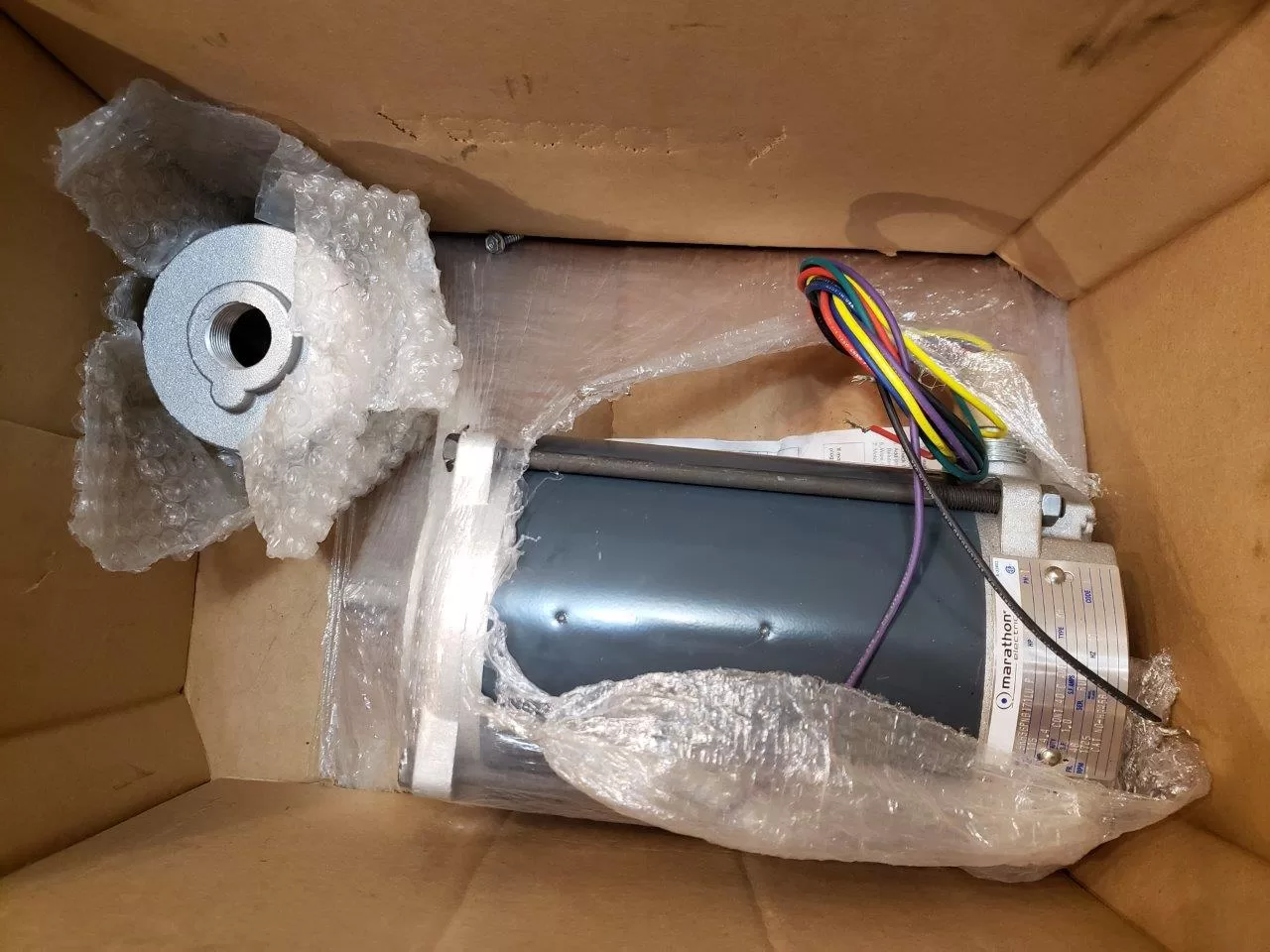

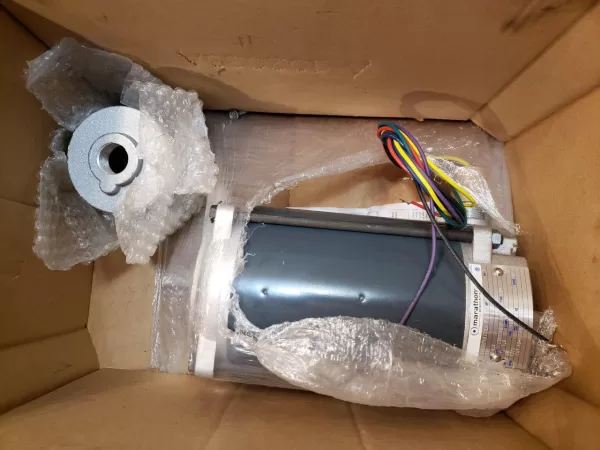

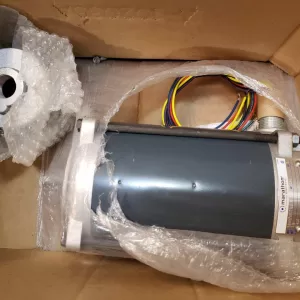

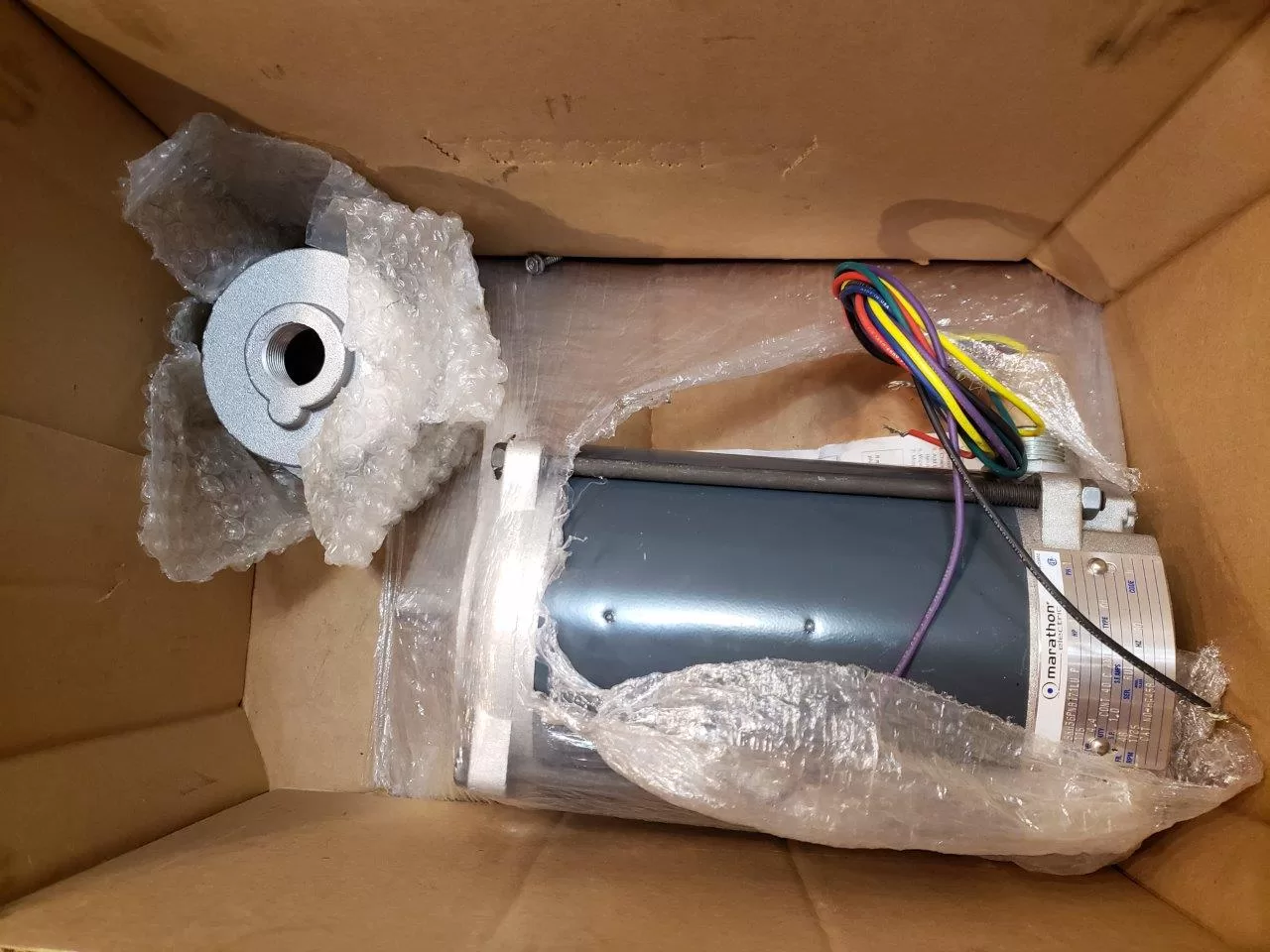

Name: Marathon Electric Motor 0.25 HP Explosion Proof Motor, 1 phase, 1800 RPM, 115 V, 48 Frame, EPNV - HG458
Brand: Marathon Electric
SKU: 2649
Price: 220 USD
Availability: OutOfStock

Marathon Electric Motor 0.25 HP Explosion Proof Motor, 1 phase, 1800 RPM, 115 V, 48 Frame, EPNV – HG458

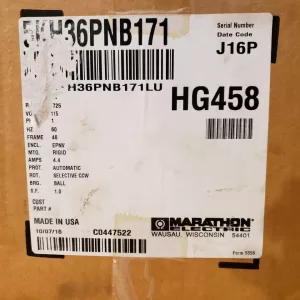

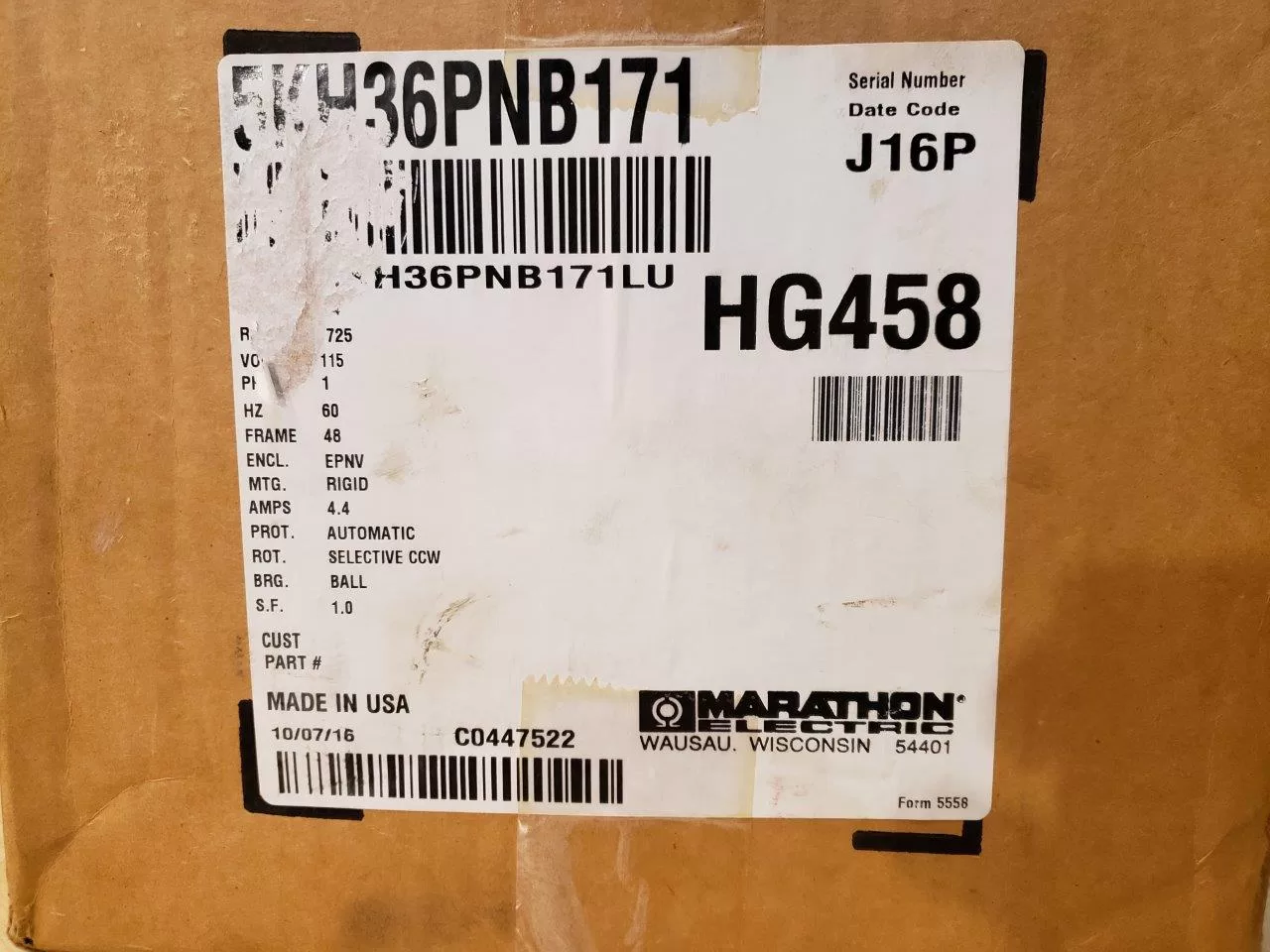

Catalog: HG458
Part: 5KH36PNB171
Automatic reset thermal protector
Meets temperature code T3B
Economical split phase design

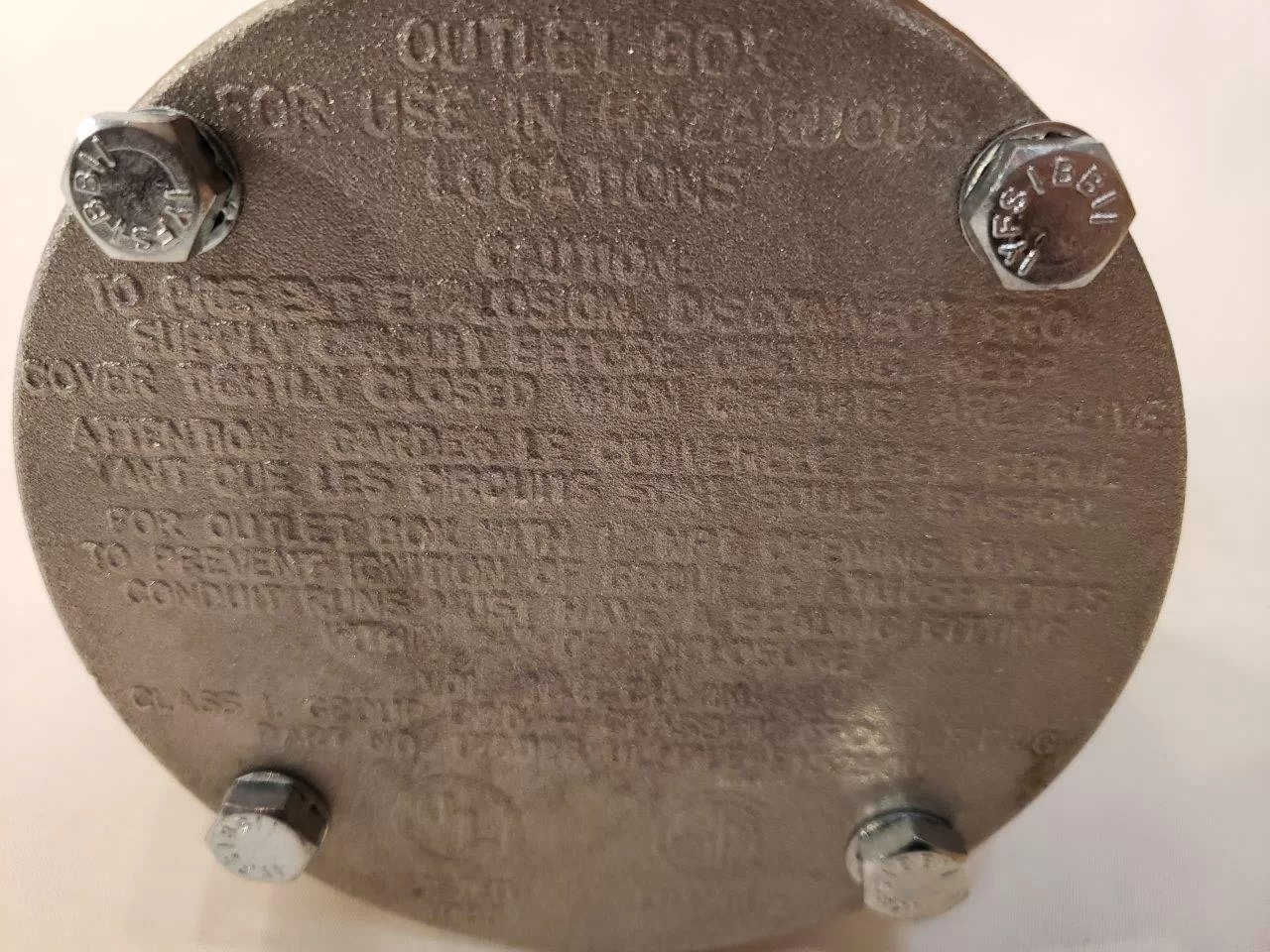

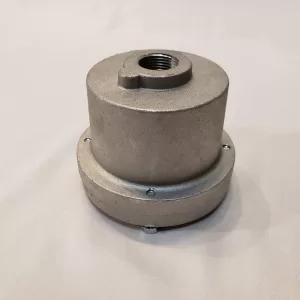

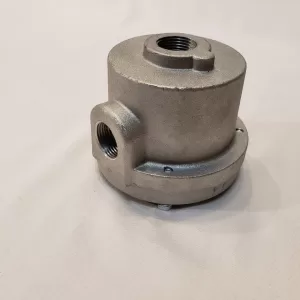

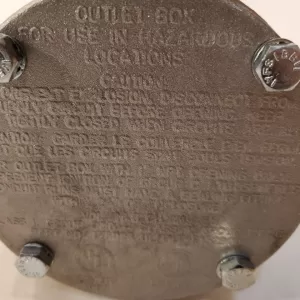

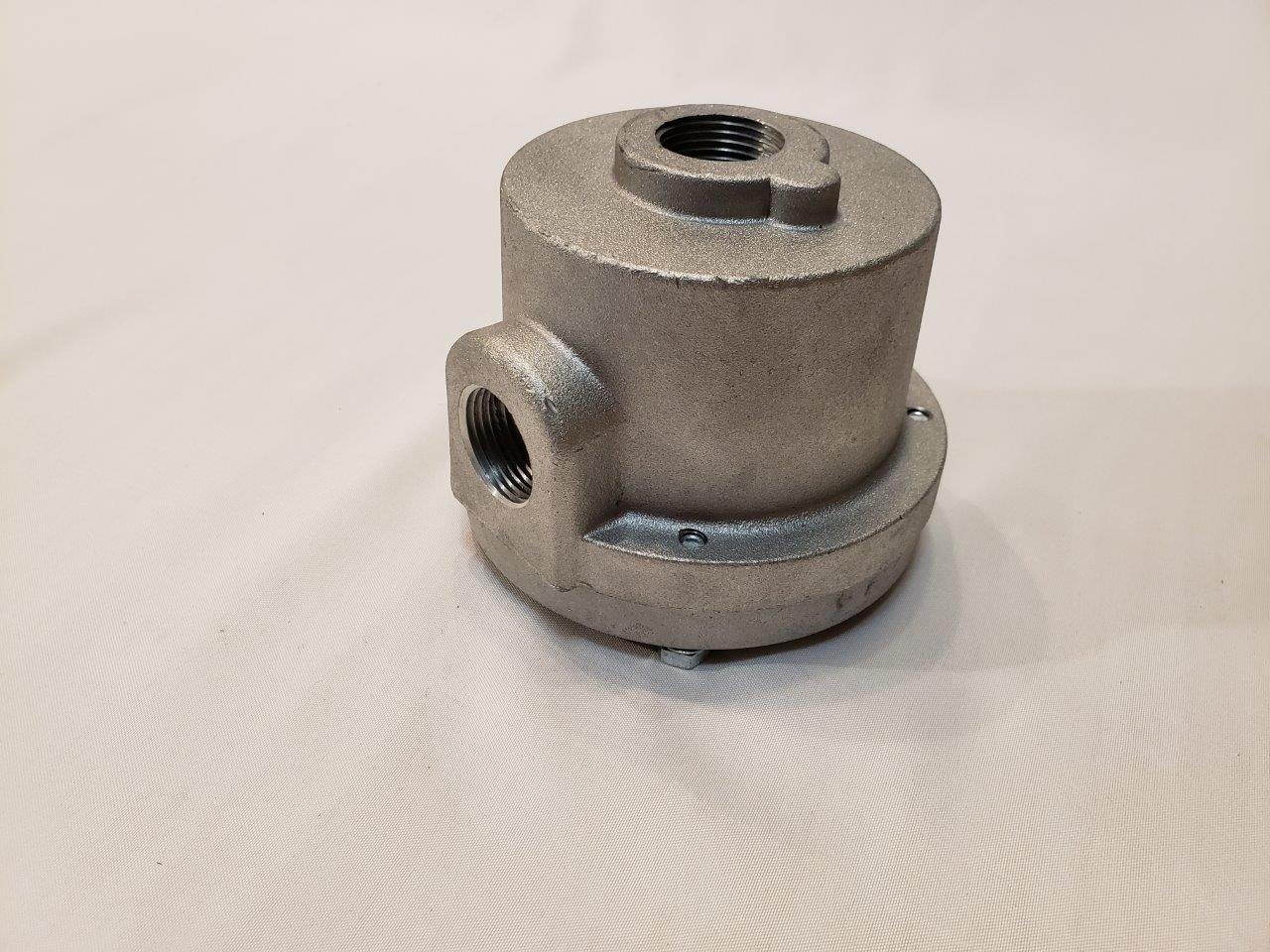

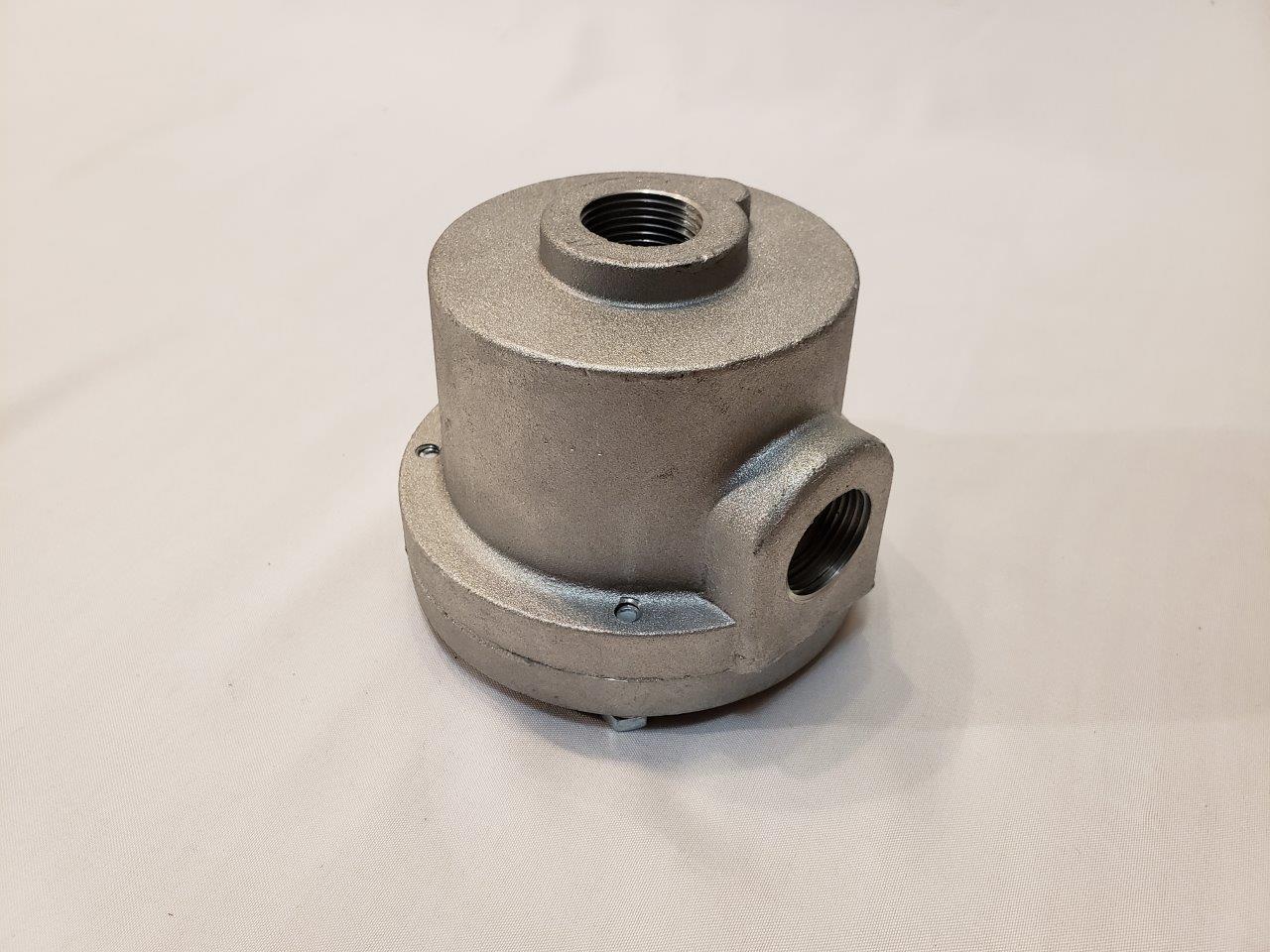

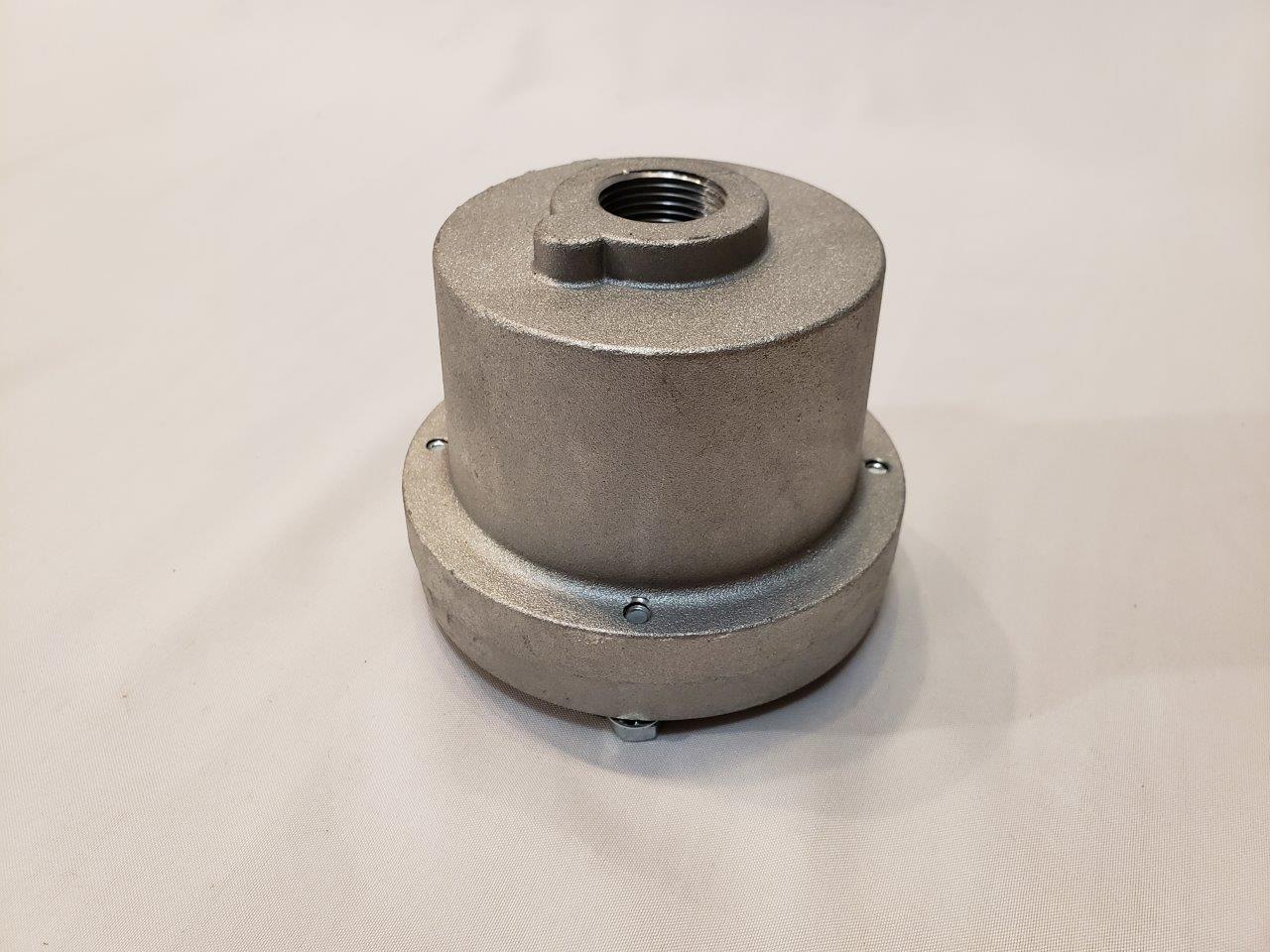

Explosion proof conduit box
Totally enclosed, non-ventilated

Product Specifications
General Specifications
UPC: 722856068545
Packaged Length: 16.12 IN
Packaged Height: 9.12 IN
Weight: 24.00 LB
Packaged Width: 10.25 IN

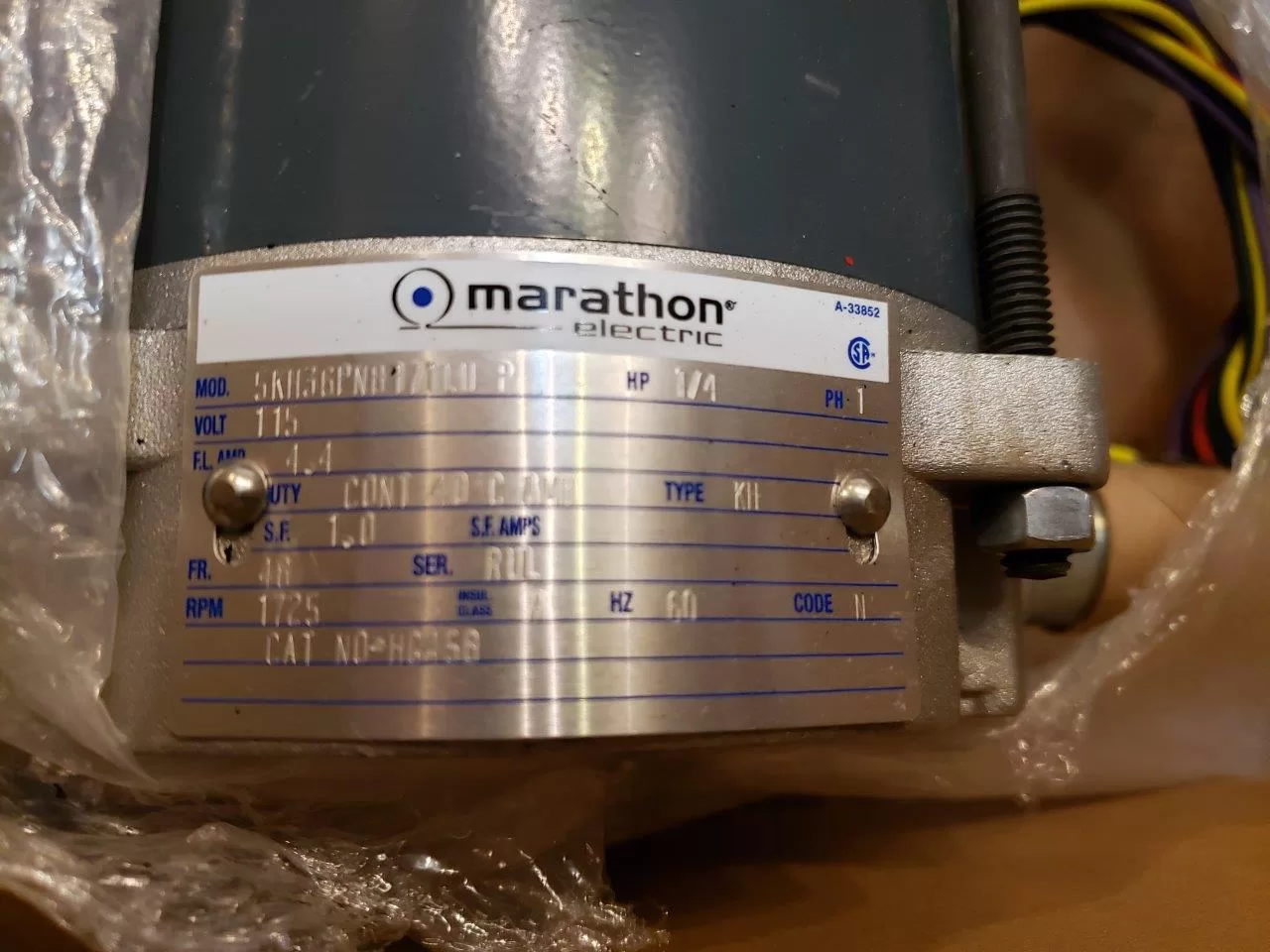

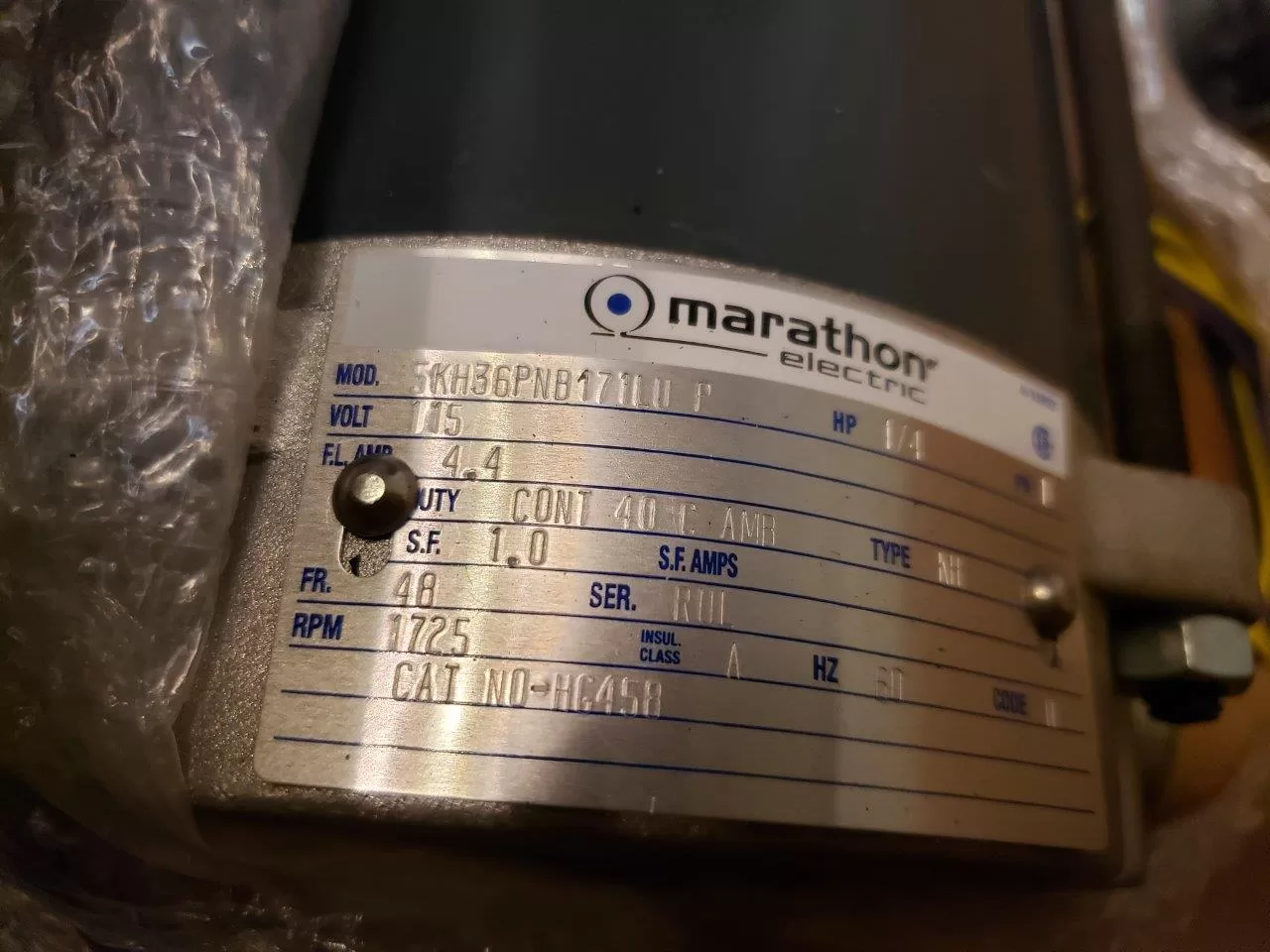

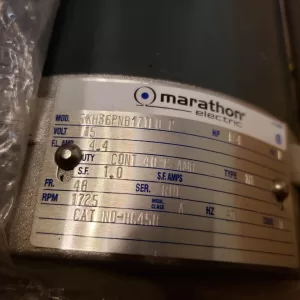

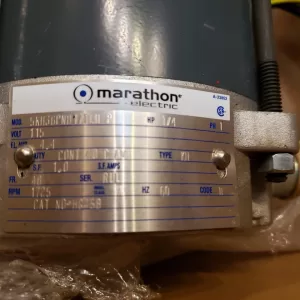

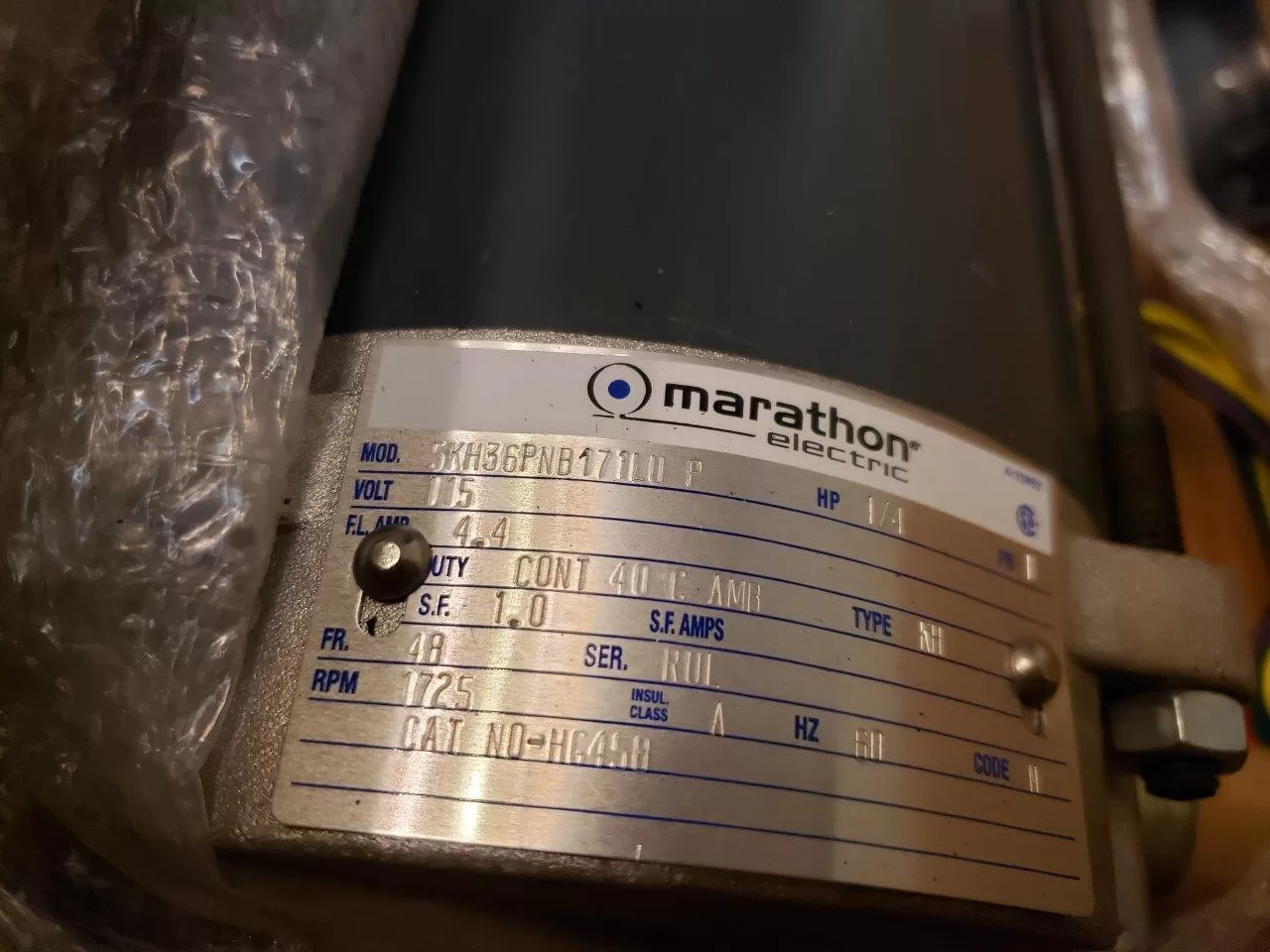

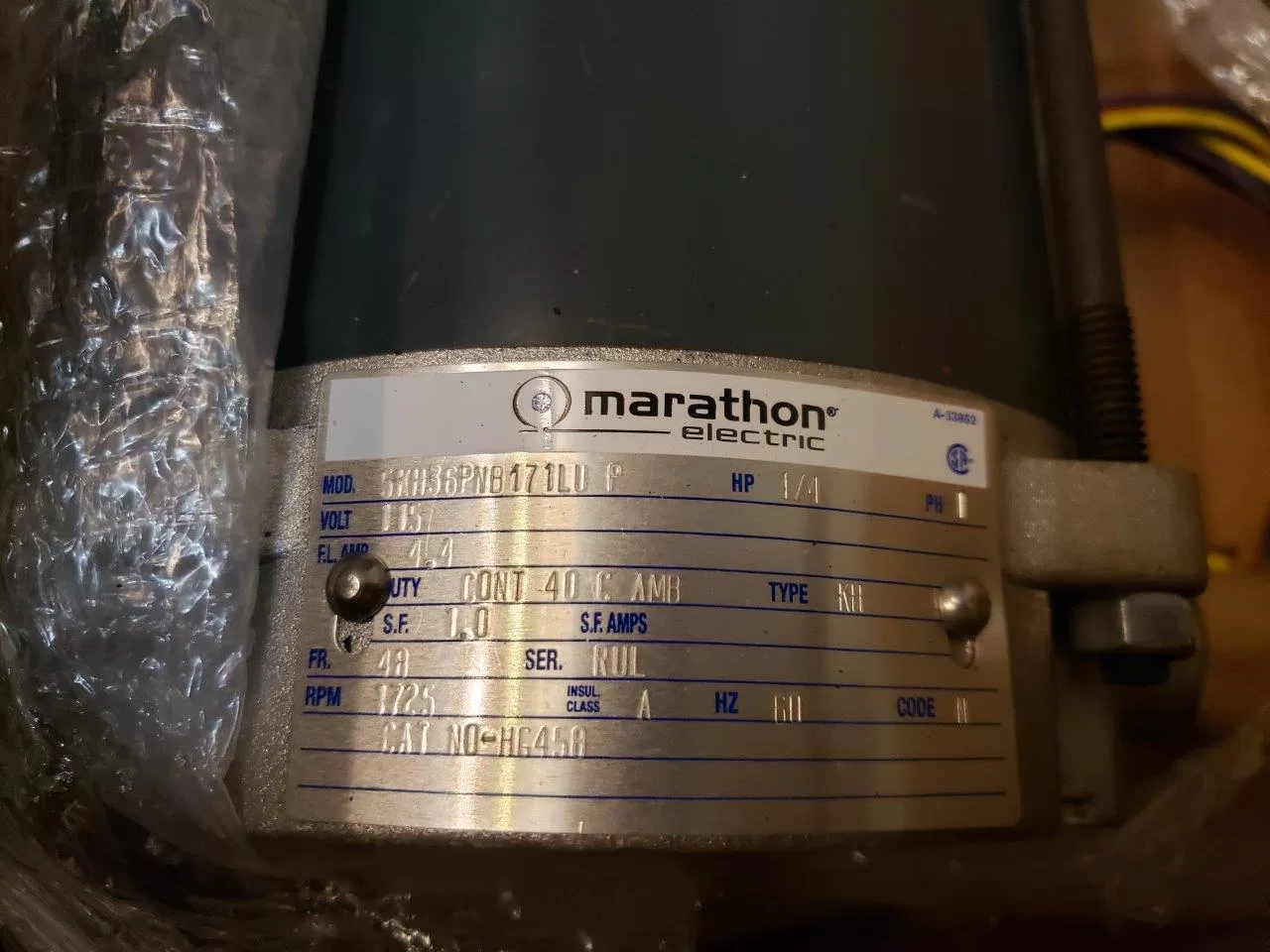

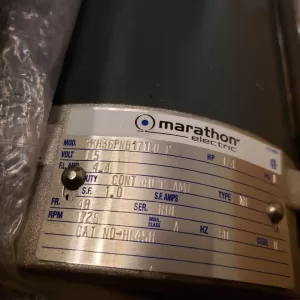

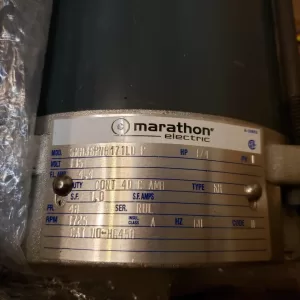

Nameplate Specifications
Output HP: 0.25 Hp
Frequency: 60 Hz
Current: 4.4 A
Service Factor: 1
Efficiency: 59.5 %
Duty: Continuous
Frame: 48
Thermal Protection: Automatic
Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified
CE: N
Hazardous Location: EXP PROOF CL I GR D CL II GR F&G T3B
Output KW: 0.19 kW
Voltage: 115 V
Speed: 1725 rpm
Phase: 1
Power Factor:67
Insulation Class: A
KVA Code: N
Enclosure: Explosion Proof Non Ventilated
Ambient Temperature: 40 °C
Opp Drive End Bearing Size: 6203
CSA: Y
IP Code: 54
Technical Specifications
Electrical Type: Split Phase
Poles: 4
Resistance Main: 0 Ohms
Motor Orientation: Horizontal
Opp Drive End Bearing: Ball
Shaft Type: NEMA 48
Frame Length: 6.23 in
Shaft Extension: 1.59 in
Starting Method: Across The Line
Rotation: Selective Counterclockwise
Mounting: Rigid base
Drive End Bearing: Ball
Frame Material: Rolled Steel
Overall Length: 10.74 in
Shaft Diameter: 0.500 in
Assembly/Box Mounting: F1 ONLY

Weight	23.5 lbs
Horse Power (HP)	1/4
Speed	1725 RPM
Voltage	115V
Current	4.4 A
