Honeywell Fire-Lite H355 Intelligent Thermal Sensor B350LP base, 135F

Honeywell Fire-Lite H355 Intelligent Thermal Sensor B350LP base, 135F

Description:

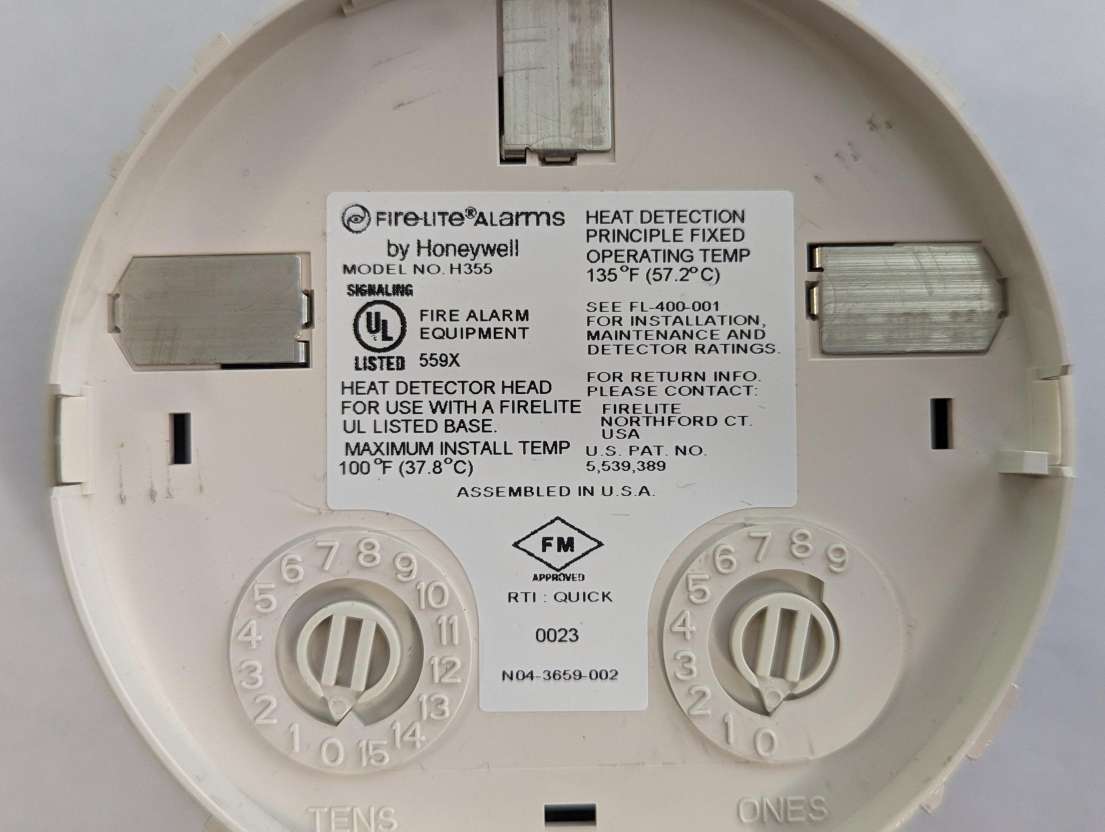

The Fire-Lite H355 is an intelligent thermal sensor with a B350LP base.
The Fire-Lite H355 thermal detector is an addressable sensor that uses a state-of-the-art thermistor sensing circuit for fast response. These sensors are designed to provide open-area protection and are intended for use with the Fire-Lite’s addressable Fire Alarm Control Panels (FACPs).
The H355 sensor provides fixed temperature alarm detection at 135 degrees (F ). This detector provides cost effective, addressable property protection in a variety of applications.
Two LEDs on each sensor provide a local status indication.

Specifications:
Size: 2.1″ (5.3 cm) high
Base: B350LP
Humidity range: 10% to 93% relative humidity (noncondensing)
Voltage range: 15 to 32 VDC peak
Standby current: 300 μA @ 24 VDC (one communication every five seconds with LED blink enabled)
LED current: 6.5 mA @ 24 VDC
Mounting: B350LP flanged base, included
Fixed-temperature setpoint: 135°F (57°C)
Rate-of-rise detection: responds to greater than 15°F (8.3°C) per minute.
SKU: H355
UPC: 783863021060
