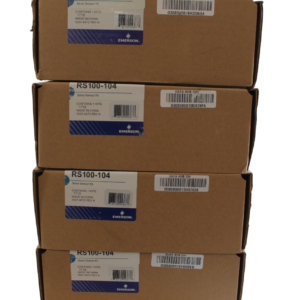

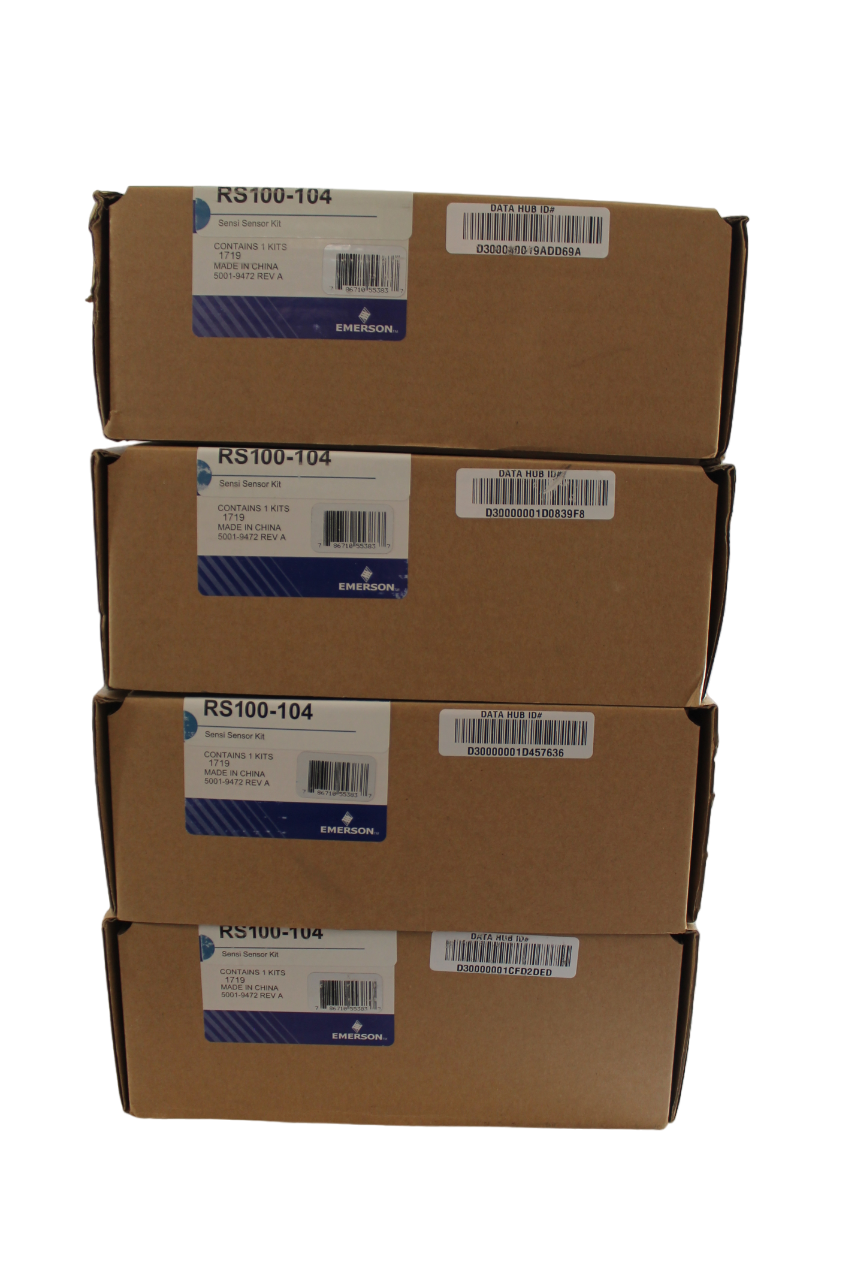

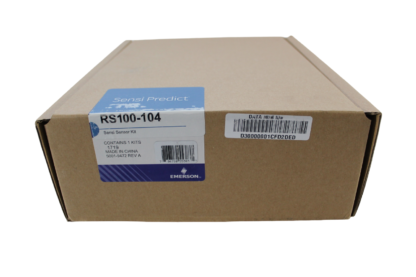

Emerson RS100-104 Sensi Predict Monitoring KIT24 by White-Rodgers

Emerson RS100-104 Sensi Predict Monitoring KIT24 by White-Rodgers

Brand-new, unused, undamaged, unopened item in its original packaging.

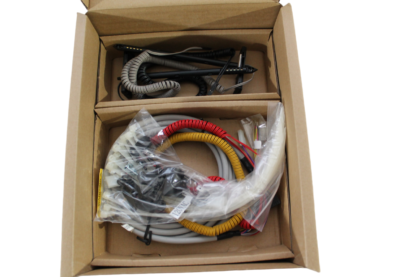

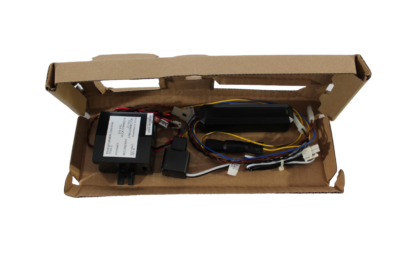

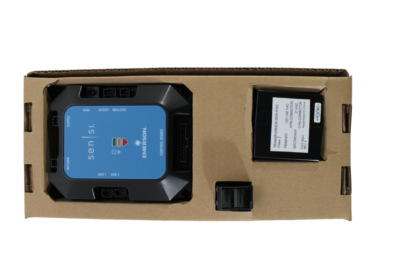

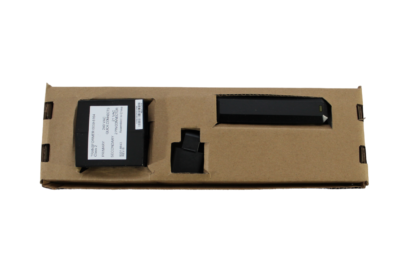

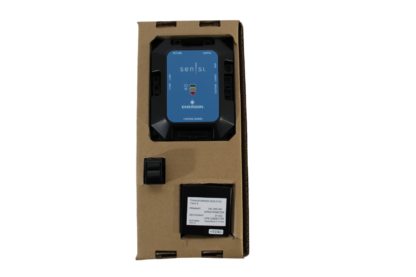

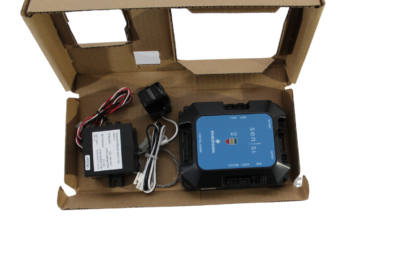

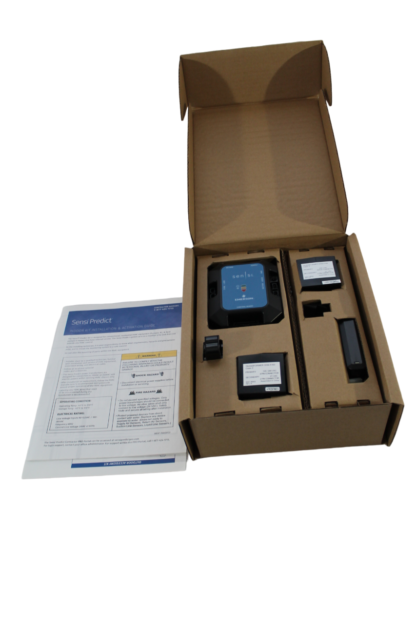

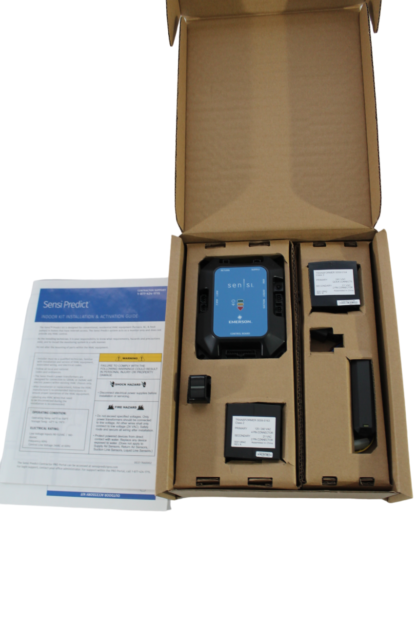

Upgrade your HVAC system with Sensi Predict, transitioning from a conventional setup to a smart one. This innovative solution offers the advantages of a connected system at a significantly reduced cost. With the installation of ten sensors by experts, it allows for fault detection, identifies system deterioration, and validates the quality of the installation. Depending on the system’s placement and Wi-Fi signal strength, certain accessories included below might be necessary for installation.

– Compatible with all 24V based systems
– Wi-Fi Connectivity
– Easy to install: Connects to the furnace control board and outdoor contactor
– Real-Time Alerts notify in advance of common AC and furnace failures helping you reduce time on site and ensuring you have the right parts on the truck before heading out to the job site. Alerts include Frozen AC coil, Condensate drainage issue, Capacitor alert, Compressor trip, Poor AC temperature drop, Poor heat pump temperature drop and Furnace not starting
– Live Performance Checks for major vital signs of system performance including Temperature drop (AC) or rise (furnace), Indoor and Outdoor Current, Indoor and Outdoor Voltage, Control line signals, Supply and Return Air temperatures, Liquid and Suction line temperatures, Capacitor health and Airflow
– View data and alerts from any internet connected device

Specifications:

Temperature Sensors: Supply Air, Return Air, Liquid Line, Suction Line
Current Sensors: Indoor Furnace / Air Handler, Outdoor Condenser
Voltage Sensors: Indoor Furnace / Air Handler, Outdoor Condenser
Control Line Sensors: Y1 , Y2, W1, W2, G, OB, C
Connectivity: Wi-Fi (optional Gateway)
Auxiliary Ports: Condensate Switch Sensor
Voltage Rating: 24 V
Suitable For Use With: 24 V Based System

Wi-Fi connectivity
Easy-to-install: connects to the furnace control board and outdoor contactor
Real time alerts notify in advance of common AC and furnace failures helping you reduce time on site and ensuring you have the right parts on the truck before heading out to the job site
Alerts include frozen AC coil, condensate drainage issue, capacitor alert, compressor trip, poor AC temperature drop, poor heat pump temperature drop and furnace not starting
Live performance checks for major vital signs of system performance including temperature drop (AC) or rise (furnace), indoor and outdoor current, indoor and outdoor voltage, control line signals, supply and return air temperatures, liquid and suction line temperatures, capacitor health and airflow
View data and alerts from any internet connected device

SENSOR LED LIGHT Indicators

When the Condensate Switch Monitor is connected to the Data Hub the green light will be on, as shown in Figure A. If the monitor’s green LED does not illuminate and the Data Hub is powered on, unplug the 3-pin connector, flip over and reinsert.

Proper connection to the condensate switch may be confirmed by momentarily opening the switch and observing that the red light comes on, as seen in Figure B. (24 volt system power must be on and the control wire being interrupted must be active for this step.) If the red light does not indicate when the switch is open, please verify that the switch is operating correctly.

In the event of a condensate switch opening the red light will illuminate and the Sensi Predict system will detect an open status. Sensi Predict technicians will not trigger a homeowner alert unless an actual condensate event is diagnosed. When the condensate switch closes (after removing the clog and draining the water) the red light will go out
