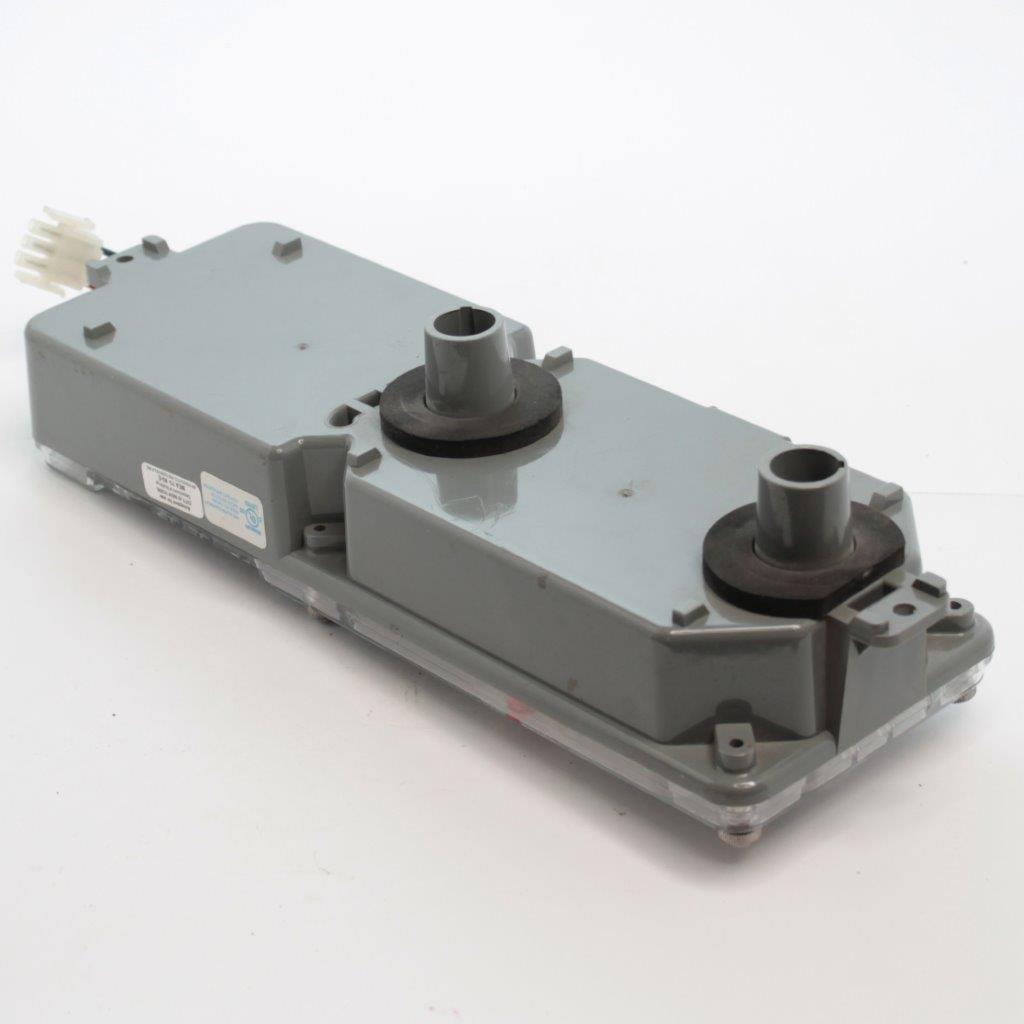

Air Products & Controls SL-2000P Photoelectric Duct Smoke Detector X13790908010

Air Products & Controls SL-2000P Photoelectric Duct Smoke Detector X13790908010

Description:
The SL-2000P is a 4 wire conventional duct smoke detector that offers fast installation, tool-less testing with cover in place and easy maintanence features.
These detectors can be mounted horizontally or vertically for more adaptability in the field.
– Patented No-Tools Required front or rear loading and removing sampling/exhaust tubes
– Patented Test Port Valve allows for aerosol smoke testing without cover removal
– Clear cover fitted with four captive No-Tools Required thumbscrews
– Instantaneous cover removal trouble indication
– Staggered terminal blocks for easier wiring
– Detector head’s LED indicates for normal status (flashing light), alarm status (solid state) or trouble (off)
– Magnet test capability (magnet included)
– Duct wall gaskets on back of enclosure are preinstalled
– Unit’s pcb board includes green pilot and red alarm visual indicators or off for trouble
– External mounting tabs do not require cover removal to install
– Colored cover gasket indicates proper cover seal
– Reset switch is also an alarm test switch
– Operating voltages: 230VAC, 115VAC, 24VAC, 24VDC
– Standard interchangeable “plug-in” UL268 photoelectric heads with advances internal dust filtering design
– No additional screens or filters to clean
– Low-Flow Technology (between 100-4000 ft./min)
– Listed for high-temperature applications
– Interconnect up to 30 units for common functions
– Footprint allows easy retrofit in many applications without additional drilling
– Compatible with building automation and fire alarm systems

Specifications:
Brand: Air Products & Controls
Model: SL-2000-P Photoelectric: 230VAC, 115VAC, 24VAC, 24VDC
AMBIENT TEMPERATURE: SL‑2000‑P 32ºF to 140ºF (0ºC to 60ºC)
HUMIDITY: 85 ±5 % RH (@32 ±2°C; 86 ±3.6°F) Non-Condensing / Non-Freezing
MATERIAL: Grey plastic backbox, clear plastic cover (Makrolon 94V-0)
DIMENSIONS: 13 ½” L x 4 ½” W x 2 ¼” H
MAX. NET WT.: 2 ½ lbs.
SKU: SL-2000P
