Zhongshan Broad-Ocean Y7L623F07 HC45TQ135 Blower Motor | 3/4 HP, 115V, 1075 RPM

Zhongshan Broad-Ocean Y7L623F07 (Carrier HC45TQ135) 3/4 HP 115V 1075 RPM 5-Speed PSC Furnace/Blower Motor, Frame 48Y OAO, reversible leads, capacitor 15 µF/370 VAC, OEM-style replacement for Carrier/Bryant/Payne systems

Condition: New — not used. Packaged in a generic box. Capacitor not included (requires 15 µF, 370 VAC). No mounting hardware or blower wheel included.

Overview

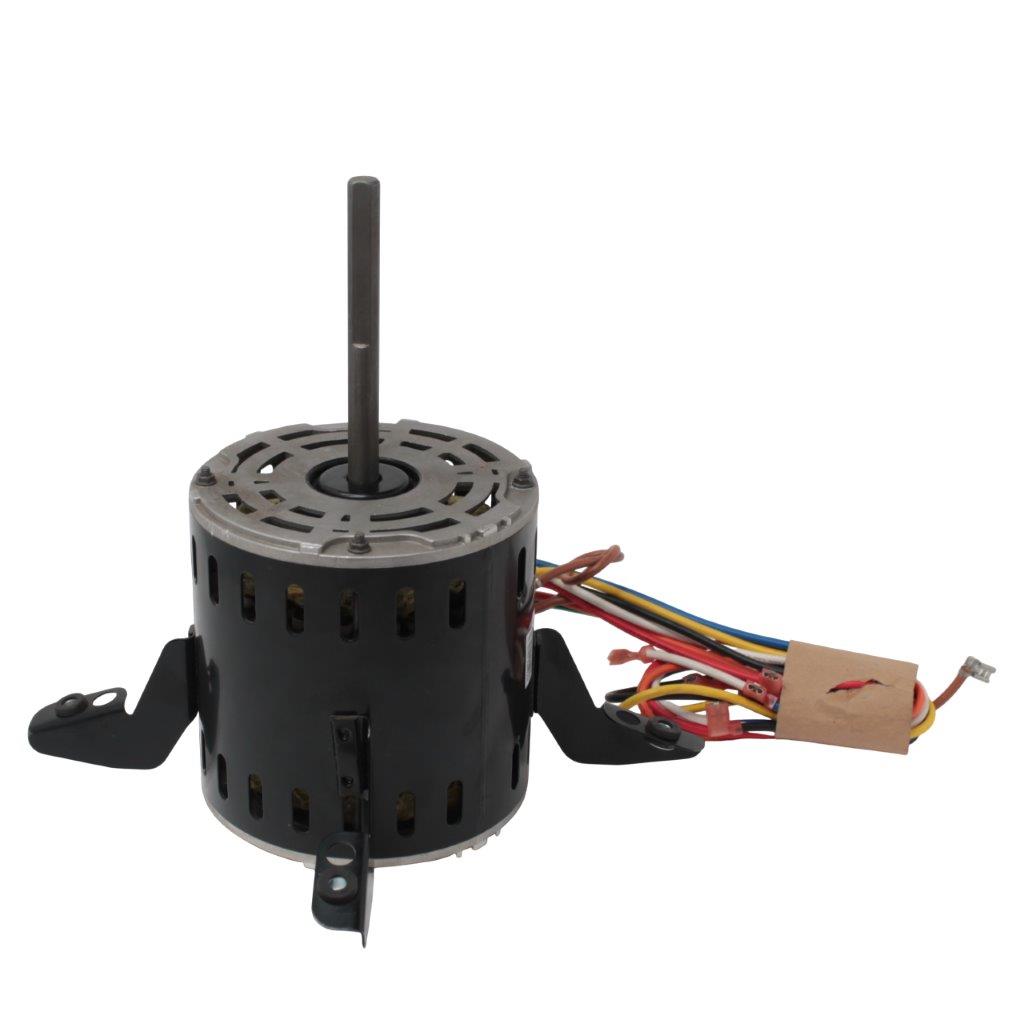

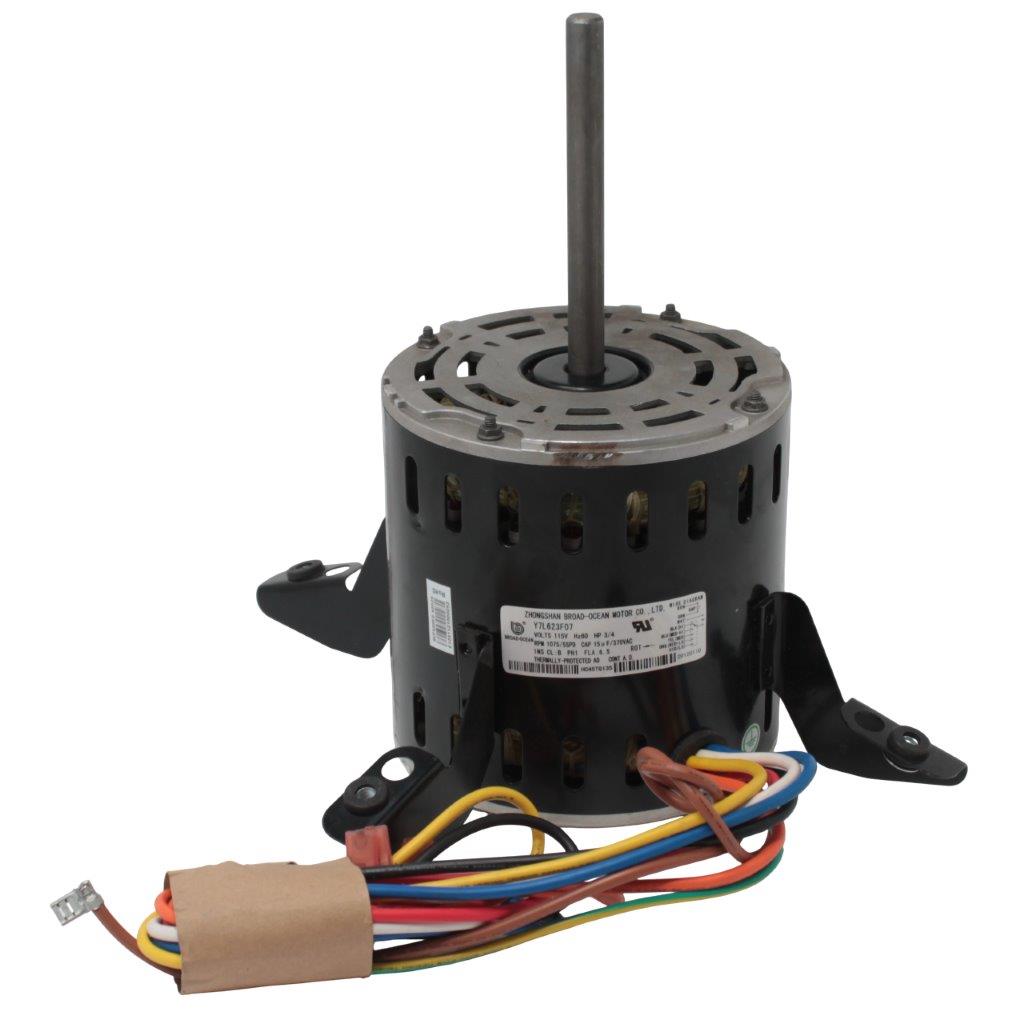

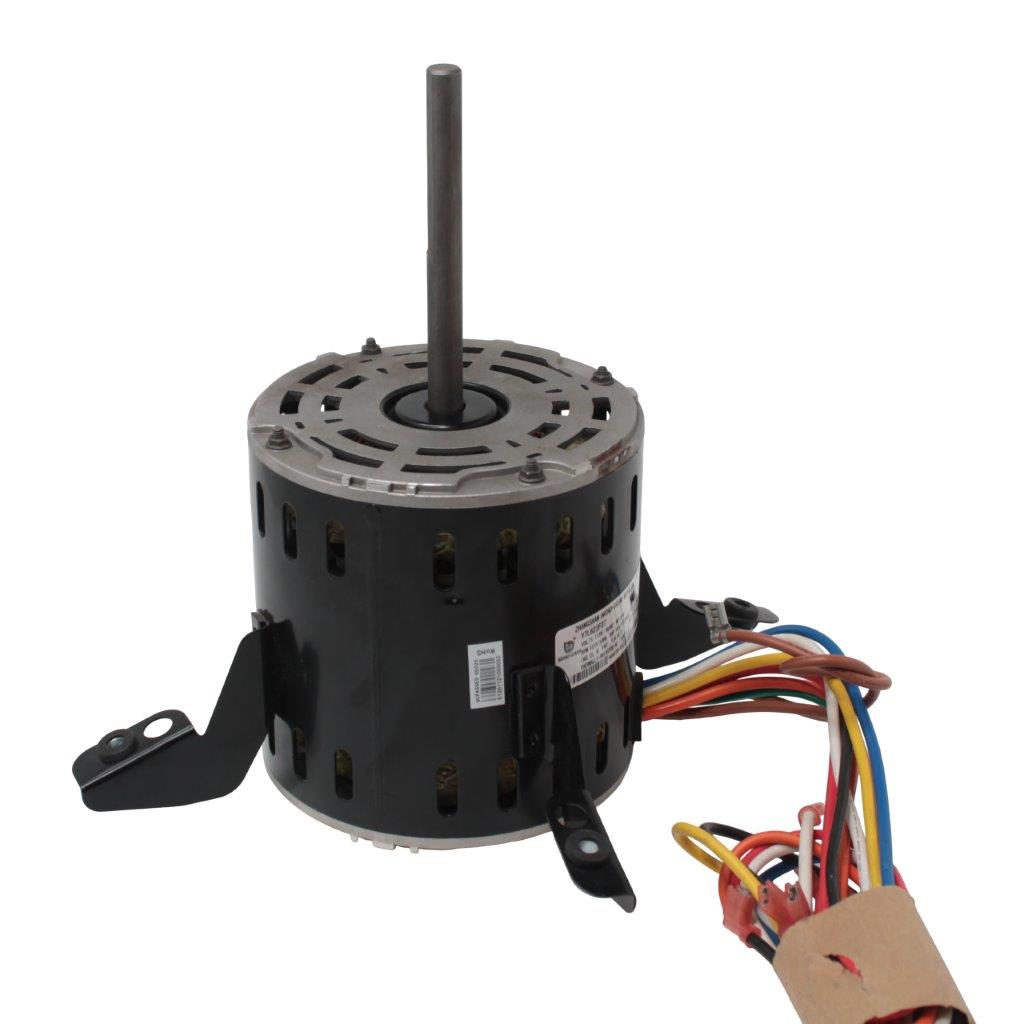

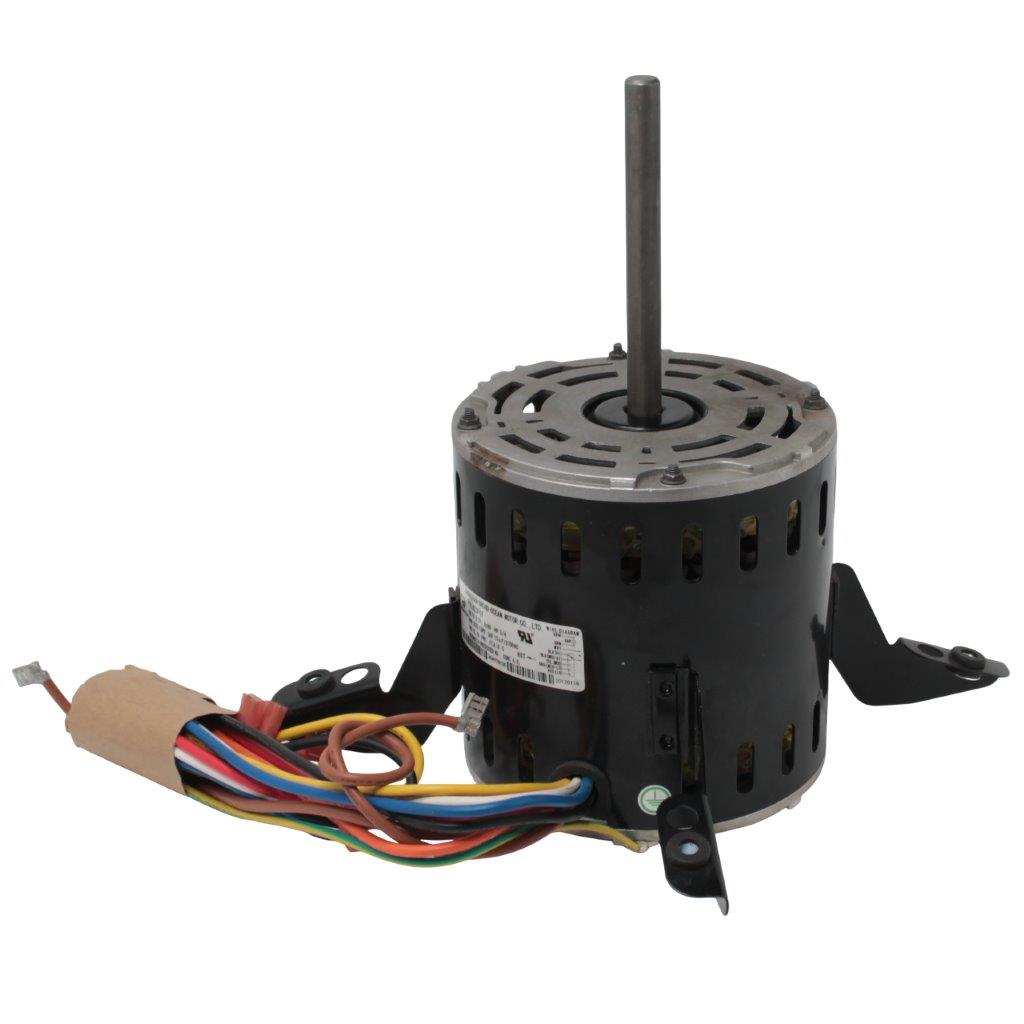

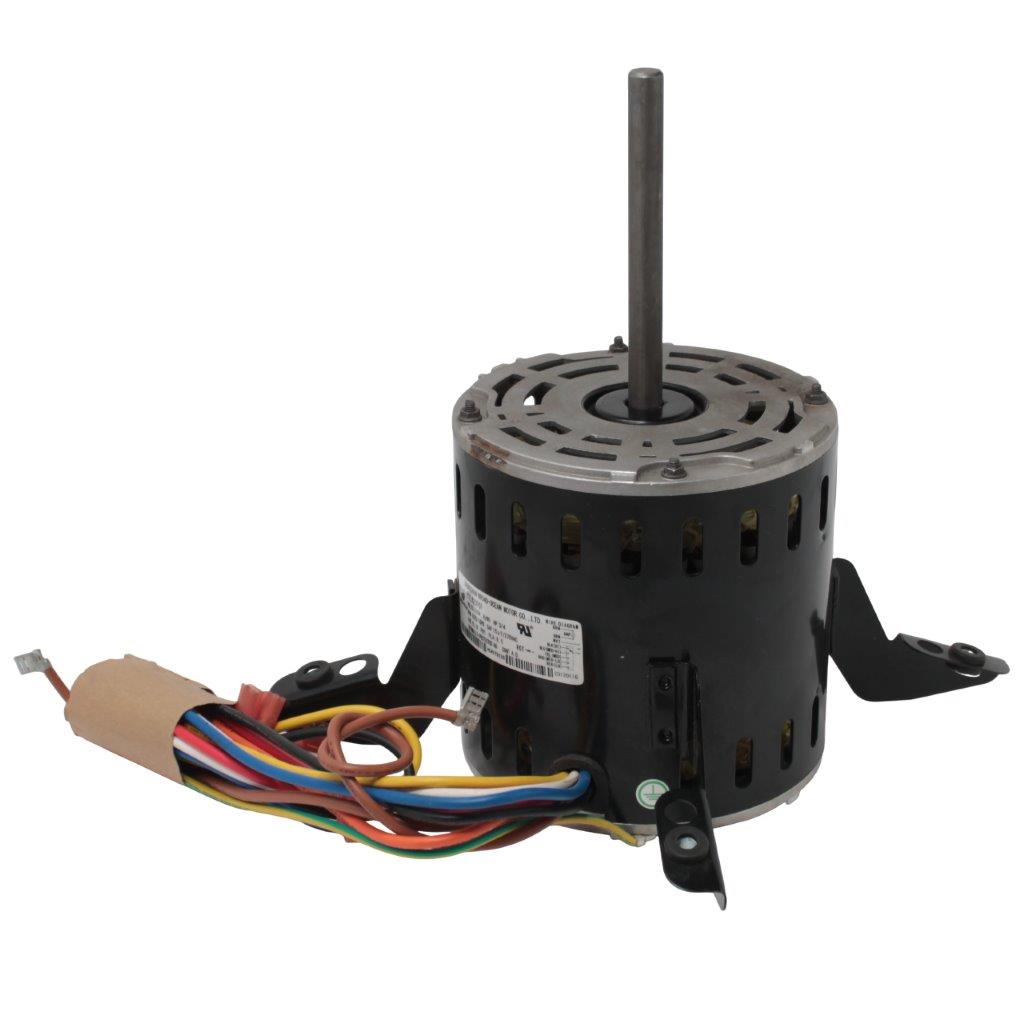

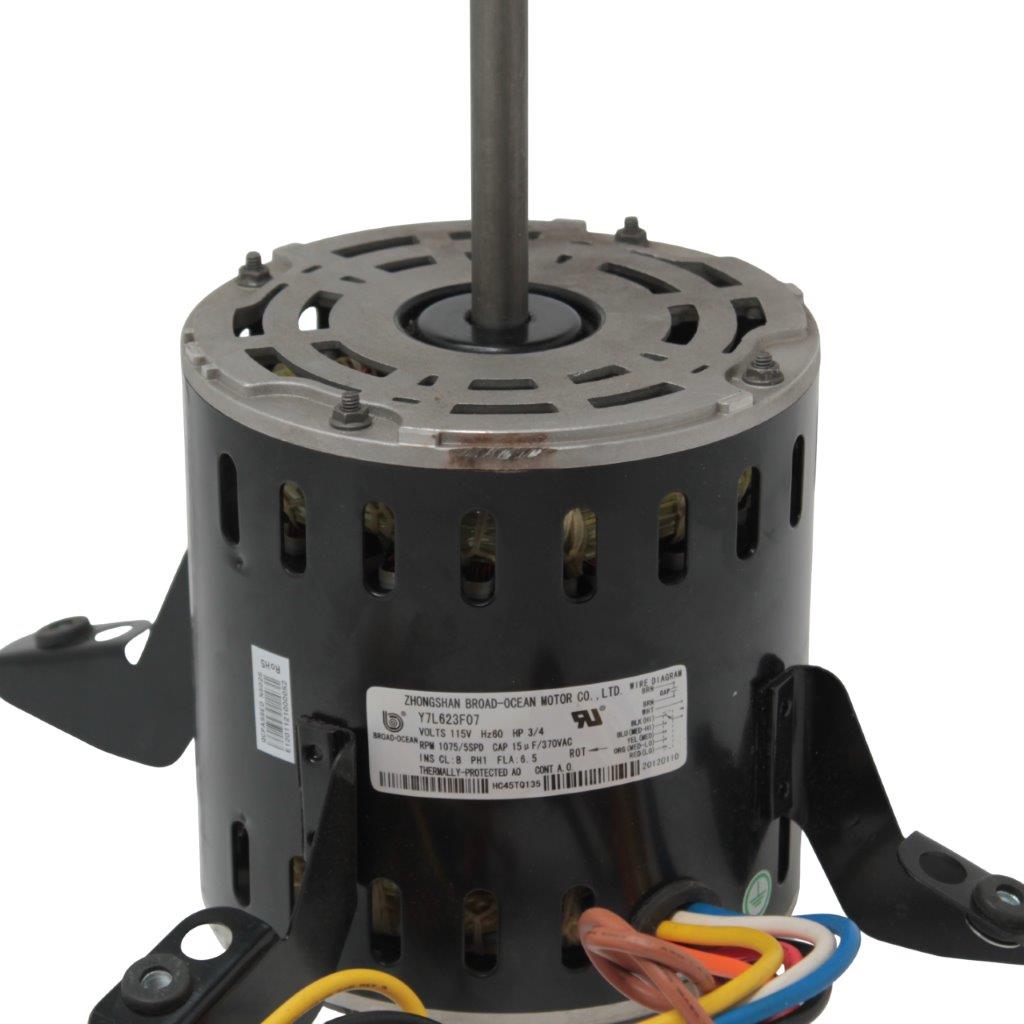

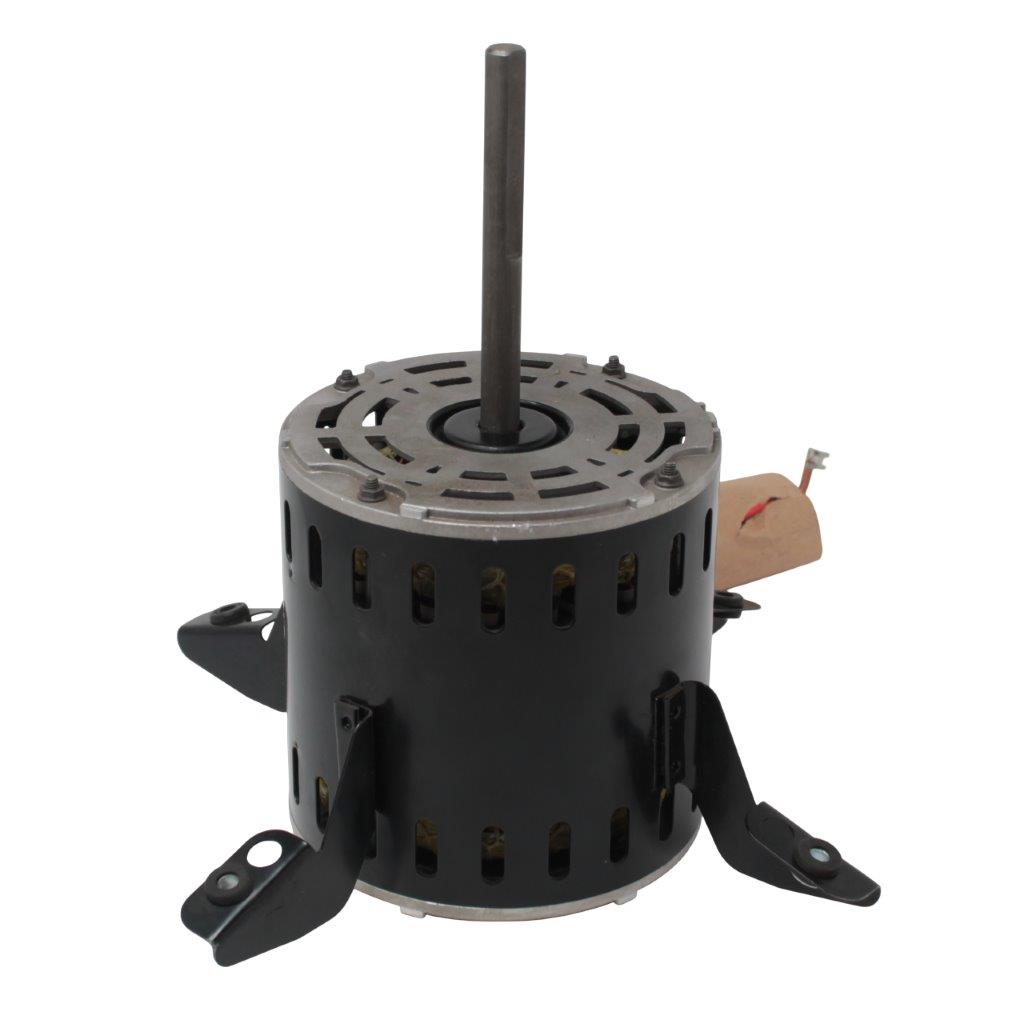

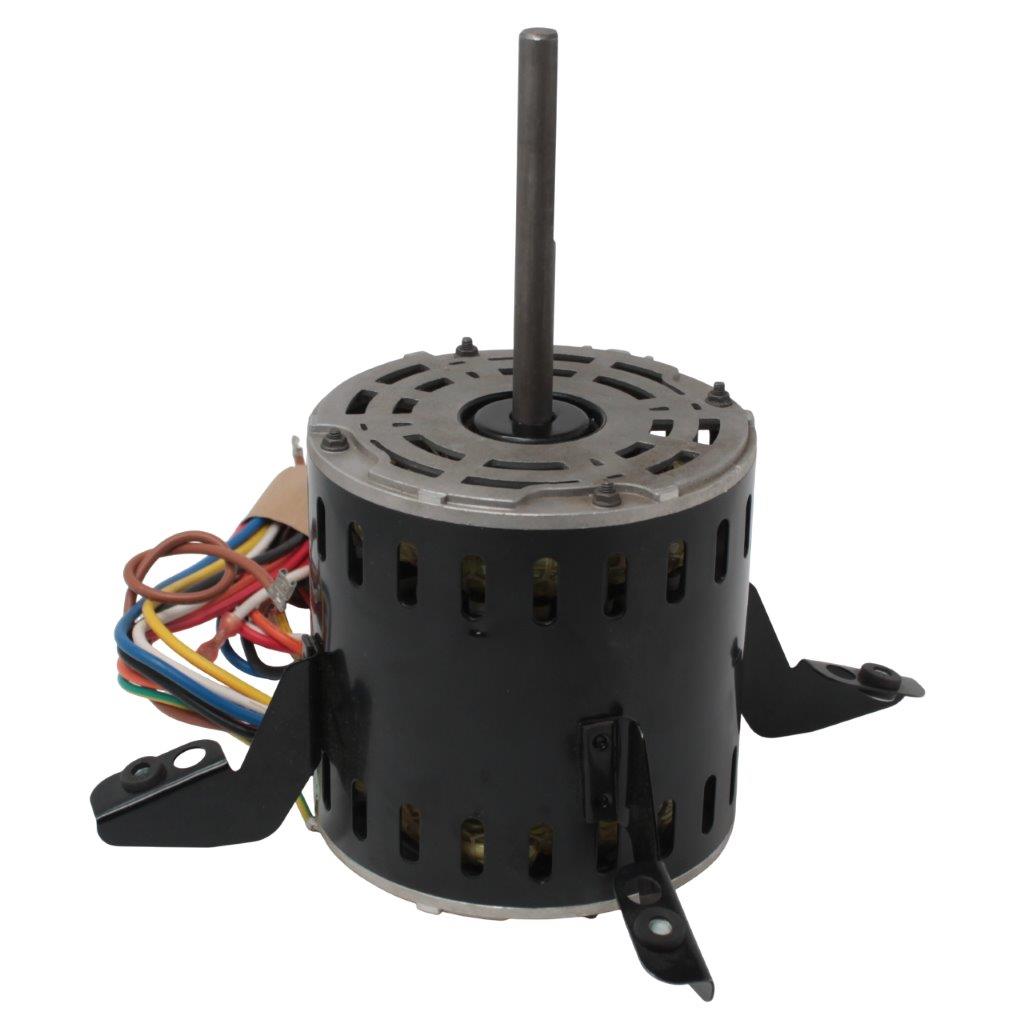

The Zhongshan Broad-Ocean Y7L623F07 (often referenced by Carrier® OEM part HC45TQ135) is a 3/4 HP, 115 VAC, 1075 RPM, 5-speed PSC (permanent split capacitor) blower motor engineered for residential/light-commercial furnace and air handler applications. It’s a direct-fit style replacement for many Carrier/Bryant/Payne units using the HC45TQ-series motors. The motor features a compact 48Y frame with open air over (OAO) enclosure for through-air cooling, multi-speed color-coded leads for easy airflow tuning, and standard belly-band mounting. Use with a 15 µF, 370 VAC run capacitor (not included).

This model closely aligns with Carrier HC45TQ125 (Y7L623F57) and other HC45TQ variants. Always match HP, voltage, RPM, frame, rotation, shaft, and capacitor to your unit’s specification tag before installation.

Key Features

• 3/4 HP, 115V, 60 Hz, single-phase for strong airflow in medium/large furnaces and air handlers
• 1075 RPM, 5 speeds (tap selectable) to balance CFM across heat/cool/fan-only modes
• PSC design for proven reliability and easy service with a simple run capacitor
• Frame 48Y, OAO enclosure; belly-band mount (straps not included)

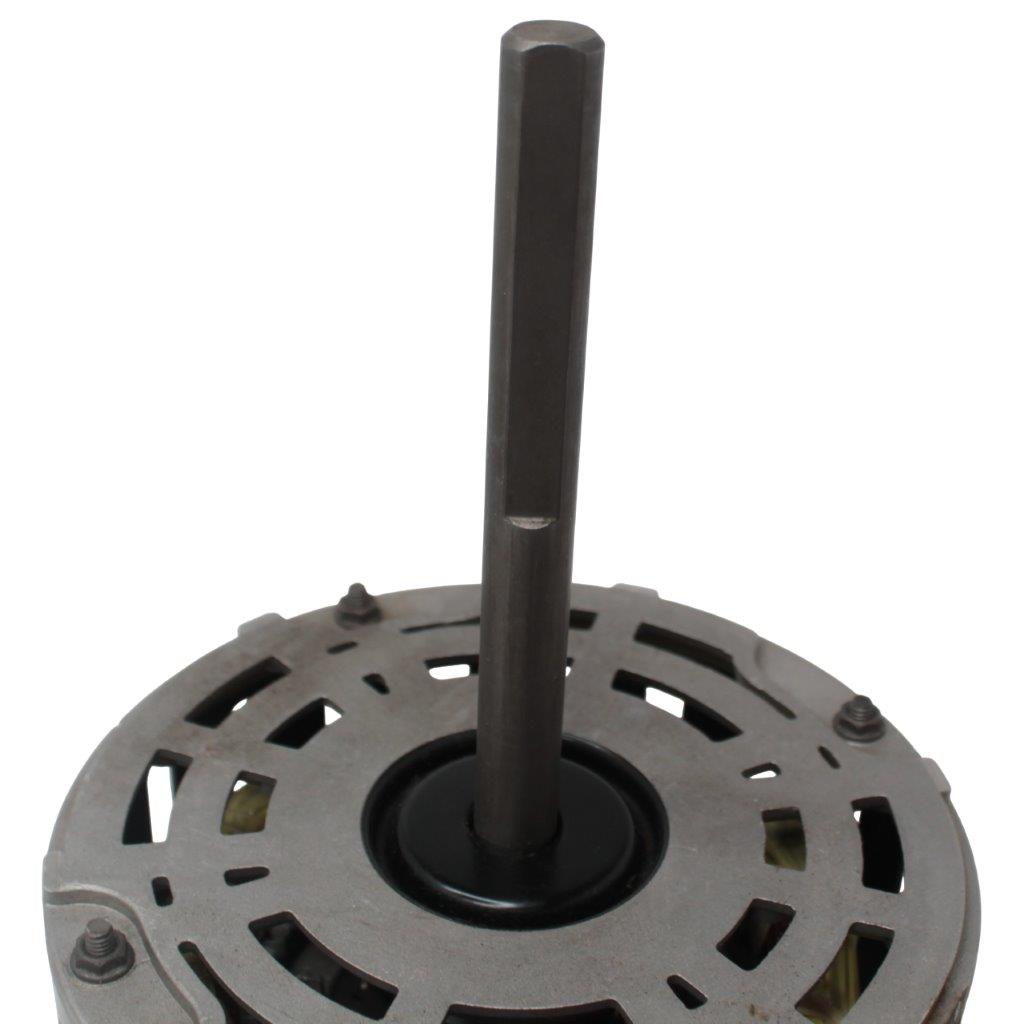

• Standard 1/2″ shaft (typical 48-frame) with flat; accepts common blower wheels (verify hub size & set-screw alignment)

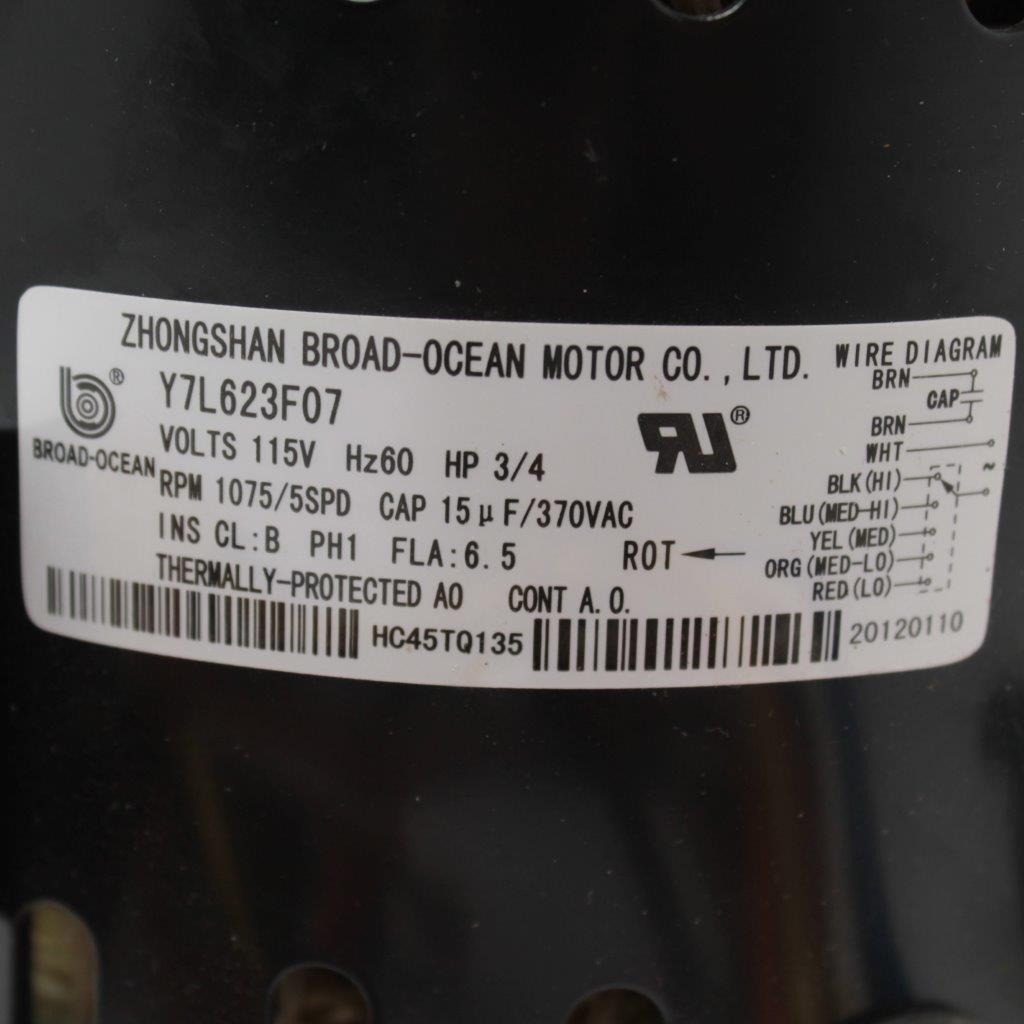

• Insulation Class B, FLA ≈ 6.5 A (from label data provided) for durable duty

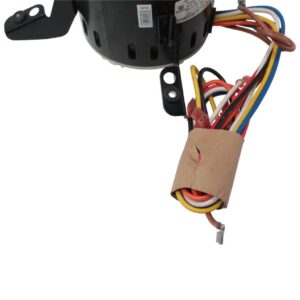

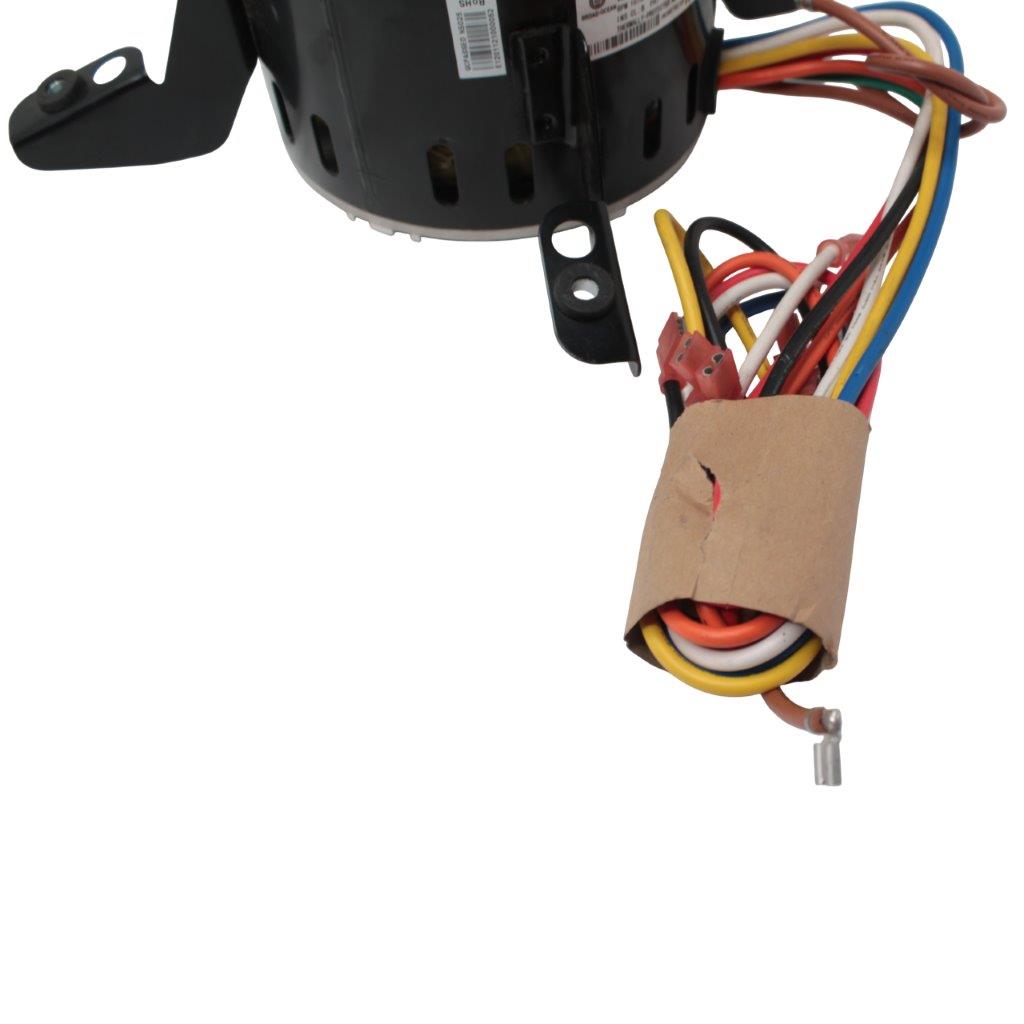

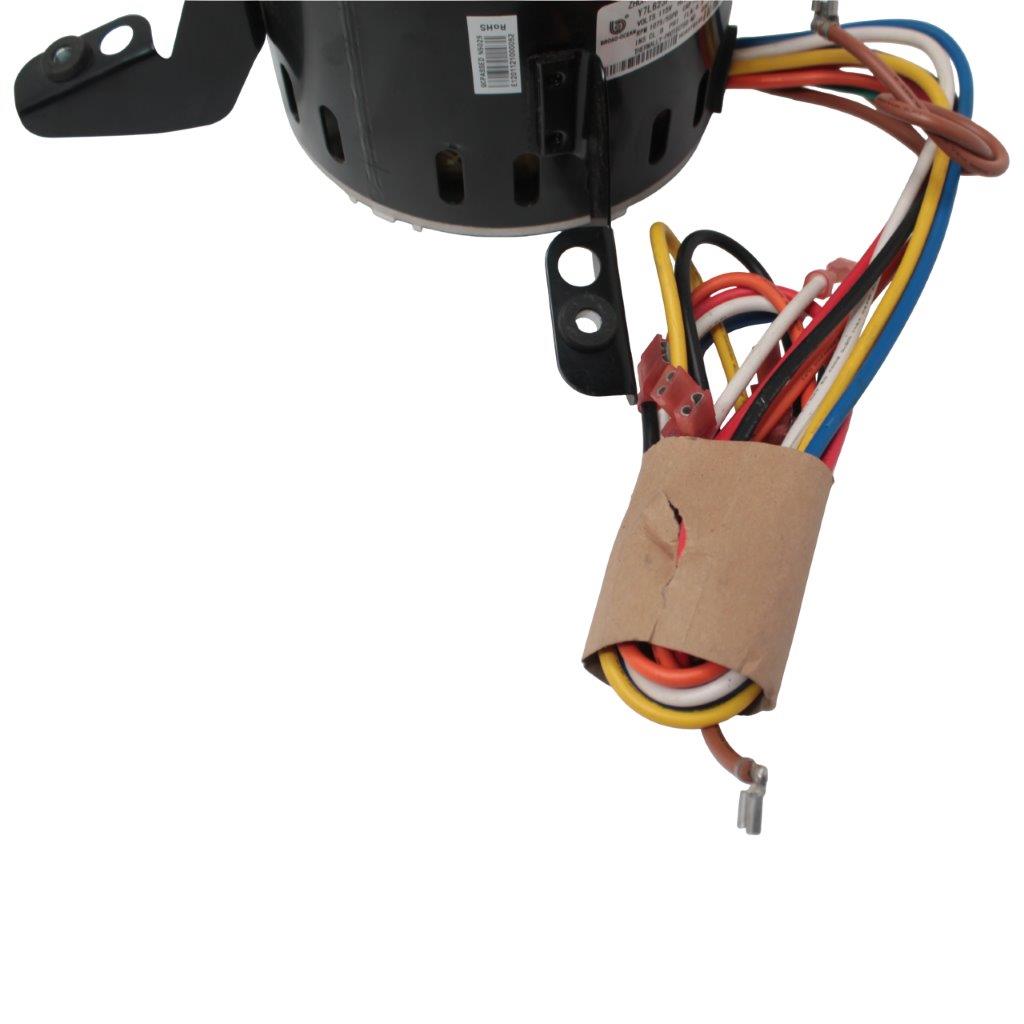

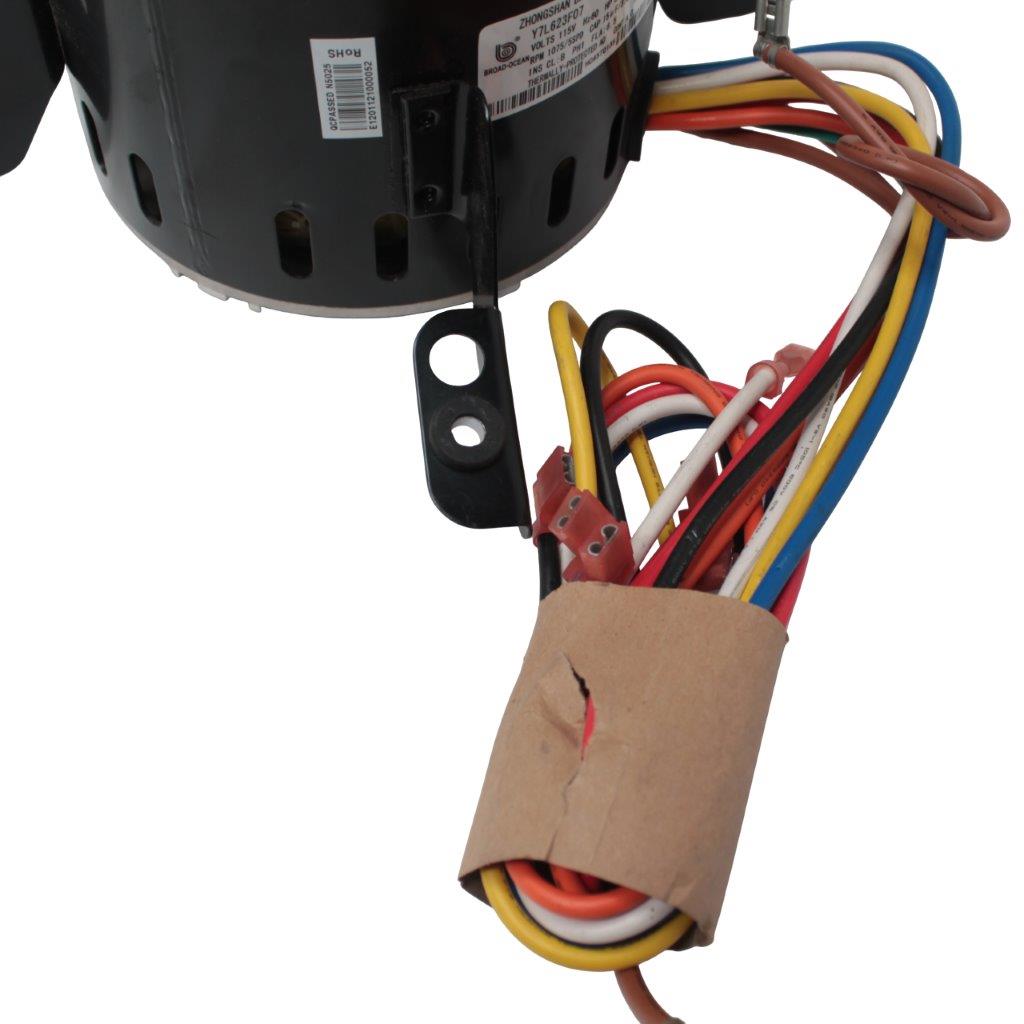

• Leads pre-terminated (typical color code for multi-speed and capacitor circuits; confirm diagram on motor label)
• Rotation: CCWSE/CWLE is typical for Carrier HC45TQ series; verify on nameplate and wiring diagram (reversible via lead swap on many PSC motors)

Motor Specifications (as provided / industry-standard for this build)

• Horsepower (HP): 3/4
• Voltage: 115 VAC
• Frequency: 60 Hz
• Full-Load Amps (FLA): ~6.5 A
• Speed: 1075 RPM (5-speed taps)
• Phase: 1 (single-phase)
• Capacitor: 15 µF, 370 VAC (not included)
• Motor Service Factor (SF): typically 1.00 (verify label)
• Motor Design: PSC, split-phase with run cap
• Enclosure: OAO (Open Air Over)
• Frame: 48Y (belly-band mount)
• Bearings: sleeve (common on OEM PSC; verify label/box)
• Insulation Class: B
• Ambient: up to 40 °C typical
• Shaft & Rotation: 1/2″ dia; CCWSE/CWLE (typical for HC45TQ; confirm on nameplate/wiring)
• Leads: multi-speed (usually Black = High, Yellow/Blue/Red = lower speeds; Brown/Brown-White to capacitor; White = neutral — confirm your diagram)

Rotation note (important): If your original motor label shows the opposite rotation, most PSC blower motors can be reversed by swapping the appropriate aux/start winding leads per the diagram. Always follow the schematic on the actual motor.

Applications / Where It’s Used

• Residential furnaces & air handlers (gas, oil, electric) requiring 3/4 HP, 115V, 1075 RPM PSC blower motors
• Split systems & package units (indoor blower section) for heating and cooling
• Replacement/retrofit when the original motor matches the key ratings (HP/Volts/RPM/Frame/Rotation/Cap value)

Pros

• Broad compatibility with Carrier/Bryant/Payne OEM part streams (HC45TQ series)
• 5-speed flexibility to dial in CFM per mode or static pressure needs
• Reliable PSC topology with readily available capacitors and parts
• OEM-style fit in many belly-band 48-frame housings

Cons

• Run capacitor required (not included)
• PSC efficiency is lower than ECM; if you need variable torque/efficiency, consider an ECM retrofit kit

Furnace Models Compatible

(From field references for HC45TQ125—a close match to this motor. Use as a compatibility guide only; verify your model sticker and motor label before purchase.)

Carrier:
59SC2A080S171116
59SC2B080S211120
59SC2B080S211220
59SC2C080S211120
59SC5A080S171116
59SC5A080S171216

Bryant:
912SA48080S17A-A
912SB60080S21A-A
912SB60080S21A-B
912SC60080S21A-A

Payne:
915SA48080S17A-A
915SA48080S17A-B
PG92SAS48080BAAA
PG92SBS60080CAAA
PG92SBS60080CBAA
PG92SCS60080CAAA
PG95SAS48080BAAA
PG95SAS48080BBAA

If your model isn’t listed, match original HP/Volts/RPM/Frame/Rotation/Cap and you’re very likely compatible.

Cross-Referenced Models (OEM & Near-Match)

• Carrier®: HC45TQ135, HC45TQ125, HC45TQ133, HC45TQ139 (match specs)
• Broad-Ocean: Y7L623F07 (this listing), Y7L623F57 (often tied to HC45TQ125), Y7L623Fxx series variants
• Genteq® / GE: 5KCP39 series (select 3/4 HP, 115V, 1075 RPM variants; e.g., 5KCP39… “1076” family)
• US Motors® (Nidec): 1863 (3/4 HP, 115V, 1075 RPM, PSC)
• Century® / AO Smith: models in the FSE1076 / DL1076 family (3/4 HP, 115V, 1075 RPM)
• Marathon®: X703 series matches for 3/4 HP 1075 (verify rotation/cap)
• Packard®: PFC1076 series (universal 3/4 HP 115V 1075 RPM)
• MARS®: 10876 family (3/4 HP, 115V, 1075 RPM universal replacement)

Cross-references indicate potential fit based on ratings; always compare shaft size, rotation, amp draw, and mounting.

Comparable or Compatible Motors (for shopping/reference/information only)

(All are 3/4 HP, 115V, ~1075 RPM multi-speed PSC unless noted; verify rotation and frame before substituting.)

1. US Motors 1863 (3/4 HP, 115V, 1075 RPM, PSC, 48Y)
2. Century FSE1076 (3/4 HP, 115V, 1075 RPM, PSC)
3. Century DL1076 (3/4 HP, 115V, 1075 RPM, PSC, belly-band)
4. Genteq 5KCP39…1076 family (e.g., 5KCP39K…1076)
5. Marathon X703 series (3/4 HP, 115V, 1075 RPM)
6. Packard PFC1076 (universal replacement, 48 frame)
7. MARS 10876 (MasterFit style replacement)
8. Rotom S1546 (3/4 HP 115V 1075 PSC)
9. Fasco D701 (spec-match variant; confirm cap/rotation)
10. DiversiTech RM-1076-3/4 (retrofit motor; check kit contents)
11. Evergreen EM 6205 (ECM retrofit, variable torque) — energy-saving alternative (requires wiring changes)
12. Genteq Evergreen AS280 (ECM drop-in replacement option)
13. Genteq 3789 (OEM-style 3/4 HP PSC; confirm frame)
14. Century 3476 (replacement line; verify specs)
15. US Motors 3732 (verify rotation; same class)
16. MARS 10763/10764 (universal families—check HP tap)
17. Packard HD1076 (heavy-duty PSC, 48 frame)
18. Genteq 6224 (aftermarket OEM replacement; confirm cap)
19. Fasco D728 (class-match; verify HP is 3/4)
20. ICP/Comfortmaker 1085577 (OEM match class; confirm ratings)

Some numbers above are family/series identifiers; exact sub-suffix determines shaft length, rotation, and lead set. Compare against your original.

Installation & System Notes

• Mounting: Uses belly-band strap around the 48-frame body. Re-use your strap or source a 48-frame band.
• Capacitor wiring: Connect 15 µF/370 VAC run cap across the Brown/Brown-White (or per the schematic). Replace old capacitors when replacing motors.
• Airflow/CFM: Use High (Black) for cooling, lower taps for heating as required by your furnace label; verify static pressure and temperature rise post-install.
• Rotation check: Verify fan wheel direction (air should discharge toward the heat exchanger/coil). Reverse motor if airflow is incorrect.
• Safety: Kill power, lockout/tagout, balance blower wheel, and check amp draw vs. nameplate after install.

What This Motor Can Be Part Of

• Gas/electric furnaces and fan coils from Carrier/Bryant/Payne using HC45TQ series motors
• Split system air handlers needing 3/4 HP, 115V, 1075 RPM PSC
• Retrofit kits alongside new run capacitors, belly-band straps, and isolation mounts

Included

• Motor: Zhongshan Broad-Ocean Y7L623F07 (HC45TQ135)
• Box: Generic packaging
• Docs/Capacitor/Mounting parts: Not included (use your OEM strap and a new 15 µF/370 VAC capacitor)

Not Included

• Run capacitor, pulley (not used on direct-drive blowers), blower wheel, band/bolts, wiring adapters

Related

3/4 HP furnace blower motor; device to move air in furnace; 115V 1075 RPM PSC motor; Carrier HC45TQ135 motor; HC45TQ125 substitute; Broad-Ocean Y7L623F07 replacement; 5-speed HVAC motor; multi-speed blower fan motor; 48Y frame belly-band motor; open air over blower motor; clockwise from lead end; counter-clockwise from shaft end; furnace fan drive motor; PSC furnace motor 15 mfd 370v; replacement indoor blower motor; residential furnace air mover; HVAC air handler motor

Common Requests:

1. “Is Y7L623F07 a direct replacement for my HC45TQ125 and does it use a 15 µF cap?”
2. “What’s the rotation on HC45TQ135 and how do I reverse it if my airflow is wrong?”
3. “Which speed tap should I use for cooling vs heating to hit the nameplate CFM?”
4. “Will a universal 3/4 HP 1075 RPM PSC like US Motors 1863 work in my furnace?”
5. “Do I need a new belly-band strap or can I re-use the old one on this 48Y motor?”

Manufacturer and product names, including Zhongshan Broad-Ocean™, Carrier®, Bryant®, Payne®, Genteq®, Century®, US Motors®, MARS®, Packard®, Marathon®, Fasco®, Rotom®, and DiversiTech®, are trademarks or registered trademarks of their respective owners. Use of these names is solely to identify compatibility and specifications. We are not affiliated with or endorsed by the respective trademark owners. Always confirm compatibility with your specific furnace model and follow local codes and manufacturer instructions.
