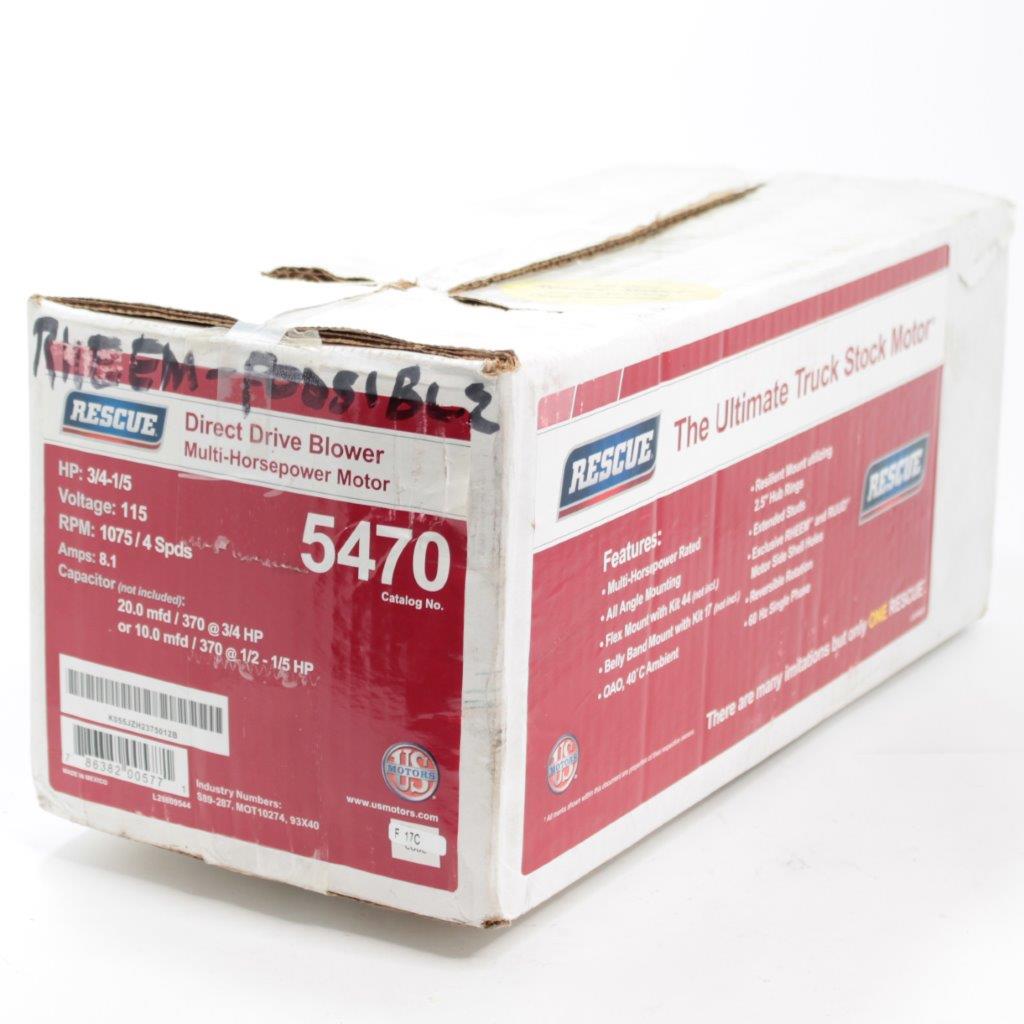

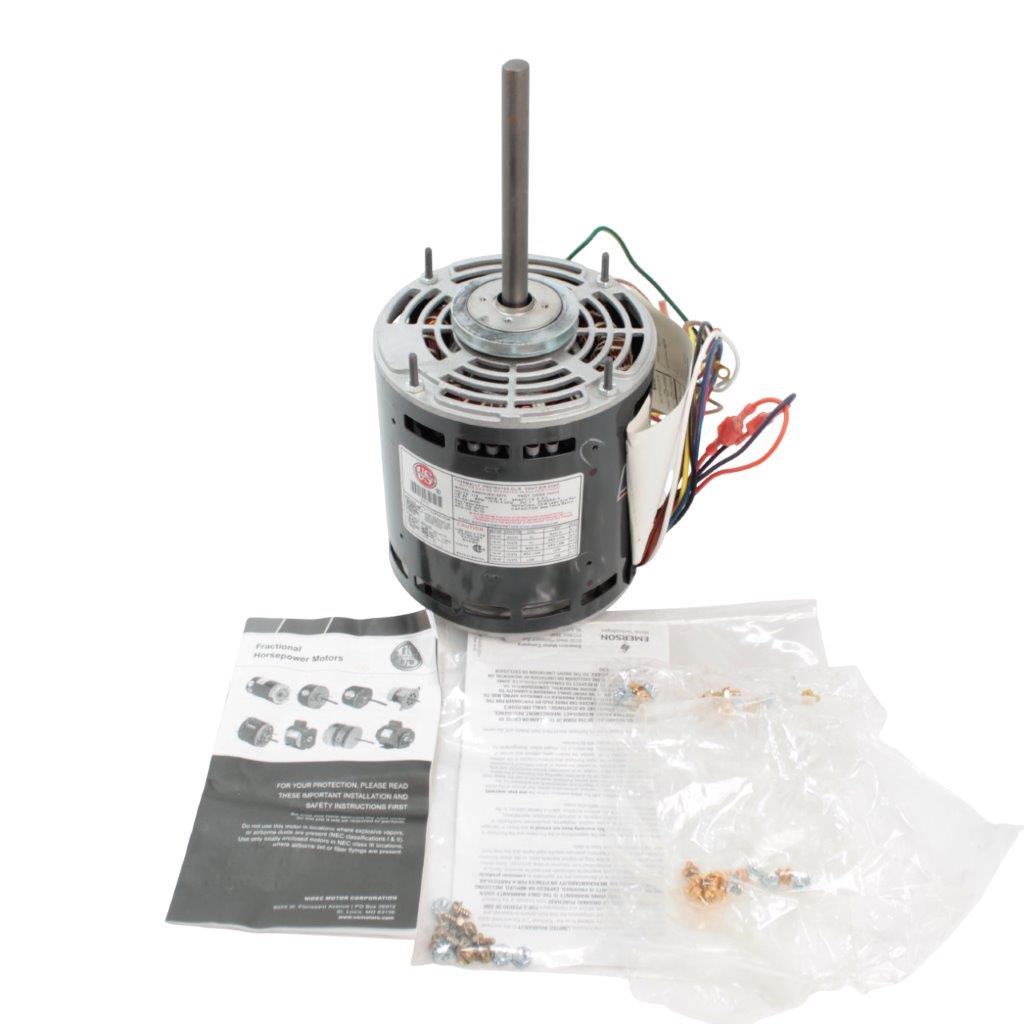

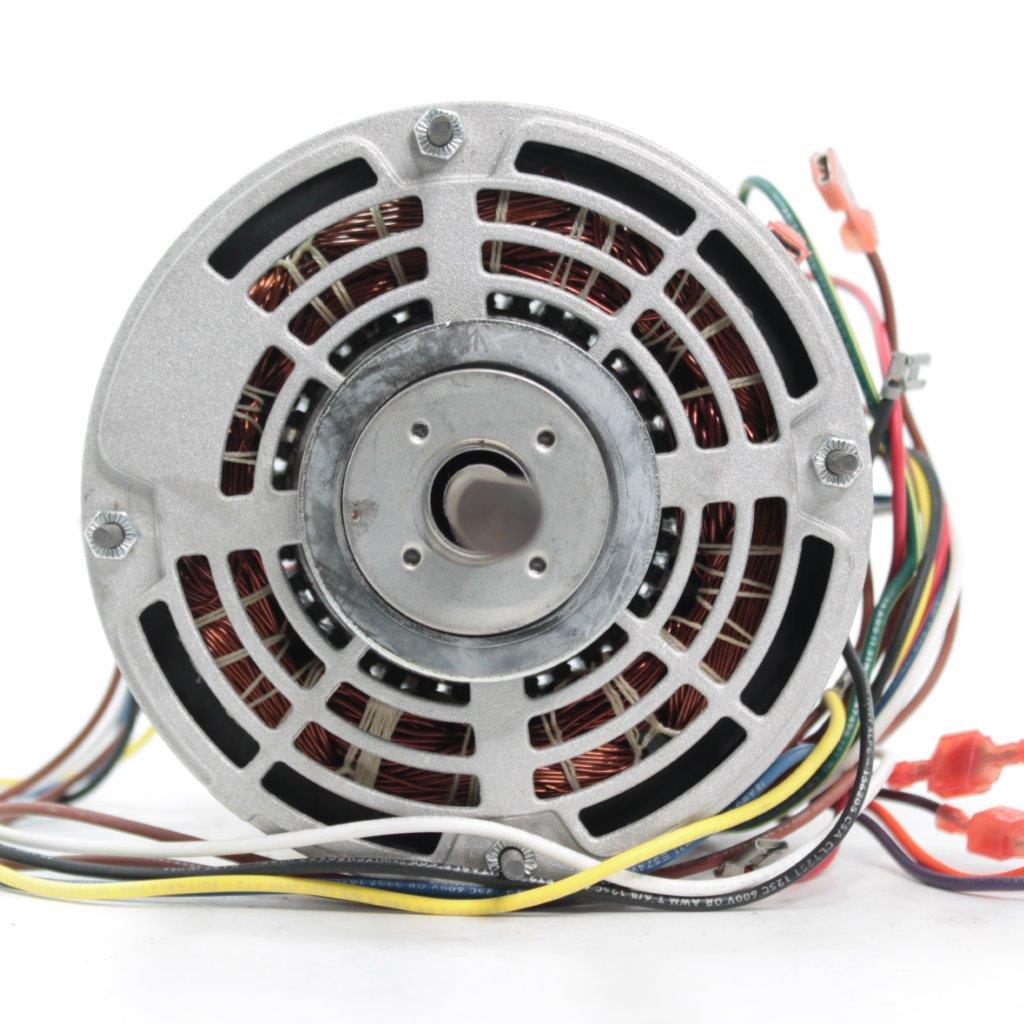

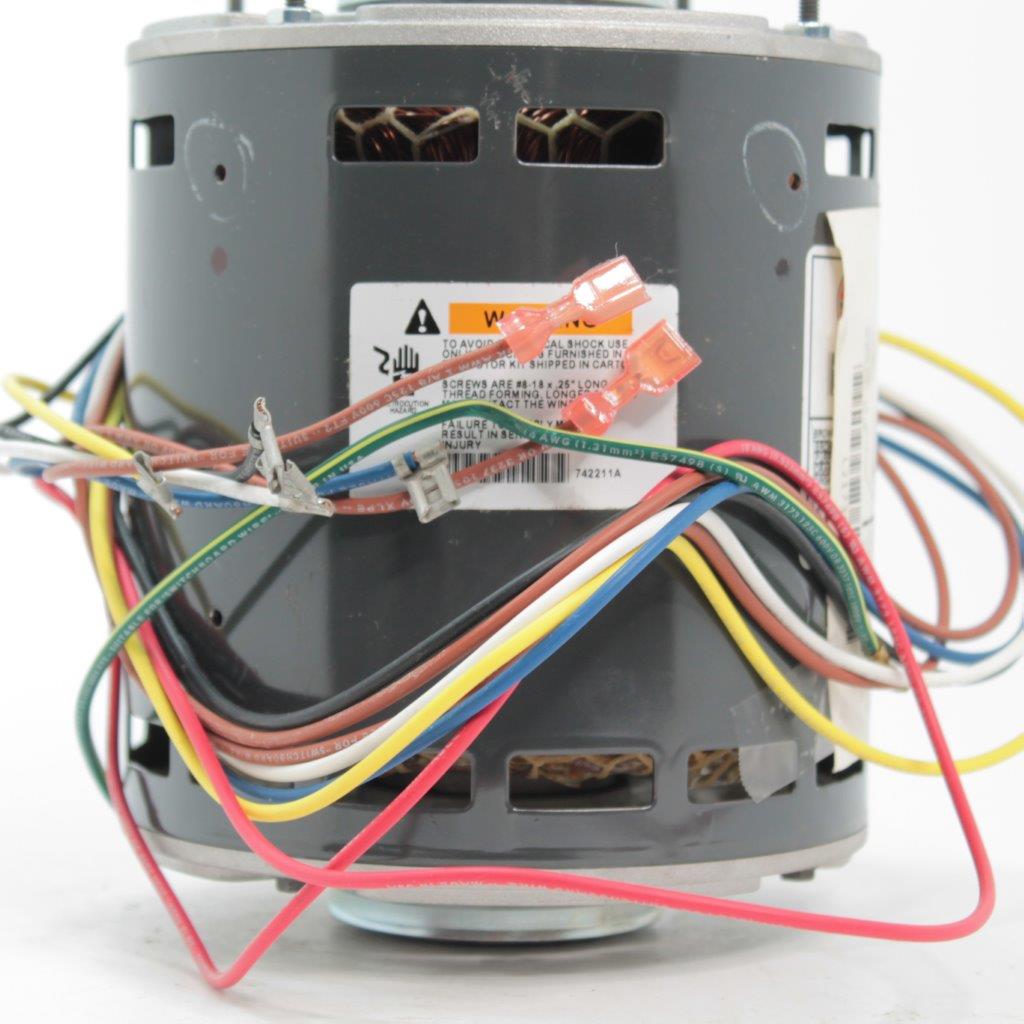

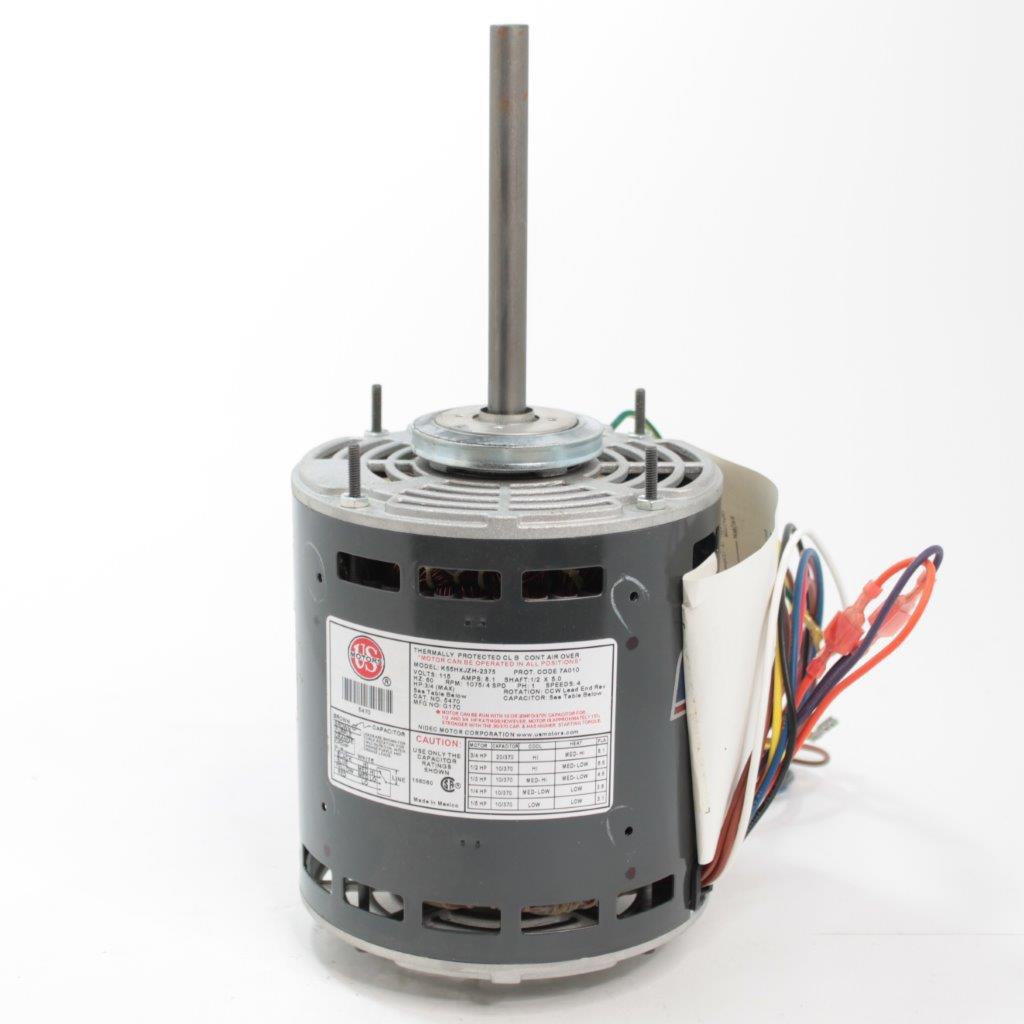

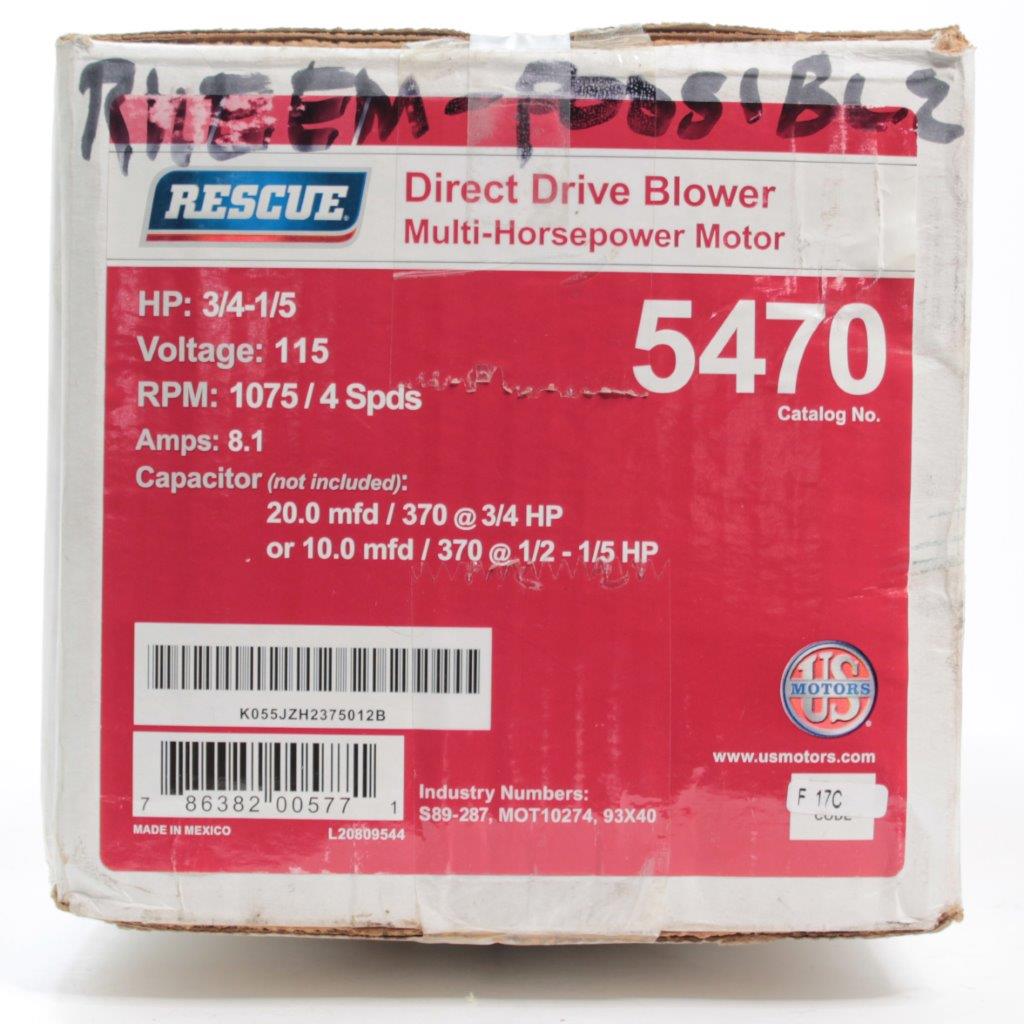

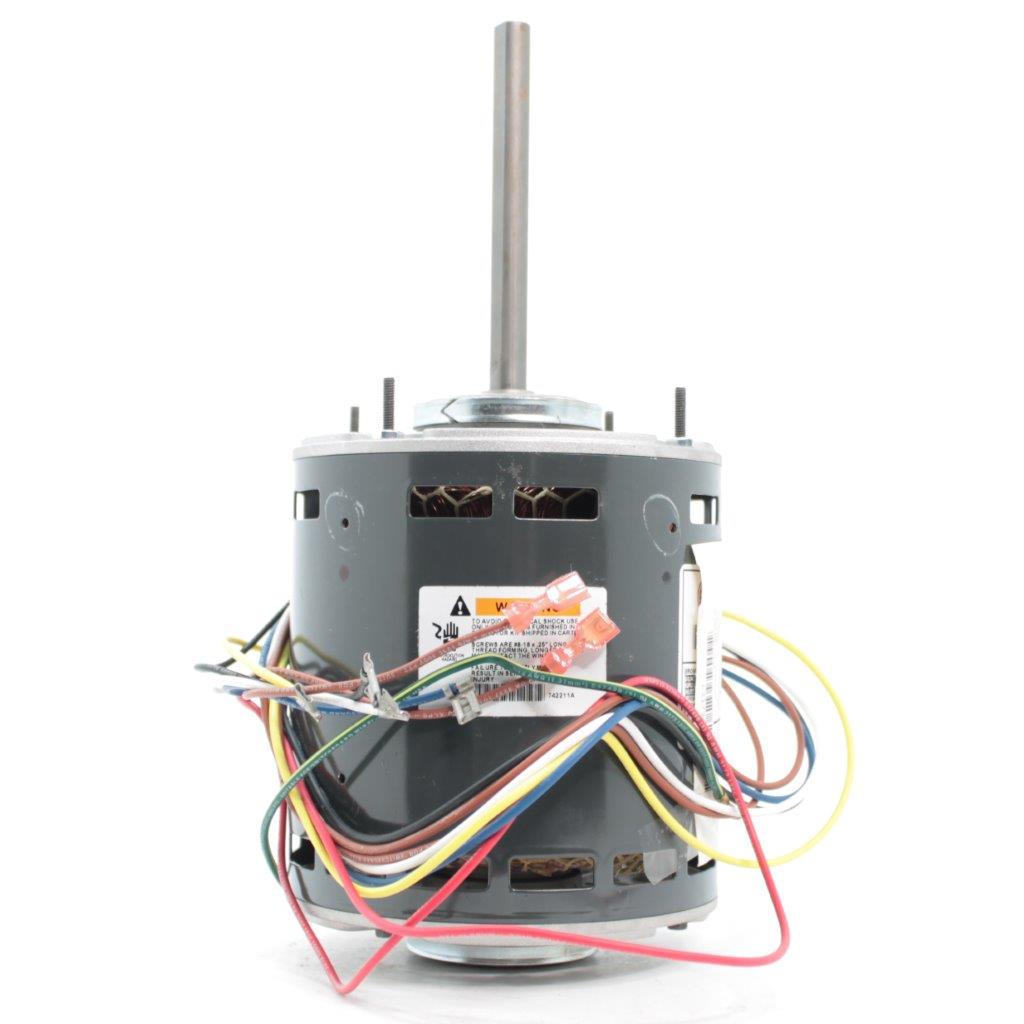

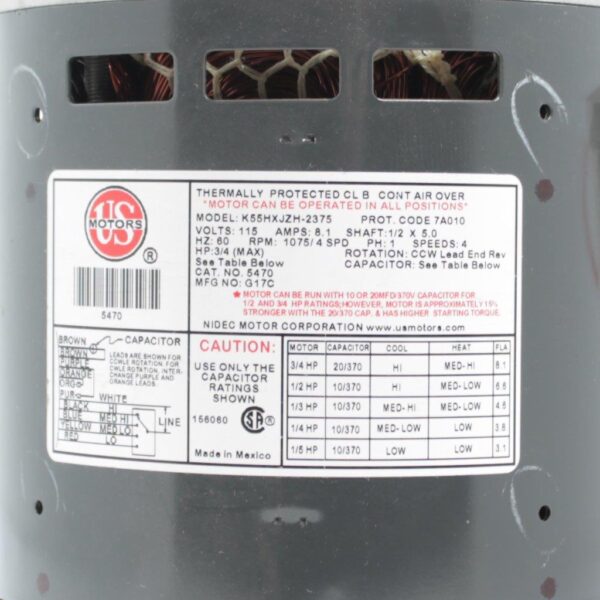

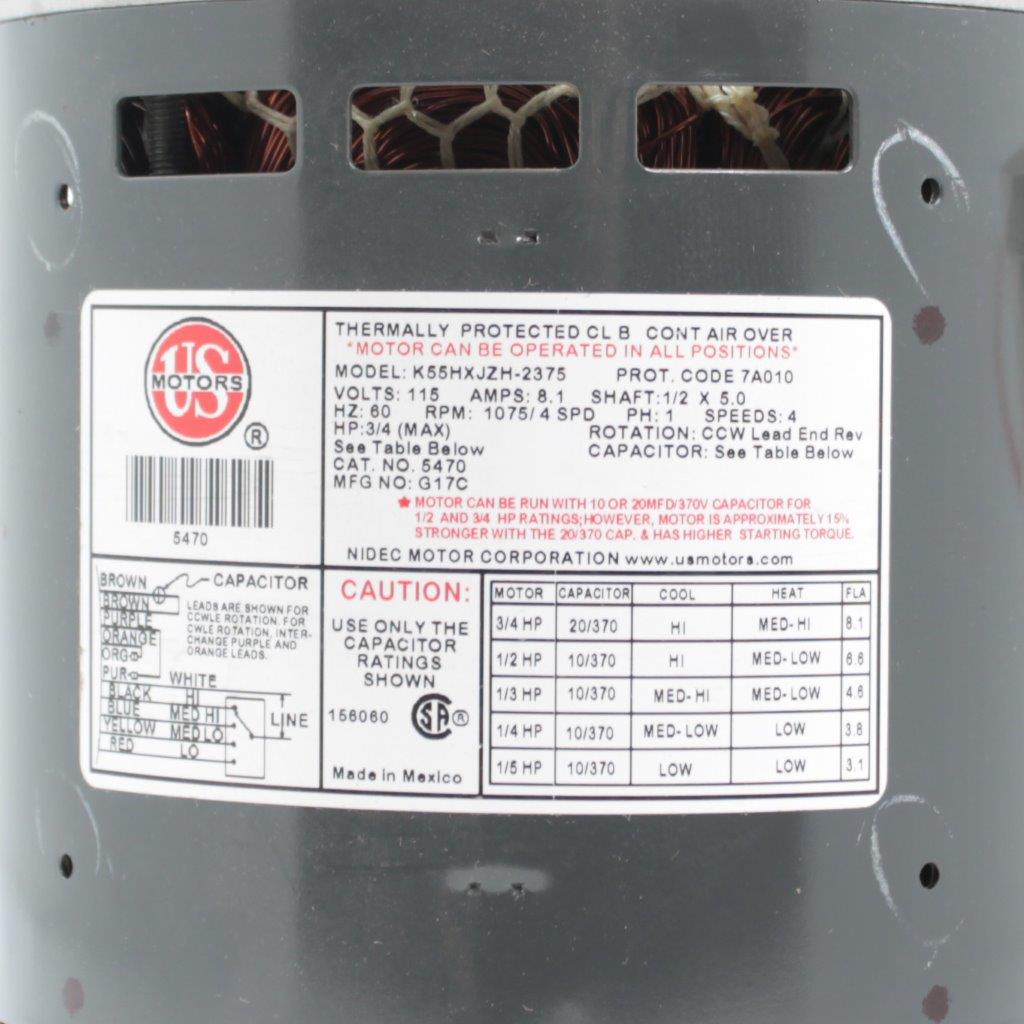

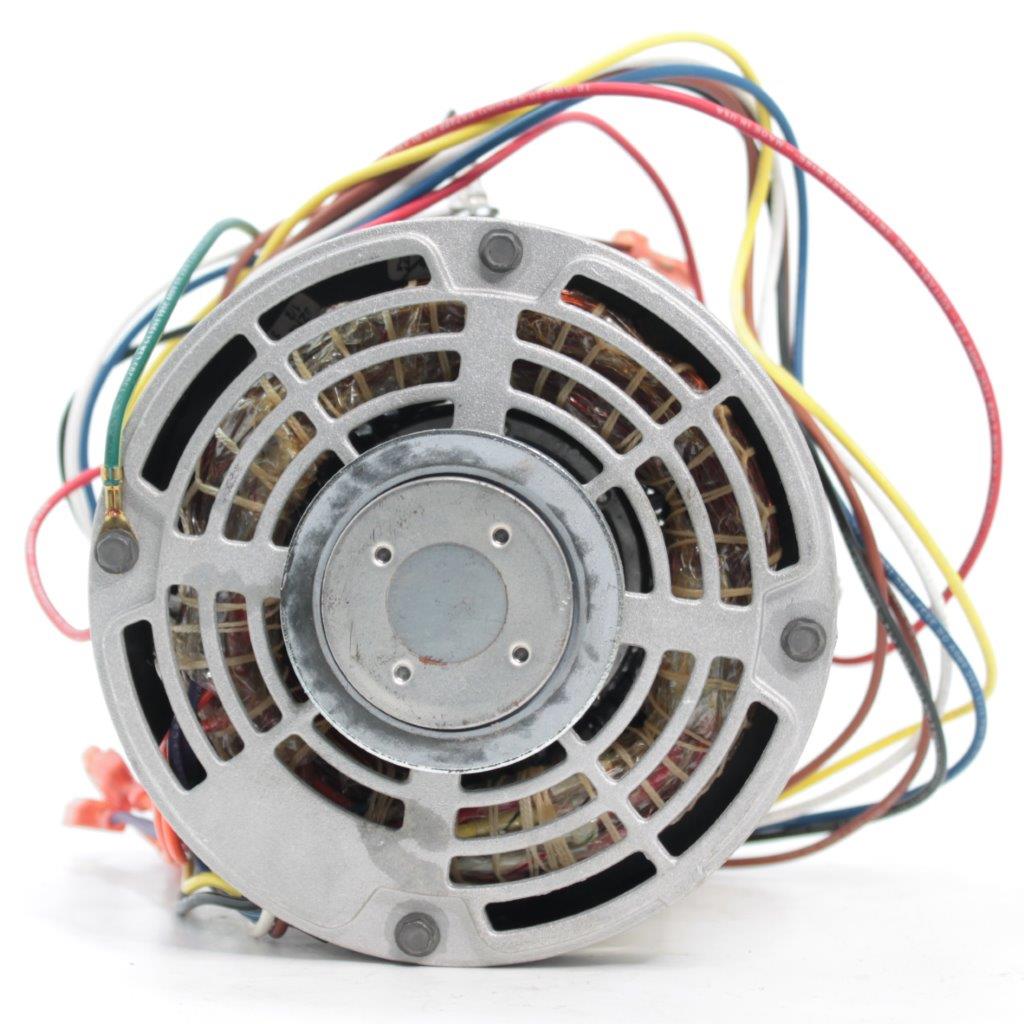

RESCUE K55HXJZH-2375 Furnace Blower Motor – 3/4 HP, 115V, 1075 RPM, 4-Speed, CCW Rotation, 48Y Frame – US Motors 5470 Replacement

Condition: New – No visible defects or missing components. Ready for immediate installation.

The US Motors K55HXJZH-2375 is a high-efficiency, multi-speed RESCUE® replacement blower motor, engineered for use in residential HVAC systems. Designed to replace a broad range of OEM motors, this model offers universal mounting options, a durable build, and energy-saving performance. It is commonly used in furnaces, air handlers, and other forced air systems requiring a 4-speed, 1075 RPM motor with continuous duty rating.

Built with a 1/2″ x 5.0″ shaft, the K55HXJZH-2375 supports both bracket and belly band mounting and features a capacitor-not-included design, so an external 10 µF capacitor is required. With versatile horsepower taps ranging from 1/5 to 3/4 HP and 115V single-phase operation, this motor is ideal for service technicians looking for a reliable, field-proven universal motor.

Features:

• Horsepower: 3/4 HP (max), with multi-tap HP (3/4 – 1/5 HP)
• Voltage: 115V
• Frequency: 60 Hz
• Speed: 1075 RPM
• Speeds: 4-speed motor
• Phase: Single-phase
• Mounting: Belly band or bracket mount
• Shaft Dimensions: 1/2″ diameter x 5.0″ length
• Motor Enclosure: Open Air Over (OAO)
• Rotation: CCWLE (Counter-Clockwise Lead End)
• Frame: 48Y
• Thermal Protection: Automatic
• Service Factor: 1.0
• Bearings: Sleeve
• Capacitor: Not included (requires 10 µF, 370V capacitor)
• UPC: 786382005771 (may vary by packaging)

Applications:

• Residential HVAC systems
• Gas or electric furnaces
• Air handlers
• Central AC blower units
• Replacement for OEM multi-speed blower motors

Cross-Referenced Models:

• Emerson K55HXJZH-2375
• Nidec 5470
• US Motors Rescue 5470
• Packard 5470
• Mars 10462
• Rotom R41434
• Grainger 4M206

Comparable Products:

• GENTEQ 5KCP39PGS071S (3/4 HP, 115V, 1075 RPM, 48Y)
• AO Smith DL1056 (3/4 HP, 115V, 1075 RPM, 4SPD)
• Packard 43788 (3/4 HP, 115V, 1075 RPM, 4SPD)
• Century ORM5456 (3/4 HP, 115V, 1075 RPM, 4SPD, OAO)

Compatible HVAC Units or Systems:

This motor is designed to universally fit many HVAC systems requiring:

• 3/4 HP
• 115V
• 1075 RPM
• 4-speed
• 48Y frame
  Some of the common system compatibility includes units from Carrier, Goodman, Rheem, Trane, and others that support aftermarket Rescue motor upgrades.

Related:

blower motor 3/4 hp 115v, HVAC motor replacement, multi-speed blower motor, universal rescue motor, 5470 motor, air handler motor 4 speed, 1075 rpm 1/2” shaft motor, K55HXJZH-2375 replacement, residential furnace motor, open air over motor

Common Requests:

1. “What is the replacement motor for 5470 Rescue blower motor?”
2. “3/4 HP 115V 4-speed HVAC blower motor compatible models”
3. “How to wire US Motors K55HXJZH-2375 replacement motor”
4. “Universal replacement for 1075 RPM furnace blower motor”
5. “Best multi-speed air handler motor 1/2” shaft 5” long”

Capacitor Pairing for US Motors K55HXJZH-2375 RESCUE Blower Motor

The US Motors K55HXJZH-2375 requires a run capacitor, not included with the motor. Proper capacitor matching is critical for motor efficiency, starting torque, and overall reliability.

Recommended Capacitor Specs:

• Capacitance: 10 µF (microfarads)
• Voltage Rating: 370V AC (minimum)
  For added durability and future-proofing, you can use a 440V-rated capacitor instead. It is fully compatible and provides extra voltage tolerance in high-heat applications.
• Type: Oval or round run capacitor, non-polarized
• Terminals: Usually 2-terminal or 4-terminal with quick-connect tabs

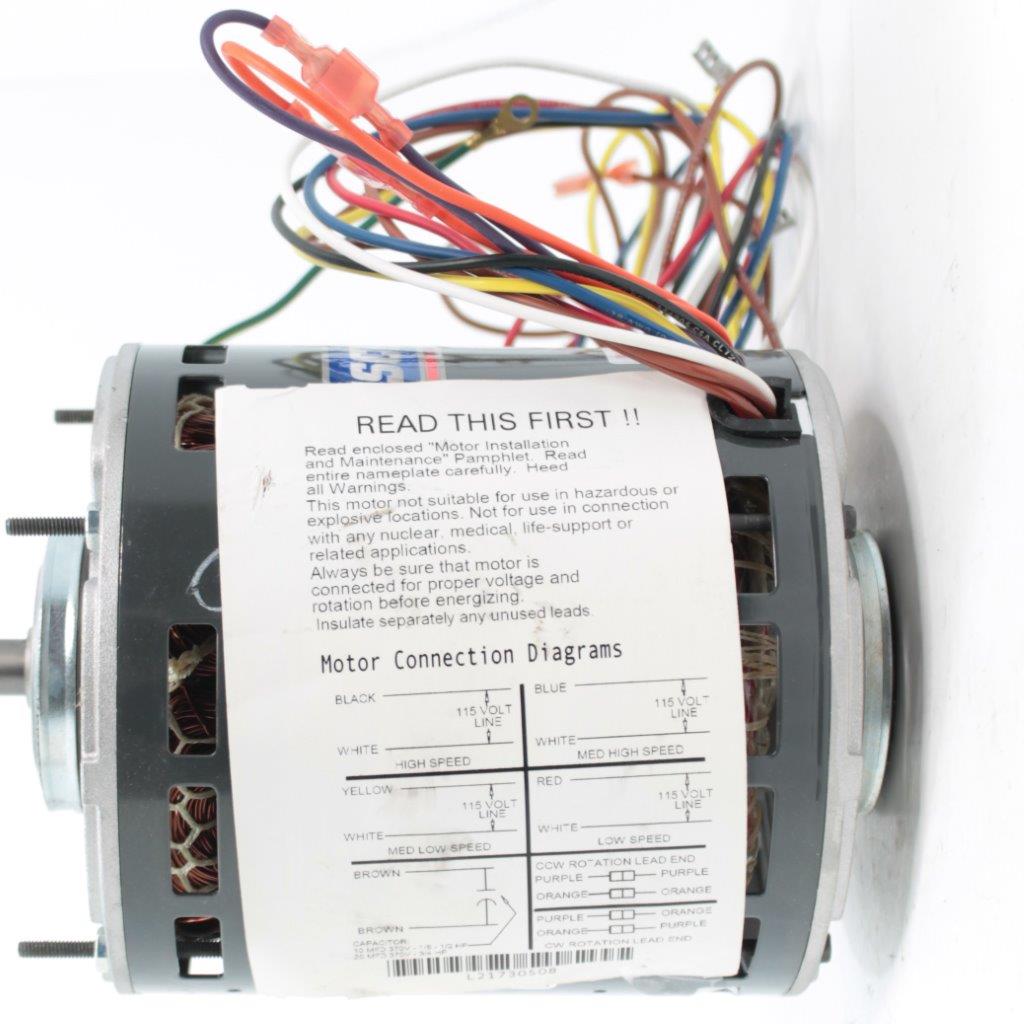

Wiring Note:

This motor is PSC (Permanent Split Capacitor) type:

• Capacitor connects between the two brown wires labeled “BR” or “BRN”
• If one brown wire has a white stripe (BRN/WH), that may be connected directly to line power (L1) depending on the specific wiring diagram provided with the motor
• Always verify wiring with the diagram on the motor label or factory manual

Recommended Capacitor Models:

These are typical compatible models:

• MARS 12290 (10 µF, 370V, oval)
• Packard PRC10 (10 µF, 370V/440V, round)
• Titan HD TRCF10 (10 µF, 440V, round)
• GE Industrial 97F9002 (10 µF, 370V, oval)

Tips for Selection:

• Match the µF exactly (10 µF)
• Voltage can be equal or higher (370V or 440V is fine)
• Use oval style if the motor bracket area is tight
• Always use motor-rated capacitors; avoid low-cost unbranded ones, which can fail prematurely

Trademark Notice: All product names, logos, and brands mentioned are the property of their respective owners. Use of these names does not imply any affiliation or endorsement.
