Totaline P257-E5462 Multi-HP 1/6-1/3 HP 208-230VAC PSC Condenser Fan Motor 1075 RPM

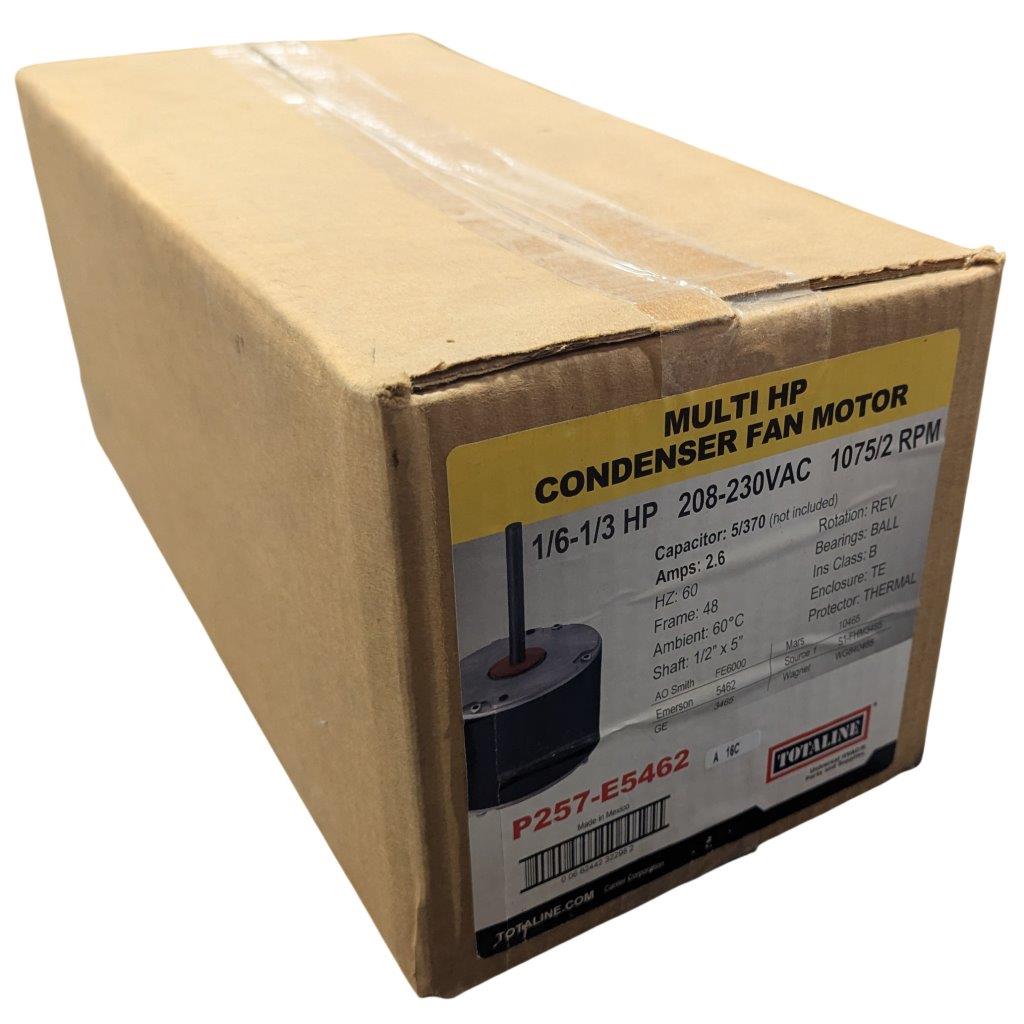

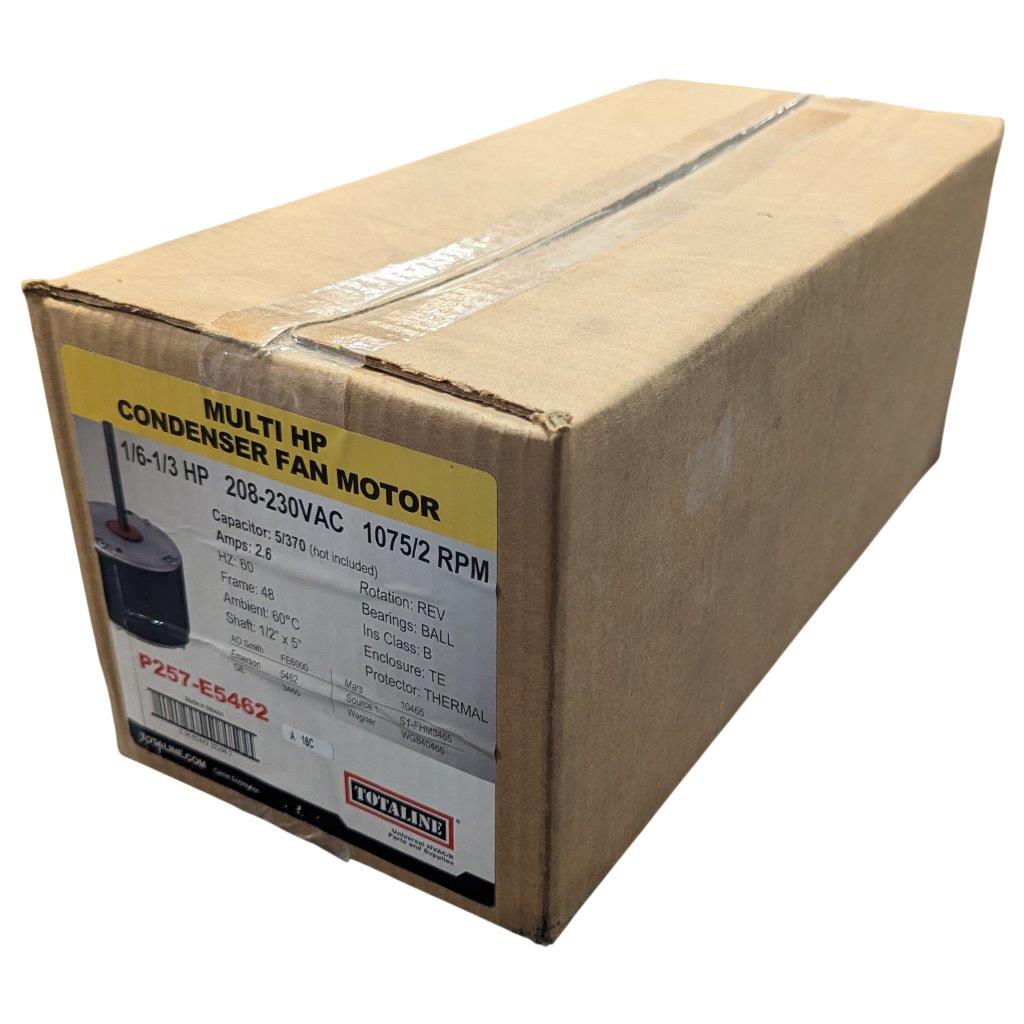

Condition: New, unused condenser fan motor in box; box shows storage wear, tape, scuffs, edge wear, and minor dents. Run capacitor is not included, as stated on the label.

The Totaline P257-E5462 is a multi-horsepower PSC condenser fan motor designed for outdoor HVAC condenser fan applications. It operates on 208-230VAC, runs at 1075 RPM, and can replace multiple condenser fan motor ratings from 1/6 HP through 1/3 HP when the electrical, mechanical, mounting, capacitor, and rotation requirements match. This motor is used to drive the fan blade in outdoor air-conditioning and heat-pump condenser units, helping move air across the condenser coil for proper heat rejection.

Features

• Brand: Totaline
• Model: P257-E5462
• Product Type: Multi-HP condenser fan motor
• Motor Type: PSC — permanent split capacitor
• Horsepower Range: 1/6-1/3 HP
• Voltage: 208-230VAC
• Frequency: 60 Hz
• Speed: 1075 RPM
• Number of Speeds: 2 RPM/speed selection indicated on label as 1075/2 RPM
• Amperage: 2.6 A
• Phase: Single phase
• Frame: 48
• Ambient Temperature Rating: 60°C
• Shaft Size: 1/2″ x 5″
• Capacitor Required: 5 µF / 370V, not included
• Rotation: Reversible
• Motor Shaft Rotation: CWSE/CCWLE or CCWSE/CWLE, depending on wiring
• Bearings: Ball bearings
• Insulation Class: B
• Enclosure: TE — totally enclosed
• Thermal Protection: Thermal protector
• Country of Manufacture: Mexico
• UPC / Barcode: 00822529264926

Applications

The P257-E5462 is intended for condenser fan motor replacement in HVAC outdoor units where a 208-230V, 1075 RPM, Frame 48, reversible PSC motor is required. Typical applications include:

• Residential central air conditioner condenser units
• Heat pump outdoor condenser sections
• Light commercial condensing units
• HVAC service replacement and repair
• Outdoor fan assemblies using 1/2″ shaft condenser fan motors
• Maintenance inventory for contractors servicing multiple condenser motor sizes

This motor can be part of a larger condenser assembly that includes the fan blade, condenser coil, compressor, run capacitor, contactor, fan grille, cabinet, and control wiring. Compatibility should be verified against the original motor nameplate and the equipment service documentation before installation.

Motor Specifications

• Horsepower: Multi-HP, 1/6 HP to 1/3 HP
• Voltage: 208-230VAC
• RPM: 1075 RPM
• No. of Speeds: 2-speed / multi-configuration label indication
• Frame: 48
• Motor Design: PSC
• Phase: Single phase
• Enclosure Type: TE
• Insulation Class: B
• Service Factor: Not specified on visible label
• Thermal Protection: Yes
• Ambient Rating: 60°C
• Bearing Type: Ball
• Shaft: 1/2″ diameter x 5″ length
• Required Capacitor: 5 µF / 370V, not included
• Rotation: Reversible
• Motor Shaft Rotation: CWSE/CCWLE or CCWSE/CWLE depending on wiring connection
• CFM: Not specified; airflow depends on the fan blade diameter, blade pitch, shroud, grille, and condenser cabinet design

Cross-Referenced Models

The label lists the following cross-reference models:

• A.O. Smith FE6000
• Emerson 5462
• GE 3465
• Mars 10465
• Source 1 S1-FHM3465
• Wagner WG840465

Comparable Products

• Wagner WG840465 — comparable multi-HP 208-230V condenser fan motor
• A.O. Smith FE6000 — equivalent condenser fan motor reference
• Emerson 5462 — comparable PSC condenser fan motor
• GE 3465 — replacement reference for 208-230V condenser fan applications
• Mars 10465 — similar multi-horsepower condenser fan motor
• Source 1 S1-FHM3465 — comparable HVAC replacement motor

Installation Notes

Installation should be performed by a qualified HVAC technician. Before replacing an existing motor, compare the original unit’s horsepower, voltage, RPM, frame size, shaft diameter and length, capacitor rating, rotation direction, bearing type, mounting style, and wiring diagram. This motor requires a 5 µF / 370V run capacitor, which is not included. Unused wires should be capped and secured according to standard HVAC electrical practice.
