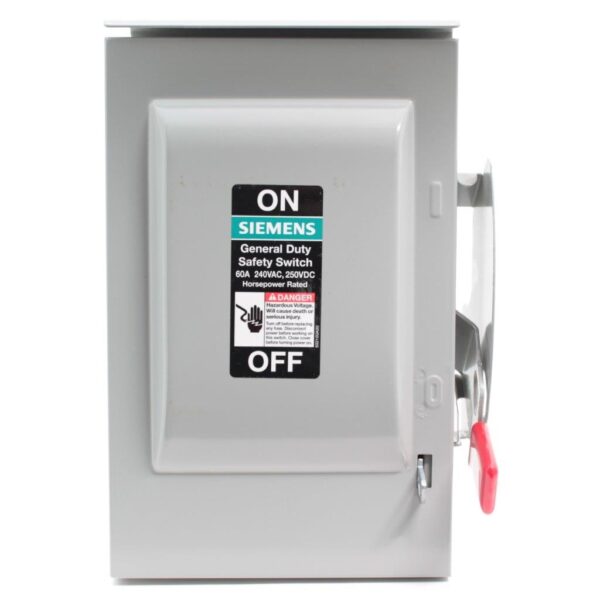

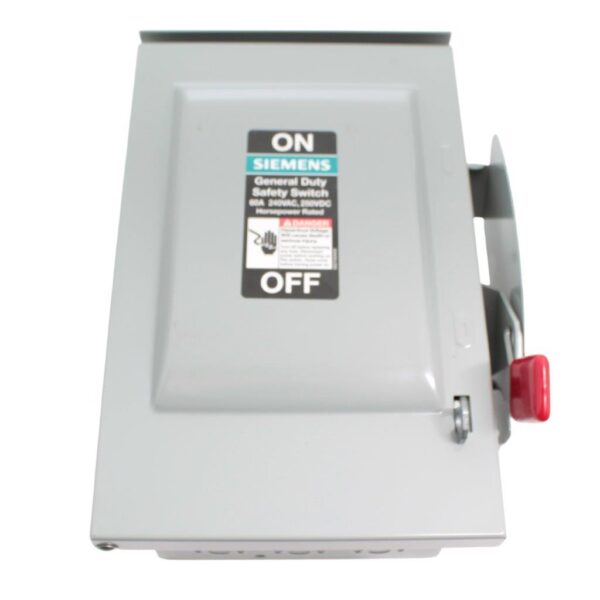

Siemens GNF322R General Duty Safety Switch – 60A, 240V, 3-Pole, Non-Fused, Outdoor-Rated Type 3R Enclosure

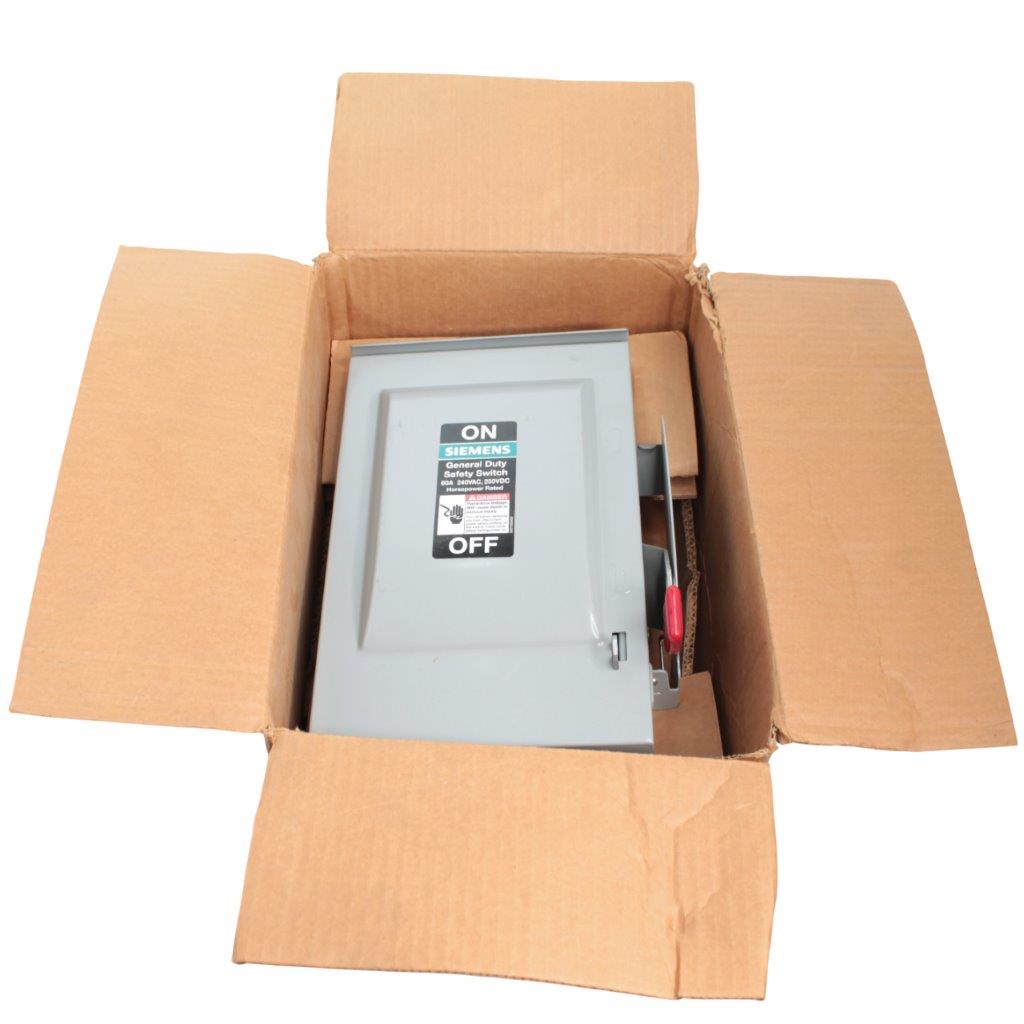

Condition: New Open Box – Unit is unused; box shows visible shelf/storage wear. Product is in excellent condition.

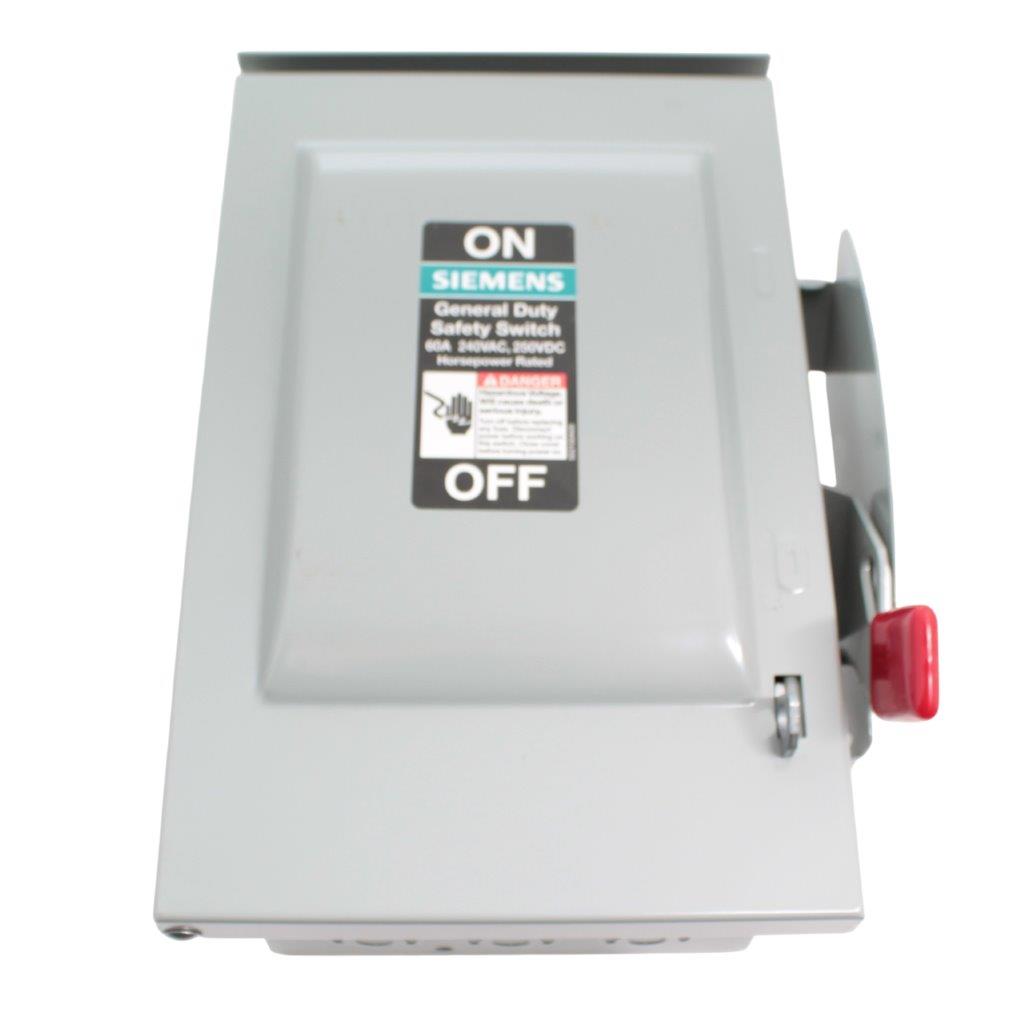

The Siemens GNF322R is a 60 Amp, 240 Volt AC, 3-Pole, Non-Fused Safety Switch housed in a Type 3R steel enclosure designed for outdoor and indoor service entrance or motor load disconnect applications. Part of Siemens’ VBII series, this general-duty safety switch is UL98 listed and specifically labeled for service entrance use, making it suitable for residential, light commercial, and industrial installations.

Engineered for surface mounting, the switch includes mechanical lugs and a single-throw handle mechanism. It is capable of supporting both AC and DC circuits, rated up to 10 HP (1PH), 15 HP (3PH), or 10 HP (250VDC). With a mechanical service life of 10,000 operations, it is a robust and long-lasting disconnecting means in compliance with modern code standards.

Key Specifications:

• Model: GNF322R
• Brand: Siemens
• Sub-brand: VBII
• Type: General Duty Safety Switch
• Enclosure Rating: NEMA 3R (Outdoor)
• Amp Rating: 60 Amps
• Voltage Rating: 240V AC / 250V DC
• Poles: 3-Pole
• Fuse Type: Non-Fused

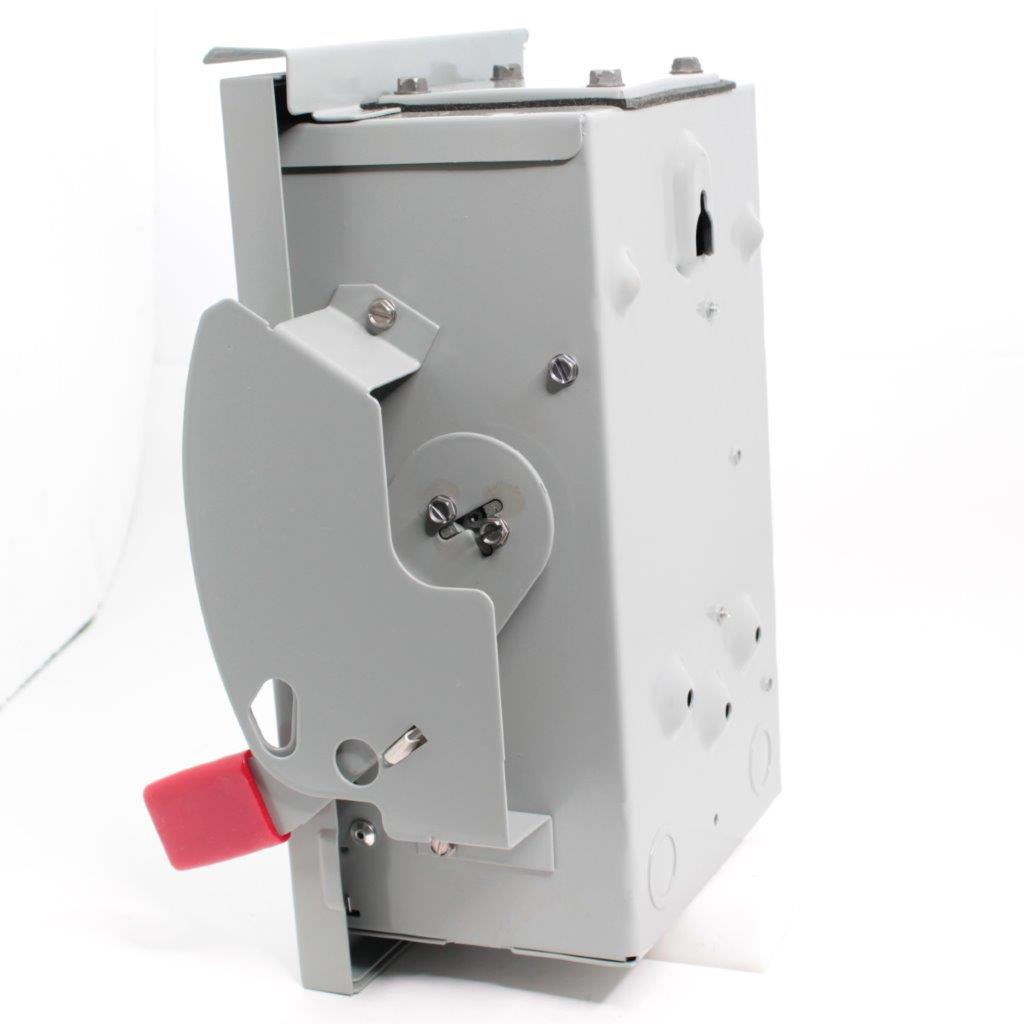

• Switch Type: Single Throw

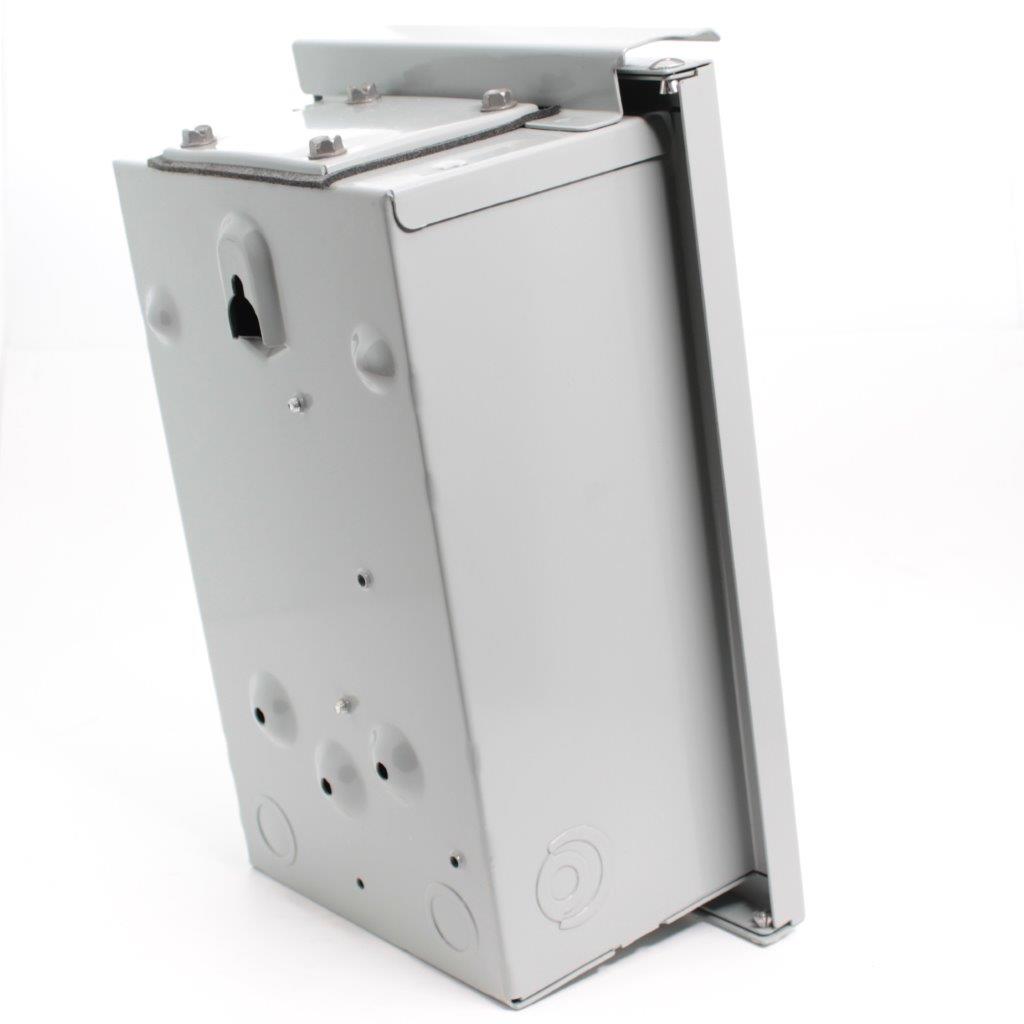

• Mounting Style: Surface Mount

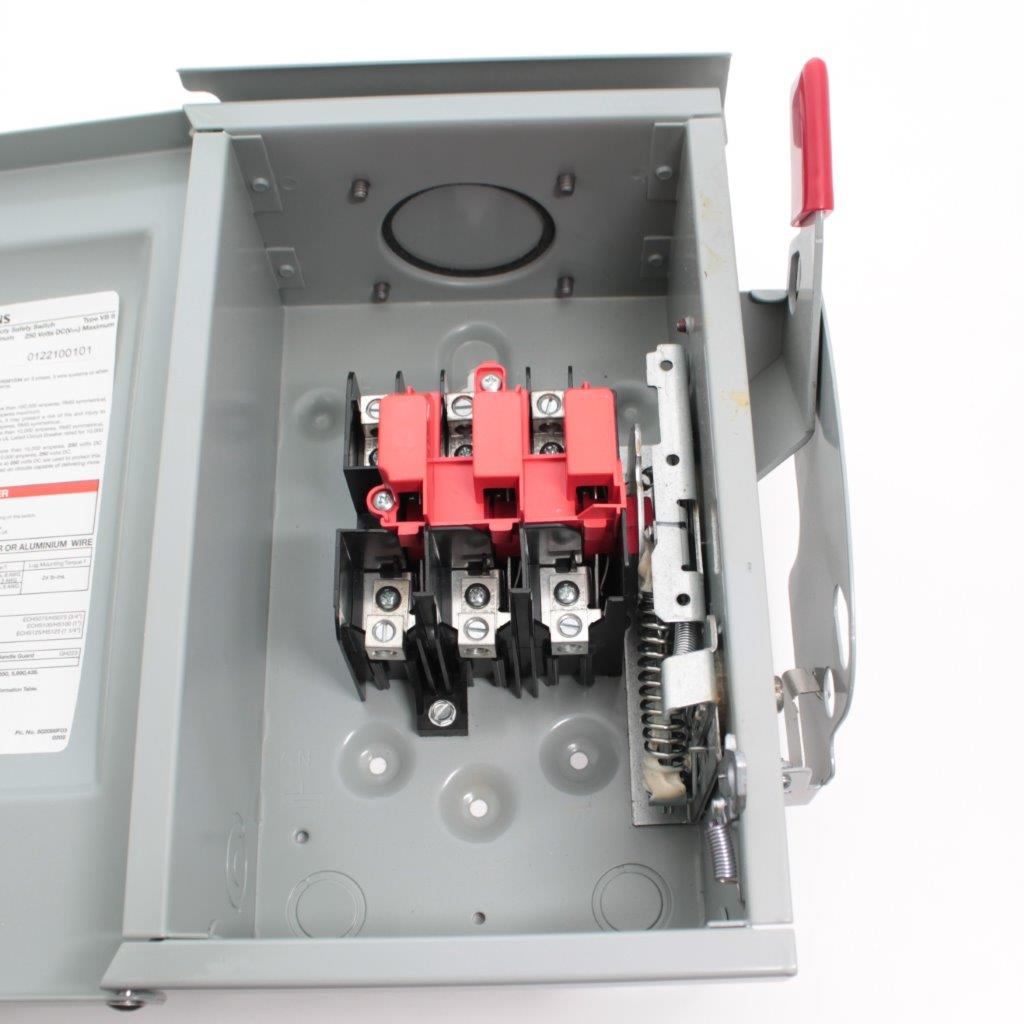

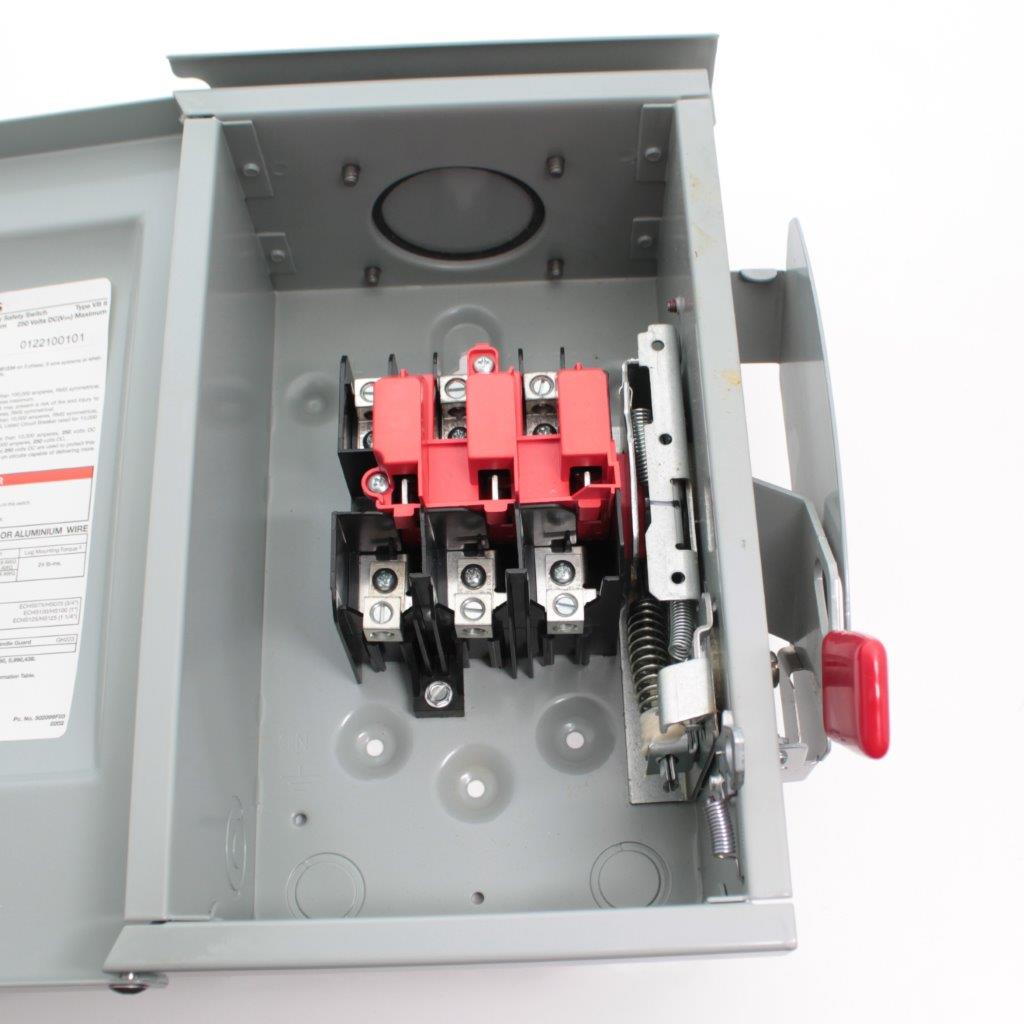

• Connection Type: Mechanical Lugs
• Horsepower Ratings:
  • 1PH 2W: 10 HP
  • 3PH 3W: 15 HP
  • 250V DC: 10 HP
• UL Listed: Yes, UL98 for service entrance
• Country of Origin: Mexico
• Operating Temperature: -29°C to +85°C
• Material: Galvanized Steel
• Mechanical Life: 10,000 operations

Packaging & Dimensions:

• Net Weight: 10.98 lbs
• Packaging Dimensions: 10.63″ (L) x 14.96″ (W) x 7.48″ (H)
• UPC: 783643150010
• Commodity Code: 8536509045

Features:

• UL98 Listed – Certified for use as a main disconnect
• Service Entrance Rated – Labeled and compliant for utility cutoffs
• Versatile Operation – For 3-phase motors, HVAC disconnects, or DC loads
• Durable 3R Enclosure – For outdoor weather-resistant installations
• Mechanical Lugs – Reliable wire terminations with ample room
• 10,000 Cycle Rated Handle Mechanism – Long mechanical lifespan

Applications:

• HVAC unit disconnect
• Service entrance disconnect for residential or light commercial use
• Motor control for agricultural and industrial installations
• Equipment isolation or emergency shutoff switch
• Outdoor compressor or well pump service disconnect

Comparable Products:

• Square D DU322RB (60A, 240V, Non-Fused, Type 3R)
• Eaton DG322URB (3-Pole, 60A, General Duty, 3R enclosure)
• GE TC35322R (60A, 240V AC, Non-Fusible Disconnect)
• Milbank U3882-RL-60 (60A, 3R rated general-duty switch)

Related:

60 amp outdoor safety switch, non-fused disconnect switch, Siemens GNF322R replacement, 240v AC disconnect, HVAC service switch, general duty Siemens switch, surface mount safety switch, 3-phase outdoor rated switch, UL98 disconnecting means, VBII Siemens safety switch

Common Requests:

1. “Can this be used as a service entrance disconnect?”
2. “Is the enclosure weatherproof for outdoor use?”
3. “What’s the difference between fused and non-fused models?”
4. “Does this support 3-phase motor loads?”
5. “Is the handle lockable for safety?”

Trademark Notice: Siemens® and VBII® are registered trademarks of Siemens AG. All trademarks are used for identification purposes only and do not imply endorsement or affiliation.
