Rollway Radial Tapered Roller Bearing (Metric) 32314 A, 70 mm Bore Size, 150 mm OD

$210.00

1 in stock

UPC: 637410070325

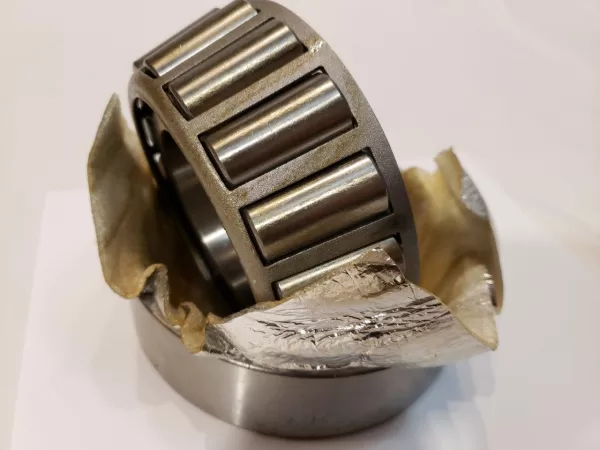

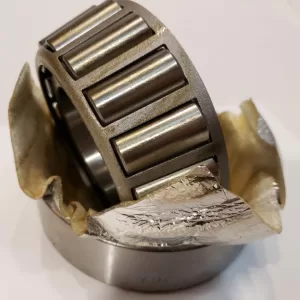

Rollway Radial Tapered Roller Bearing – Metric – 32314 A

70 mm Bore Size, 150 mm Outside Diameter, Radial Tapered Roller Bearing, Metric, High Chromium Bearing Steel, Normal Radial Clearance

– One row tapered rollers
– Raceways have linear surfaces
– Axial and radial loads
– 2 piece bearing

Product Specifications
General Specifications
UPC: 637410070325
Packaged Length: 6.2 Inches
Packaged Height: 2.6 Inches
Weight: 9.67 LB
Packaged Width: 6.9 Inches

Technical Specifications
Version: A – Increased load capacity
Rolling Element: Tapered Roller
Bore Type: Straight
Cage Material: Steel
Seal Type: Unsealed
Dynamic Load Rating (kN): 297
Duplexing: No
Platform: Tapered Radial Roller
Dynamic Load Rating: 66,768
Static Load Rating (lb): 85,652 lb
Outside Diameter – mm: 150 mm
Material: High Chromium Bearing Steel
Static Load Rating (kN): 381
Radial Clearance: Normal

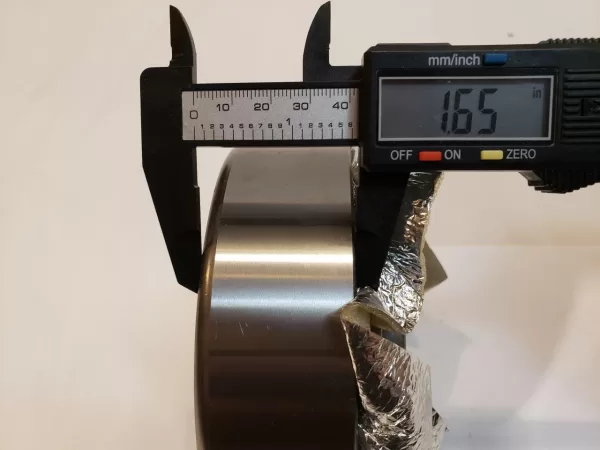

Overall Width (mm): 54 mm
Number of Rows: 1
Misalignment: No
Full Complement/Caged: Caged
Speed (Max) Grease: 2,200

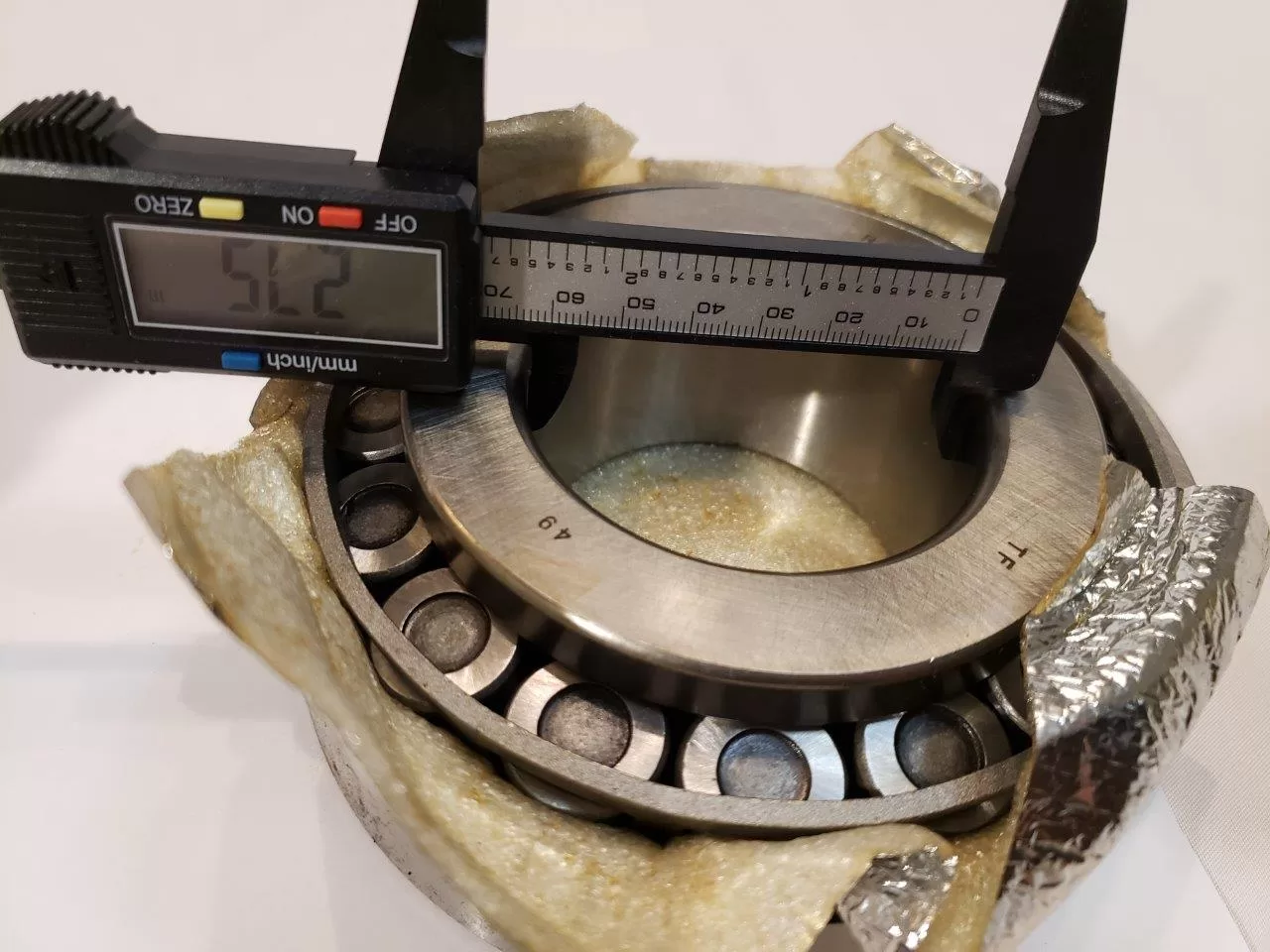

Bore Size – mm: 70 mm
Sealed: None
Speed (Max) Oil: 3,200

The Rollway Radial Tapered Roller Bearing – Metric – 32314 A is a type of bearing designed to handle radial and axial loads in various industrial applications. Here is information about its main uses, features, specifications, and keywords:

Main Use:
The Rollway Radial Tapered Roller Bearing 32314 A is commonly used in heavy machinery, automotive, and industrial applications where there is a need to support and withstand both radial and axial loads. It is often found in applications such as conveyors, gearboxes, wheel hubs, and large industrial equipment.

Features:

Radial and Axial Load Capacity: The tapered roller bearing is capable of handling both radial and axial loads, making it suitable for applications where combined loading is present.
High Load Capacity: The bearing is designed to handle high loads and provide reliable performance in demanding conditions.
Tapered Roller Design: The tapered roller design enables efficient load distribution and reduces friction, resulting in improved performance and extended bearing life.
Precision Construction: The bearing is precision-engineered with tight tolerances to ensure smooth operation and optimal performance.
Durability: The bearing is constructed with high-quality materials and undergoes stringent manufacturing processes to provide durability and resistance to wear and tear.
Easy Installation: The bearing is designed for easy installation and replacement, facilitating maintenance and reducing downtime.
Lubrication: Proper lubrication is essential for the bearing’s optimal performance, and it may require periodic lubrication to ensure smooth operation and prevent premature wear.
Industry Standard: Rollway is a well-established and reputable brand known for producing high-quality bearings that meet industry standards.
Specifications:

Bearing Type: Radial tapered roller bearing
Series: 32314 A
Bore Diameter: 70 mm
Outer Diameter: 150 mm
Width: 54 mm
Load Capacity: The specific load capacities (radial and axial) may vary based on the application and operating conditions.
Keywords (not in any particular order):

Rollway Radial Tapered Roller Bearing
32314 A bearing
Tapered roller bearing
Metric bearing
Radial load
Axial load
Heavy machinery bearing
Industrial bearing
When selecting and installing bearings, it is crucial to consult the manufacturer’s specifications and guidelines to ensure the correct application, proper lubrication, and adherence to safety and maintenance requirements.

Weight 9.54 lbs
Dimensions 5.99 × 5.99 × 2.2 in
