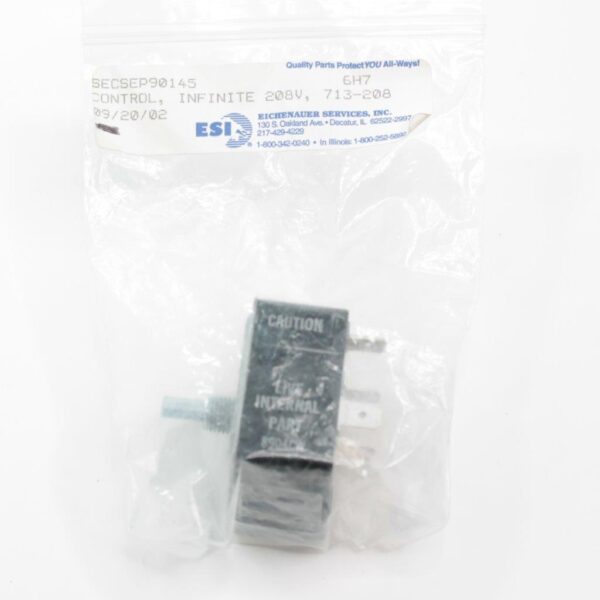

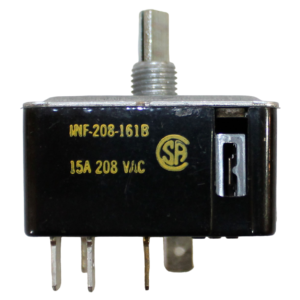

Robertshaw Infinite INF-208-161B Control Switch 15A 208VAC Genuine OEM

Robertshaw Infinite 208-161B Control Switch 15A 208VAC Genuine OEM

Description:
Brand: Robertshaw
Type: Infinite Switch
Voltage: 208V AC
Rating: 15 Amps
Dial: Black
Assembled in Mexico

Rotary Style
22-1/2 % At Low Setting , .187 Flat Up Shaft, Palnut Mounted , (N.O.) Contacts, Markings (1-10) , 5 – 1/4″ Tab Terminals , L1,L2(Line), P(Pilot), H1,H2(Load)

INSTALLATION INSTRUCTIONS
CAUTION: This device should be installed by a qualified service technician with due regard for safety, as improper installation could result in a hazardous condition.
1. Unplug range or disconnect power.
2. Remove dial from switch.
3. Gain access to the inoperative switch. Refer to the original user manual
for the appliance for proper disassembly.
4. Label all wires with tags or make an exact drawing of wiring configuration before removing any wires.
5. Remove original switch.
6. Determine mounting type for the new switch: Screw Mount or Palnut.

Adcraft Food Warmers
Avantco Food Warmer
DELFIELD WARMER DME30SW

SECO WARMER CW-1200
SERIES: ICC, ICCD, ICD, ISC, ISCD, ISCF, ISCFD
ALL TYPE 77 DROP-IN UNITS

Delfield # 0083150, 713(208V), 90145, SEP90145, SECSEP90145
Seco # 0083150, 713B
# 42-1109

NL24 E2
