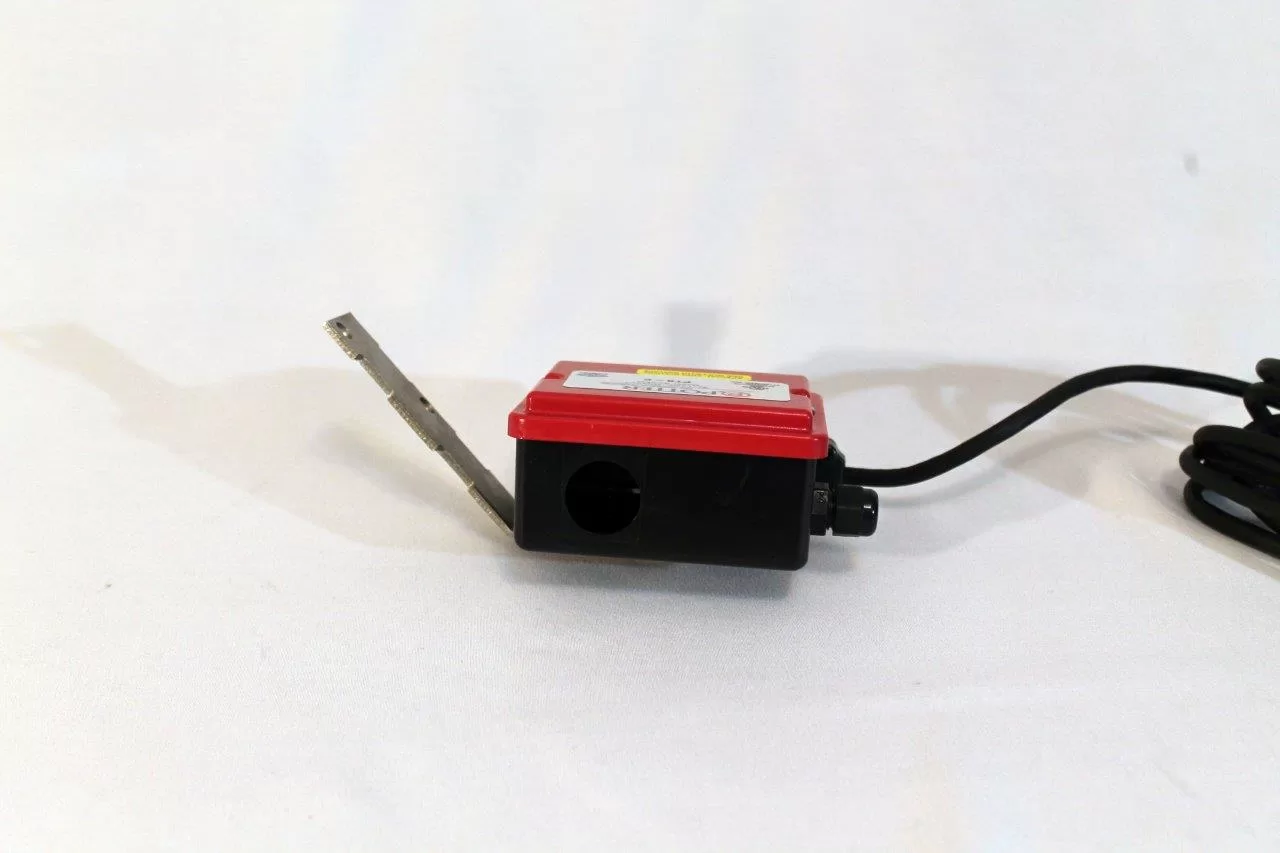

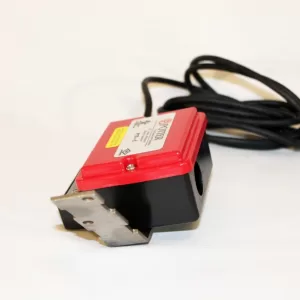

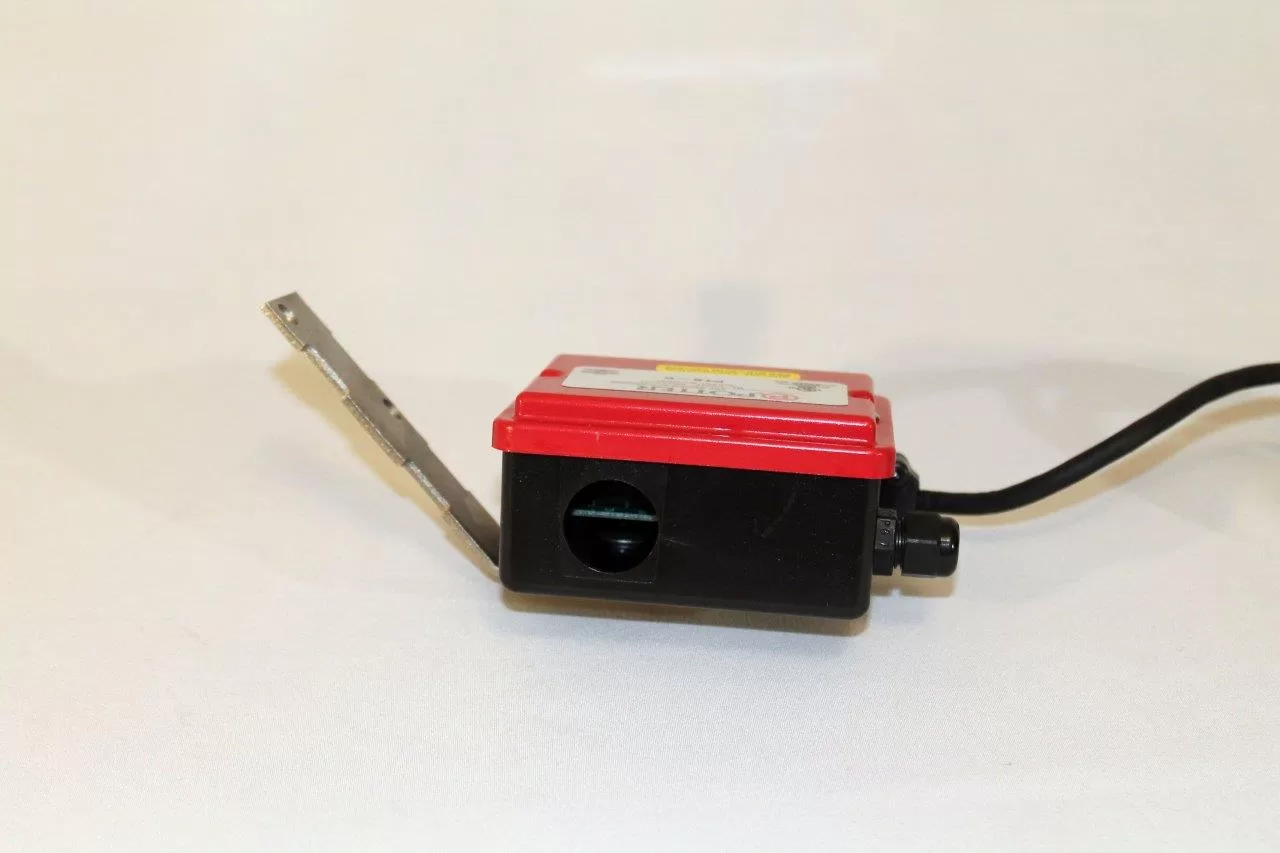

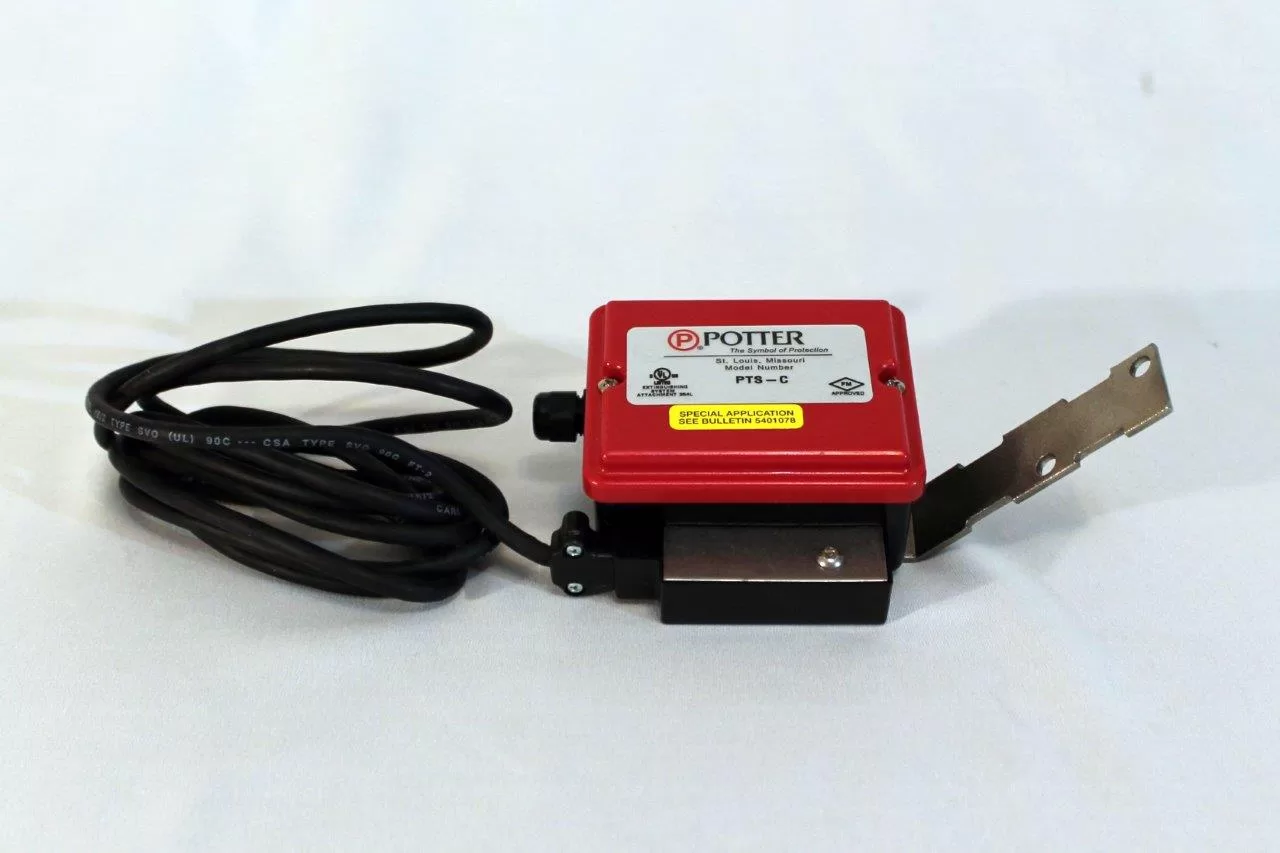

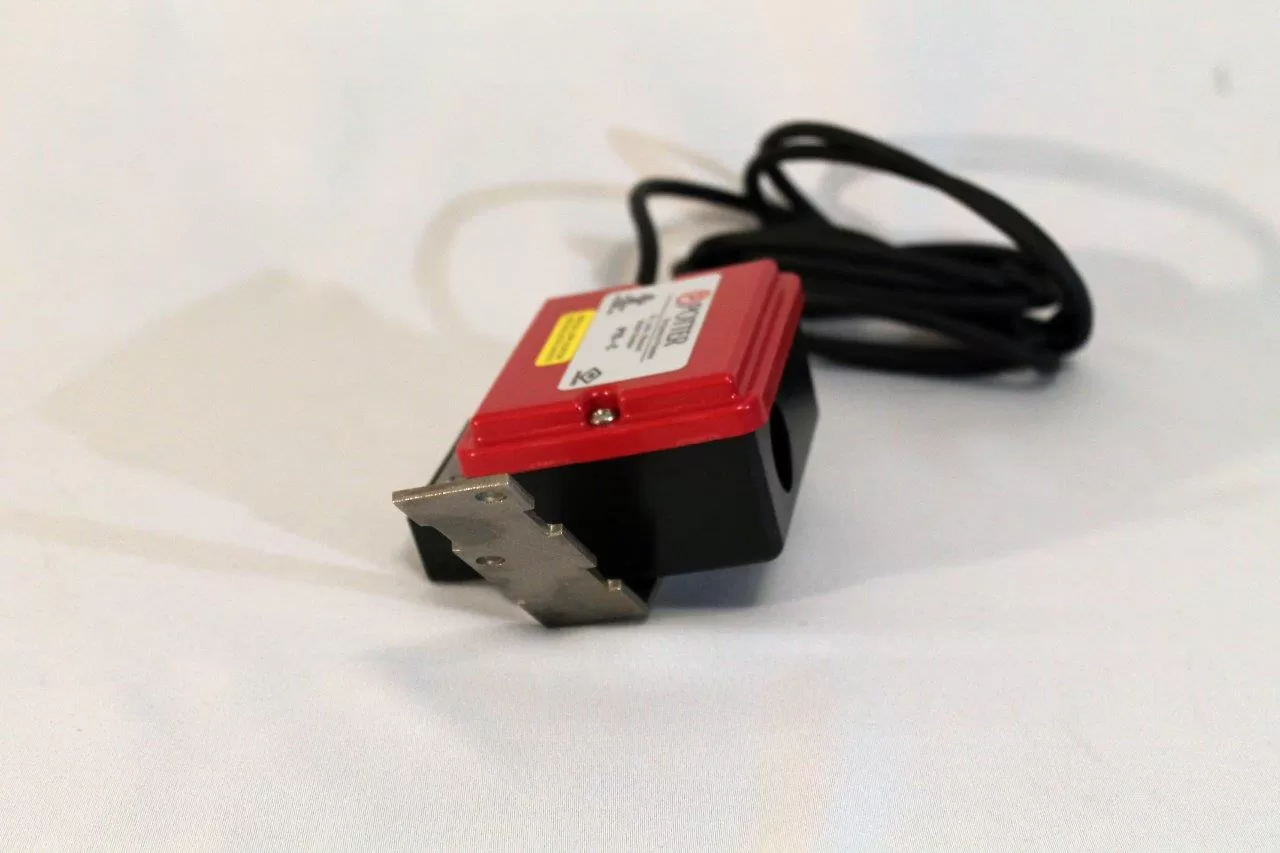

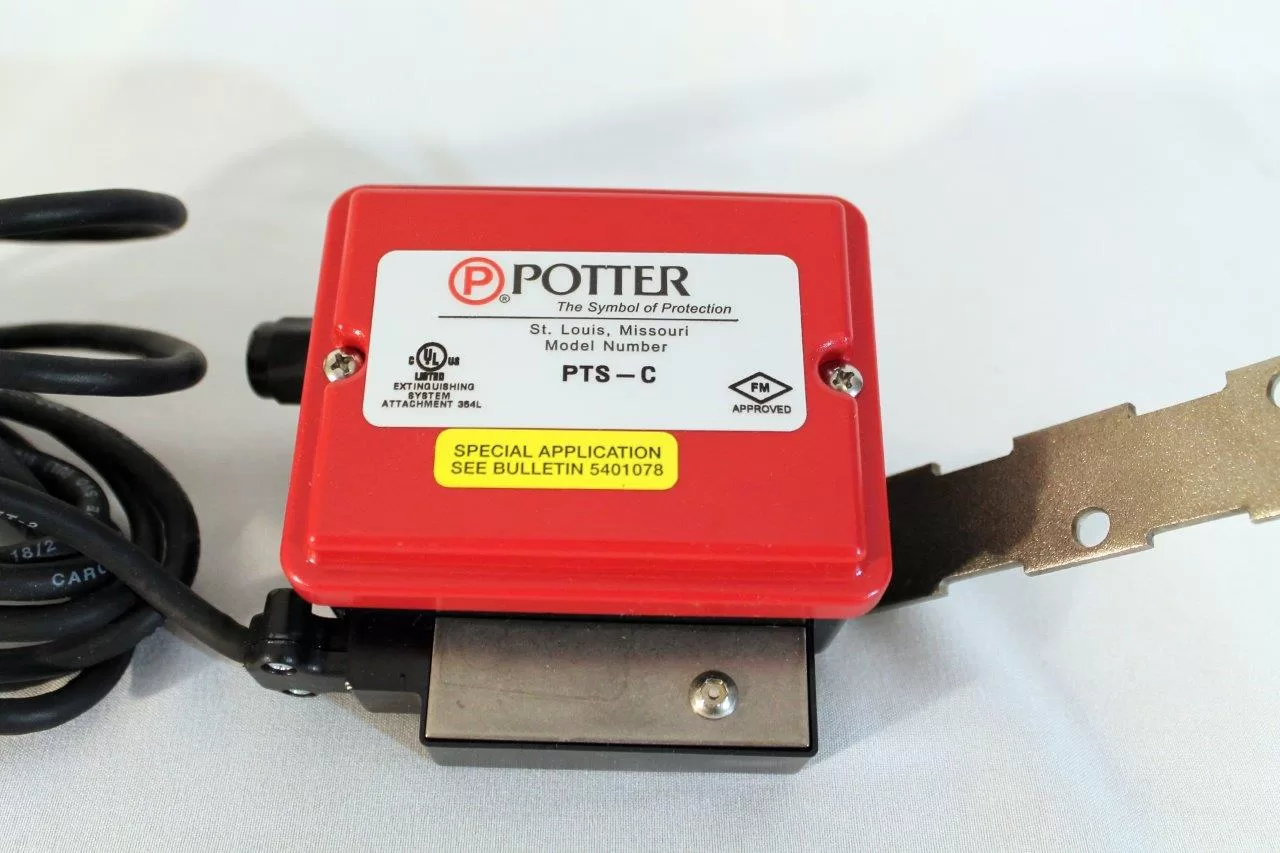

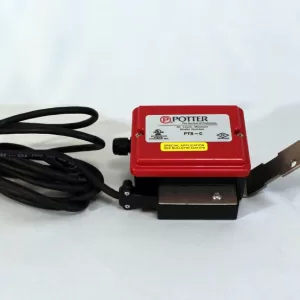

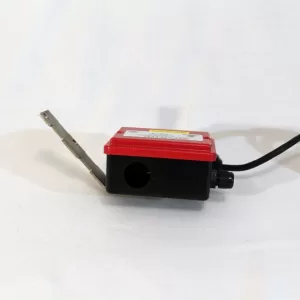

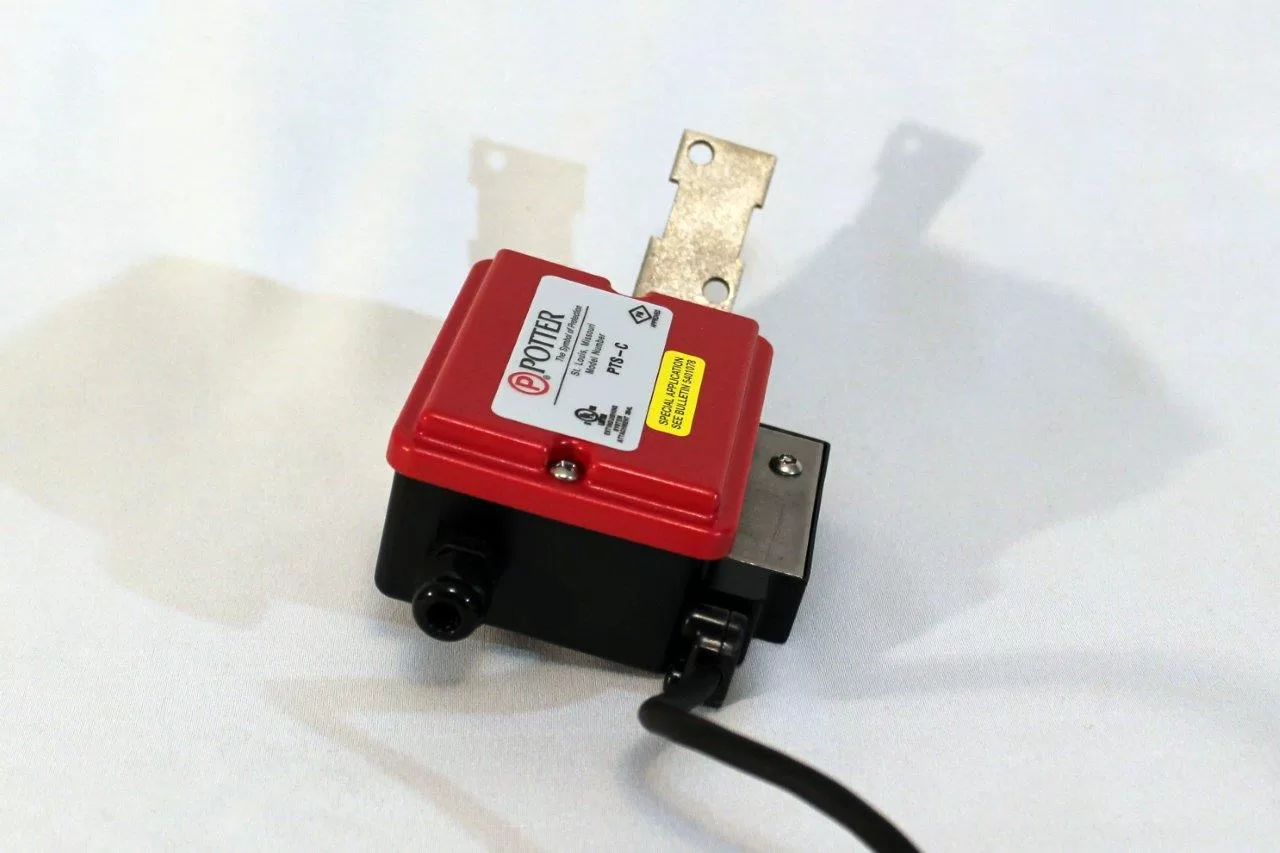

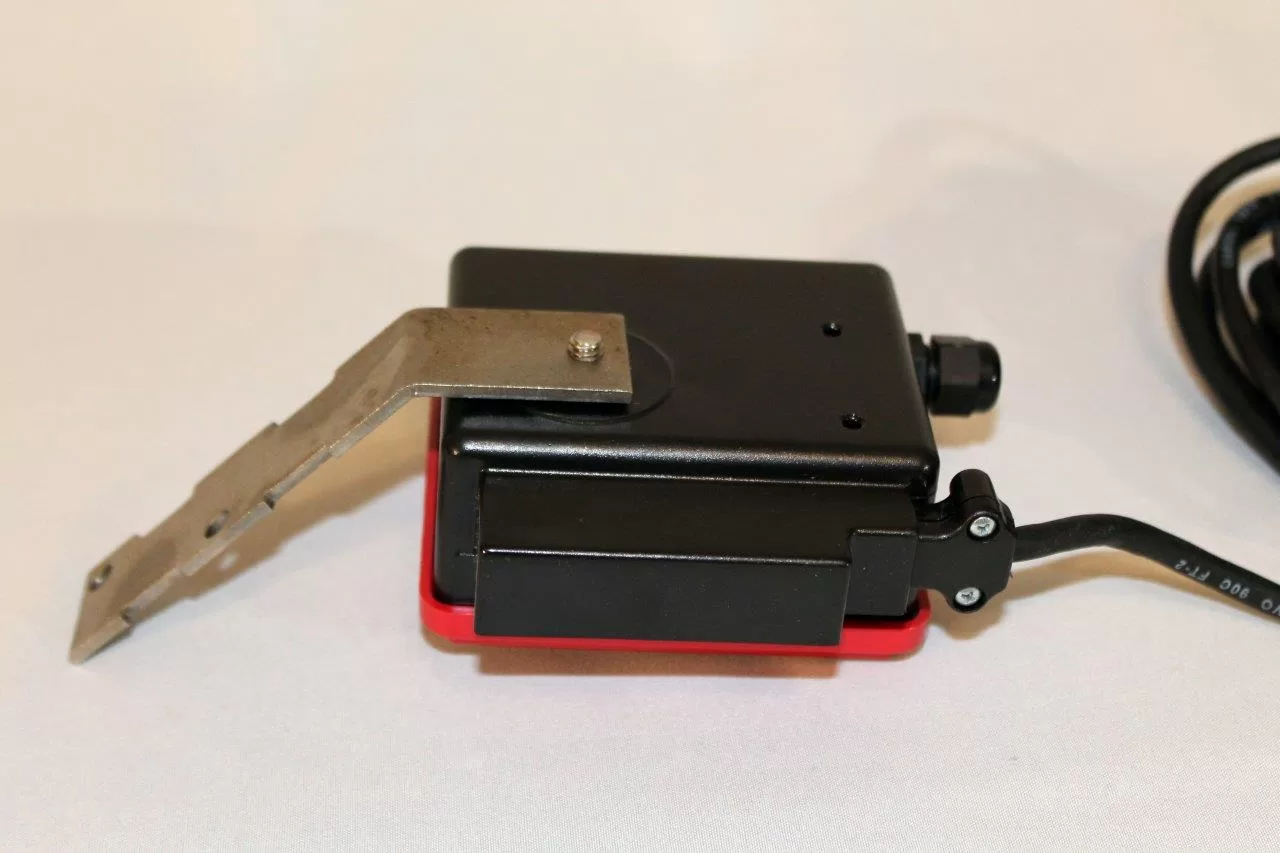

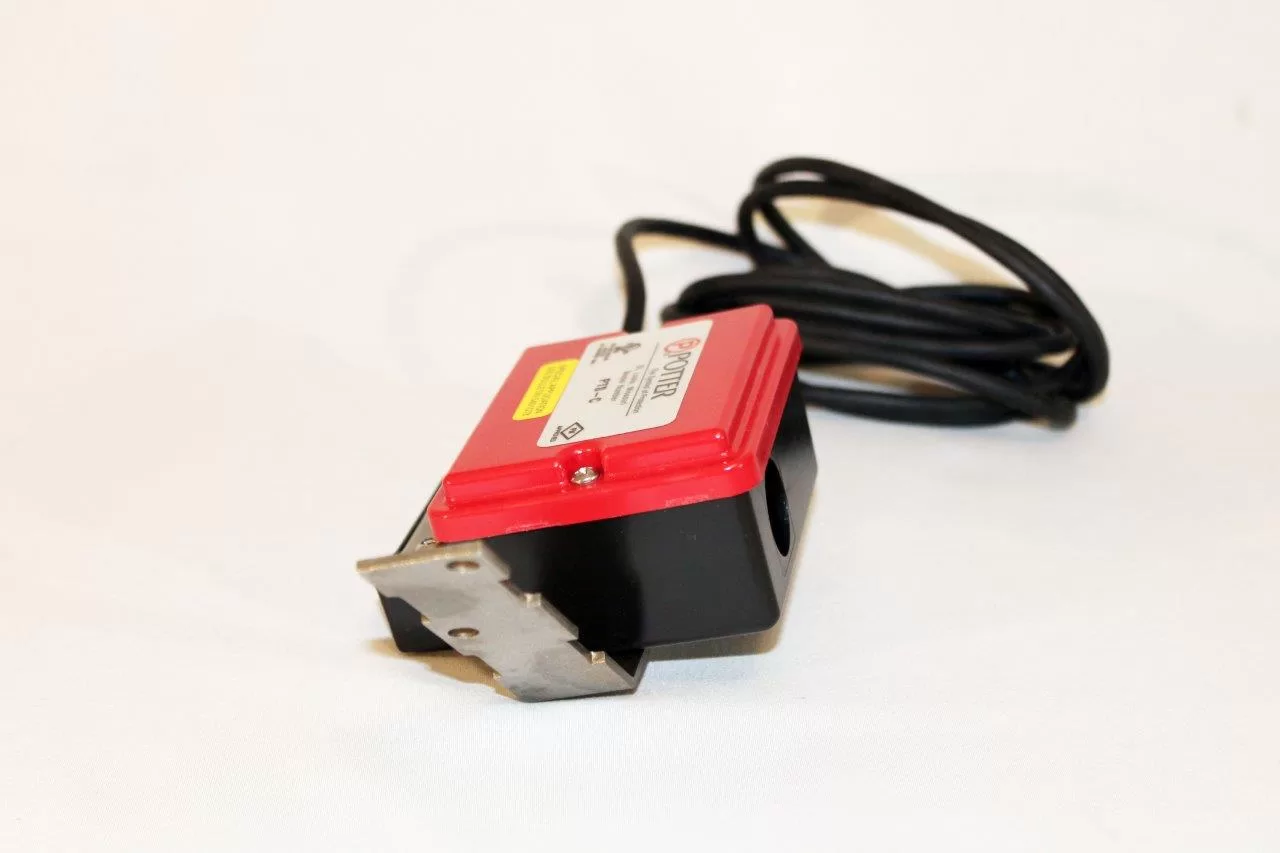

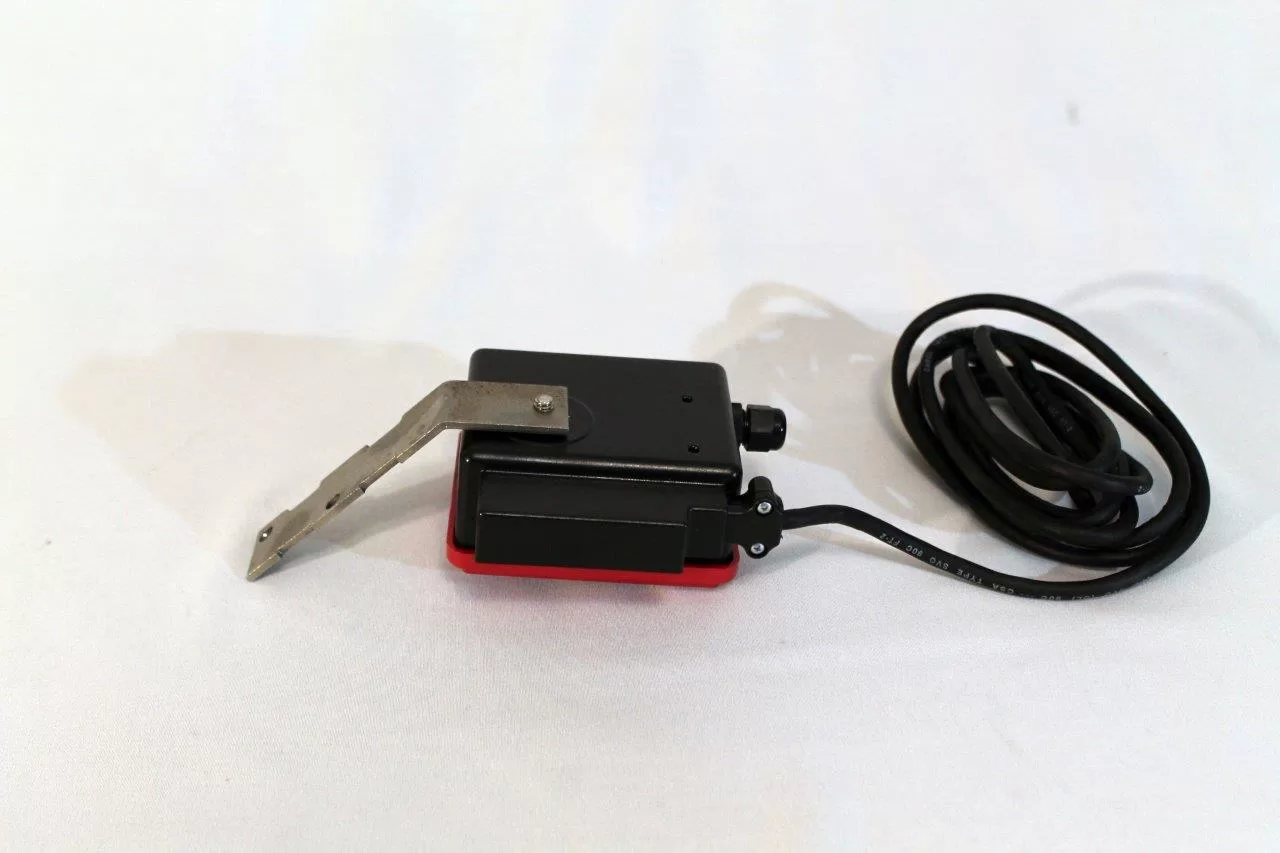

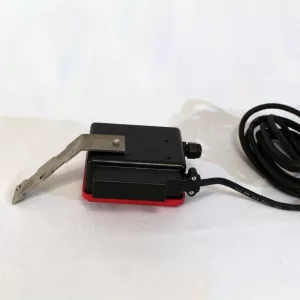

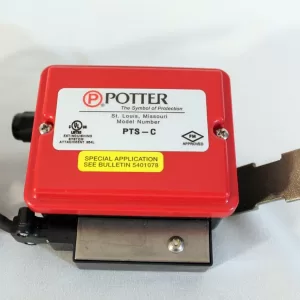

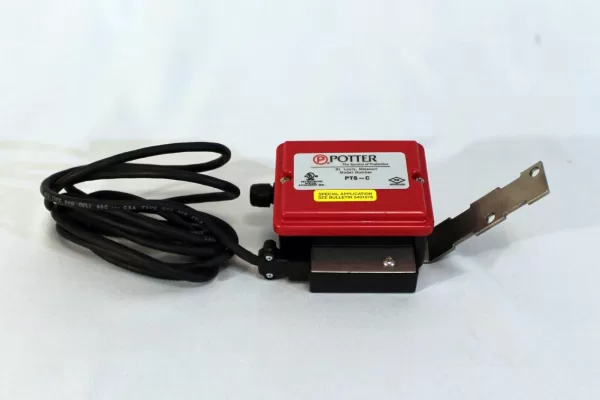

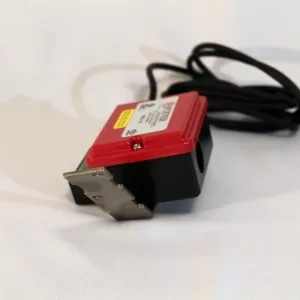

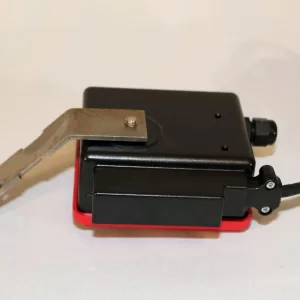

Potter PTS-C Plug-Type Supervisory Switch

Potter PTS-C Plug-Type Supervisory Switch

New: A brand-new, unused, undamaged item in its original packaging.
Description:
– UL and cUL Listed, FM Approved, CSFM Listed, NYMEA Accepted
– Dimensions: 7 L x 3.75 W x 3 D (including bracket)
– Housing Cover Tamper: Activated by housing cover removal
The Model PTS-C is designed to supervise sprinkler system control valves and may also be used to secure gates and other applications. This unit is particularly useful for unusual conditions, such as non-rising stem valves.
Nema 6P enclosure allows the device to be mounted outdoors, even in areas subject to flooding such as pits and wells. Sealed reed switch operation virtually eliminates contact corrosion.

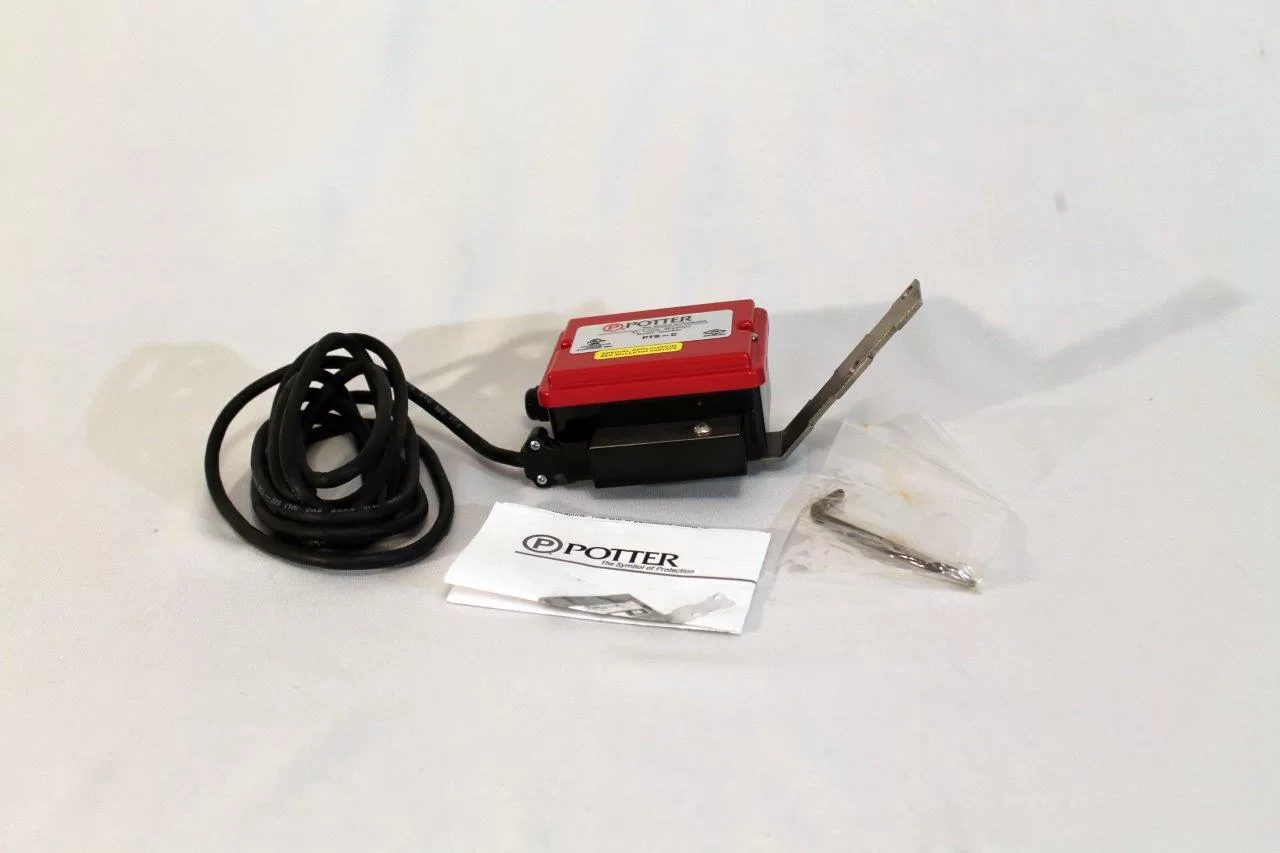

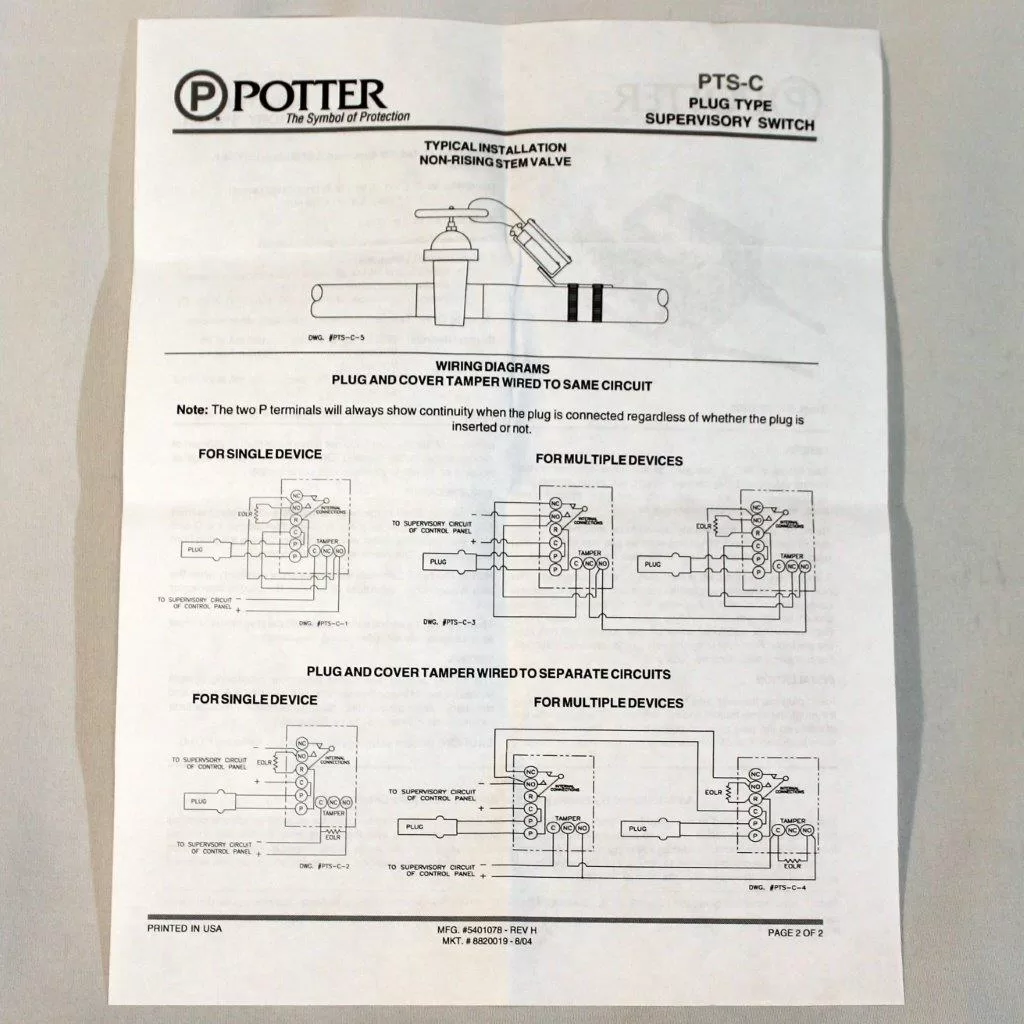

Turning the valve wheel will pull the plug out of the receptacle. The plug cannot be reinserted after the operation until the plug receptacle cover is removed with the special hex key provided.

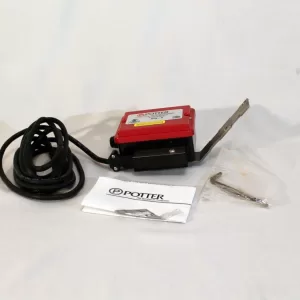

This key should be left with the building owner or responsible party.
Features:
– UL and cUL Listed, FM Approved, CSFM Listed, NYMEA Accepted
– Dimensions: 7″ L x 3.75 W x 3″ D (including bracket) (17,7 cm x 9,5 cm x 7,6 cm)
– Weight: 13.6 oz. (385,5 g.)
– Enclosure: Non-Corrosive Composite Material
– Environmental Limitations: NEMA 4 and NEMA 6P rated enclosure when proper electrical fittings are used. (IP67)
– Temperature range: -40° F to 140° F (-40° C to 60° C)
– Housing Cover Tamper: Activated by housing cover removal.
– Contact Ratings: SPDT Plug Contacts: 100 mA at 28 VDC/AC
– 250 mA at 12 VDC/AC
– SPDT Cover Tamper: 250 mA at 28 VDC/AC
Specifications:
ADI Part Number: PL-PTSC
Brand Name: Potter
Manufacturer: Potter Electric Signal, LLC
Manufacturer Part Number: PTS-C
Product Model: PTS-C
Product Name: PTS-C Sprinkler Supervisory Switch
Product Type: Sprinkler Supervisory Switch
Weight (Approximate) (g): 385.554
Depth: 3″
Depth (mm): 76.2
Height: 7″
Height (mm): 177.8
Weight (Approximate): 13.60 oz
Width: 3.8″
Width (mm): 95.25

UPC Code: 785192006749
Country of Origin: United States

The Potter PTS-C Plug-Type Supervisory Switch is an electrical device used in fire alarm systems to monitor the status of other fire protection devices, such as sprinklers, smoke detectors, and pull stations.

1. Fire protection: The primary use of the Potter PTS-C is to monitor the status of other fire protection devices and alert the fire alarm system if any of these devices fail or are tampered with.
2. Supervision: This switch is used to supervise the proper operation of other fire protection devices, including the integrity of the wiring and the proper mechanical operation of the device.
3. Tamper-proof: The plug-type design of the switch makes it tamper-proof and difficult to bypass, ensuring that the fire protection system remains active and functional at all times.
4. Compatibility: The switch is compatible with a wide range of fire protection devices, making it versatile and easy to use in different systems.
5. Easy to install: The plug-type design makes it easy to install and maintain, minimizing downtime and ensuring that the fire protection system is always up and running.
6. Remote monitoring: The switch can also be used for remote monitoring of fire protection devices, allowing for real-time monitoring and alerts of any issues.

Advantages of using a Potter PTS-C Plug-Type Supervisory Switch include:

• Enhanced fire protection: By monitoring the status of other fire protection devices, the switch helps to ensure that the system is always active and ready to respond in the event of a fire.
• Tamper resistance: The plug-type design makes it difficult to bypass, ensuring that the system remains active and functional at all times
• Versatility: The switch is compatible with a wide range of fire protection devices, making it easy to use in different systems.
• Easy to install: The plug-type design makes it easy to install and maintain, minimizing downtime and ensuring that the fire protection system is always up and running.
• Remote monitoring: The switch can also be used for remote monitoring of fire protection devices, allowing for real-time monitoring and alerts of any issues.
