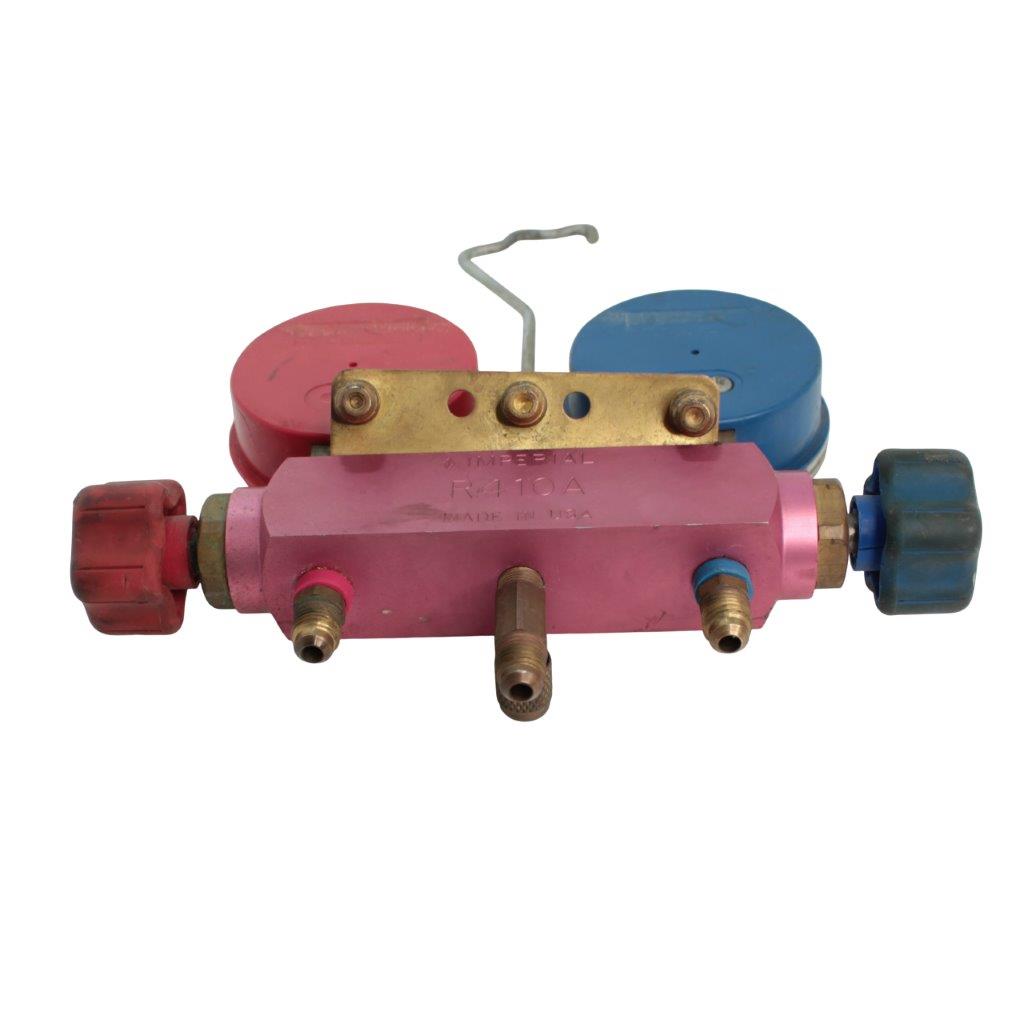

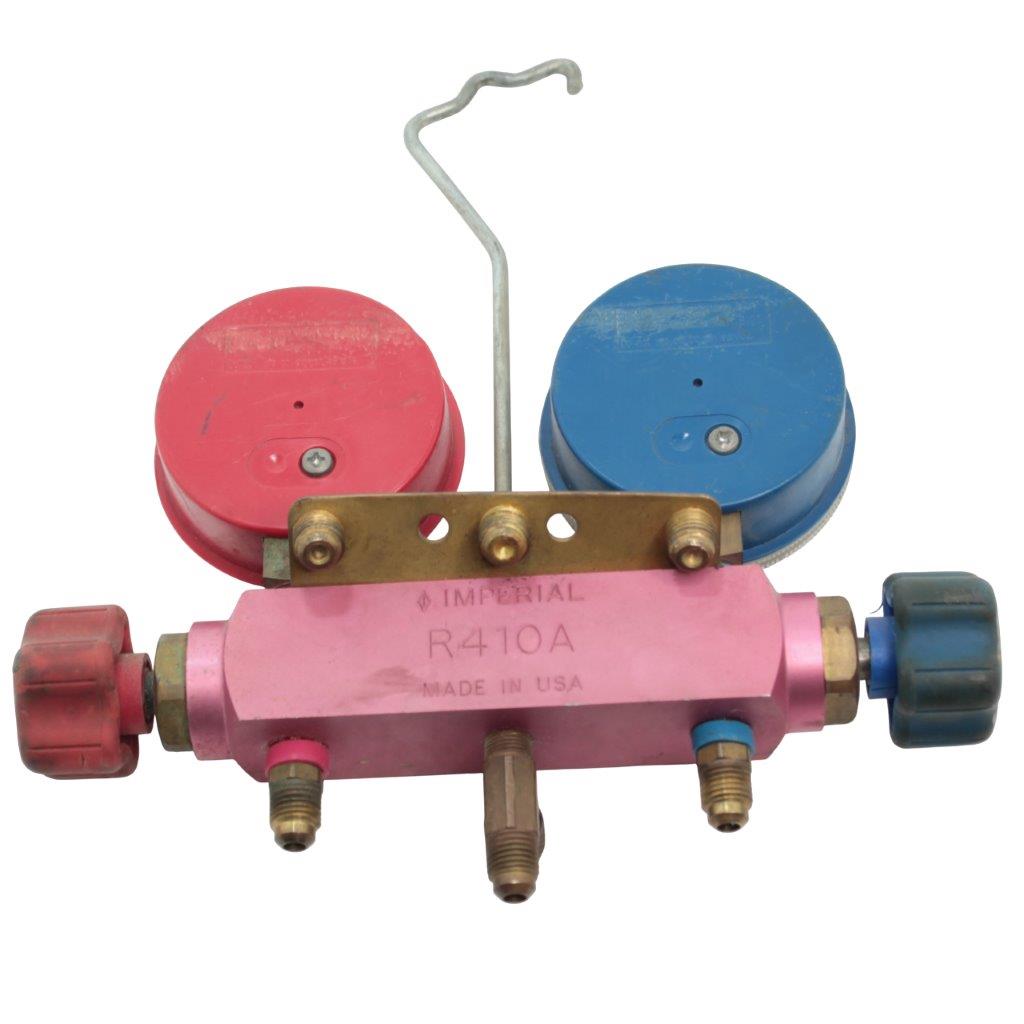

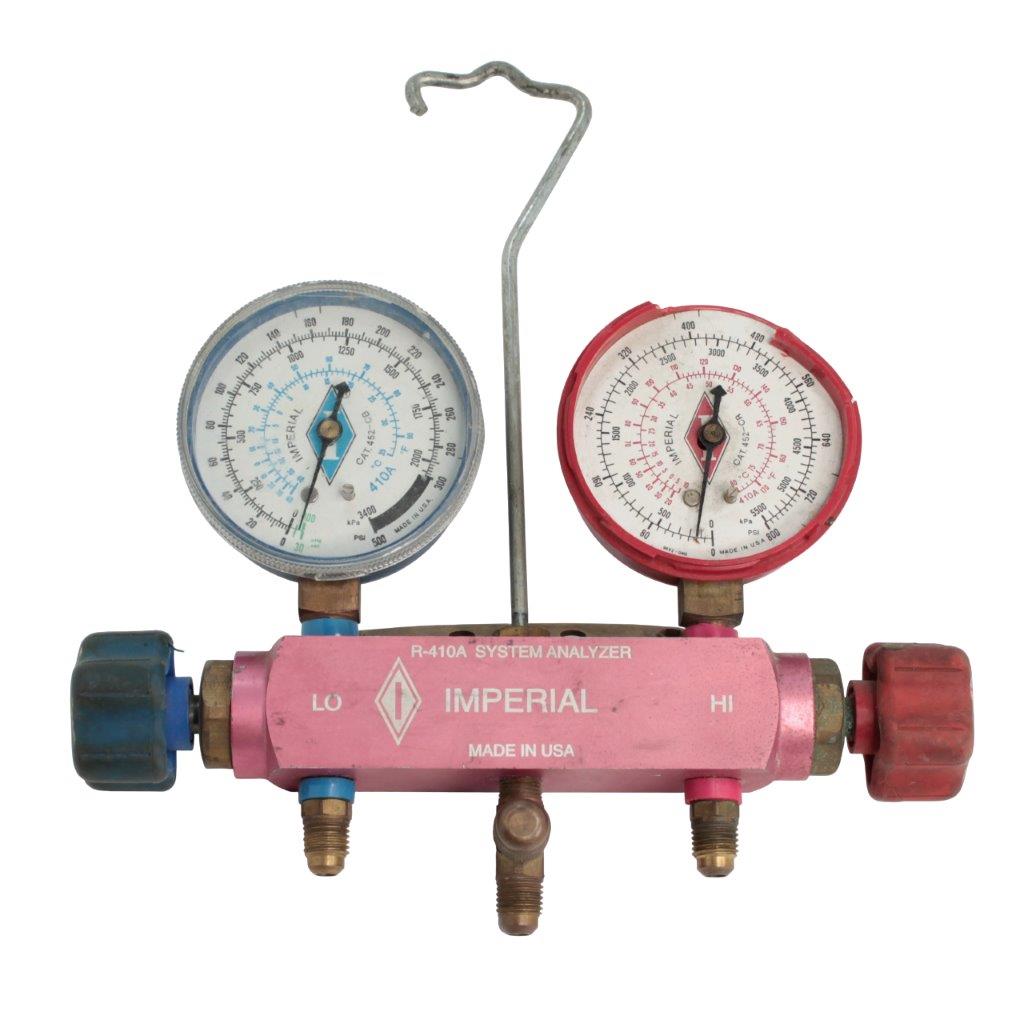

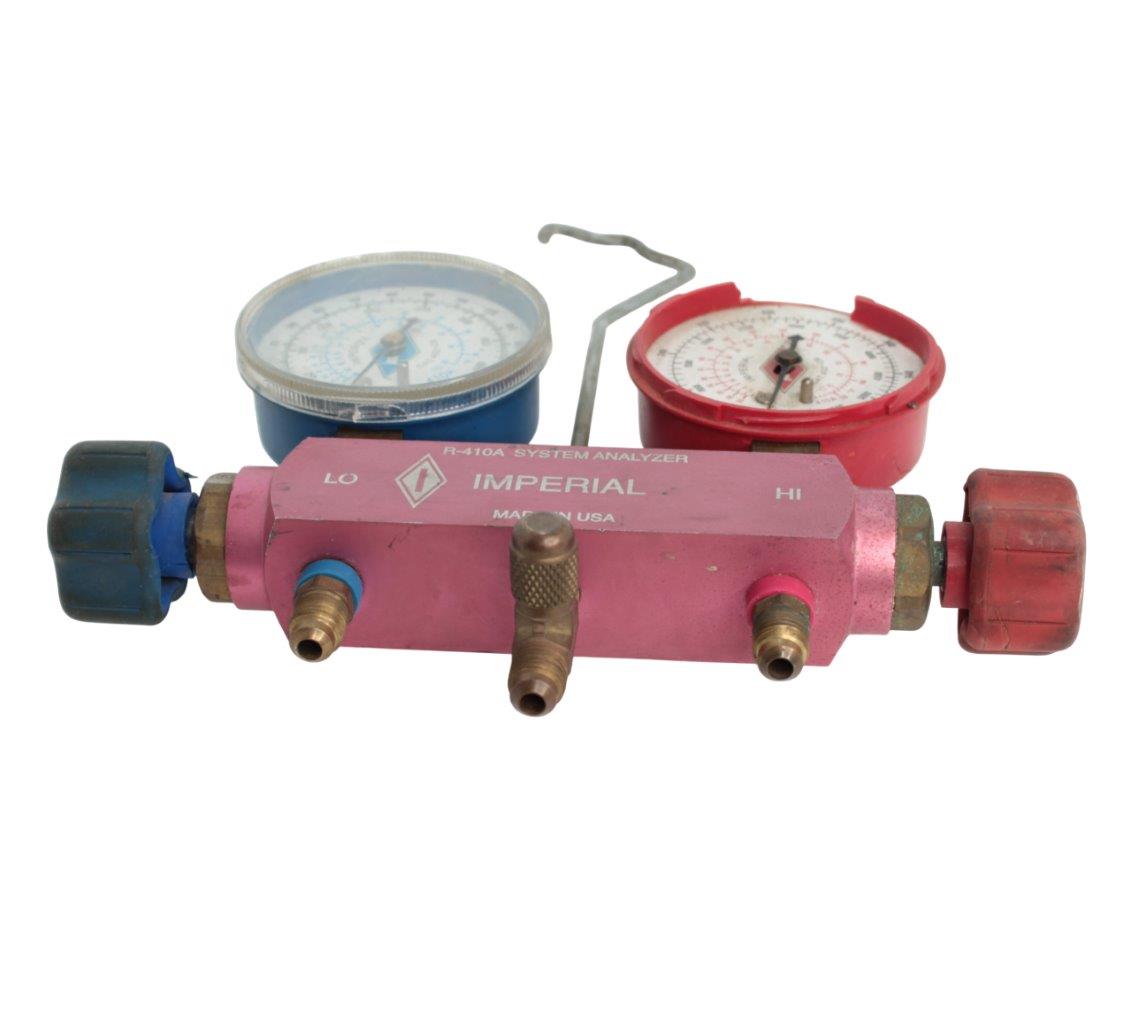

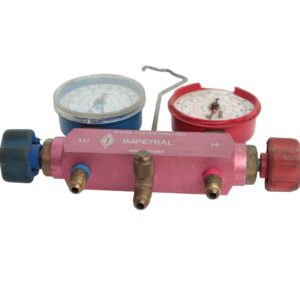

Imperial R-410A System Analyzer Manifold Gauge Set – Dual O-Ring Valves, Precision Shock-Resistant Gauges, Auxiliary Valve Port, 800 PSI Working Pressure

Imperial R-410A System Analyzer Manifold Gauge Set – Dual O-Ring Valves, Precision Shock-Resistant Gauges, Auxiliary Valve Port, 800 PSI Working Pressure

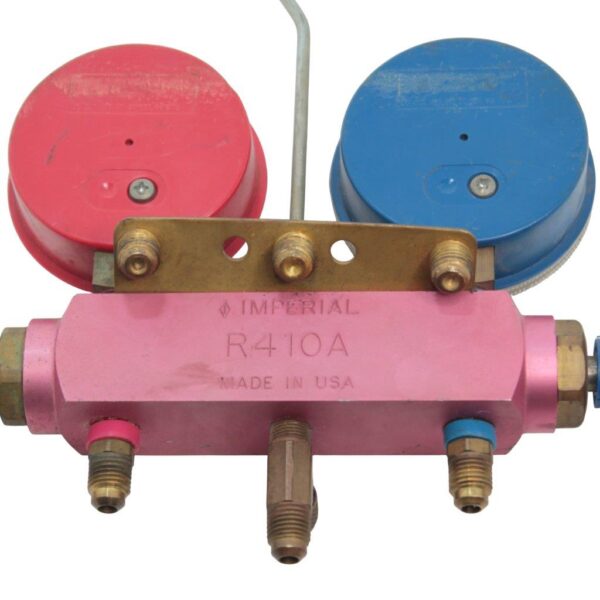

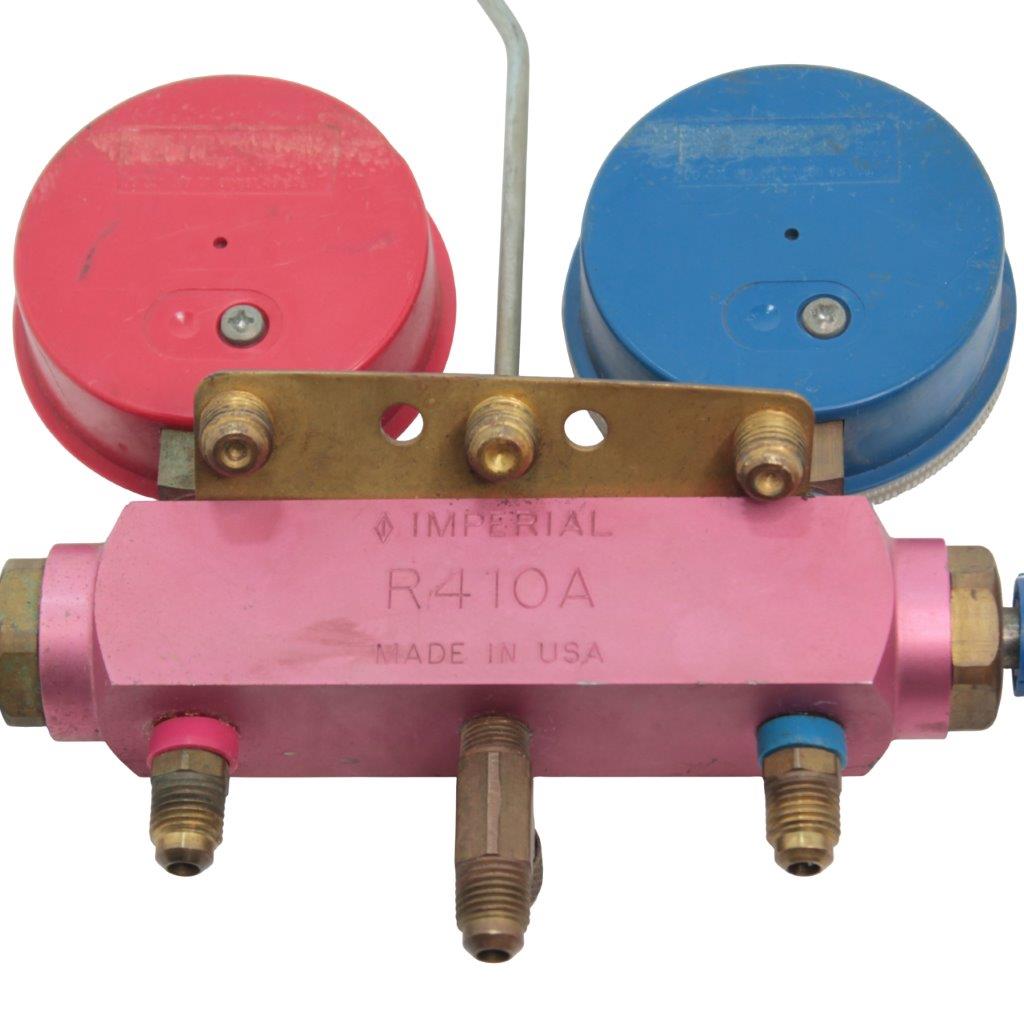

Condition: Used. Fully functional with visible signs of previous use. Gauges, ports, and handles intact. Red Gauge cover lens is missing.

The Imperial R-410A System Analyzer is a professional-grade manifold gauge set engineered for high-performance HVAC service. Designed to work with R-410A refrigerant, it provides accurate system diagnostics, efficient evacuation, and reliable refrigerant charging. This unit includes a dual O-ring valve system, precision gauges protected by boots, and an auxiliary valve port for expanded functionality with vacuum pumps, recovery machines, or additional sensors.

Specifications & Key Features
Refrigerant Compatibility: R-410A
Auxiliary Valve Port:
Allows multiple hookups: vacuum pump, vacuum gauge, recovery machine, or additional accessories
Improves workflow by reducing the need to disconnect and reconnect service tools
Dual O-Ring Valve Seal:
Designed for high-pressure refrigerants
Electroless nickel-plated valve stems reduce galling and extend component life

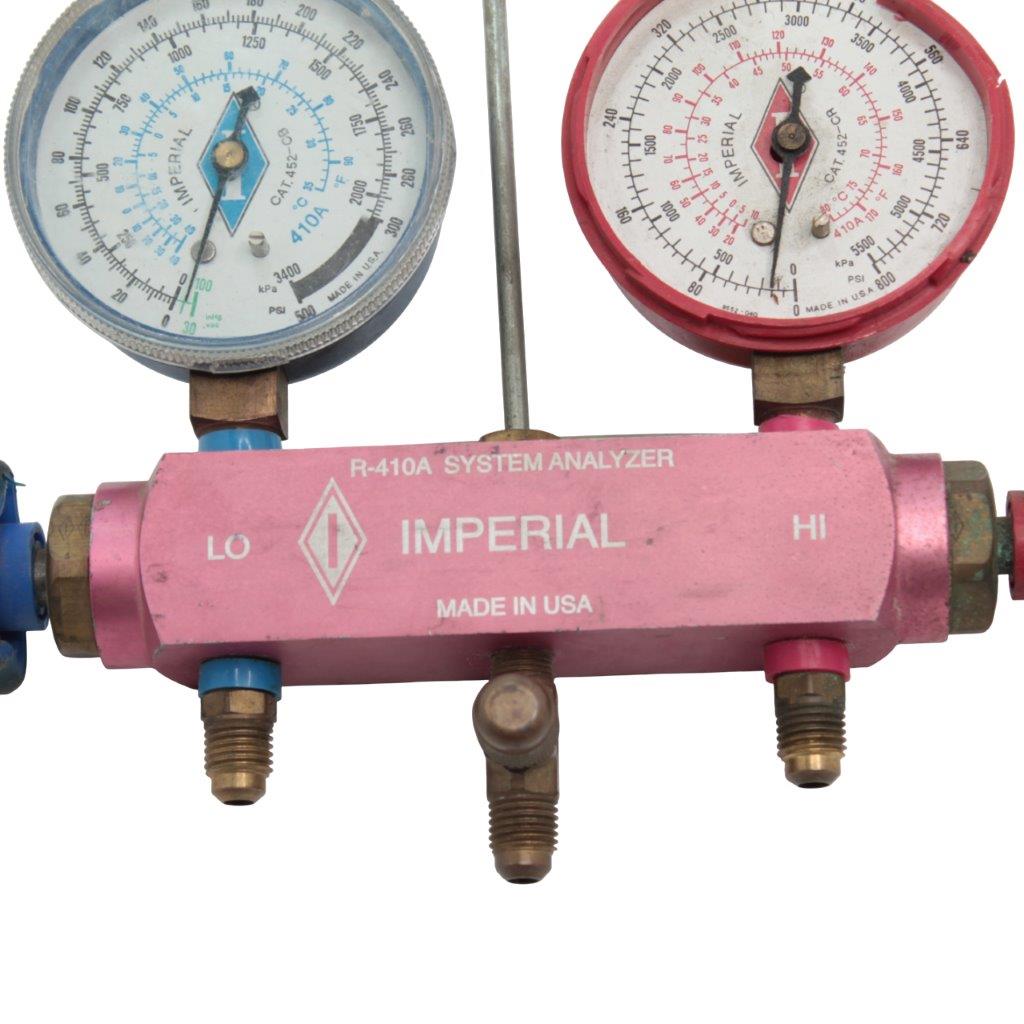

Gauges:
High-contrast, color-coded precision gauges
Shock-resistant protective boots
Resistant to vibration, pulsation, and external impacts
Easy-to-read design enhances field visibility
Hoses (when included):
PolarShield® high-performance hoses
800 PSI working pressure
4,000 PSI burst pressure
Not all models are shipped with hoses – verify specific unit contents
Ergonomic Handles:
Soft-touch, non-slip surface
Enhanced grip, even with oil or moisture on hands
Designed for comfort and control during extended use
Port Configuration: 4-Port manifold (includes auxiliary port)
Connection Type: Standard ¼” SAE Flare

Applications
HVAC Servicing: Charging, evacuating, or recovering R-410A refrigerant systems
Diagnostics: Pressure testing and monitoring for heat pumps, mini-splits, and central AC units
Commercial & Residential Systems: Compatible with high-efficiency units using R-410A
Field Service Use: Rugged design suitable for daily technician operations in varying environmental conditions

Comparable Products
Yellow Jacket 49968 Titan™ 4-Valve Manifold Set (R-410A)
Mastercool 89661 R-410A Manifold with 3-1/8″ Gauges
JB Industries DM4-R410A Digital Manifold Set
Robinair 48510 R-410A Aluminum Manifold Gauge Set

Cross-Referenced Imperial Models
Imperial 514-C Series – Earlier models with similar dual-valve configurations
Imperial 421-C Series – Compatible with multiple refrigerants including R-410A
Imperial 621-C Series – Higher-capacity 4-valve manifold models

System Integration & Use
The analyzer can be integrated with:

Vacuum Pumps
Refrigerant Recovery Units
Digital Vacuum Gauges
R-410A Split Systems and Package Units
High-Pressure Service Hoses with Ball Valve Ends

Related
Imperial R-410A manifold analyzer
4-port manifold with auxiliary port
HVAC gauge set for high-pressure systems
vacuum port manifold with non-slip grip
R410A refrigerant service tool
dual O-ring valve manifold
PolarShield high-pressure hose set
shock-resistant HVAC gauges

Common Requests:
Is this manifold gauge compatible with refrigerants other than R-410A?
– While optimized for R-410A, it may also support other high-pressure refrigerants. Always verify compatibility before use.
Does this set include hoses?
– Not all models include hoses. This unit may or may not include PolarShield® hoses; verify contents before purchase.
Can this manifold be used with a micron gauge?
– Yes, the auxiliary valve port allows connection of a vacuum gauge without removing other tools.
Are the gauges replaceable or serviceable?
– Yes, gauges are modular and can be replaced if damaged or recalibrated as needed.
How do I clean or maintain this unit?
– Clean external surfaces with mild detergent. Avoid immersing or pressure-washing. Ensure valve stems are lightly lubricated.
