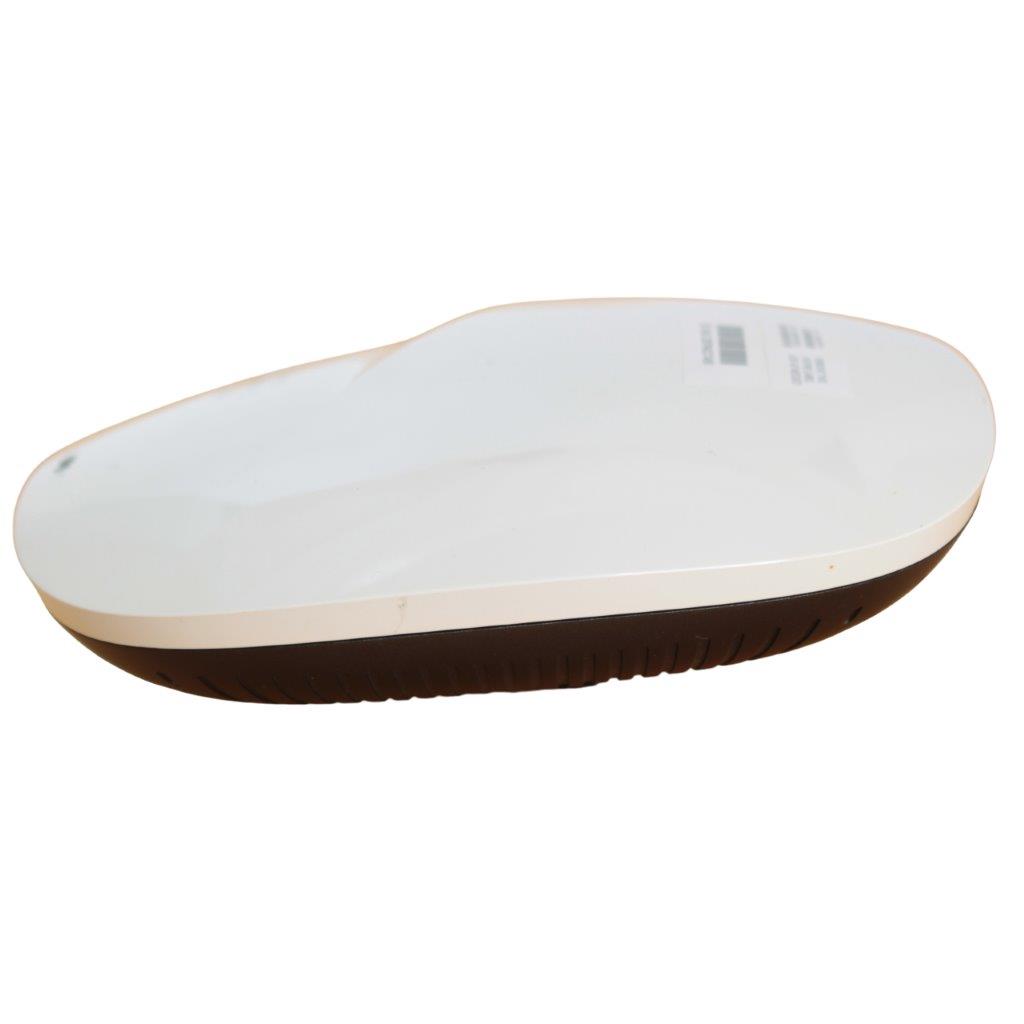

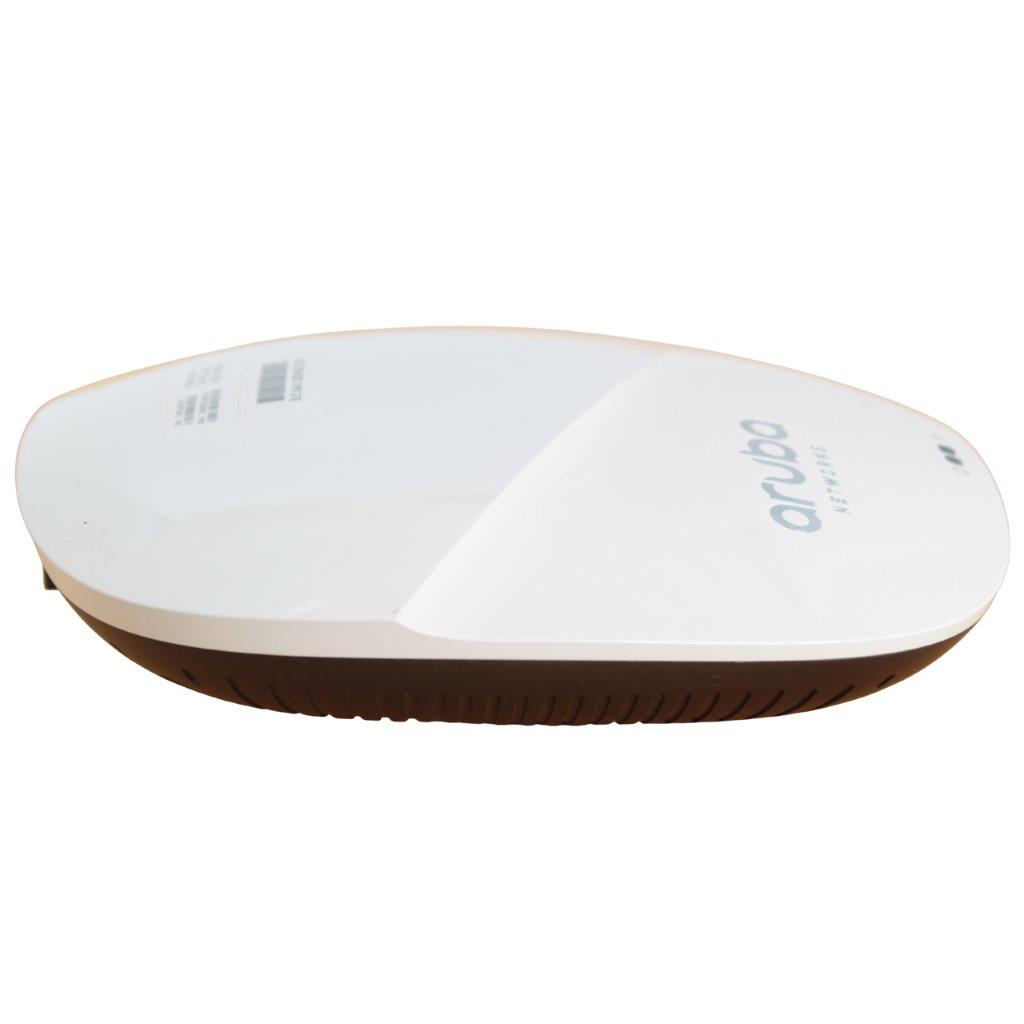

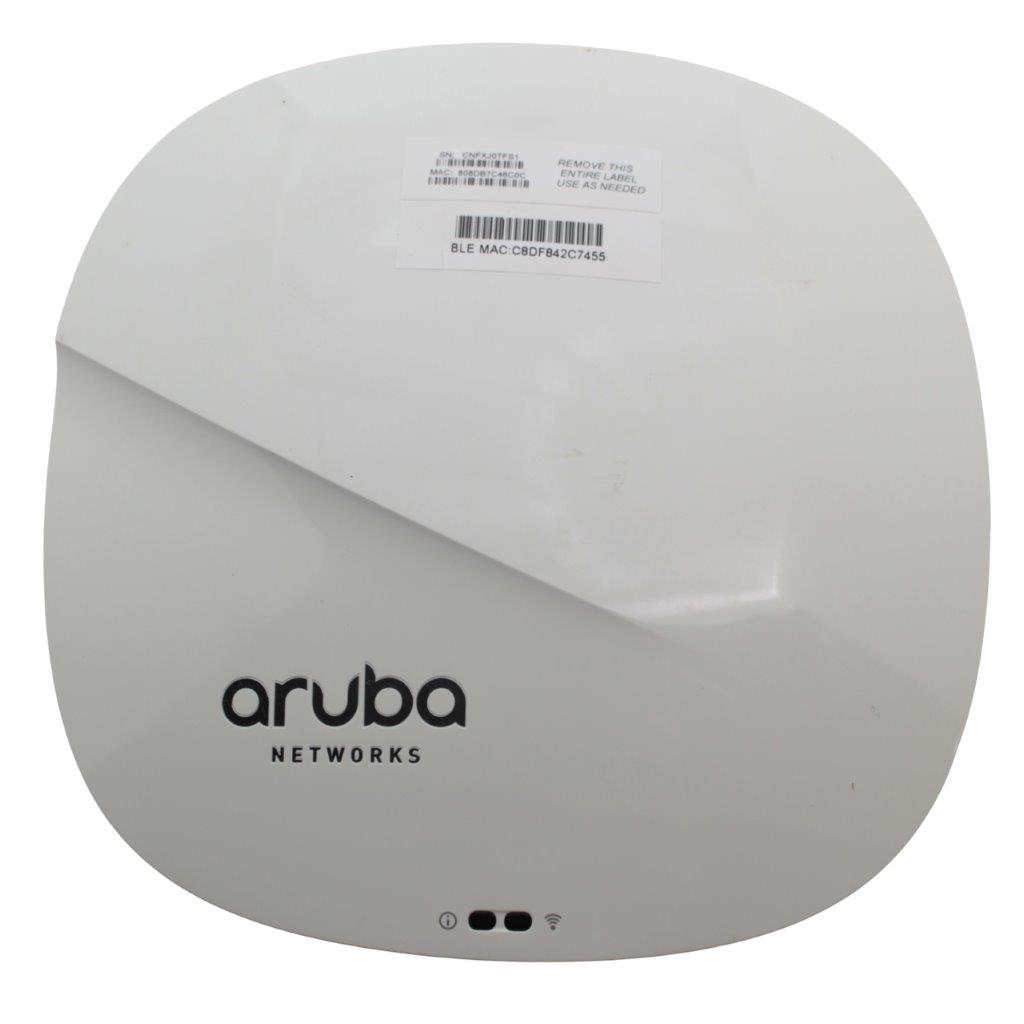

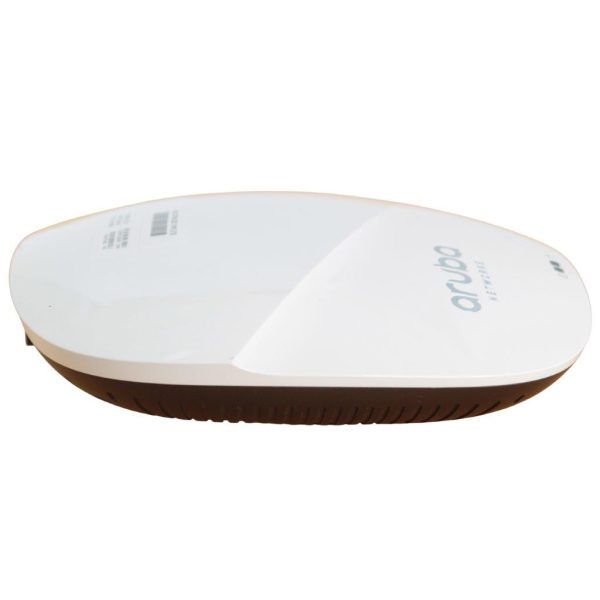

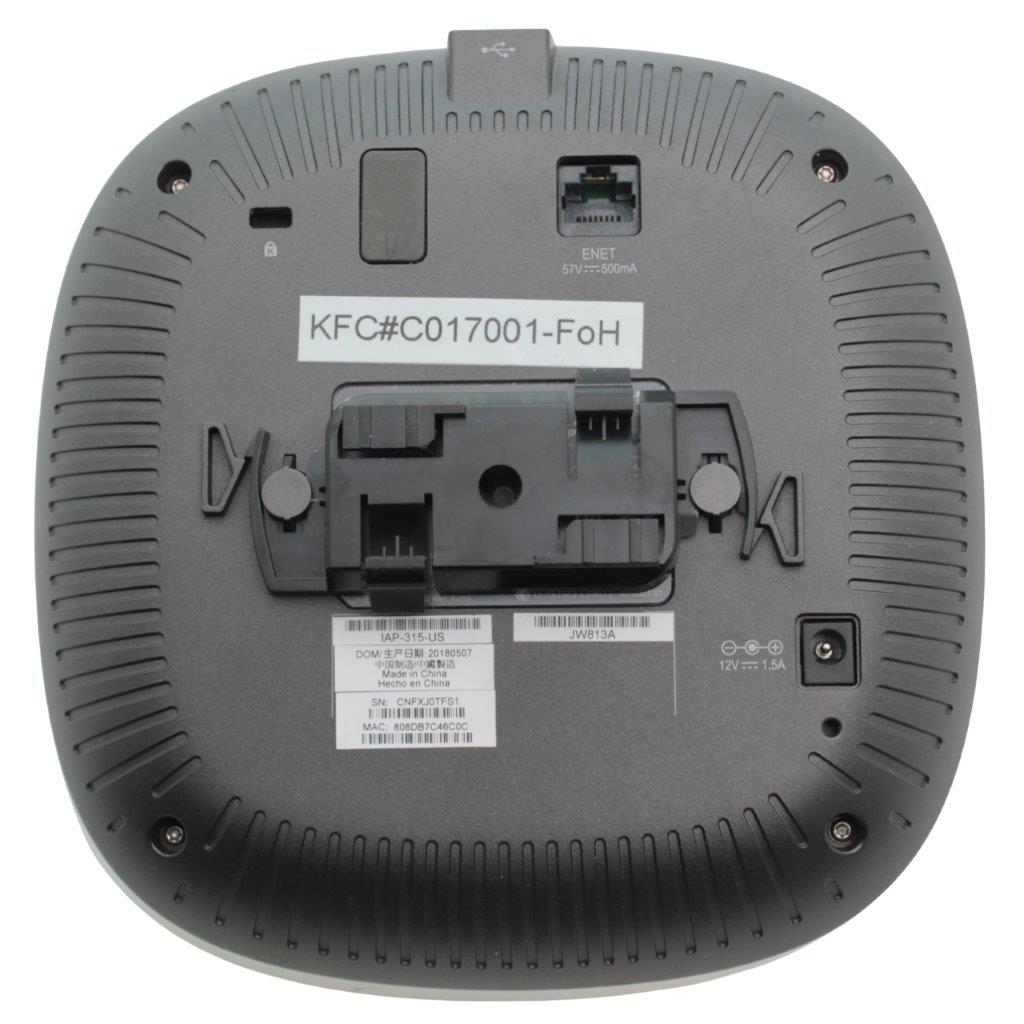

Aruba JW813A IAP-315-US 802.11ac Wave 2 Dual-Radio 4×4 MIMO Instant Access Point, Integrated BLE, PoE 802.3af/at, ceiling tile/wall mount, includes PoE injector

Aruba JW813A IAP-315-US 802.11ac Wave 2 Dual-Radio 4×4 MIMO Instant Access Point, Integrated BLE, PoE 802.3af/at, ceiling tile/wall mount, includes PoE injector (US regulatory domain)

Condition: Used, excellent shape; pulled from a working environment. Fully functional; includes PoE injector and Ethernet patch lead —mounting kit as in pictures.

The Aruba IAP-315-US is a high-performance 802.11ac Wave 2 access point designed for dense office, education, and retail deployments. As an Instant AP, it forms a controller-less cluster in minutes—one unit becomes the virtual controller and manages the rest. The 315 features dual radios with 4×4 MU-MIMO capability for high client capacity and robust RF performance, plus an integrated Bluetooth Low Energy (BLE) radio for beacons and asset/location services. It supports PoE power (802.3af/at), air-time fairness, band steering, and role-based access with Aruba Instant features. This unit ships in the US regulatory domain (-US) and comes with a PoE injector for easy single-cable installs.

Features

• 802.11ac Wave 2 dual-radio AP with 4×4 MIMO and MU-MIMO for high client density

• Aruba Instant (controller-less) deployment; can be converted to controller-managed (CAP) if desired*

• Integrated BLE radio for beacons, proximity, and IoT integrations

• Smart RF features: band steering, airtime fairness, adaptive radio management (ARM), client match

• Gigabit Ethernet uplink(s) with LACP link aggregation support (model series)

• PoE 802.3af/at input; runs on af, at recommended for full feature set (e.g., USB power, max radio features)

• Security: WPA2/WPA3 (Instant OS dependent), 802.1X, guest portals, role-based firewalling

• Flexible mounting: ceiling/grid or wall using Aruba AP mount kits (not always included)

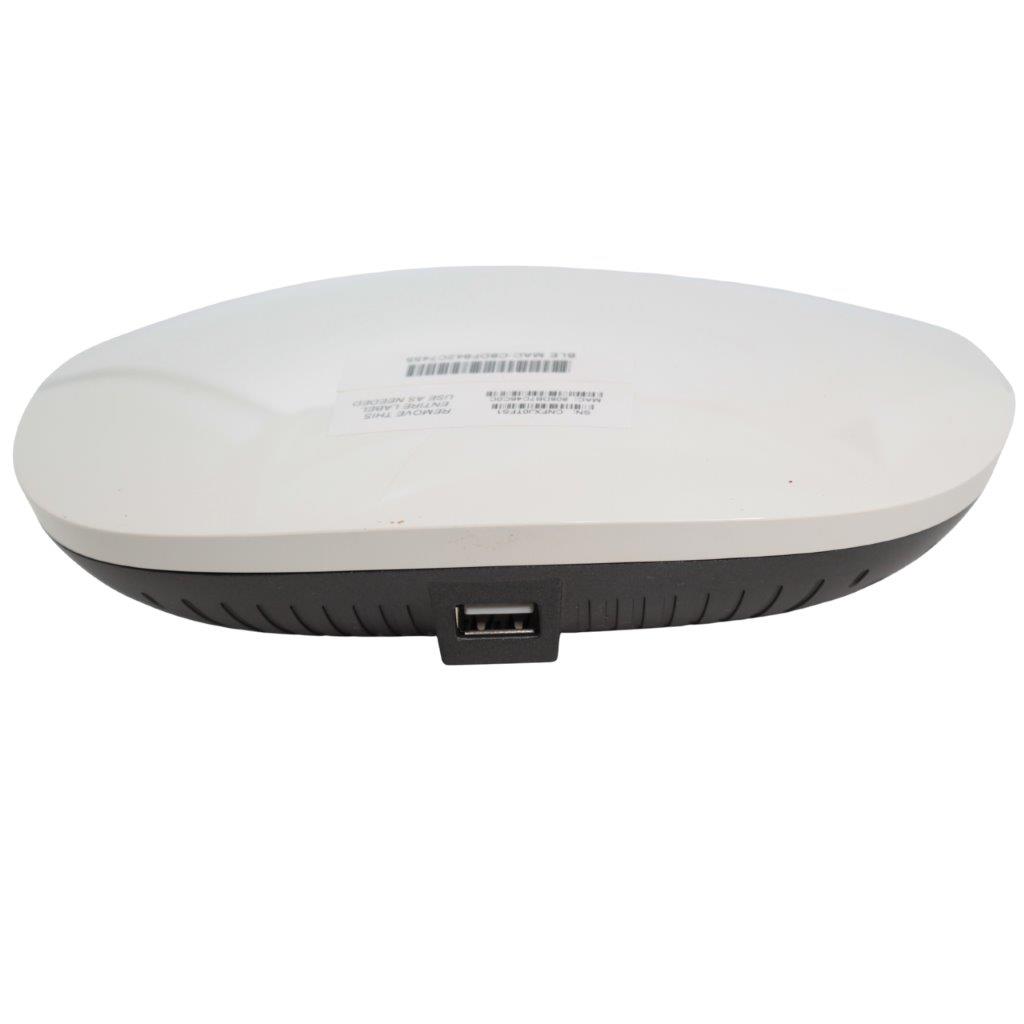

• USB host port (feature availability depends on power mode)

• Instant GUI & app for quick provisioning, VLANs, SSIDs, and tunneling options

Applications / Spheres of Application

• SMB to enterprise WLANs needing fast, simple controller-less deployment

• Schools & higher-ed lecture rooms and labs with many concurrent clients

• Retail & hospitality guest Wi-Fi with captive portal and BLE beacons

• Healthcare admin areas / clinics (non-life-critical networking)

• Branch offices and work-from-anywhere extensions using site-to-site tunnels

Cross-Referenced Models (same series / close siblings)

• AP-315 / IAP-315 (this listing; -US domain)

• AP-314 (external-antenna version of the 315)

• AP-325/AP-335 (higher-end 320/330 series)

• AP-305/IAP-305 (similar generation, 3×3:3 class)

Comparable Products (other vendors)

• Cisco Aironet/Catalyst 2800/3800 series

• Ruckus R510/R610 series

• Ubiquiti UniFi nanoHD/HD (Wave 2 class)

• Fortinet/FortiAP 22x/32x Wave 2 models

Integration & System Use

• Instant setup: Power with the included PoE injector or a PoE switch, connect uplink to your VLAN, browse to the AP’s Instant UI, and create SSIDs.

• Power planning: Operates on 802.3af; for all features (USB power, full radio performance) use 802.3at.

• Mounting: Standard Aruba ceiling/wall mount kits (proprietary brackets). Verify kit presence or source separately.

• Management options:

  • Aruba Instant local cluster (default)

  • Convert to controller-managed (ArubaOS) if you have Mobility Controllers*

  • Central cloud management support for Instant clusters (license required; version dependent)

*Conversion between Instant and controller-based modes follows Aruba procedures and may require specific firmware and licensing.

Specifications (typical for Aruba 315 series)

• Wi-Fi standards: IEEE 802.11a/b/g/n/ac Wave 2

• Radios / chains: Dual concurrent 2.4 GHz & 5 GHz, 4×4:4 per band with MU-MIMO

• Max data rates: Up to 1.7 Gbps on 5 GHz (80 MHz, 4SS); additional throughput on 2.4 GHz (HT20/40)

• Antenna type: Internal, omnidirectional (AP-315)

• Ethernet: 1× or 2× 10/100/1000Base-T (series supports LACP; check your unit’s ports)

• IoT: Integrated BLE radio

• USB: 1× USB 2.0 host (power availability depends on PoE class)

• Power: PoE 802.3af/at (DC injector/switch); typical < 13 W (af) / higher when using USB (at)

• Dimensions/weight: Low-profile indoor AP form factor (ceiling/wall)

• Regulatory domain: -US (for use in the United States)

What’s Included

• Aruba JW813A IAP-315-US access point (used, excellent)

• PoE injector (compatible, included)

• Ceiling tiles clip as shown in pictures; no controller/licenses included

Related

Aruba IAP-315 access point; JW813A Instant AP; 802.11ac Wave 2 AP; dual-band 4×4 MIMO AP; Aruba Instant controllerless Wi-Fi; BLE beacon AP; enterprise indoor access point; device to provide wireless network; PoE Wi-Fi access point; U.S. regulatory domain AP; ceiling mount wireless access point

Common Requests:

1. “Can this IAP-315-US join an existing Instant cluster or be converted to controller mode?”

2. “Does it run on 802.3af PoE, and what features require 802.3at?”

3. “Is the mounting bracket included, and which part number fits the 315?”

4. “What Instant firmware versions are supported and how do I upgrade?”

5. “How many SSIDs/VLANs can I run and does it support WPA3 on current firmware?”

Manufacturer Trademarks Disclaimer: Aruba and HPE are trademarks of Hewlett Packard Enterprise Development LP or its affiliates. Cisco, Ruckus, Ubiquiti, Fortinet, and other brand names are the property of their respective owners. Use of these names is for identification and compatibility reference only and does not imply endorsement.
