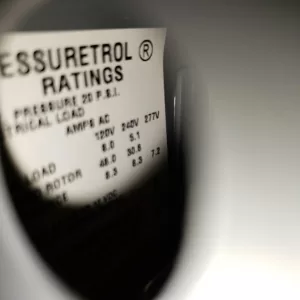

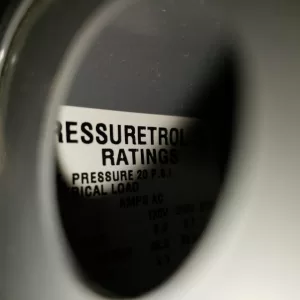

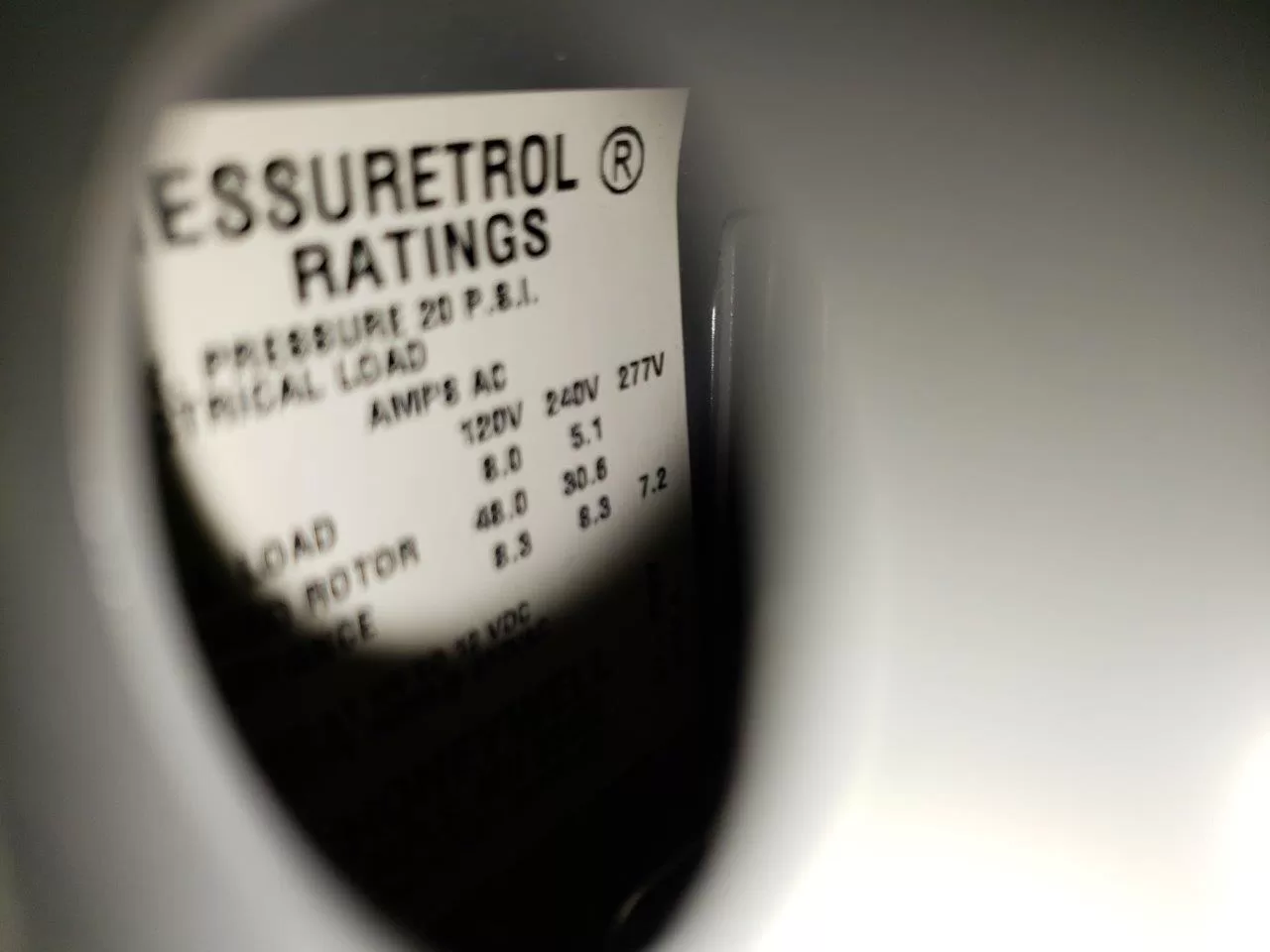

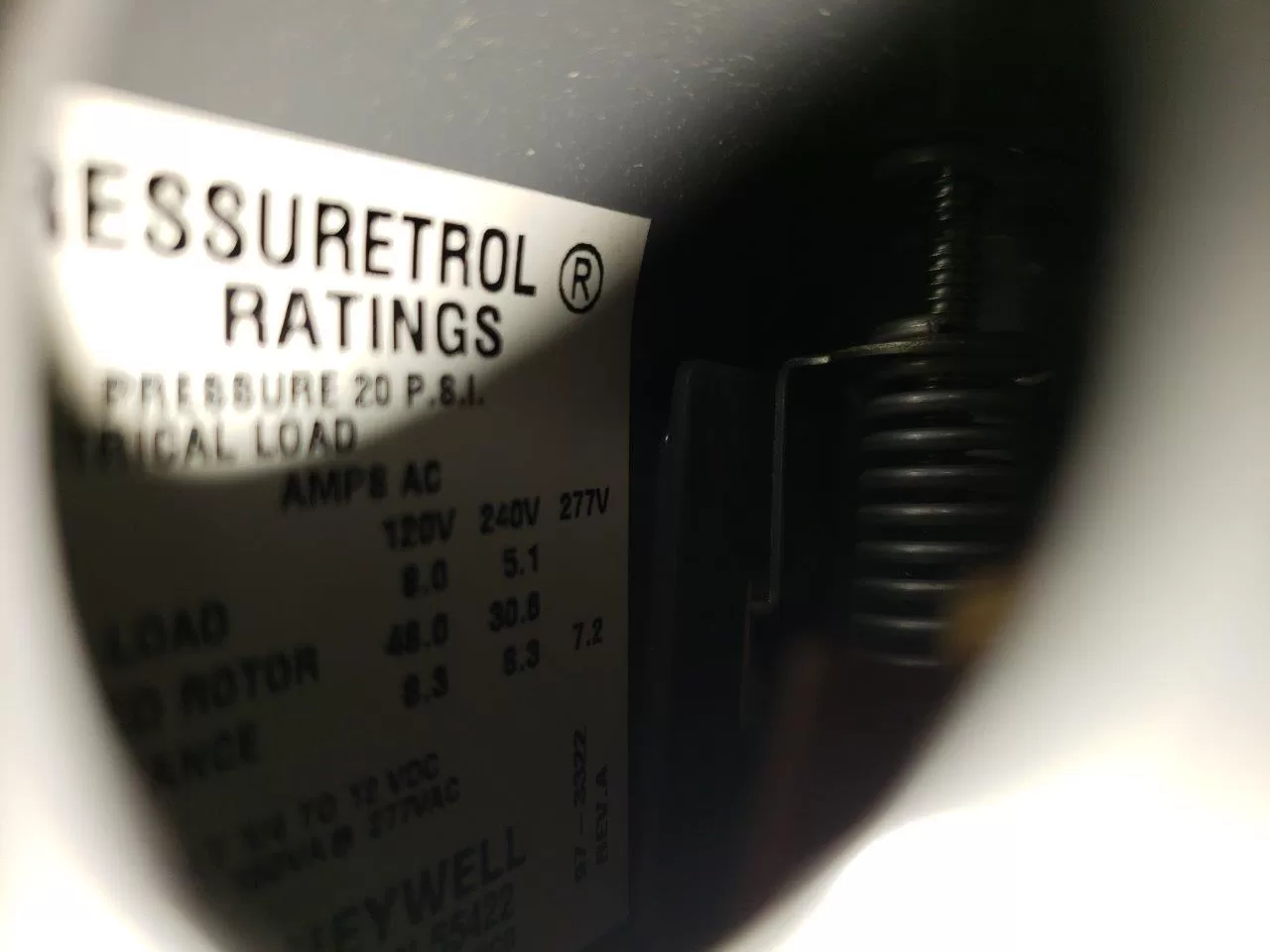

Electrical Load

Description:

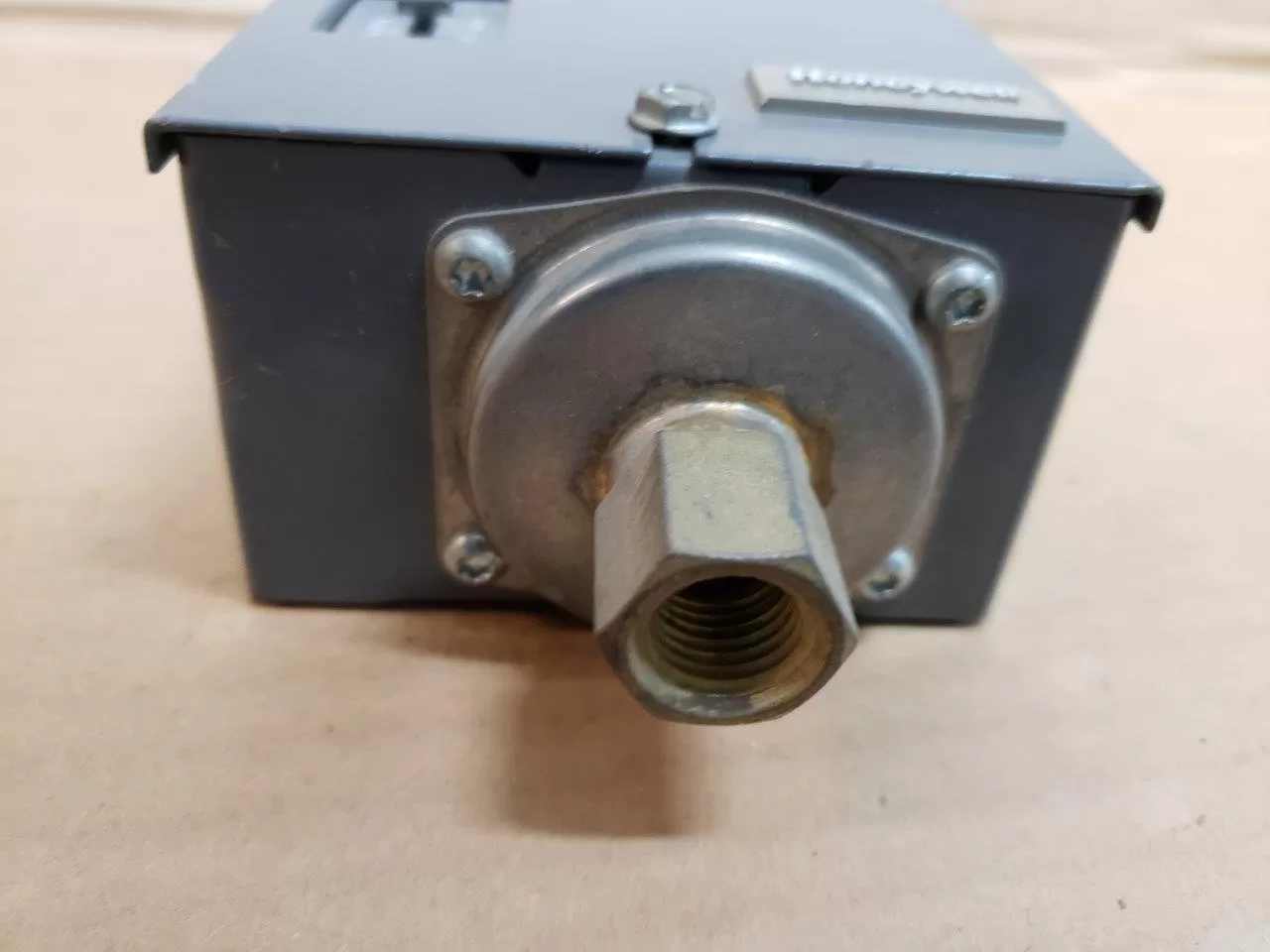

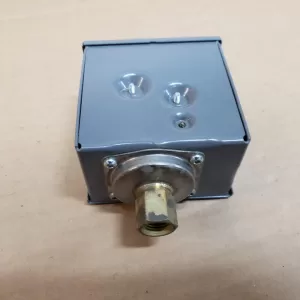

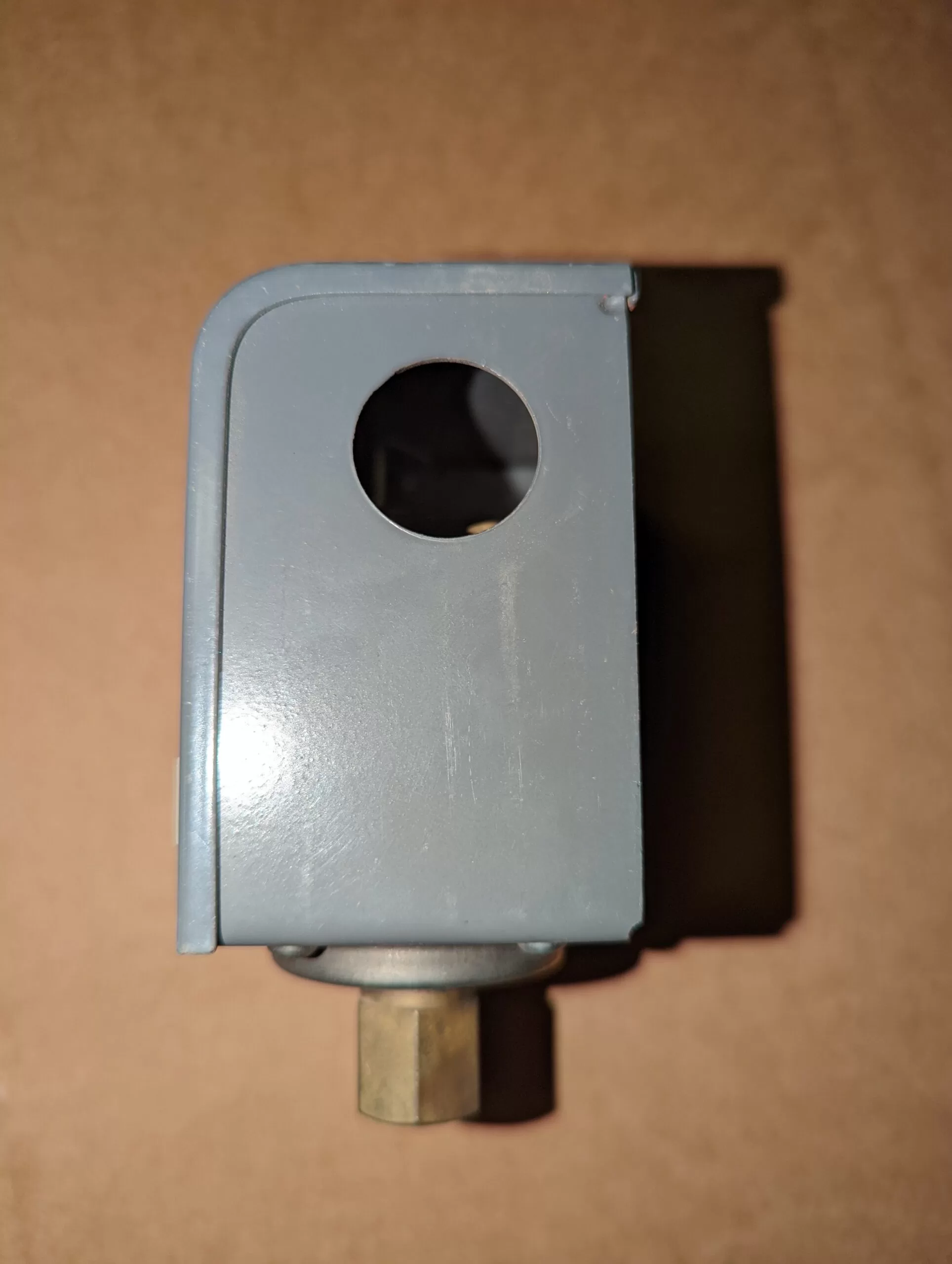

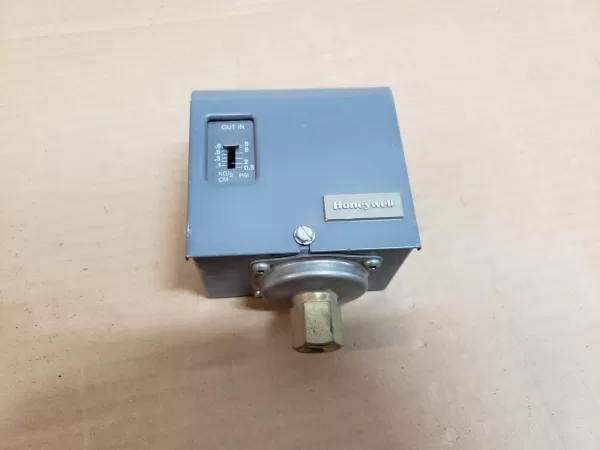

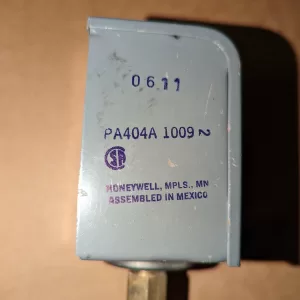

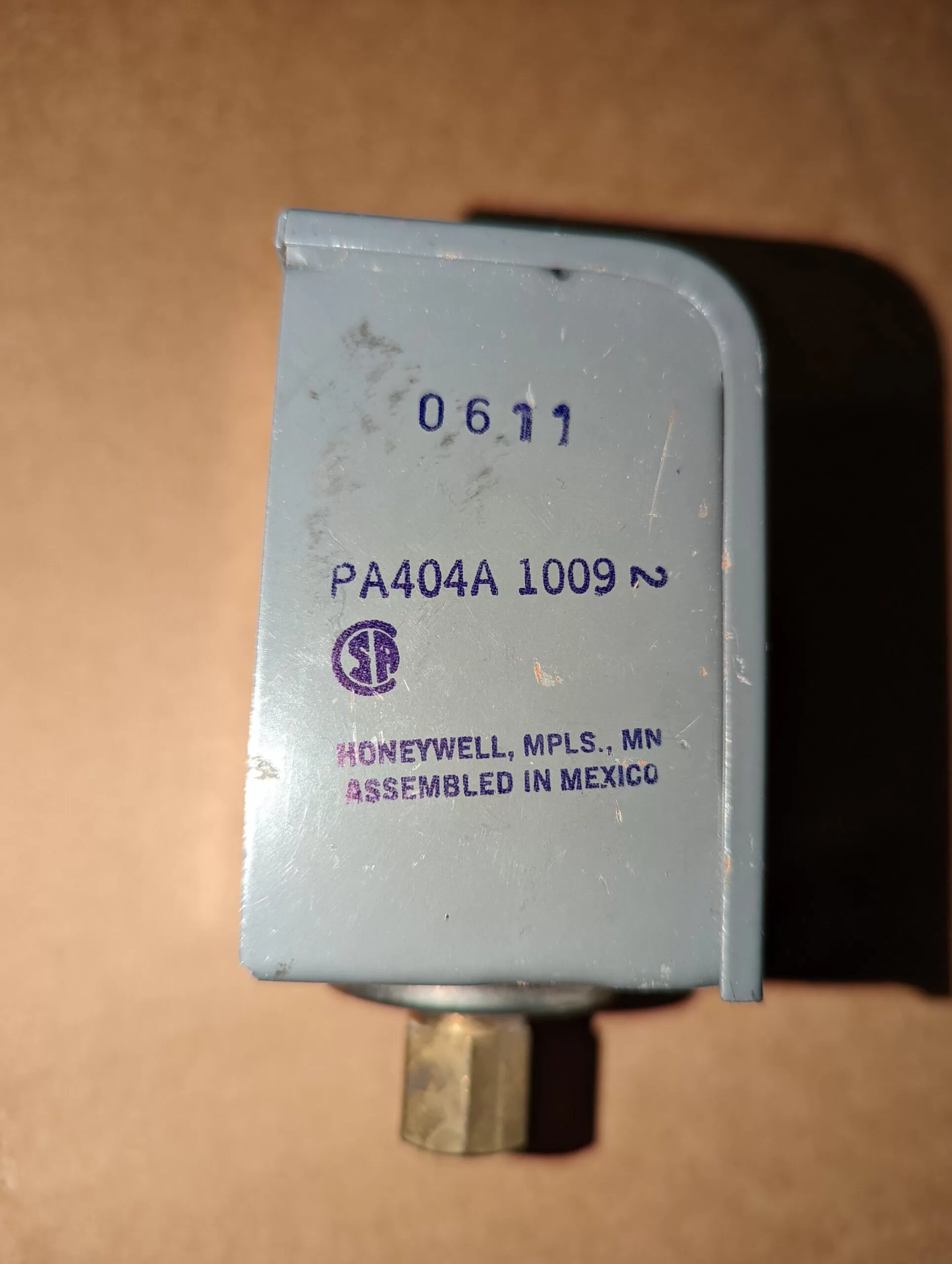

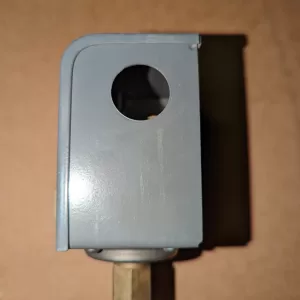

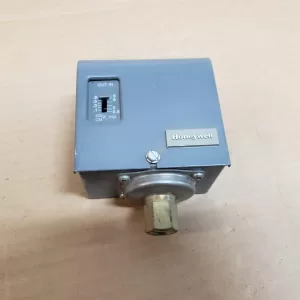

The PA404 is a series 40 (2-wire, SPST) Pressuretrol controller for use in 120, 240 or 277 volt control circuits or in self powered (millivoltage) applications.

The PA404A is a pressure actuated high limit, safety control for steam heating boilers. It breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level.
The PA404B is used with suspension-type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam.
Each model contains an SPST MICRO SWITCH snap-acting switch.

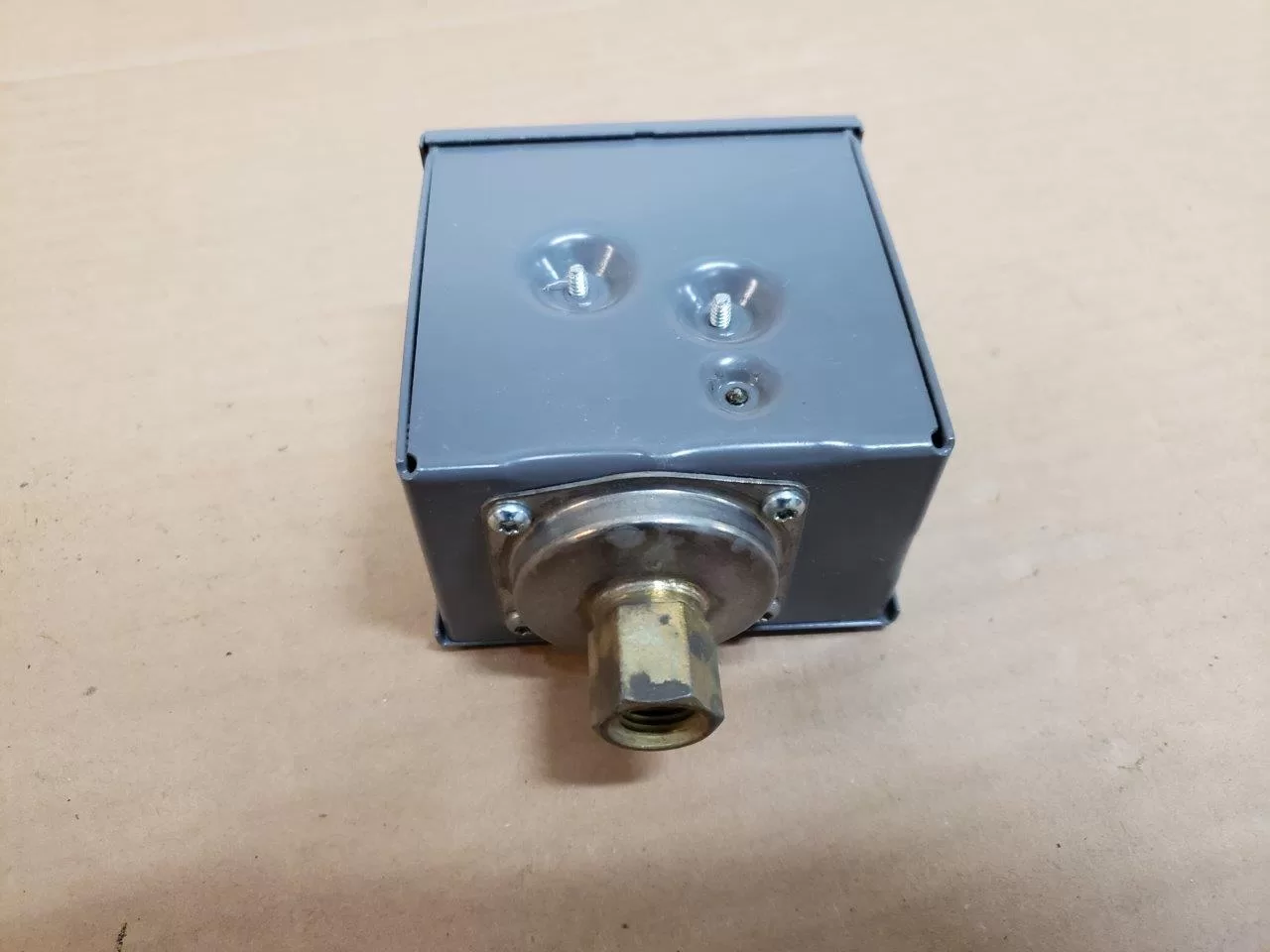

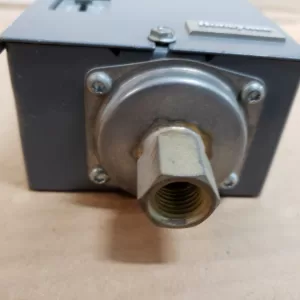

Sensitive pressure-actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch.

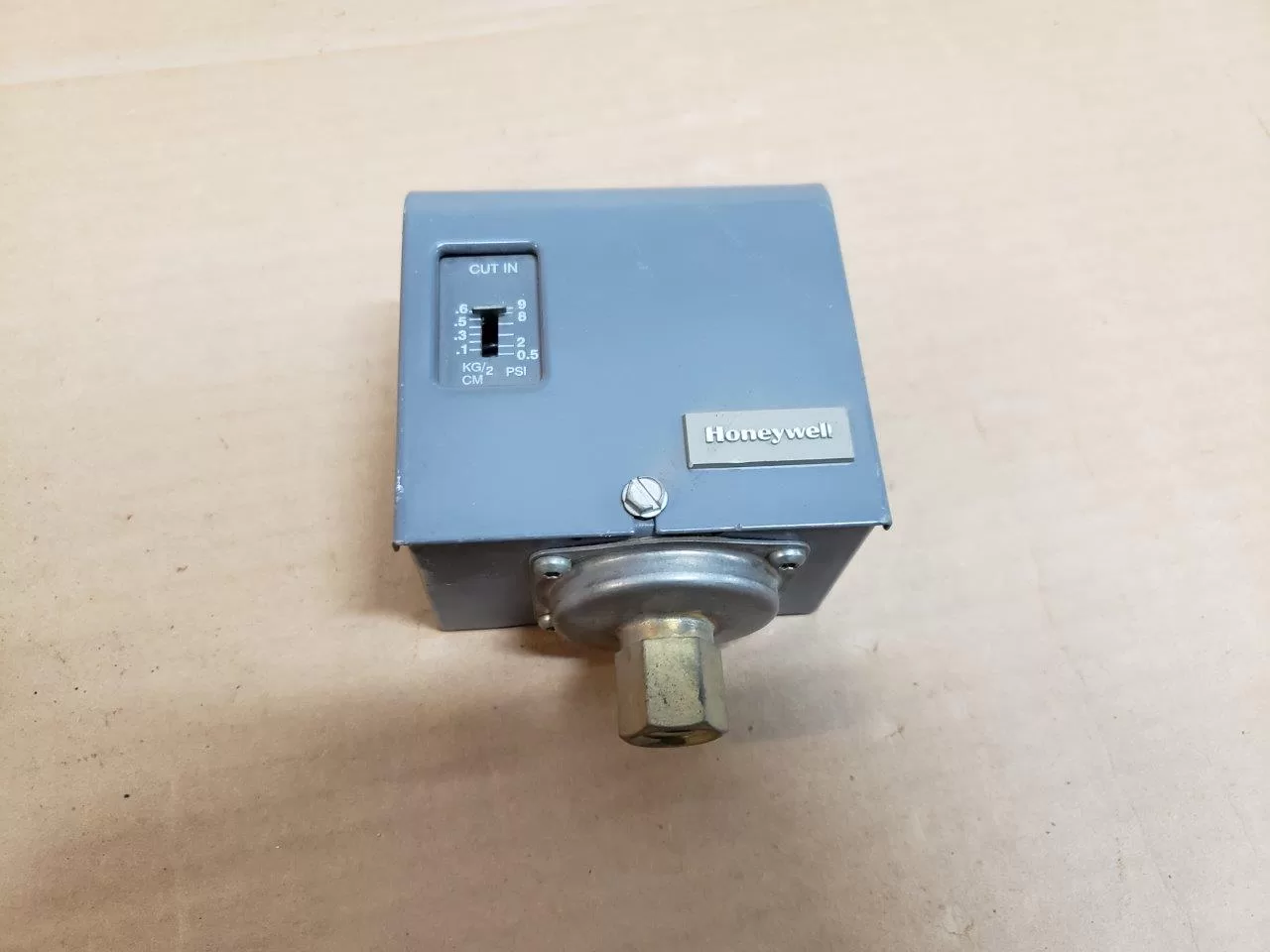

A screw on top of the case allows set point adjustment without removing the cover.
Differential is adjusted by means of a dial located inside the case

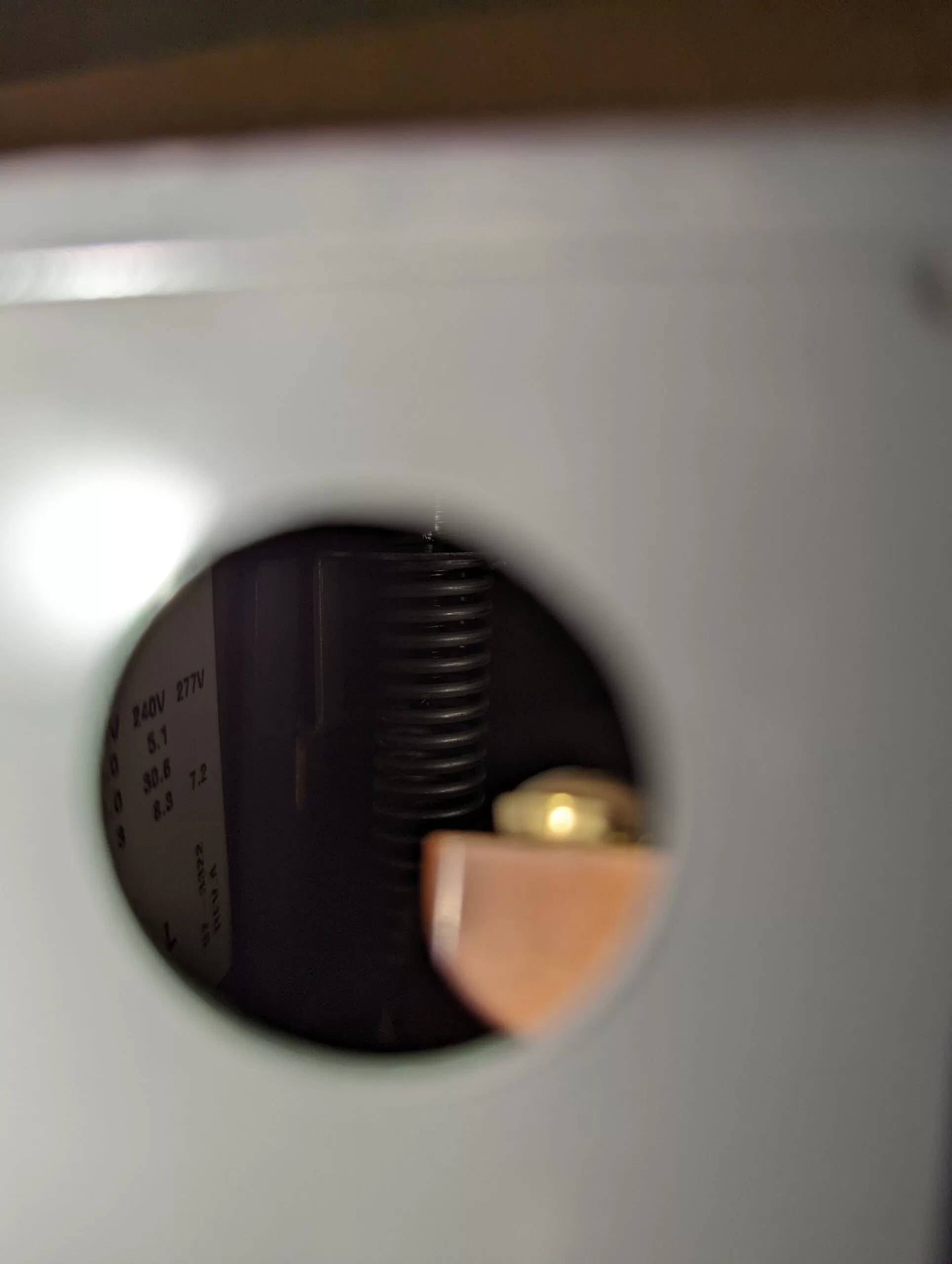

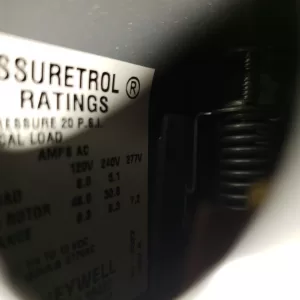

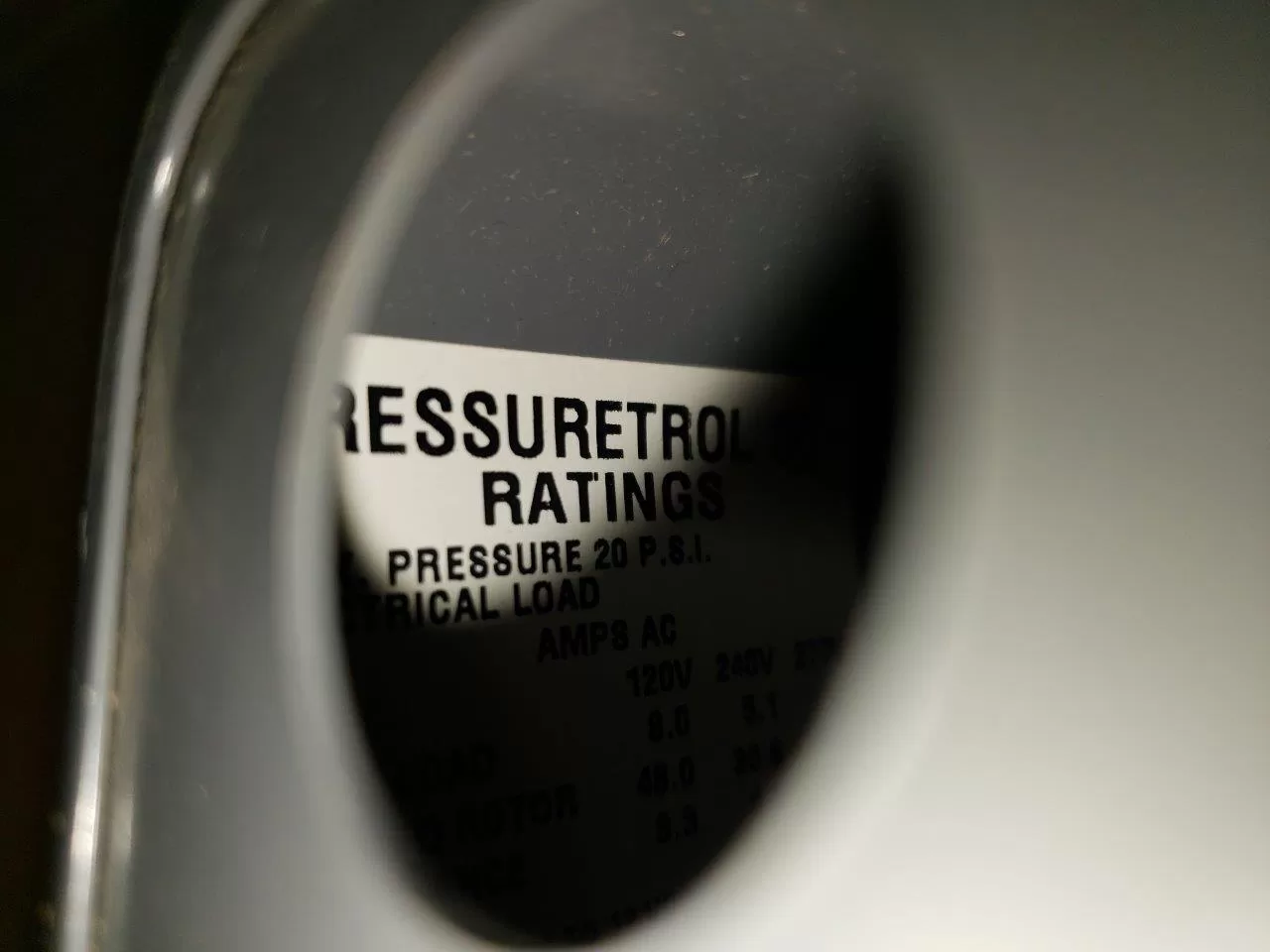

Specifications:
Full Load: 120V – 8.0; 240V – 5.1; 277V —
Locked Rotor: 120V – 48.0; 240V – 30.6; 277V —
Resistance: 120V – 8.3; 240V – 8.3; 277V – 7.2

0.25AMP AT 1/4 to 12VDC
Pilot duty 150VA @ 277VAC
