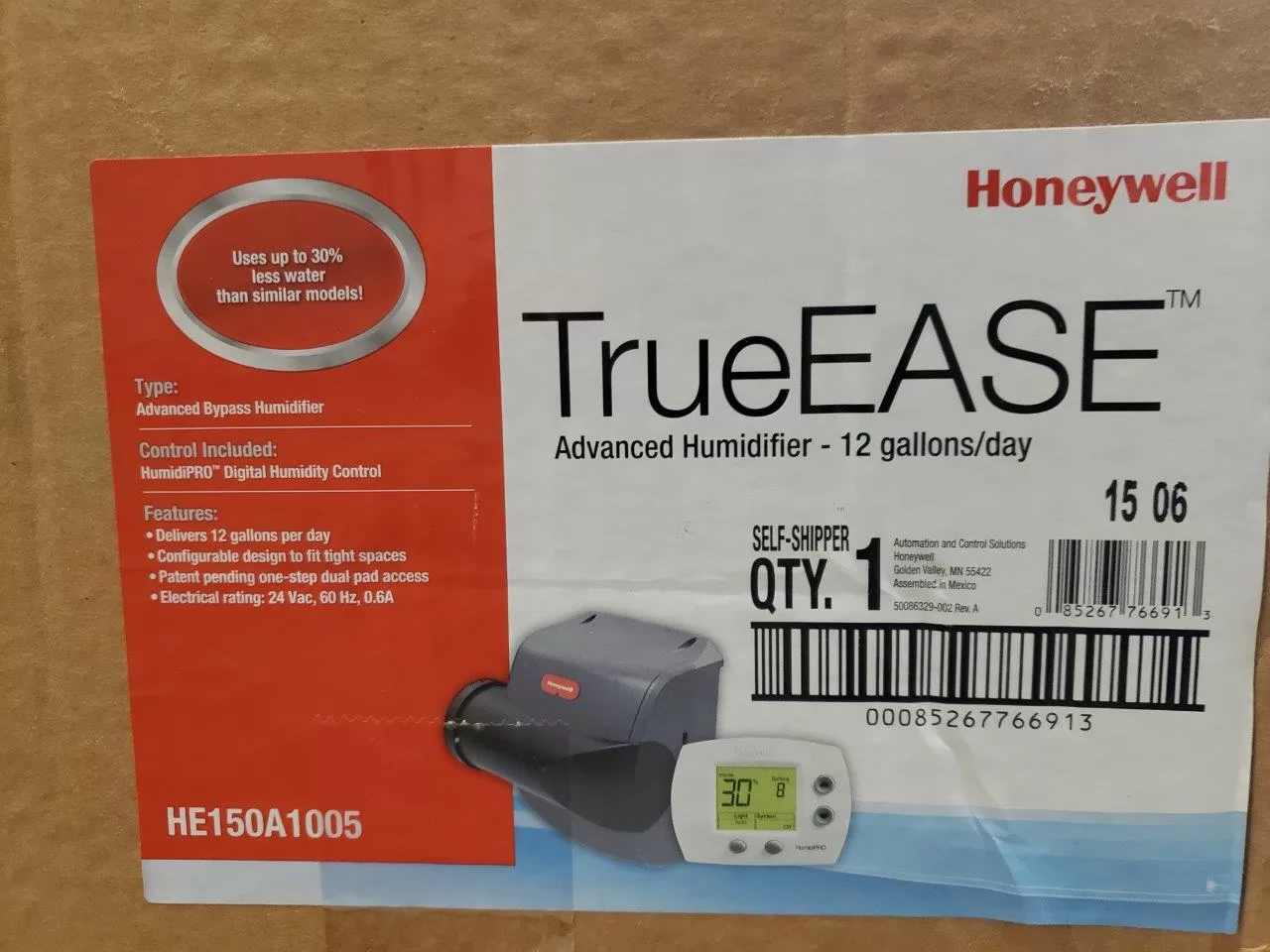

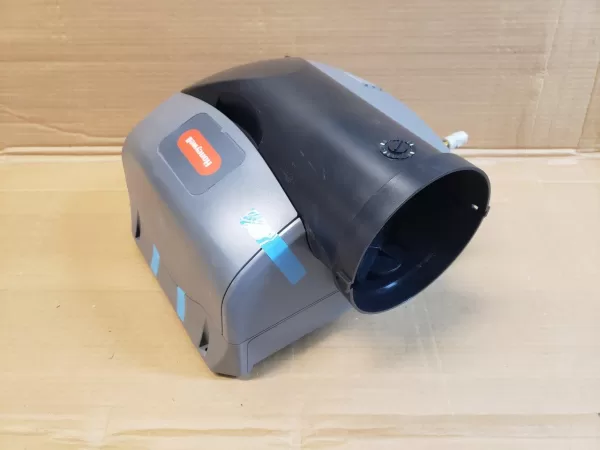

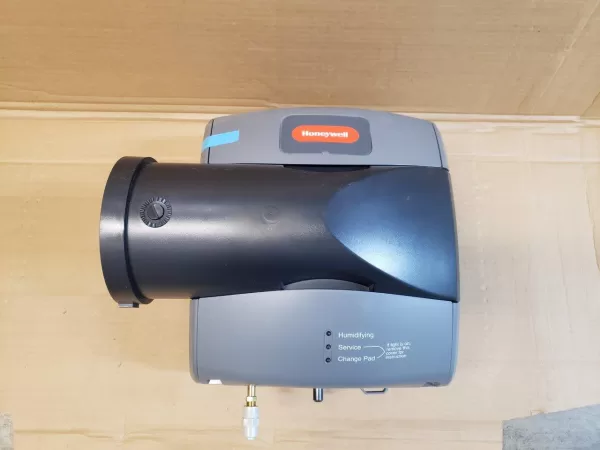

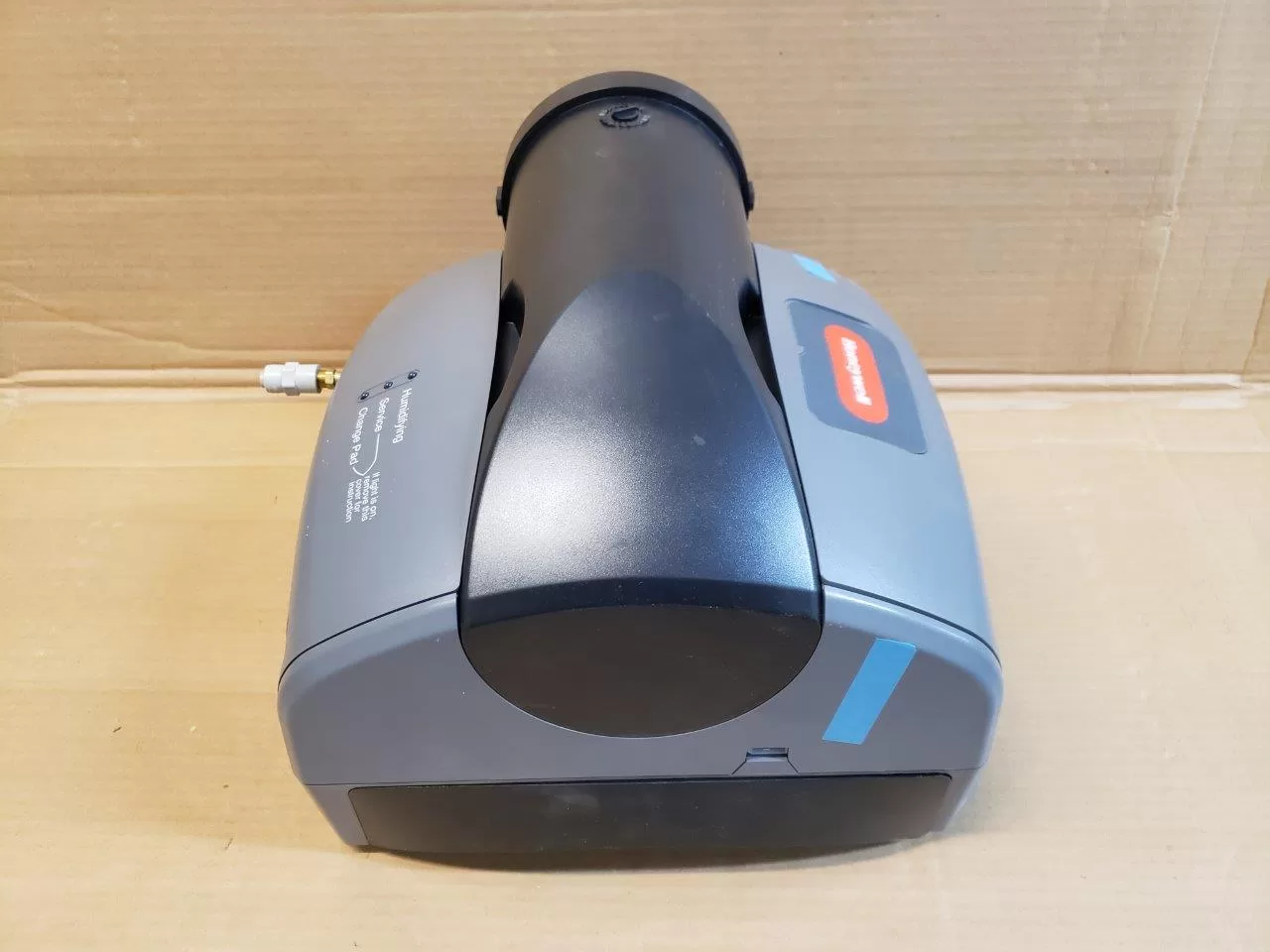

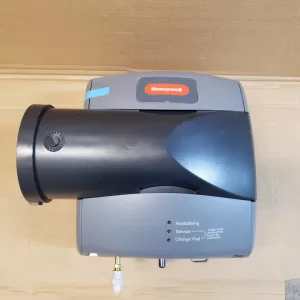

Honeywell HE150A1005 TrueEASE Advanced Bypass Humidifier 12GPD w/ HumidiPRO
Honeywell HE150A1005 TrueEASE Advanced 12-gallon per day with HumidiPRO Digital Humidity Control. Suitable for homes up to 16,000 cubic feet in size. Includes automatic damper, status, maintenance, service LEDs, and advanced operation.
The TrueEASE Humidifier Line is easy to install with quick snap bypass direction adjustment. Advanced models save 30-50% of water. Advanced models save energy by automatically closing the bypass when not in use.
Replaces previous model HE220, HE225 and in cross reference to Aprilaire 500 and GeneralAire 570.
– Versatile fit designed for more jobs;
– Operational efficiencies to drive higher margins with values homeowners understand;
– Fast installation for labor and time savings;
– Operational noise reduction for humidity comfort without the ear aches;
– User-friendly pad access makes mainteneance and upkeep easier than ever.
Humidified Area: Up to 16,000 cubic feet
Dimensions: 14.5 in. W x 14 in. H x 10.1 in. D (368 mm W x 356 mm H x 257 mm D)
Temperature Range: 34ºF–90ºF (1.1ºC–32ºC)
Electrical Rating: 24VAC, 60 Hz, 0.75 A maximum
Type: Evaporative Flow-Through Humidifier
Capacity: 12 gal per day (46 L per day)
Plenum Opening: 9-5/16 in. W x 9-7/16 in. H (238 mm W x 241 mm H)
