Hager 1250 Series Adjustable Tension Spring Self Closing Door Hinge, Commercial Grade Steel, Satin Chrome Finish

Hager 1250 Series Adjustable Tension Spring Self Closing Door Hinge, Commercial Grade Steel, Satin Chrome Finish

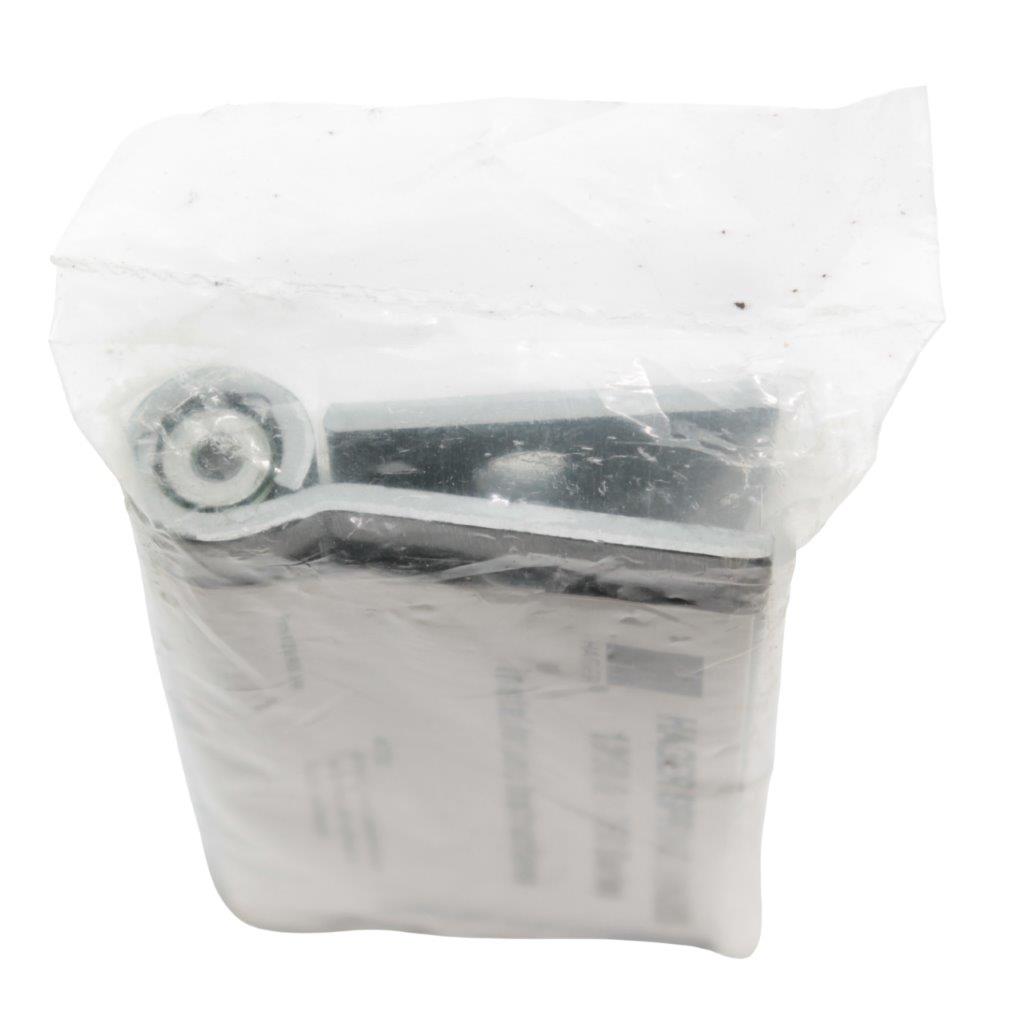

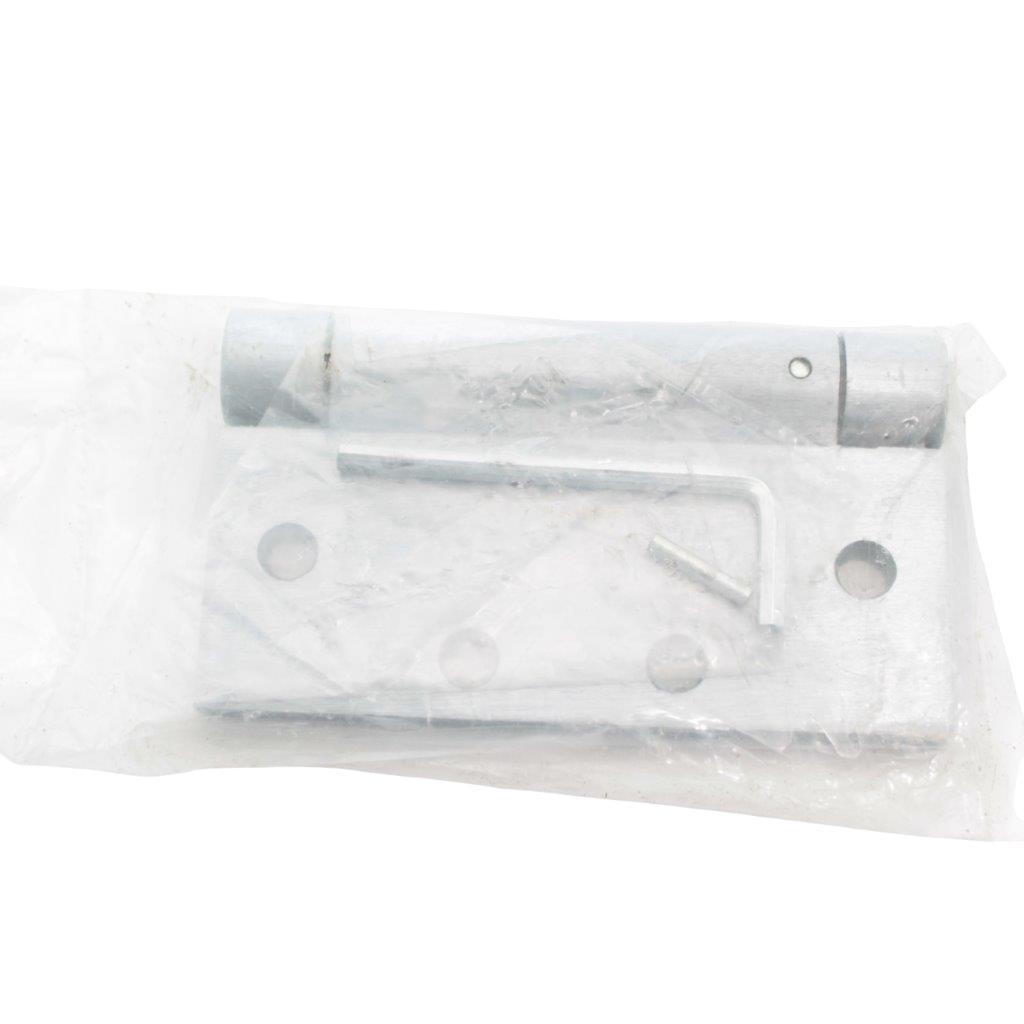

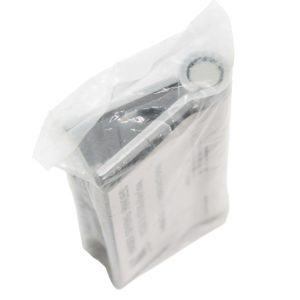

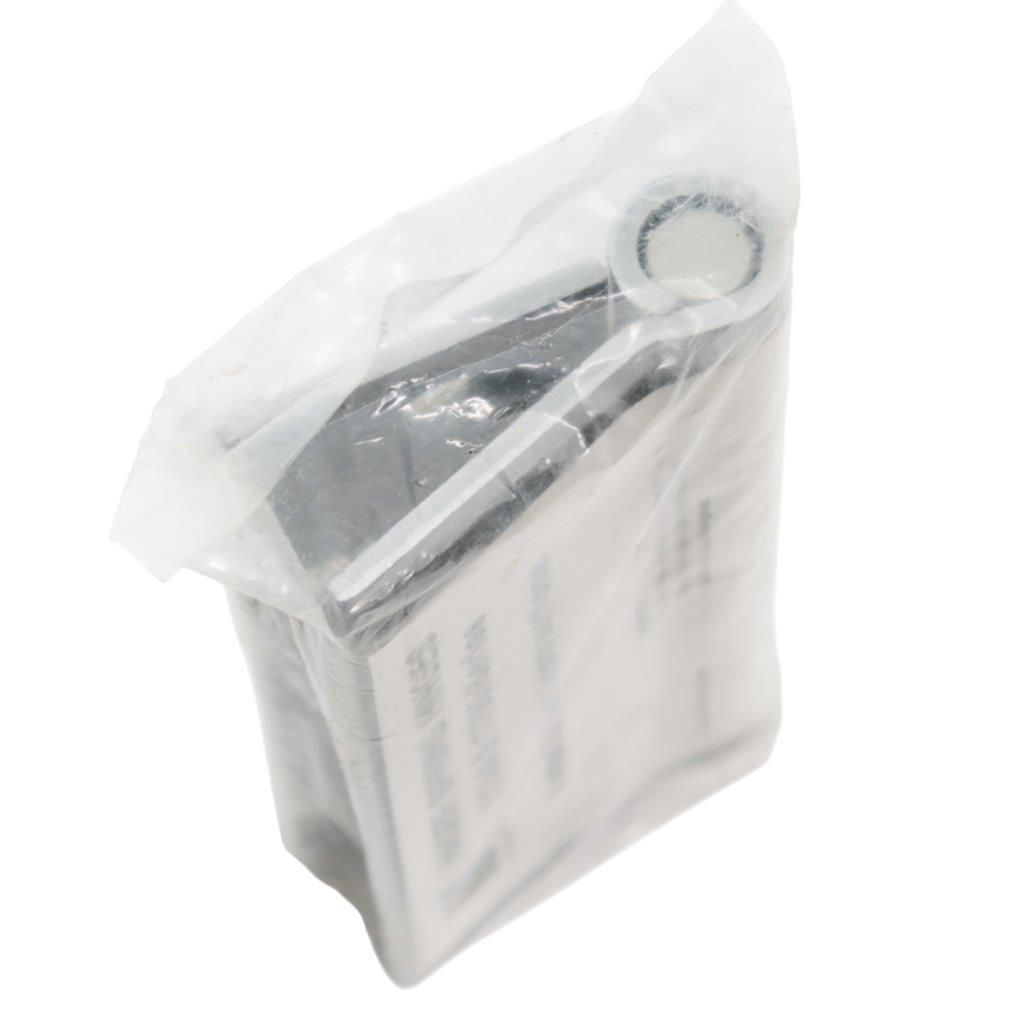

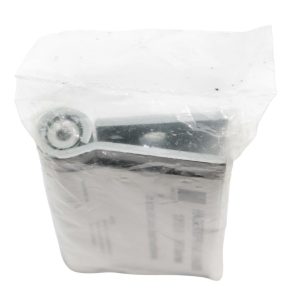

Condition: New; factory sealed in plastic wrap. Includes hinge pin and Allen wrench (tension tool) as shown.

Product Description

The Hager 1250 Series Spring Hinge is a commercial-grade adjustable tension self-closing hinge designed to automatically return a door to the closed position using an internal spring mechanism. Built from steel and finished in satin chrome, it’s commonly used on interior doors where you want reliable close action without installing a surface closer—such as office corridors, utility rooms, break rooms, or light commercial tenant spaces. The adjustable spring tension allows you to fine-tune closing force to match door weight, width, and site conditions, while the included pin and Allen wrench make setup straightforward.

UL approved for use on doors 4’0″ x 8’0″, but Hager does not recommend using spring hinges on doors over 7’0″ in favor of hydraulic door closers.
For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing or anti-friction hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
Doors over 3’0″ x 7’0″ or over 100 lbs require three spring hinges. Doors 150-180 lbs require four spring hinges.

Specifications

• Manufacturer: Hager

• Series: 1250

• Type: Adjustable tension spring hinge (self-closing)

• Material: Steel

• Finish: Satin Chrome (verify against photos/markings)

• Adjustment: Tension adjustable via spring mechanism (pin-set increments)

• Includes: Pin + Allen wrench (as pictured)

• Mount style: Standard butt hinge format (door/frame mortised prep typical)

• Handing: Non-handed in many spring hinge designs (verify by markings if present)

• UPC/GTIN: Not provided

Features

• Self-closing spring action helps ensure doors return to closed position

• Adjustable tension to tune closing force for different doors and conditions

• Durable steel construction suited for repeated use

• Satin chrome finish for a clean, modern hardware match

• Service-friendly adjustment using the included Allen wrench and tension pin

• Helps reduce door propping and improves privacy/containment in common areas

Applications

• Interior commercial doors requiring automatic closing

• Office and retail back-of-house rooms

• Utility, janitorial, and maintenance access doors

• Doors where a surface closer is undesirable for cost, space, or appearance reasons

• Light institutional use (application dependent)

Spheres of Application

• Commercial tenant buildouts

• Property management maintenance/turnovers

• Light industrial facilities

• Remodeling and retrofit projects

Cross-Referenced Models

(Exact equivalency depends on hinge size, weight class, and door rating—verify dimensions and any door/fire label requirements.)

• Hager 1250 Series spring hinges (same family; size/finish variants)

• Comparable adjustable spring hinges in the same class:

  • Ives adjustable spring hinge series equivalents

  • Stanley spring hinge equivalents

  • Bommer spring hinge equivalents

Comparable Products

• Surface door closers (more control over sweep/latch speed; more visible)

• Concealed closers (clean aesthetic; higher cost and prep complexity)

• Hydraulic spring hinges (smoother close, often quieter; usually higher cost)

• Standard butt hinges + closer (best performance/adjustability, more components)

Use as Part of a Larger System

Spring hinges are often installed as part of a complete door hardware set:

• Door leaf + frame with mortised hinge prep

• Latch/lockset and strike alignment

• Optional weatherstripping (if used for containment)

• In some configurations, two spring hinges or a spring hinge + standard hinge are used to share load and achieve reliable closing, depending on door size/weight and site requirements.

Related

adjustable tension spring hinge, self-closing door hinge, satin chrome spring butt hinge, commercial spring hinge, door return hinge, steel spring hinge hardware, hinge with tension pin and Allen wrench, automatic closing hinge for interior doors

Common Requests:

1. “Hager 1250 series spring hinge satin chrome adjustable tension new sealed”

2. “Self-closing door hinge with tension pin and Allen wrench for commercial door”

3. “How to adjust spring tension on Hager 1250 hinge using the pin”

4. “Replacement adjustable spring hinge steel satin chrome for interior door”

5. “Spring hinge vs surface door closer—best option for self-closing door”

Trademarks Disclaimer

Hager and any other brand names mentioned are trademarks of their respective owners. References are used only for identification and comparison purposes; no affiliation or endorsement is implied.

P125; B006; GT00108
