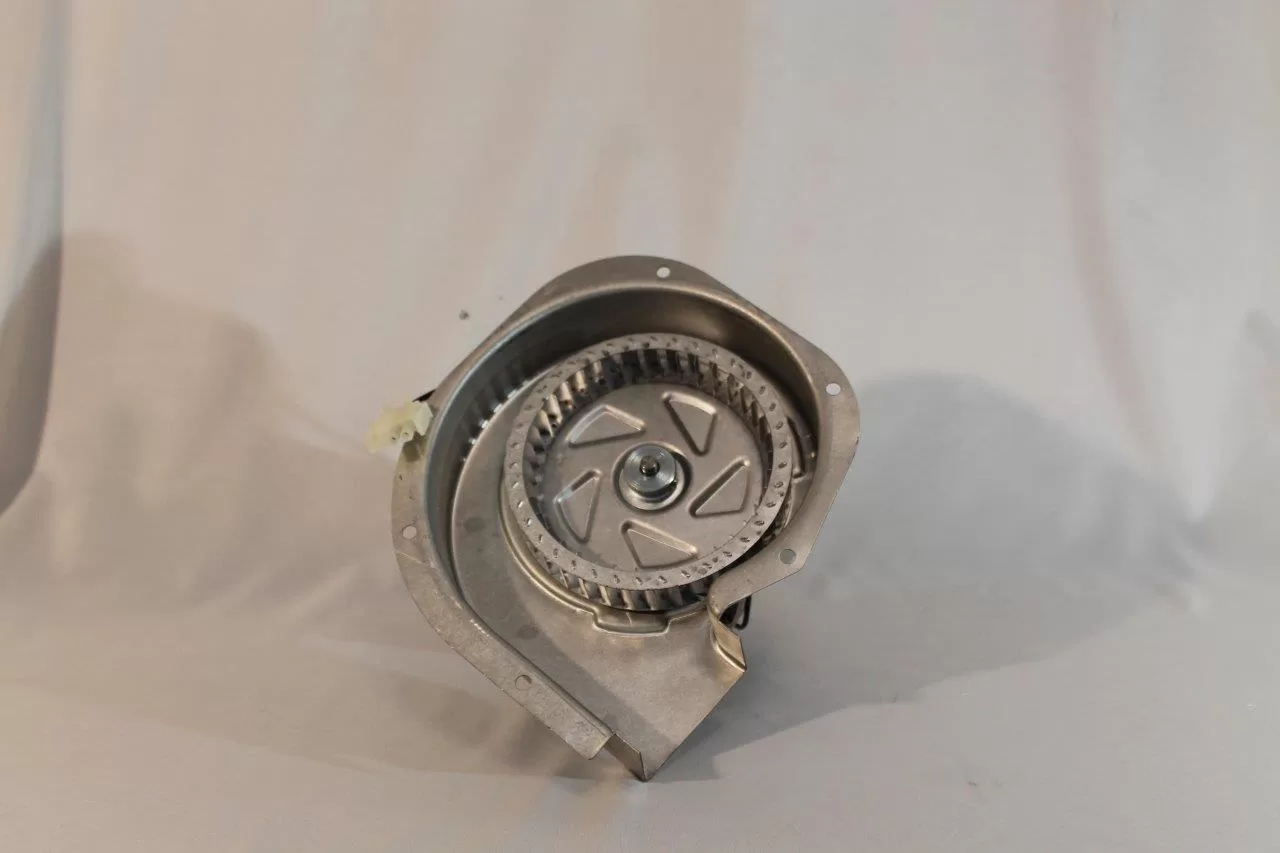

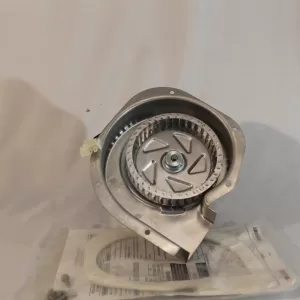

Fasco 70625700 Draft Inducer Blower Motor 100766-01 Type U62B1
A brand-new, unused.
Includes:
– Draft Inducer Motor Assembly with Capacitor;
– Gasket;
– #10 Sheet Metal Screws;
– Installation Instructions.
Specifications:
Motor Manufacturer: Fasco
Model: 70625700
Fasco Motor Type: U62B1
Voltage: 208-230
Hertz: 60
Amperage: 0.5
RPM: 3300
Speeds: 1
Thermally Protected
Insulation Class: B
Motor Cooling: Air Over
Bearings: Ball
Capacitor Included: 4MFD @ 370 VAC
Rotation: Clockwise Lead End
Inducer Housing: Metal
Replaces: LB-112090B
Other Part Numbers: COMB AIR BLR – 1 SPD 230V, T003417212, JK8467770-1, 70625700, 0013-2 Housing, 0013, LR6319, M0176, 100766-01, N16032252209
The Fasco 70625700 Draft Inducer Blower Motor is a component used in heating, ventilation, and air conditioning (HVAC) systems. It helps to circulate air and distribute heat throughout a building. The draft inducer motor is responsible for providing the initial airflow necessary to ignite the furnace, and it operates until the furnace’s main blower takes over.
| Voltage | 208-230V |
|---|---|
| Speed | 3300 RPM |
| Capacitor | 4MFD / 370 VAC |
| Current | 0.5 A |
