Name: DTNF324 Double Throw Non-Fusible Safety Switch 200A 240V by Siemens
SKU: 5106
Price: 899 USD
Availability: OutOfStock

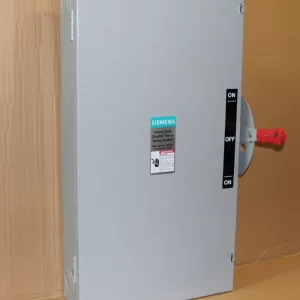

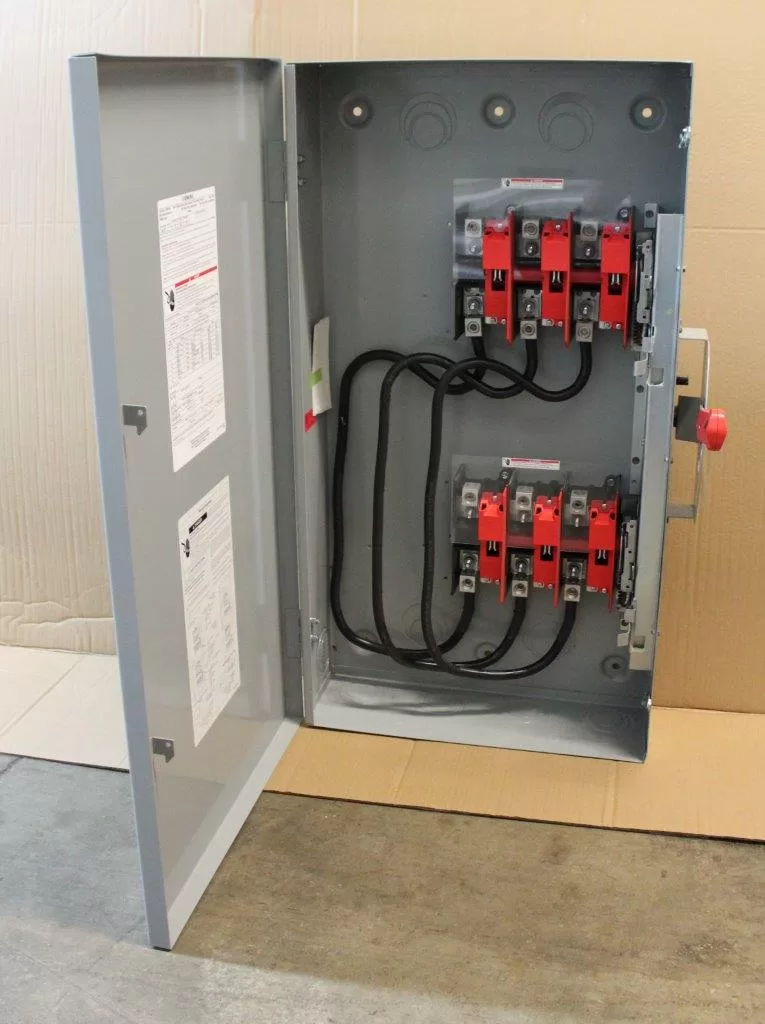

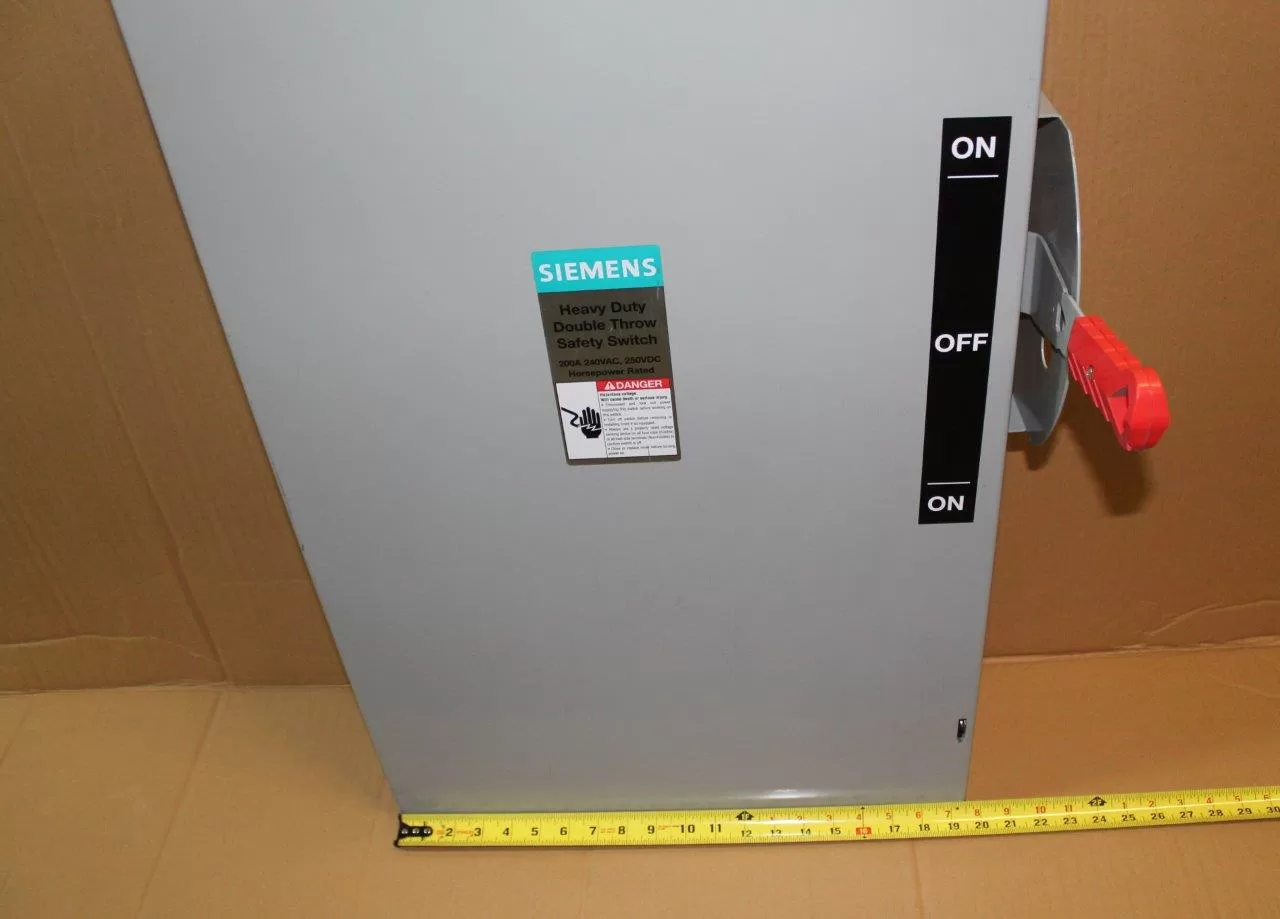

DTNF324 Double Throw Non-Fusible Safety Switch 200A 240V by Siemens

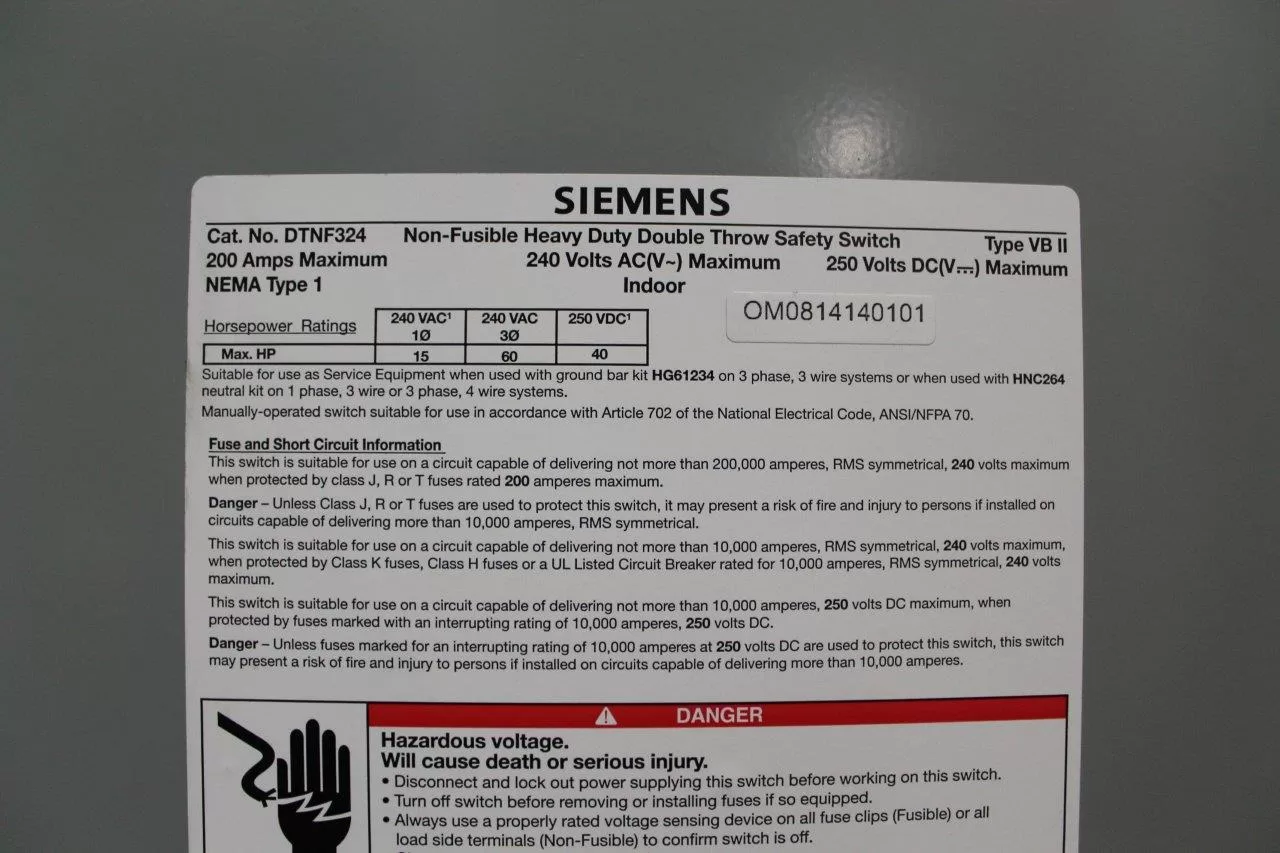

Description
Siemens VBII series three pole 200 ampere heavy duty non-fusible double-throw disconnect and safety switch with maximum voltage rating of 240V with high interrupting rating of 200 kiloampere at 240V suitable for indoor use disconnect safety switches.

Specifications :
– Manufacturer : Siemens
– Cat. No. : DTNF324
– Alternate Part No. : DTNF-324
– UPC : 783643454170
– Product Type : Safety Switch
– Type : Service Equipment
– No. of Poles : 3-Pole
– Phase : 3-Phase
– Type of Duty : Heavy Duty
– Voltage Rating : 240V / 250 VDC Voltage
– Amperage : 200 Ampere
– Power Rating : 10 Hp At 240 Vac 1 Phase 20 Hp At 240 Vac 3 Phase 10 Hp At 250 Vdc
– Switch Style : Non Fusible Fuse
– Interrupting Rating : 200kA@240V
– Fuse Class : R
– NEMA Rating : Nema 1

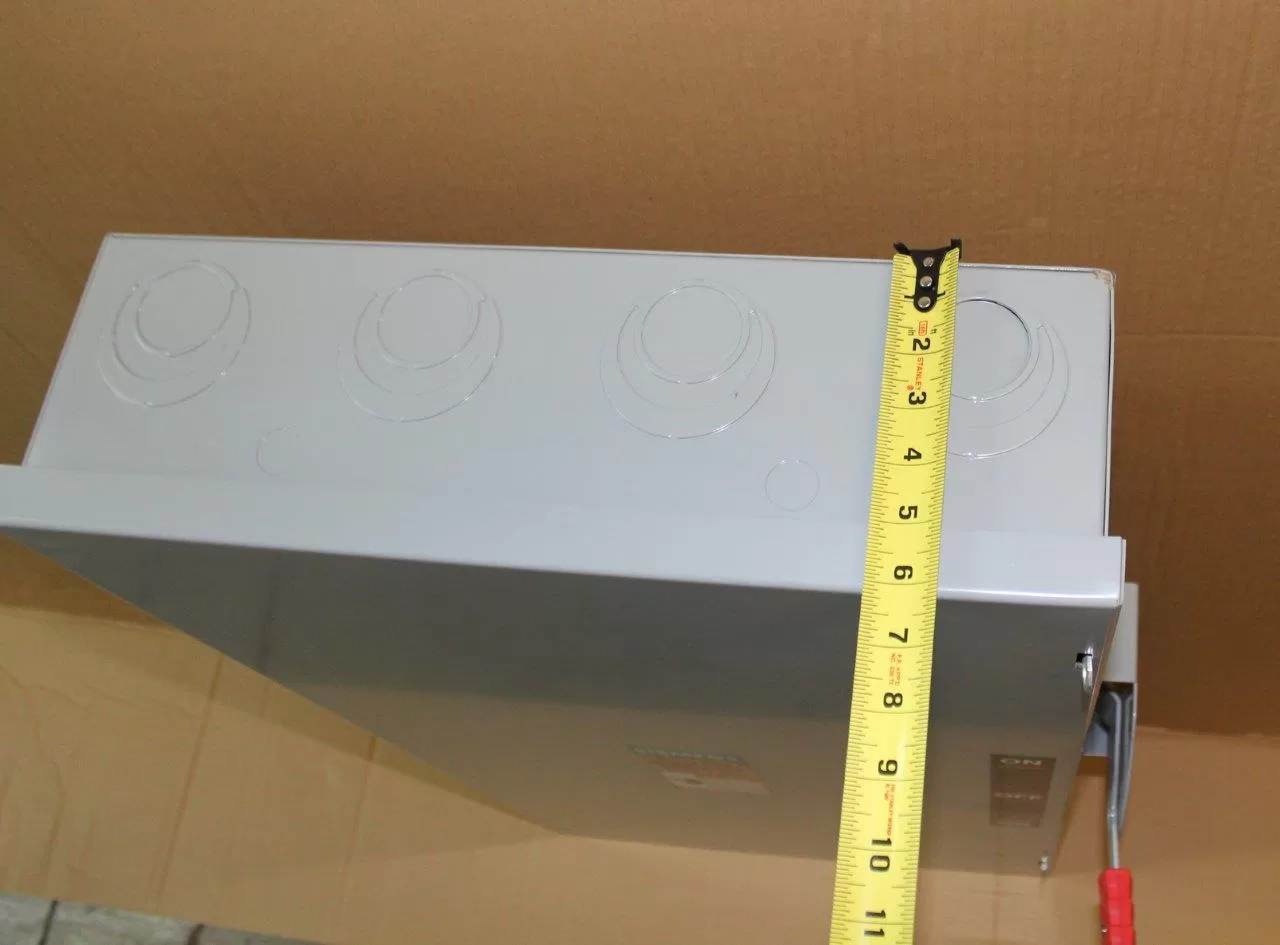

– Size : 11.5 Inch W X 6.09 Inch D X 24.88 Inch H
– Approval Ul Listed
– Authentic Siemens / ITE Product

Condition: new, unused, original box is missing.

Weight	75 lbs
Dimensions	39 × 22 × 13 in
