DLT Electric Motor 1/3HP 3450rpm 115/208-230 DLC-1242-03-ODP-G MTH PUMP T41BAB

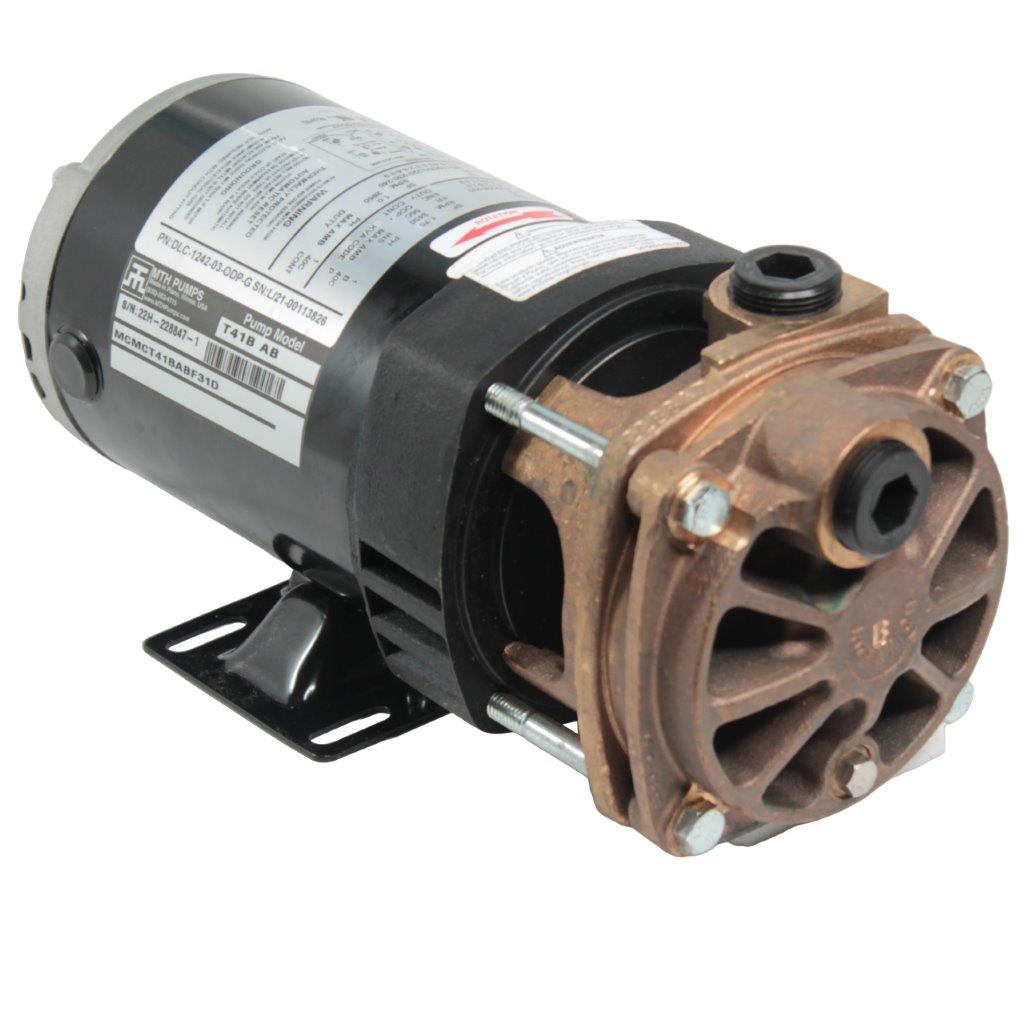

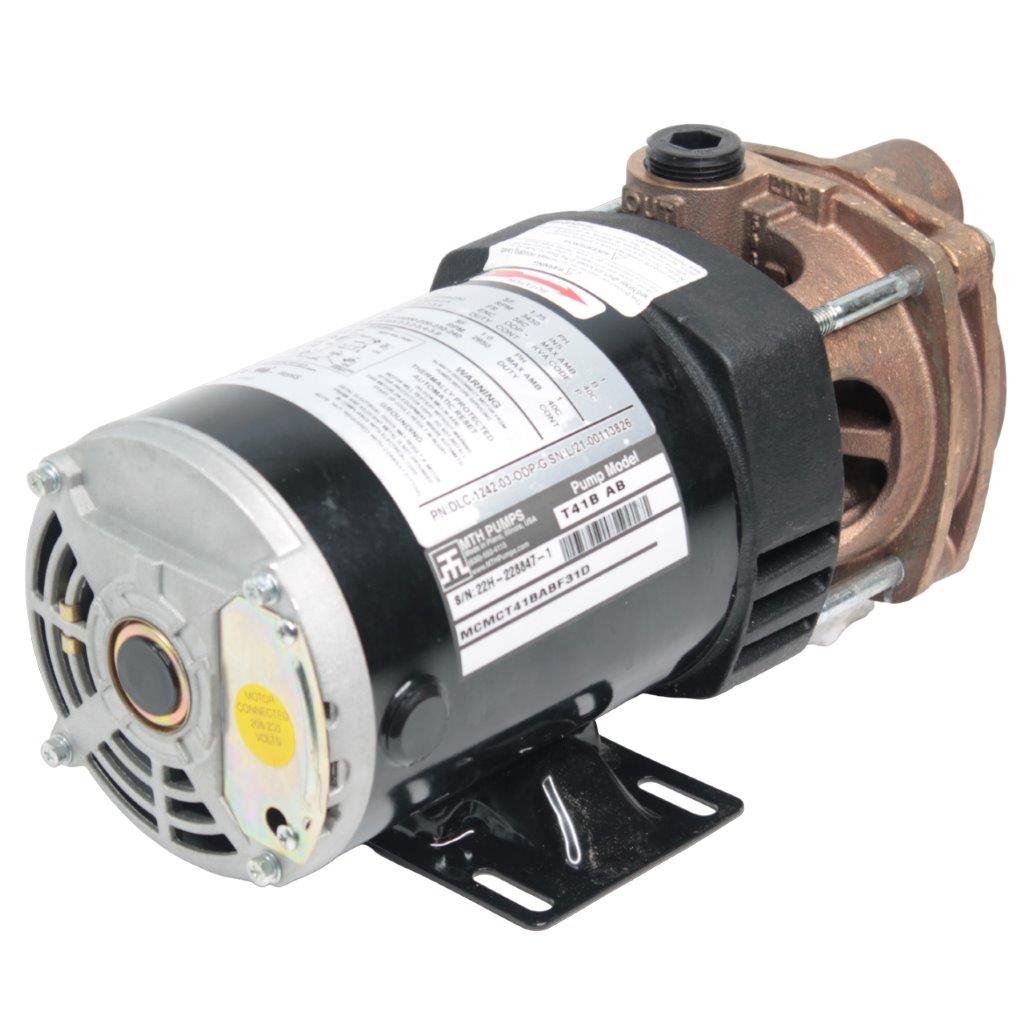

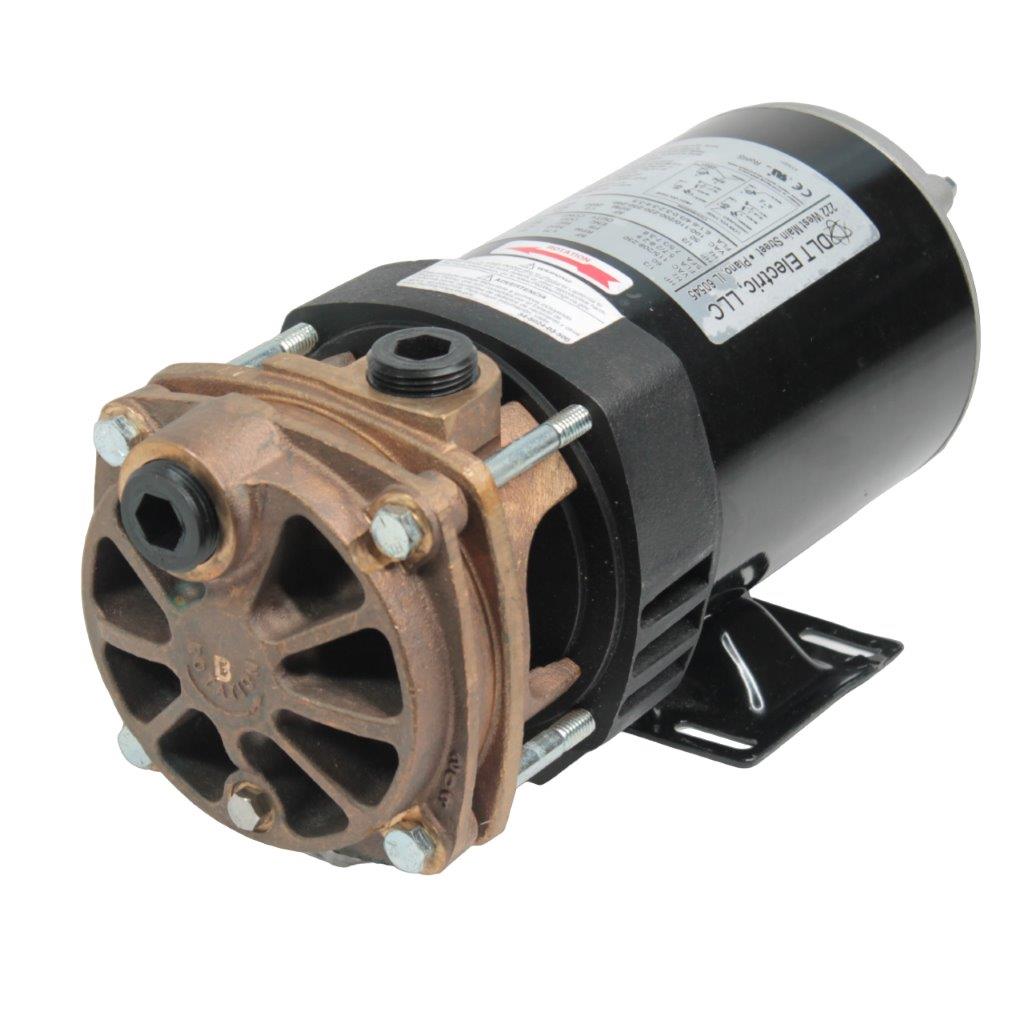

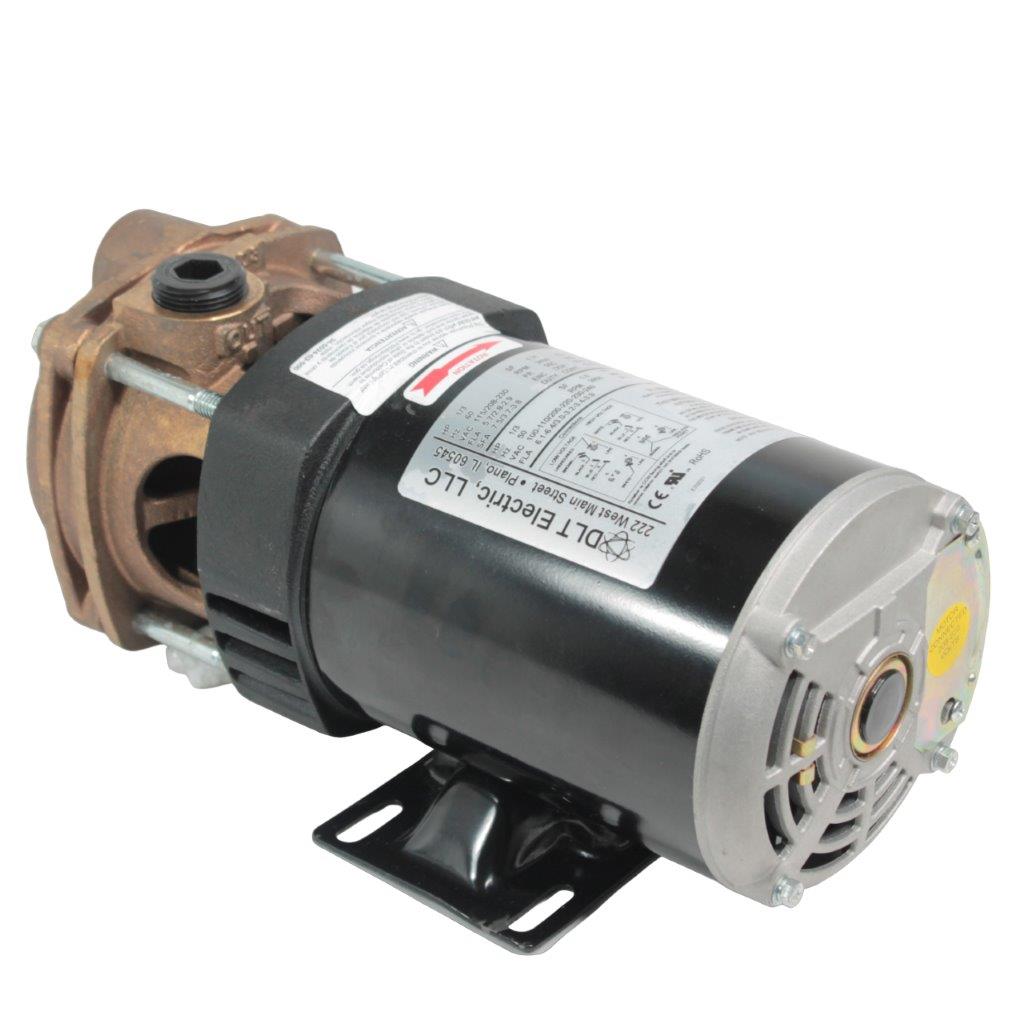

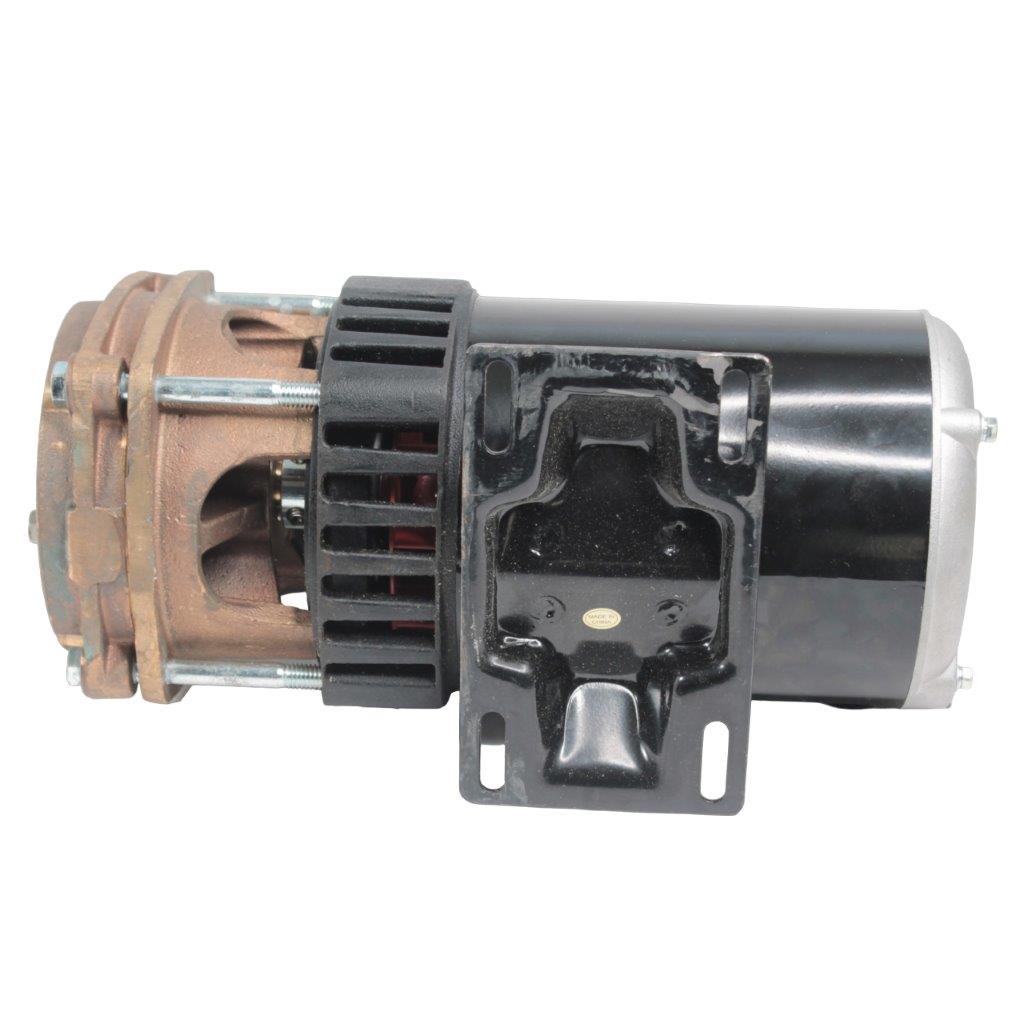

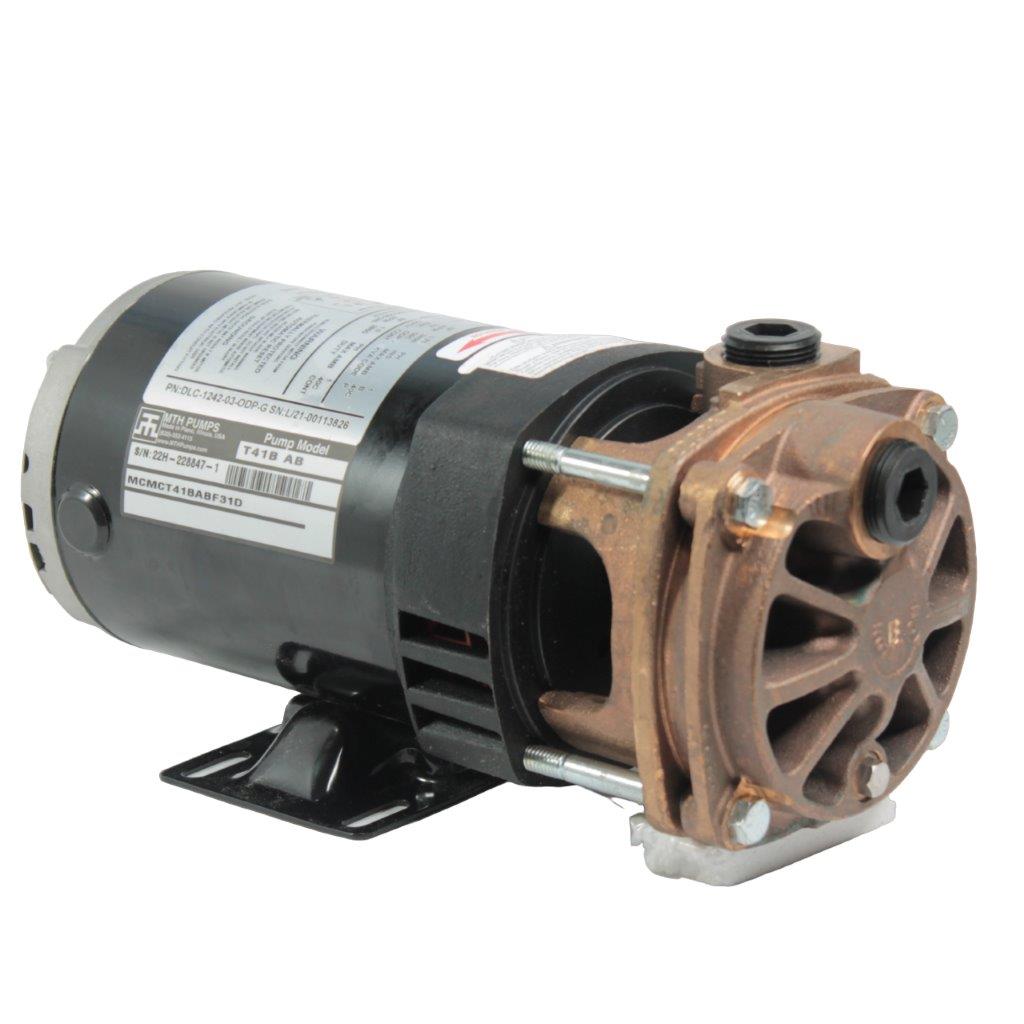

DLT / MTH Pumps DLC-1242-03-ODP-G 1/3 HP Single-Phase 56C Face Pump Motor, 3450/2880 RPM (60/50 Hz), 115/208–230 V (110/220 V), 2-Pole, ODP Enclosure, C3 Style 56C Face, Service Factor 1.75/1.0, for MTH Pump T41BAB/T41B AB

Condition: New. Factory-fresh with storage-only handling. No pump, base, or coupling included unless noted.

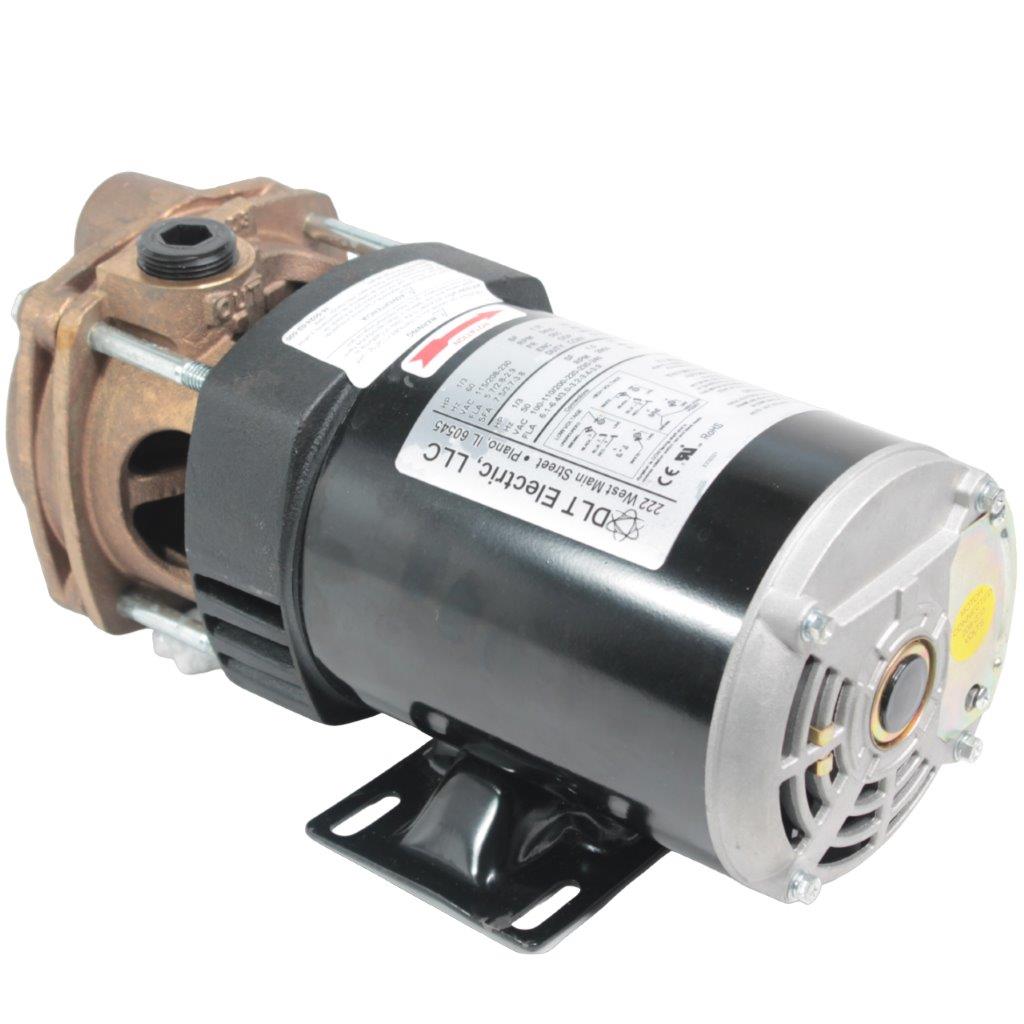

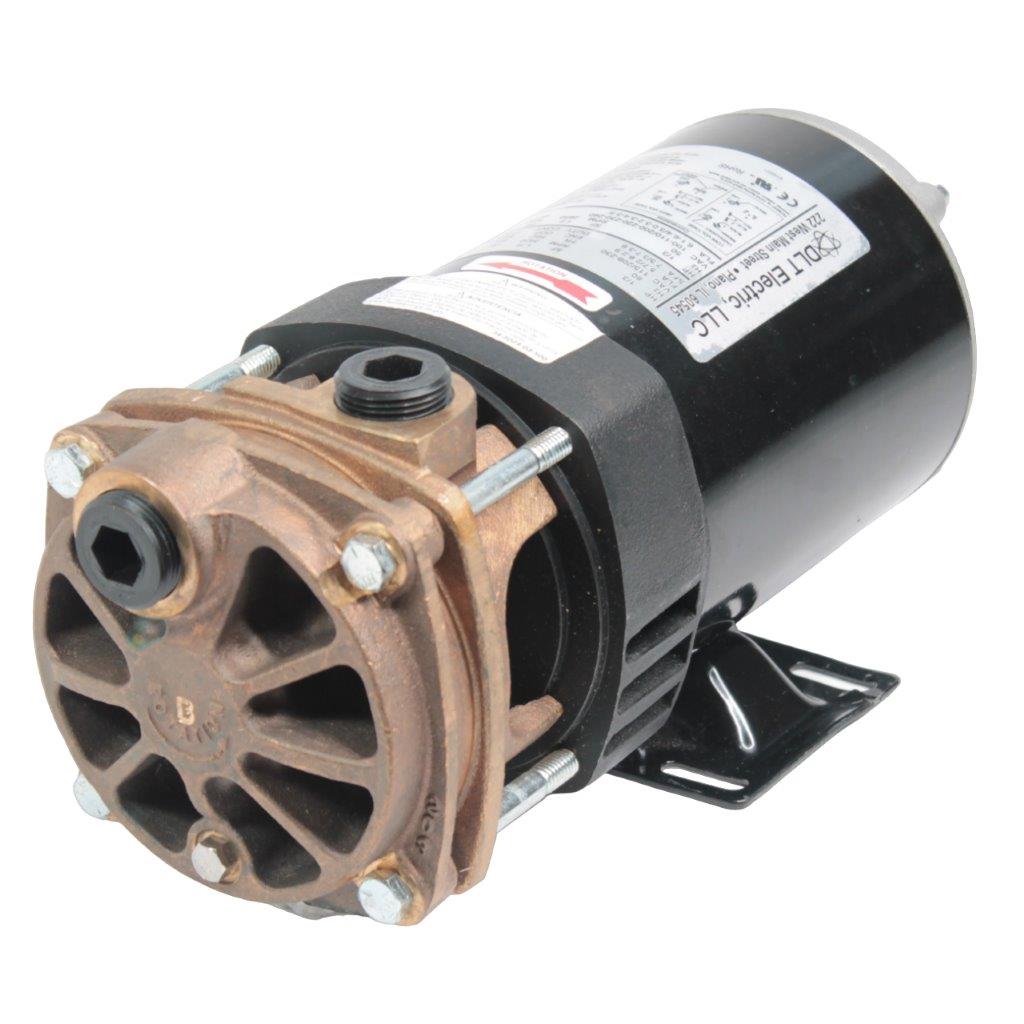

Compact, efficient, and purpose-built for close-coupled pump duty, this DLT Electric Motor / MTH Pumps model DLC-1242-03-ODP-G (T41B AB) is a 1/3 HP, single-phase motor with a 56C face for direct mounting to compatible MTH® pump frames (e.g., T41BAB). The 2-pole design delivers 3450 RPM at 60 Hz (2880 RPM at 50 Hz) and runs on 115 or 208–230 VAC (110/220 VAC at 50 Hz). Its ODP (Open Drip Proof) enclosure is ideal for dry, well-ventilated equipment rooms. A robust Service Factor of 1.75 (60 Hz) provides healthy headroom for transient loads typical of pump start-up and varying system pressure. This is a C-face motor intended for close-coupled installation—no shaft alignment or separate foot base is required when mated to the proper pump bracket.

Features

• Pump-duty C-face (56C) for direct close-coupled mounting (no alignment hassles)
• 1/3 HP, 2-pole performance: 3450 RPM @ 60 Hz / 2880 RPM @ 50 Hz
• Wide-range voltage: 115/208–230 V (60 Hz); 110/220 V (50 Hz)
• ODP enclosure for dry, indoor, ventilated locations
• High Service Factor: 1.75 (60 Hz) / 1.0 (50 Hz) for added thermal/mechanical margin
• Single-phase design suited to sites without 3-phase power
• C3 style 56C face per listing; standard NEMA 56C shaft & pilot for pump adapters
• Built for continuous duty in typical pump applications

Applications / Spheres of Application

• Close-coupled centrifugal pumps, condensate/booster/service water on MTH® platforms
• Process & general industry: parts washers, filtration skids, coolant recirc, transfer pumps
• HVAC & plumbing: small booster/service pumps, heat-exchanger circulation (dry locations)
• OEM replacements for MTH T-series pump sets calling out DLC-1242-03-ODP motors

Cross-Referenced / Identification

• Motor model: DLC-1242-03-ODP-G (DLT / MTH Pumps)

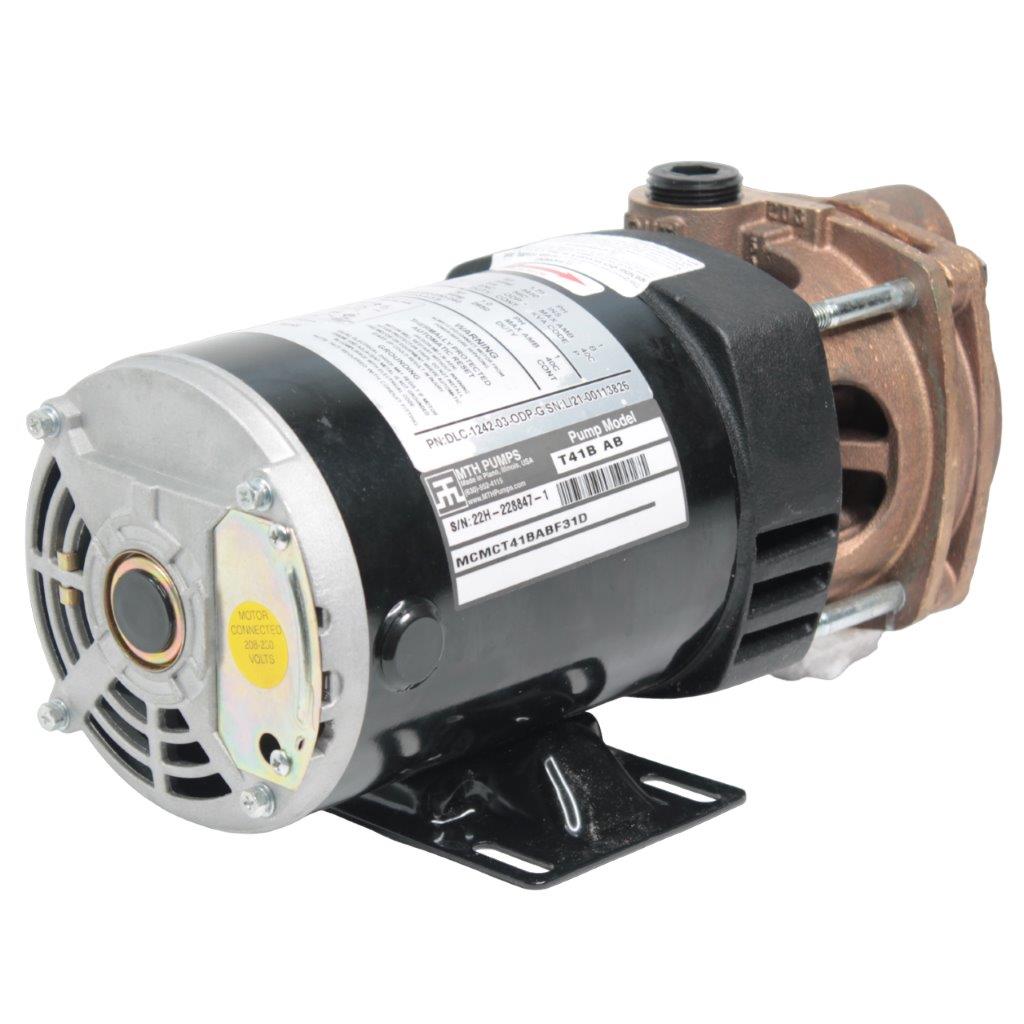

• Pump mate: MTH T41BAB / T41B AB (stamped on docs)
• Catalog / carton marks: Cat No. R47477-001 (box notation carried from OEM stocking), 47477, 000474770010, L055KPT9738013J, barcode 0 06 62551 25608 (carton)
• Serial No.: 22H-228847-1 (manufacturer internal lot/sequence; decode not publicly documented)

Note: The carton also lists “Allied” identifiers on some stock labels; those are inventory cross-references and do not change the motor’s DLT/MTH specification.

Comparable Products (same role)

• Baldor/ABB, Leeson, Marathon 56C-face 1/3 HP, 3450 RPM, ODP single-phase pump motors
• US Motors / WEG equivalents with 56C face and similar SF (verify voltage and shaft)

Motor Specifications (this unit)

• Horsepower: 1/3 HP
• Voltage: 115/208–230 V (60 Hz); 110/220 V (50 Hz)
• Frequency: 60/50 Hz
• Phase: 1-phase
• Poles / Speed: 2-pole; 3450 RPM (60 Hz) / 2880 RPM (50 Hz)
• Enclosure: ODP (Open Drip Proof)
• Frame: 56C (NEMA C-face) — C3 style 56C face per quick specs
• Service Factor: 1.75 (60 Hz) / 1.0 (50 Hz)
• Mounting: C-face for close-coupled pump; base not included unless specified
• Insulation Class: (not stated on plate; Class B is typical for ODP pump duty)
• Rotation: Reversible; report as CCWSE/CWLE when wired per factory diagram (confirm on terminal decal before energizing)
• Duty: Continuous (pump duty)
• S/N: 22H-228847-1
• Part type: Replacement motor only (no pump, guard, cord, or capacitor kit unless noted)

Rotation note: For pump performance and seal life, verify shaft rotation from the Shaft End (SE) after wiring: CCWSE/CWLE is typical when wired per standard lead scheme, but final direction must match your pump’s arrow.

Part of Larger Systems (examples)

• MTH T-series close-coupled pumps using 56C motors (e.g., T41BAB)
• OEM skids requiring 1/3 HP, 3450 RPM single-phase pump drivers in dry mechanical rooms

Related

56C face pump motor; close-coupled C-face motor; 1/3 hp 3450 rpm single-phase; ODP electric motor for pumps; MTH T41BAB motor; device to drive centrifugal pump; reversible rotation CCWSE/CWLE; high service factor pump motor; 115/230 volt pump motor; 2-pole 60/50 Hz motor

Common Requests:

1. “Will this bolt directly to my MTH T41BAB pump bracket (56C)?”
2. “Is the rotation reversible and what is the correct rotation for my pump?”
3. “Can I run this on 115 V today and rewire to 230 V later?”
4. “Is ODP acceptable for my installation, or do I need TEFC?”
5. “What coupling/shaft dimension does the 56C face provide for my impeller hub?”

Manufacturer Trademarks Disclaimer: MTH®, DLT®, Baldor®, Leeson®, Marathon®, WEG®, and other names are trademarks of their respective owners. They are used solely for identification and compatibility reference and do not imply endorsement.
