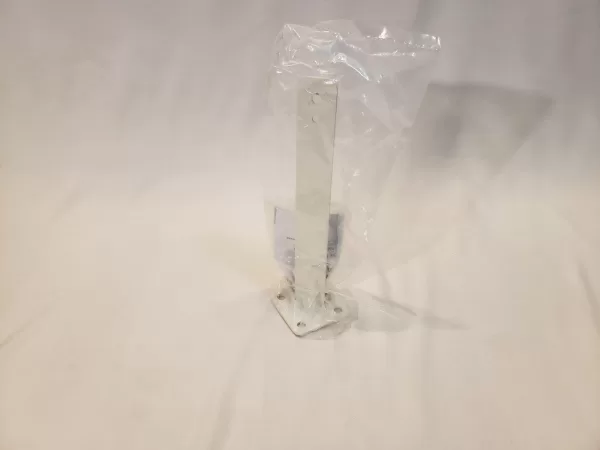

Bracket and Fan Mounting Kit for 12 inch and 16″ Basket Fans by Green-Tek

Applications: Greenhouse, Patio, Garage, House, Deck, Concession Stands, Gym, Restaurant, Commercial, Industrial, Agricultural.

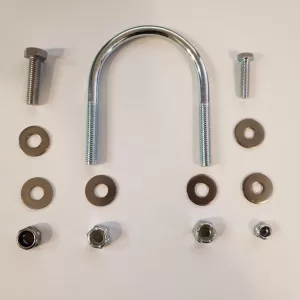

What’s included (see diagram):

#8 Bolt, Hex, M8536
#9 Washer, 08*20*1.5 (2 items)
#10 Nut, Nylock,M8
#11 Bolt, Hex, M6525
#12 Washer, 06*18*1.5 (2 items)
#13 Nut, Nylock, M6
#14 U-Bolt, 5/16-18*2.8″
#15 Nut,Nylock, 5/16-18 (2 items)
#16 Bracket for 12″ & 18″ Fan (11 x 3 x 3 inches)

Mounting instructions

1. Find a solid place to mount your basket fan. Look for rafters, I-beams, or floor joists.

2. Mount your bracket #16 (used with 12″ fan) in the position shown. Please note the orientation of the bracket in the diagrams for optimum adjustability.

3. Secure the fan Motor yoke to the bracket

4. If the specific motor your fan was supplied with has a drain plug, you should remove the bottom plug closest to the motor shaft.

5. If the specific motor your fan was supplied with does not come pre-wired, you are now ready for wiring. We recommend that you always use a licensed electrician. It is very helpful to have a disconnect or switch close to the fan for safety.

6. Before starting the fan for the first time, make sure that all mounting hardware is tight. Also check the fan blade for tip clearance.

To be used with High Volume HVB Basket Fan:

The HVB series industrial / agricultural fan is designed to be the most powerful and efficient basket fans of its type. This fan can be mount for the harshest environments, maximum performance and efficiency.

HVB12110C: 12″ Diameter, DD, 1/10 HP, 115v, 1 amp, 1725 RPM, 2500 CFM, 22 lbs w/ 9′ cord

Manufacturer Green-Tek

Download

Installation instructions for 12 inch Green-tek basket fan
