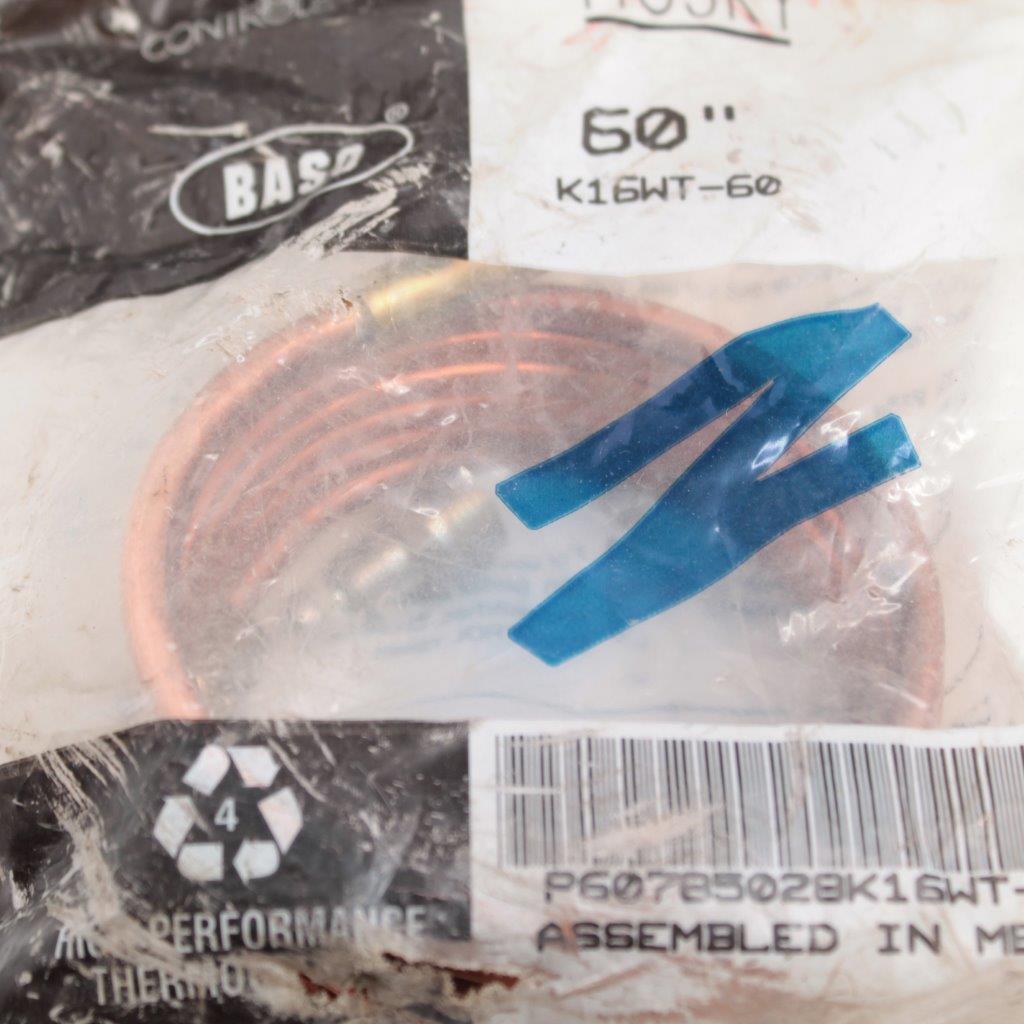

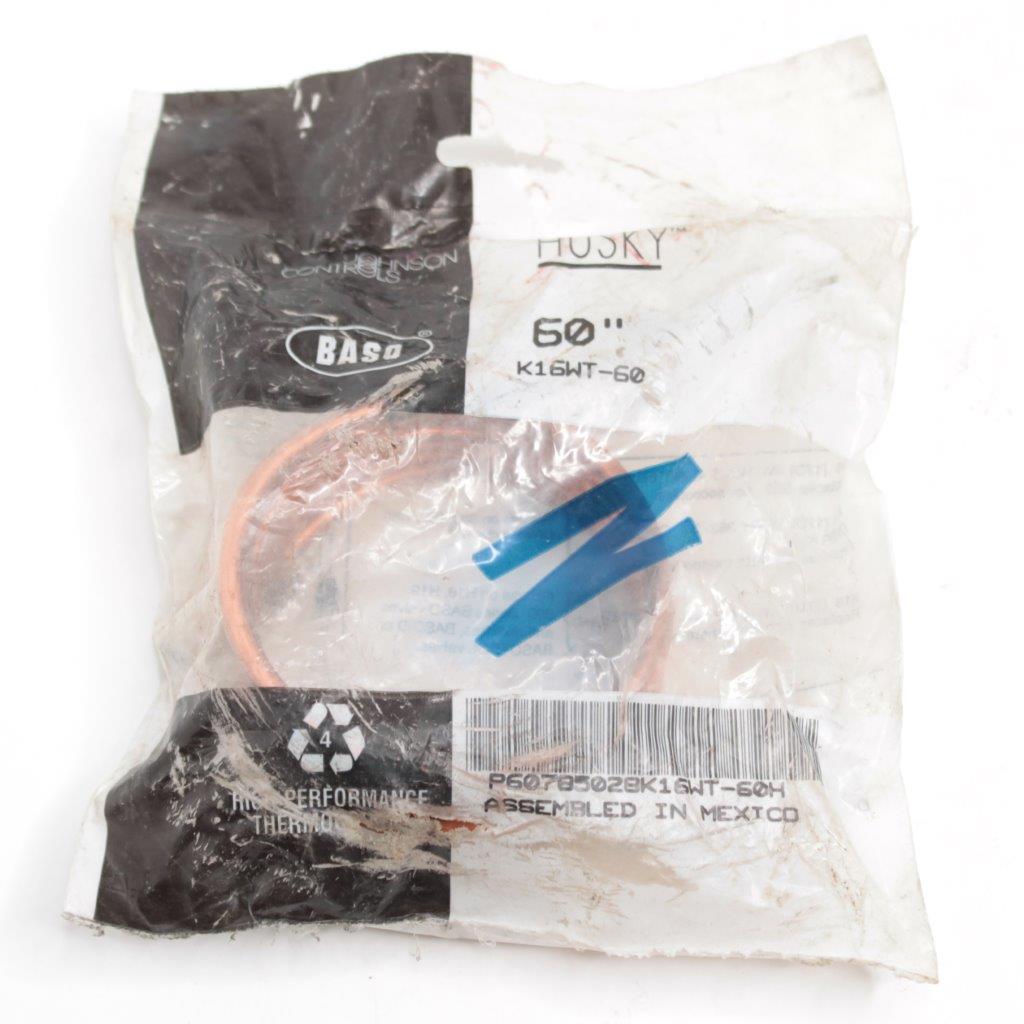

BASO Gas K16WT-60 Husky Series High-Performance Thermocouple, 60″ Lead, Commercial Grade

BASO Gas K16WT-60 Husky Series High-Performance Thermocouple, 60″ Lead, Commercial Grade

Condition: New.

The BASO Gas K16WT-60 is a robust, high-performance thermocouple from the Husky™ series, engineered for durability in demanding HVAC and gas appliance applications. With a 60-inch lead, this thermocouple is suitable for installations that require longer reach or remote sensor positioning. It’s designed to generate millivolts from a pilot flame to power safety valves and ensure secure operation in gas-fired equipment.

Features
Model: K16WT-60
Series: Husky™ Series – Heavy-duty performance
Lead Length: 60 inches
Temperature Range: Suitable for high-temperature applications
Connector Type: Standard threaded connection compatible with most gas valves
Output Voltage: Approximately 25-30 mV when properly heated
Sensor Tip: Rigid stainless steel for reliable flame sensing
Lead Protection: High-temperature resistant insulation
Compliance: Meets or exceeds ANSI standards for gas appliance thermocouples
Mounting: Universal threaded tip with adapter sleeves for compatibility

Applications
Gas Furnaces: Commonly used to monitor pilot flame and control gas valve shutoff.
Commercial Water Heaters: Maintains flame supervision for burner systems.
Industrial Heaters and Boilers: Ensures safe operation by shutting off gas supply when flame is absent.
HVAC Systems: Used in commercial-grade heating units with standing pilot systems.
Foodservice Equipment: Safeguards ovens, fryers, and griddles in restaurant kitchens.

Cross-Referenced Models
The BASO K16WT-60 is compatible or comparable to:
Honeywell Q340A60C (60″ thermocouple for gas pilot systems)
White-Rodgers H06E-60 (commercial thermocouple)
Robertshaw 1980-060 (60″ universal thermocouple)
Supco TC60 (universal replacement thermocouple)

Comparable Products
Robertshaw 1900 Series (similar durability and millivolt generation)
White-Rodgers H06 Series (interchangeable with most OEM thermocouples)
Honeywell Q313 Thermocouples (available in multiple lengths and high-temp resistant)

Compatible Systems & Integration
This BASO thermocouple can be integrated into gas safety systems such as:
BASO BGC and H15 gas control valves
White-Rodgers 36C and 36H series gas valves
Honeywell VR8200 and VR8300 series standing pilot gas valves
Commercial fryers and broilers (Vulcan, Frymaster, etc.)
Tank-style commercial water heaters (A.O. Smith, State, etc.)
Installation Notes:
Ensure the tip is securely placed in the pilot flame.
Secure with appropriate mounting nut and adapter sleeve.
Avoid kinking the lead to preserve internal wire integrity.

Related
BASO K16WT-60 thermocouple
commercial flame sensor 60 inch
60″ pilot safety thermocouple
Husky series high-temp thermocouple
universal millivolt gas pilot flame sensor
BASO thermocouple for boilers
extended length gas thermocouple
gas valve sensor lead for HVAC

Common Requests:
Can this be used with a Honeywell or Robertshaw gas valve?
– Yes, it has standard fittings and is universally compatible with many millivolt systems.
What voltage does this thermocouple produce?
– Typically 25–30 millivolts when fully engaged in a pilot flame.
Does it come with the compression nut and adapters?
– Yes, it includes a universal connector kit for most gas control valves.
What is the advantage of the Husky Series?
– It is built for high-demand, high-heat environments with superior tip durability and long lead life.
Can this be used in foodservice gas equipment?
– Absolutely. It’s ideal for fryers, broilers, and other commercial cooking appliances.
