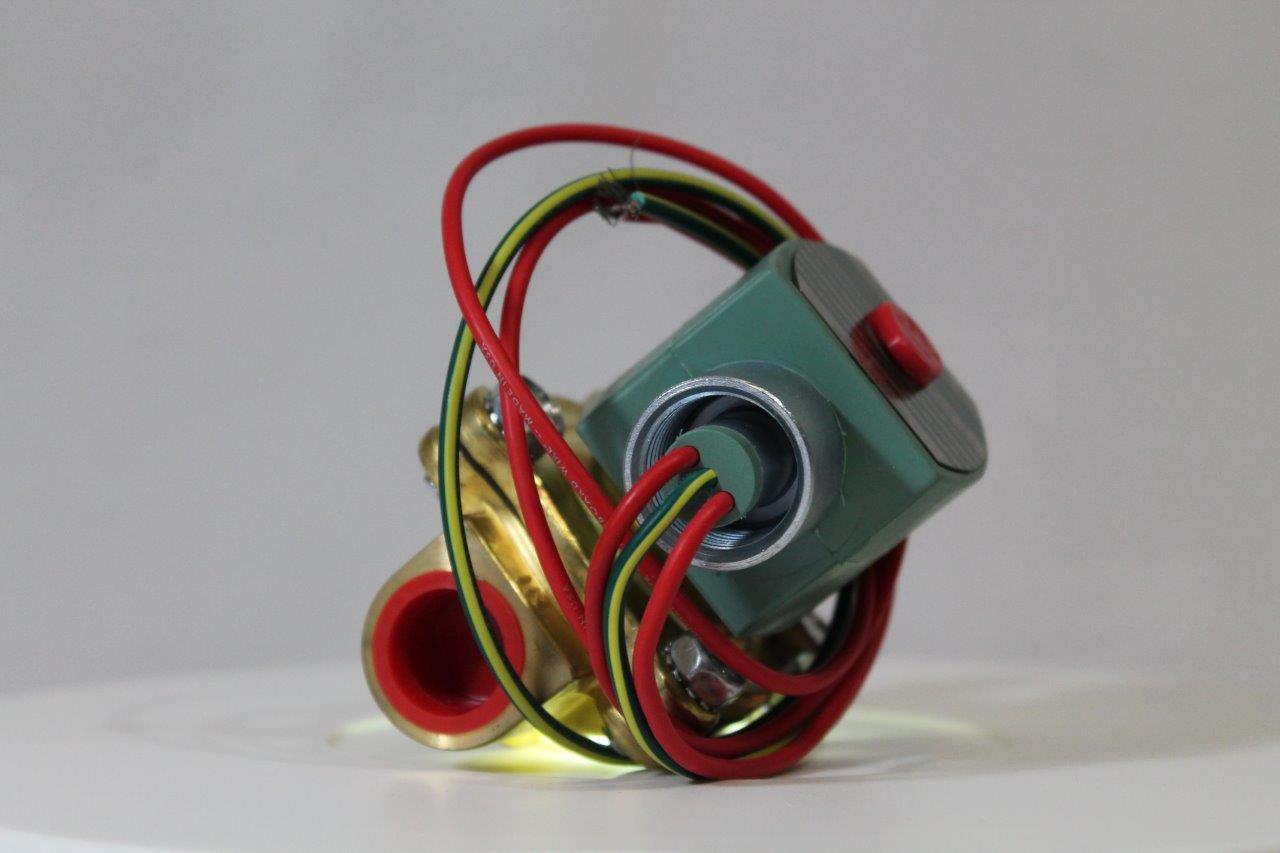

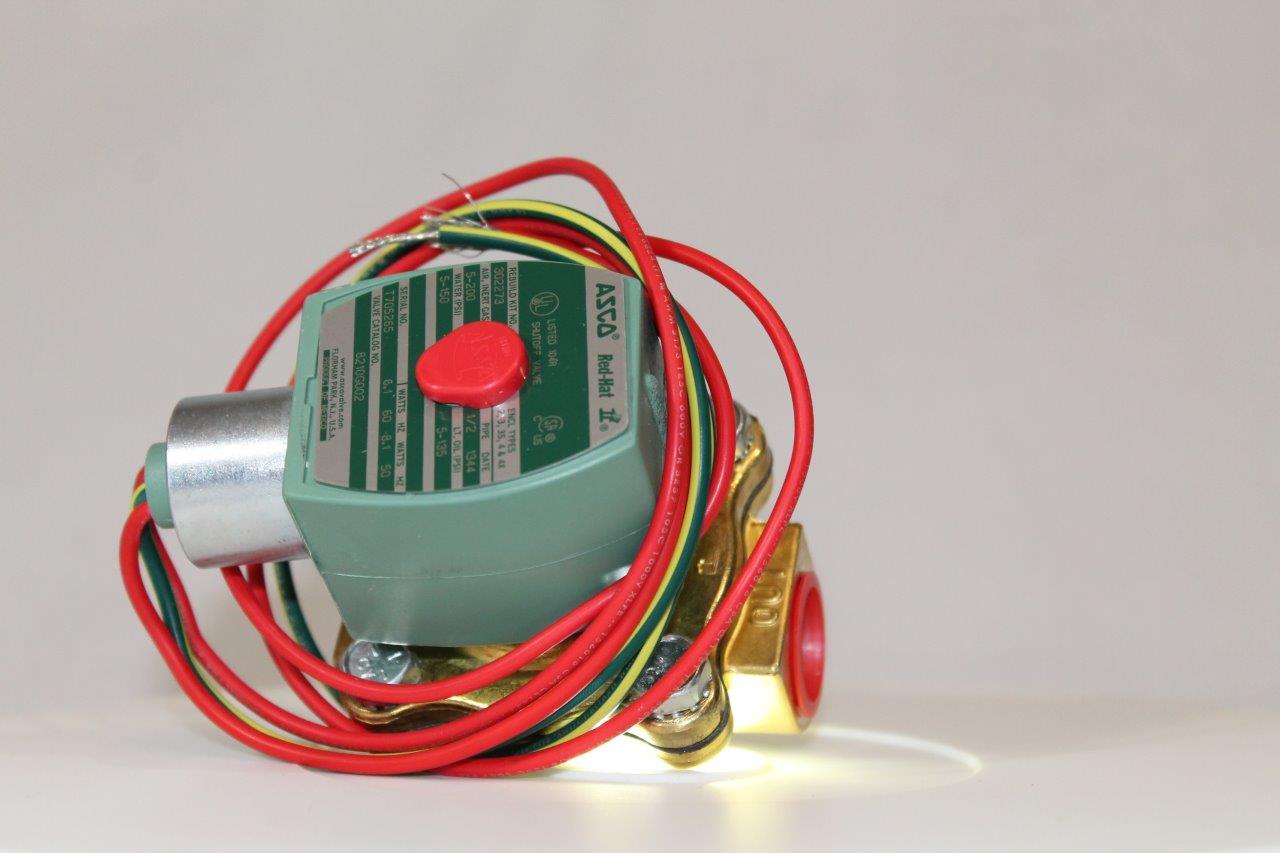

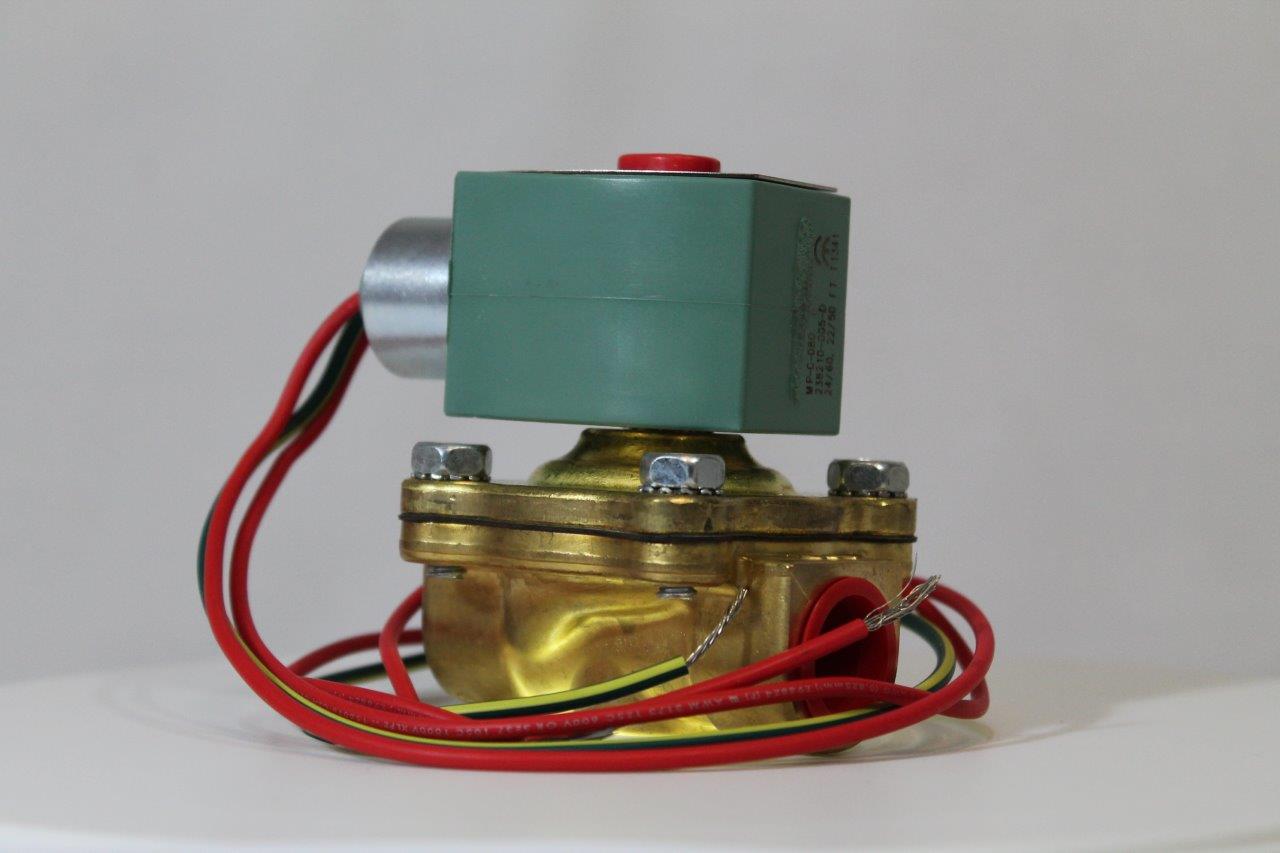

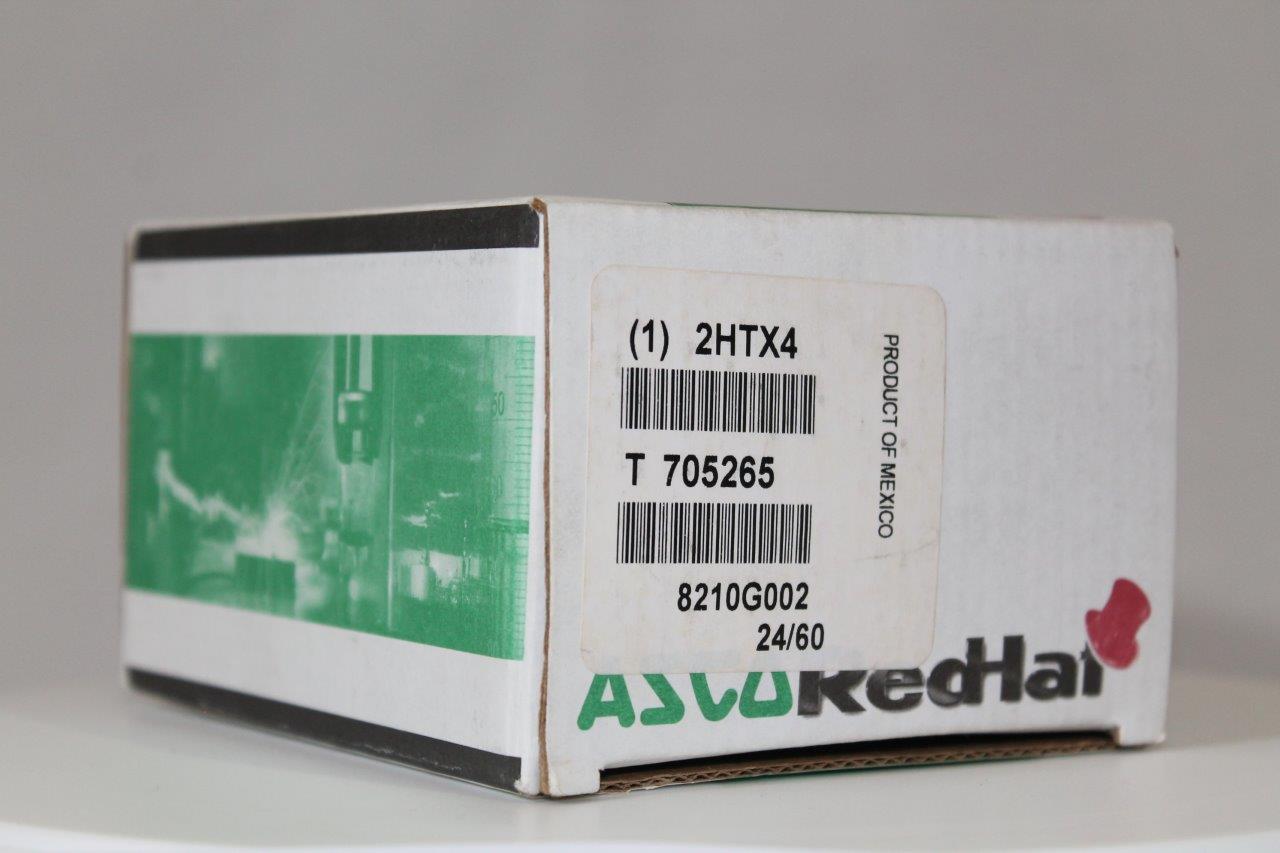

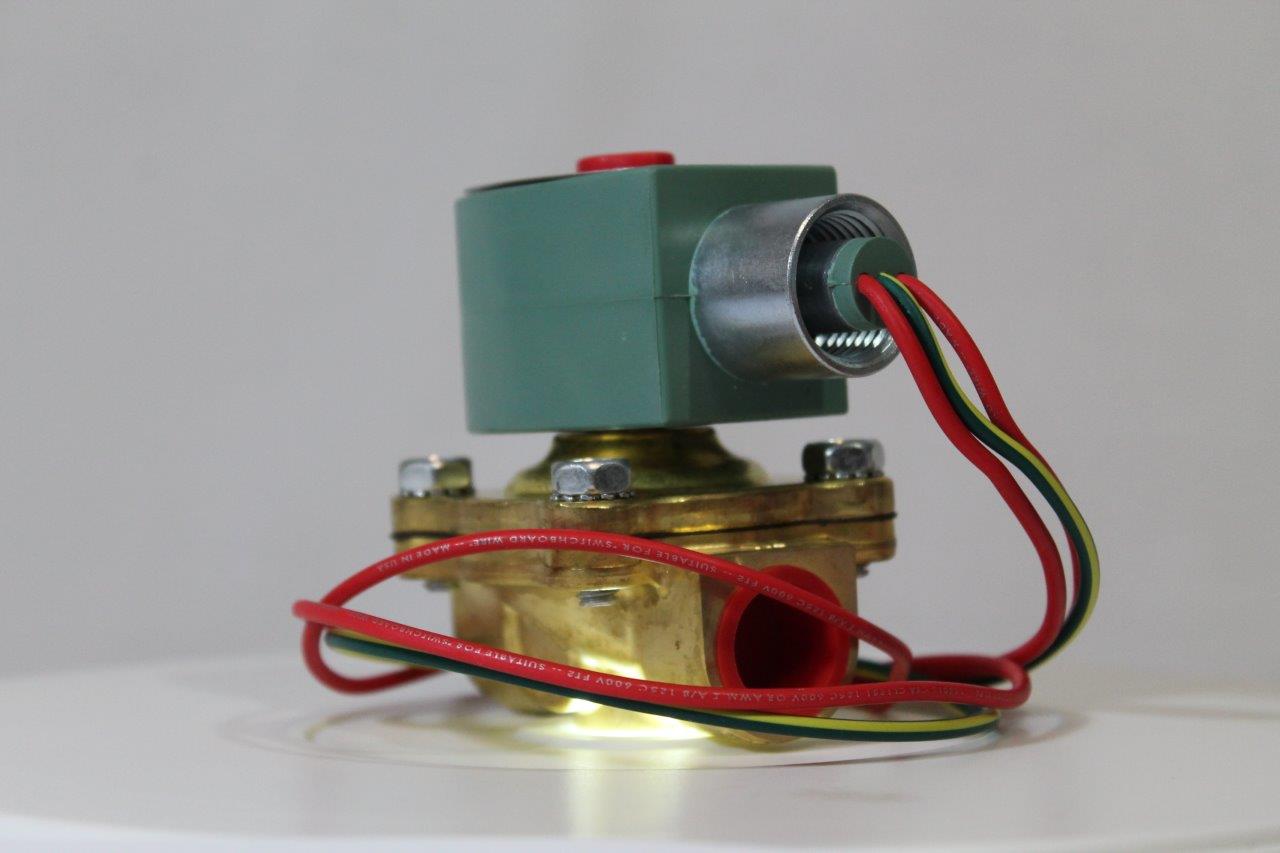

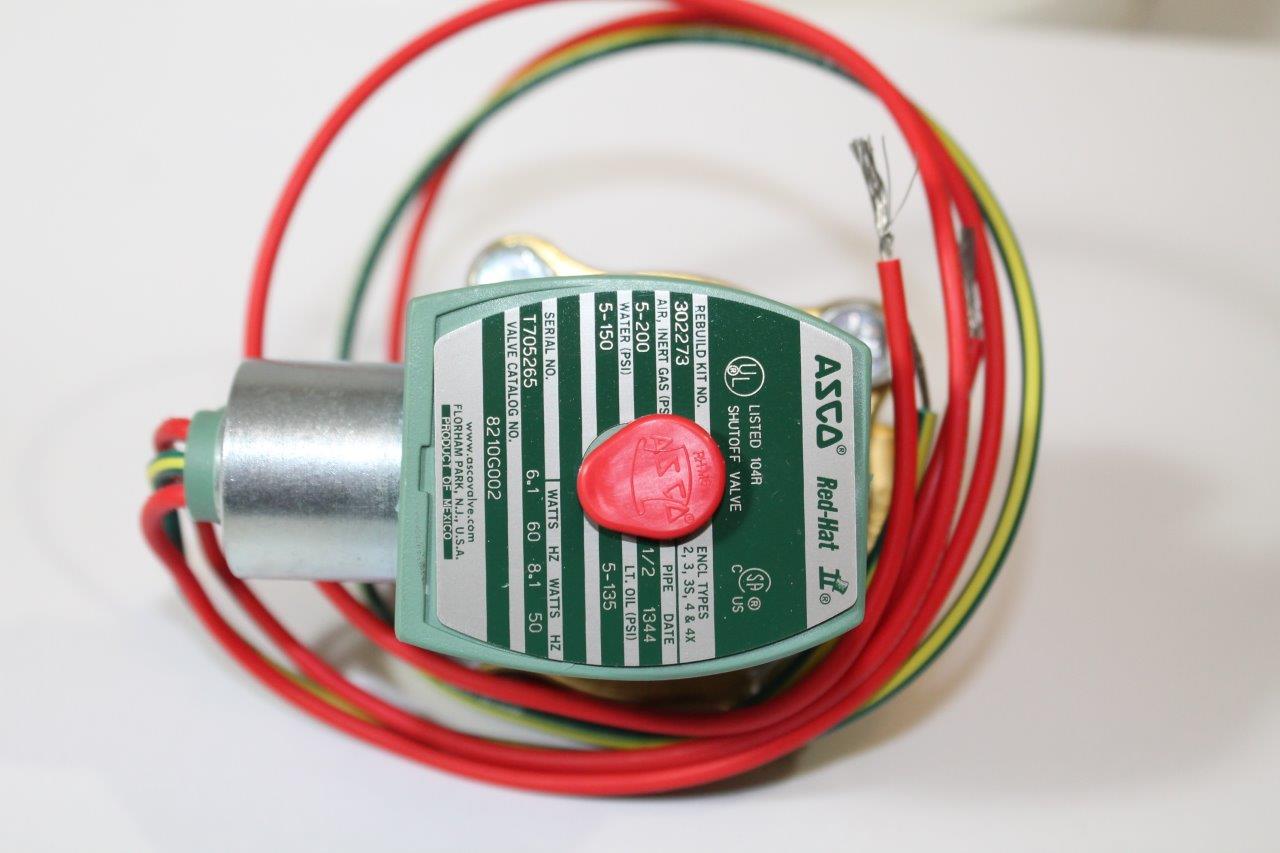

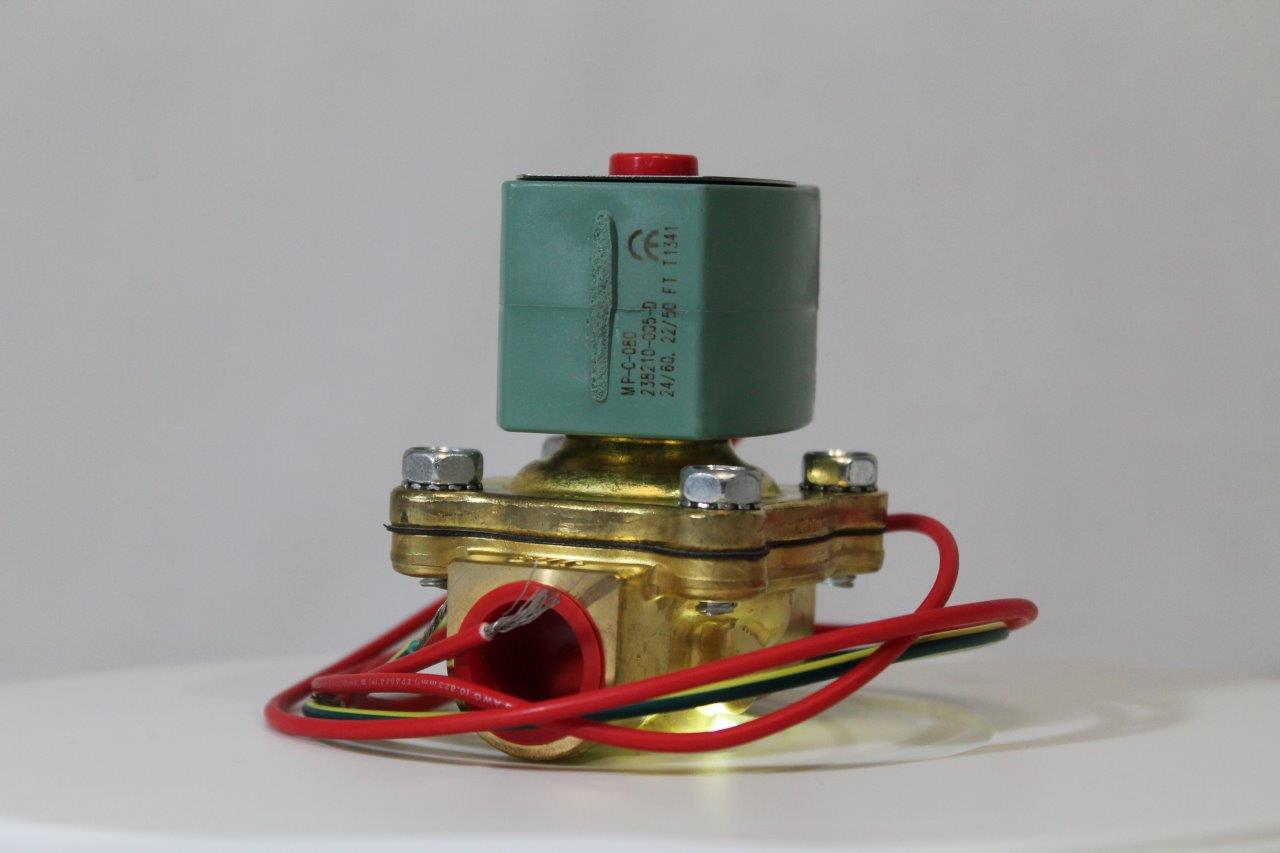

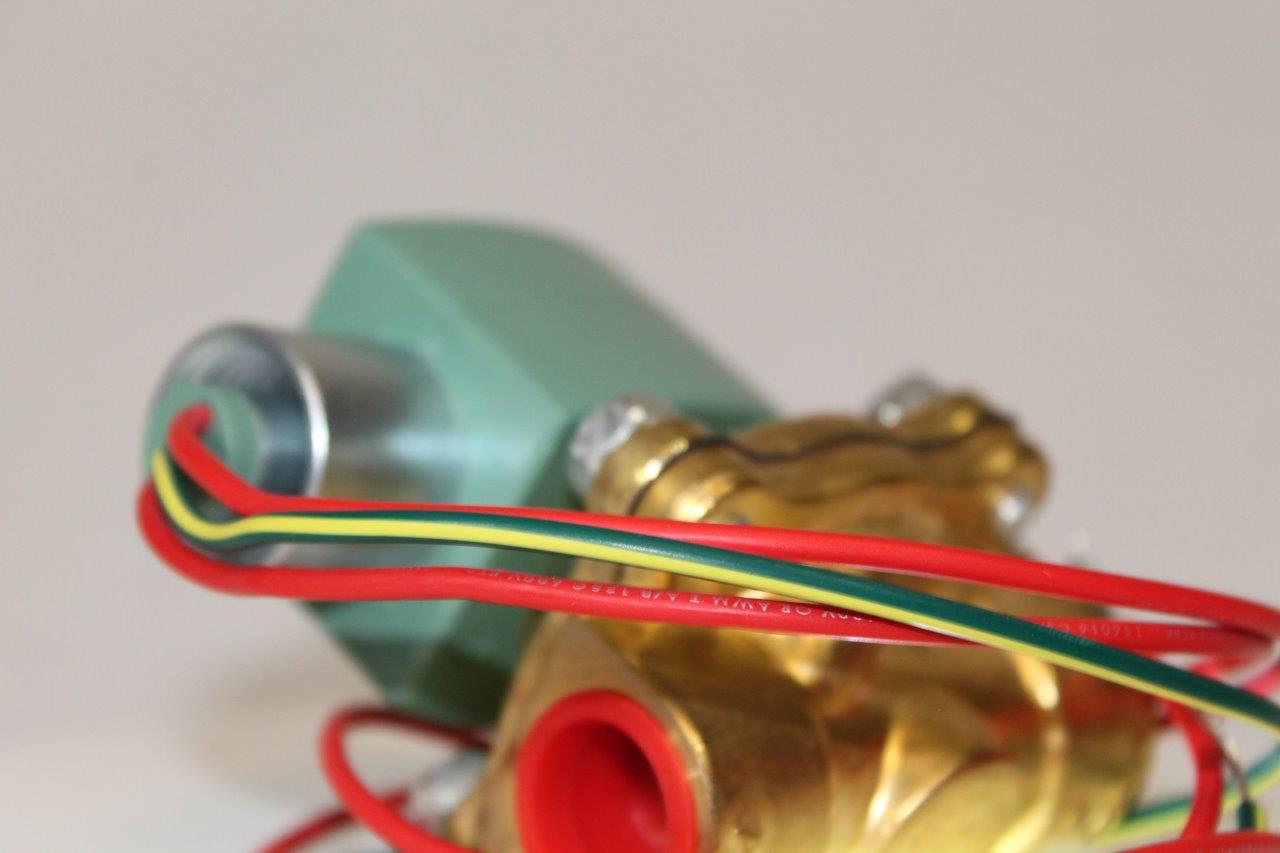

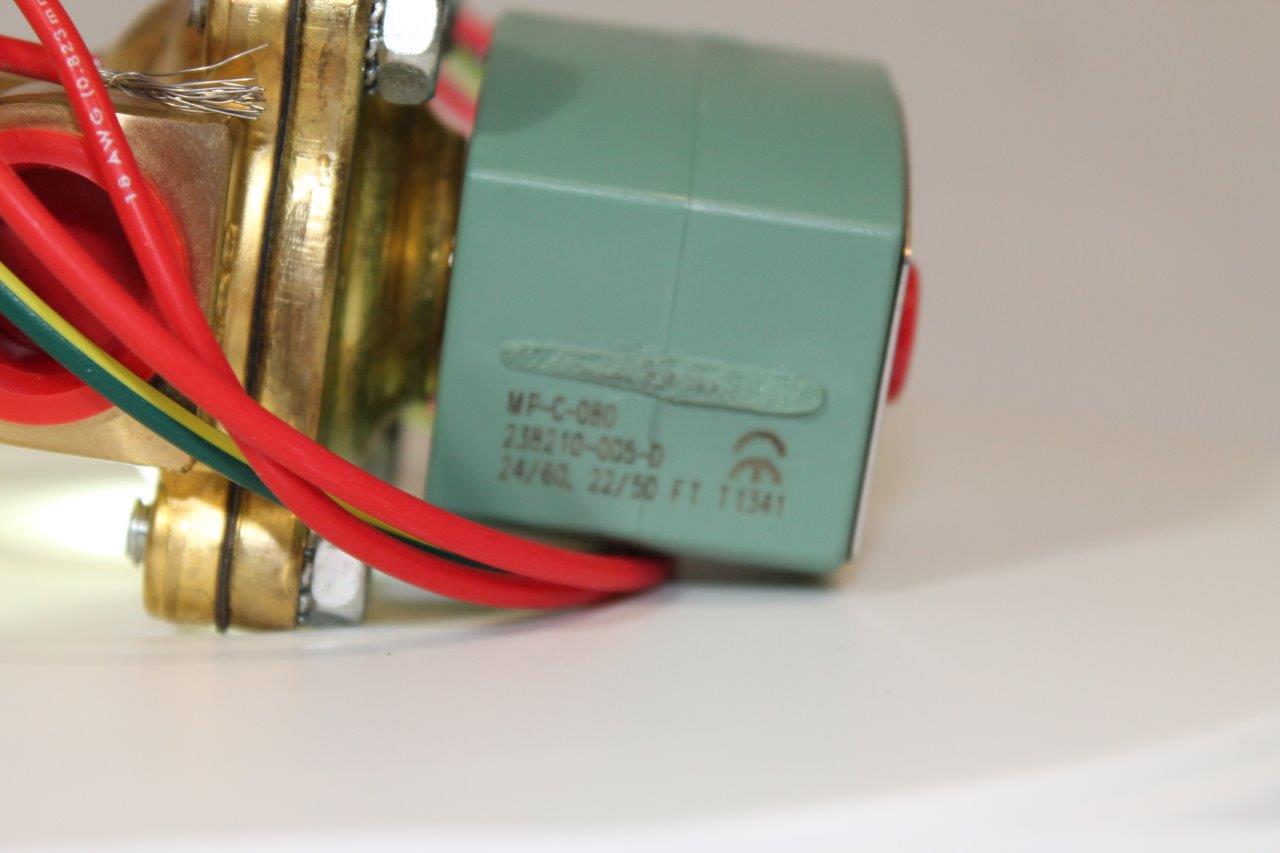

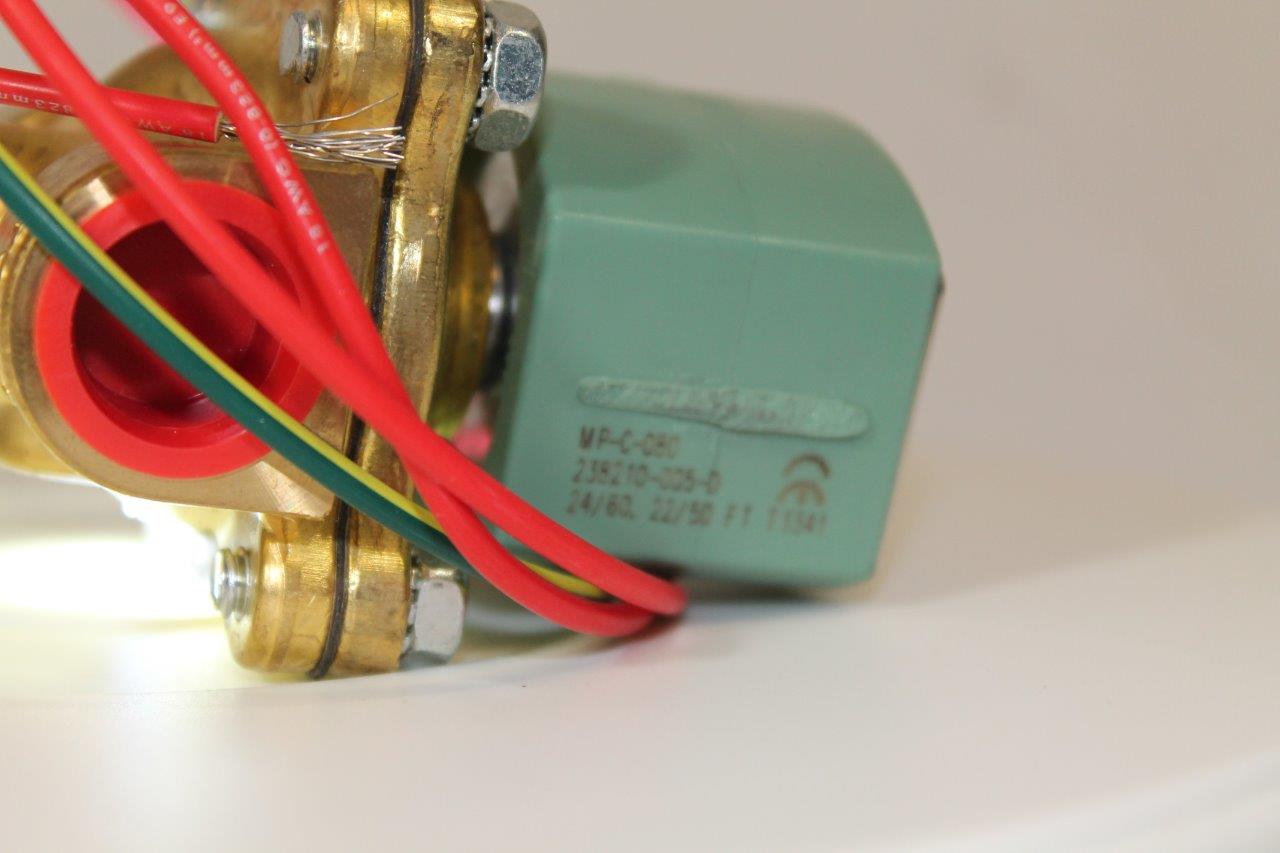

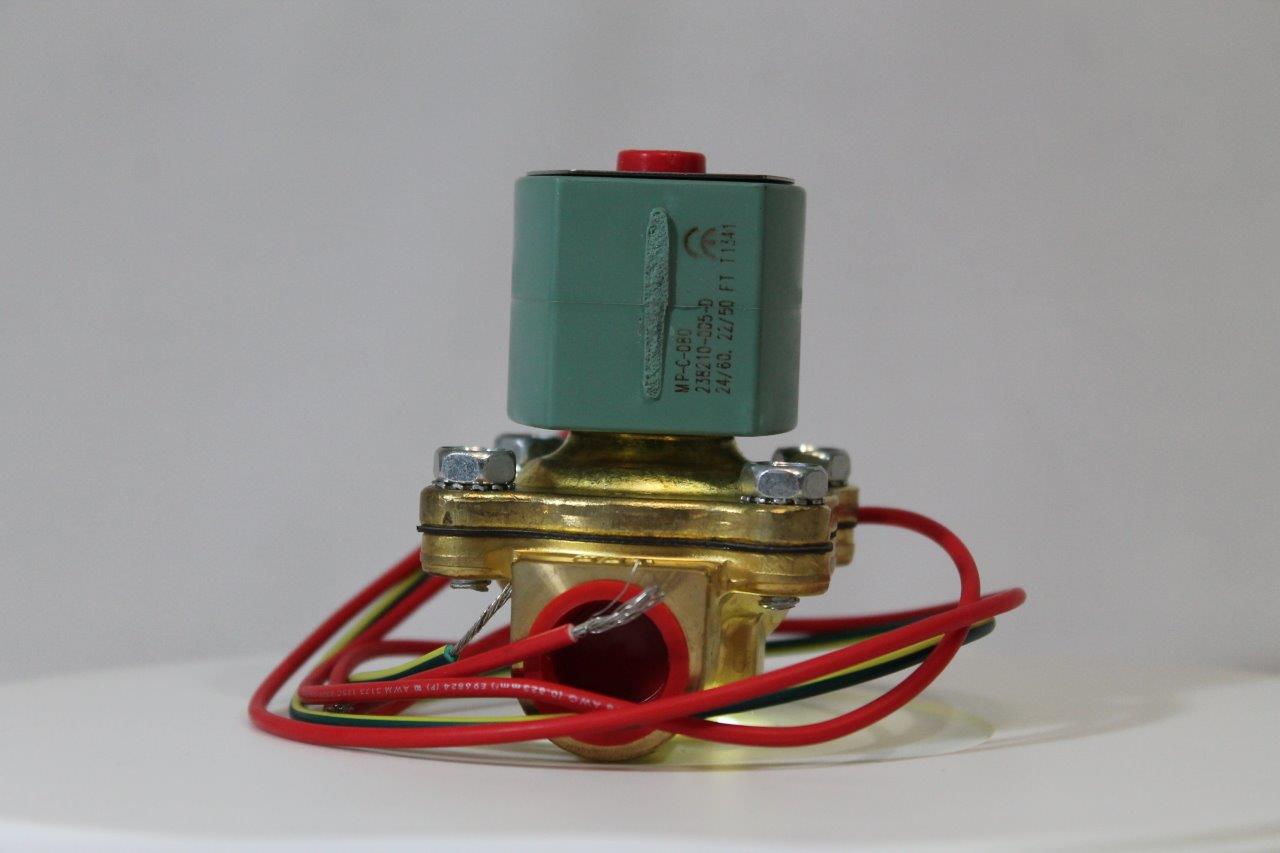

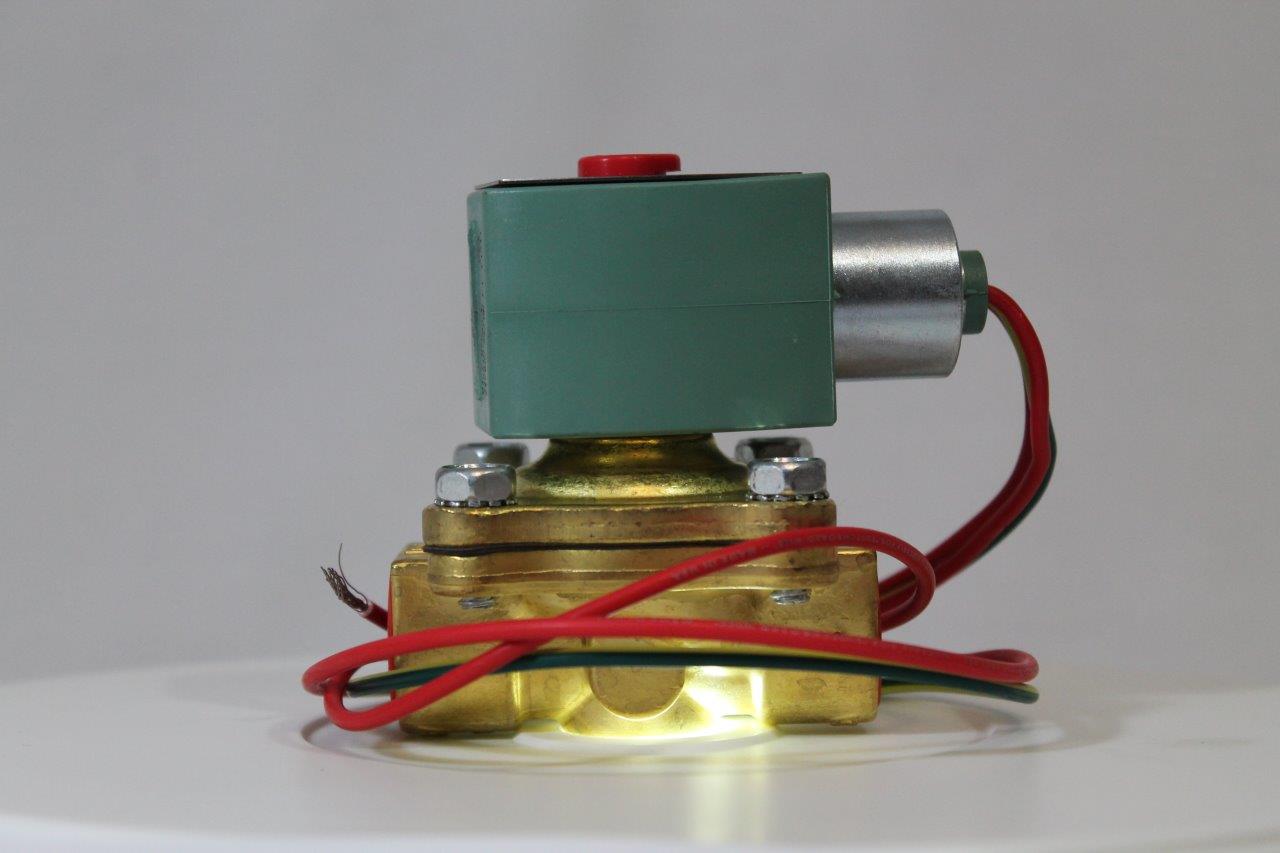

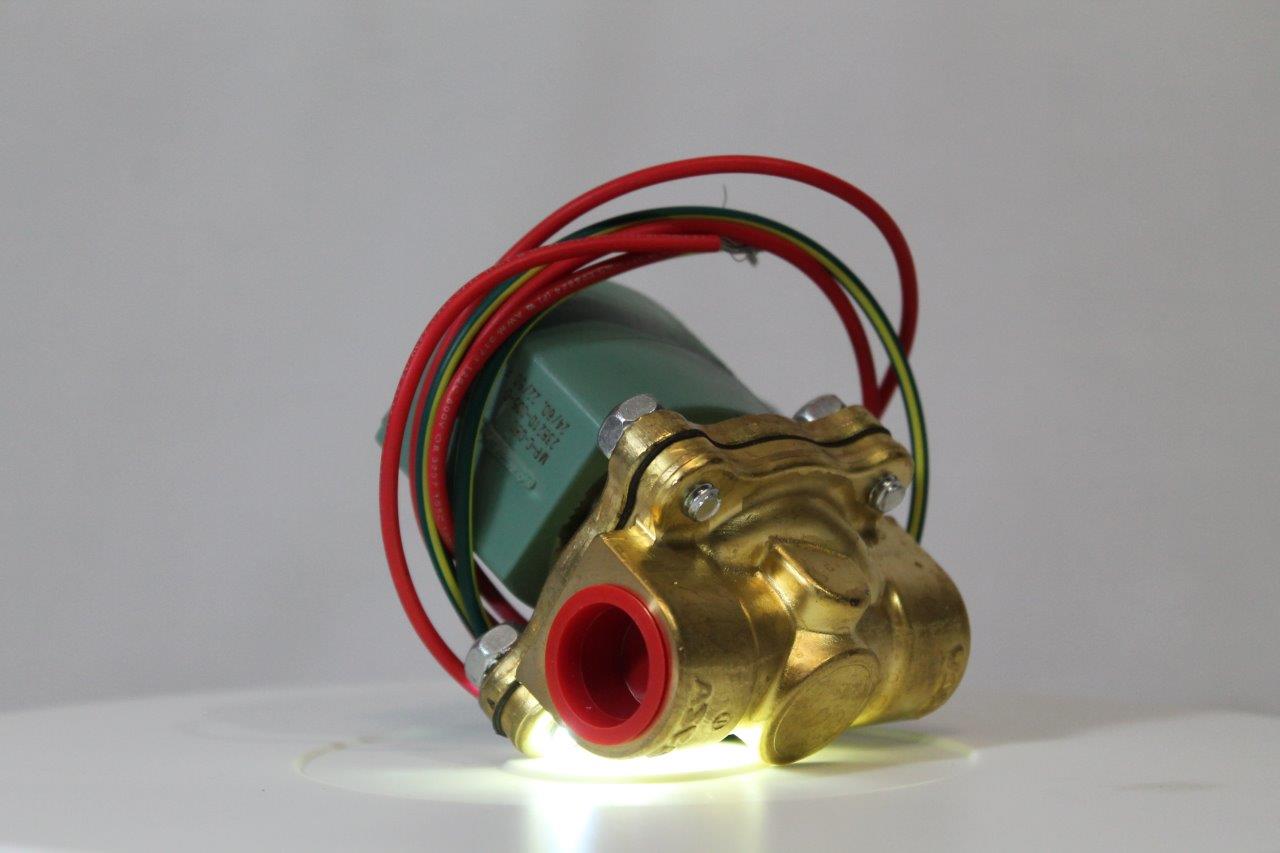

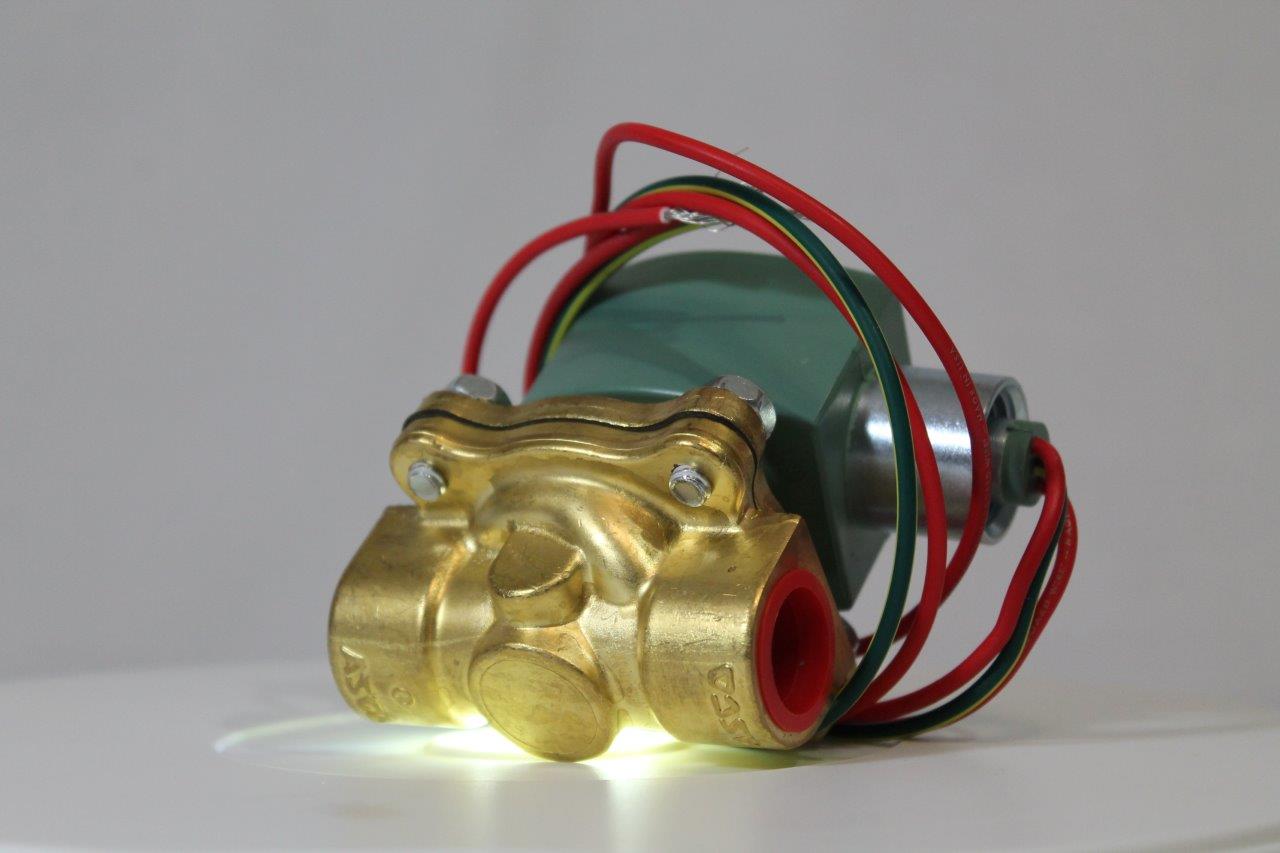

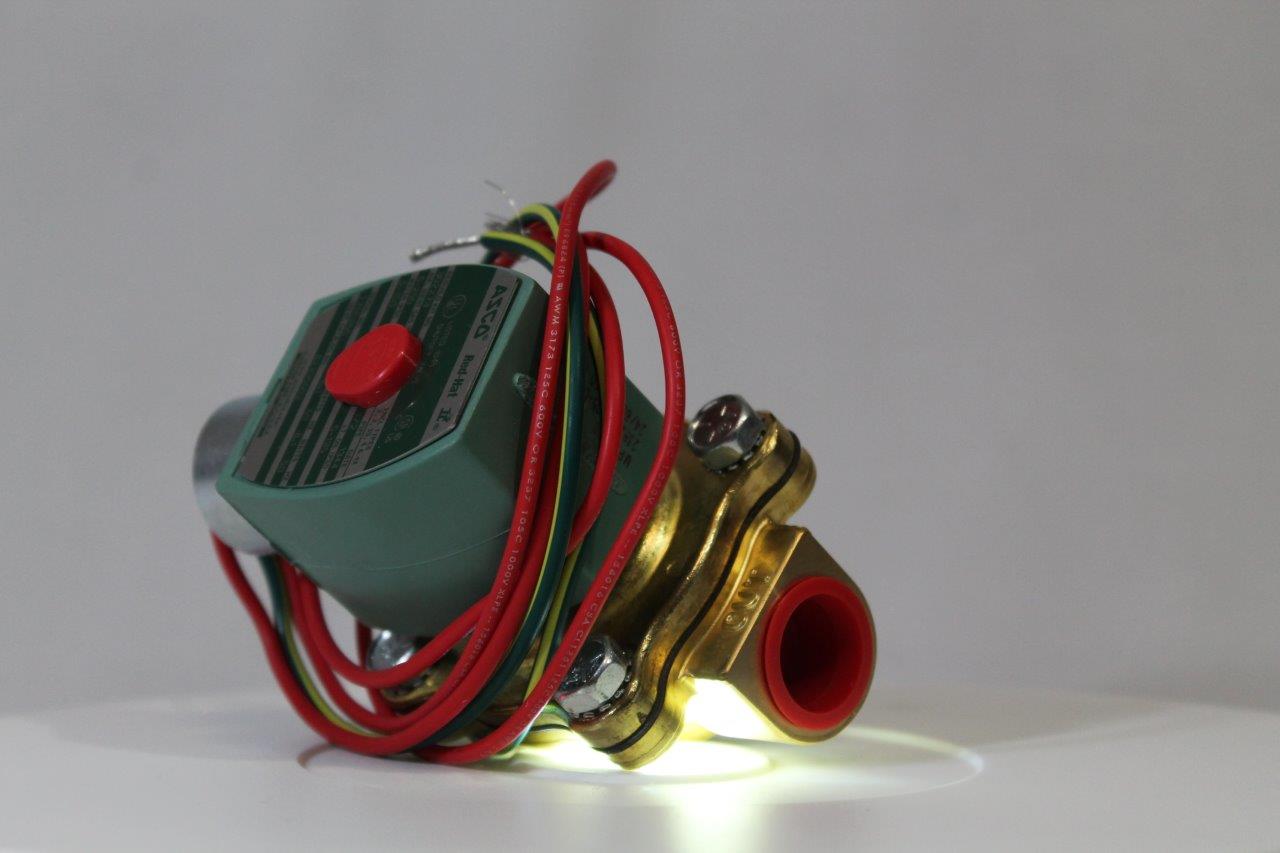

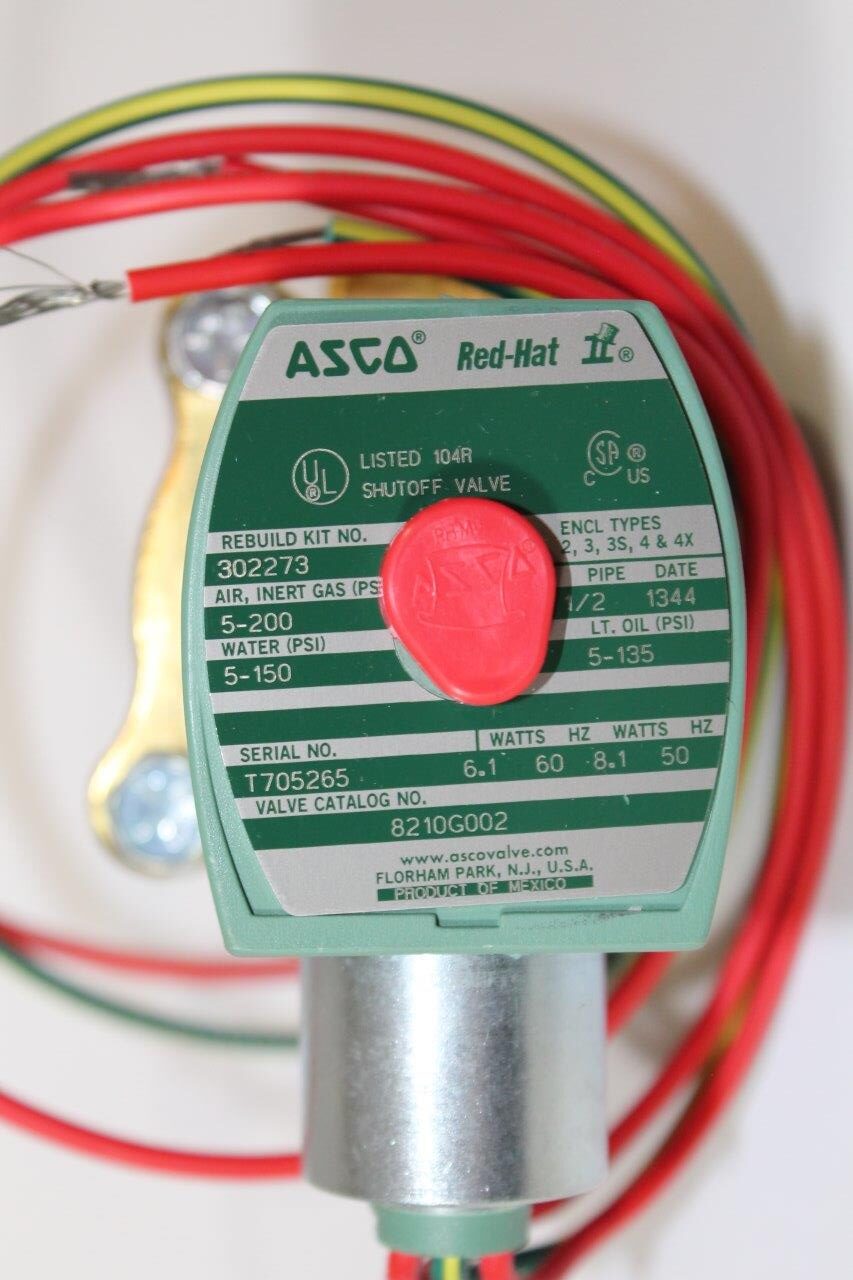

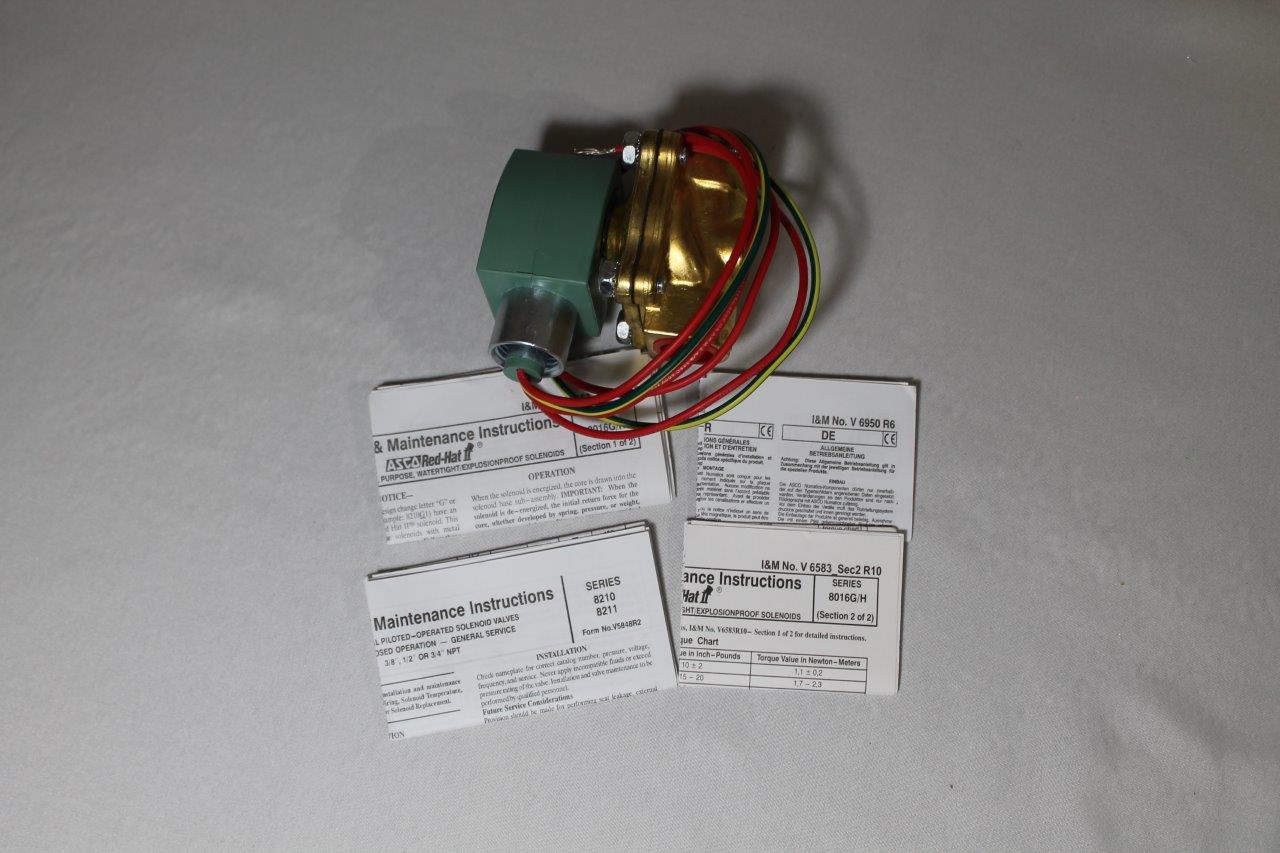

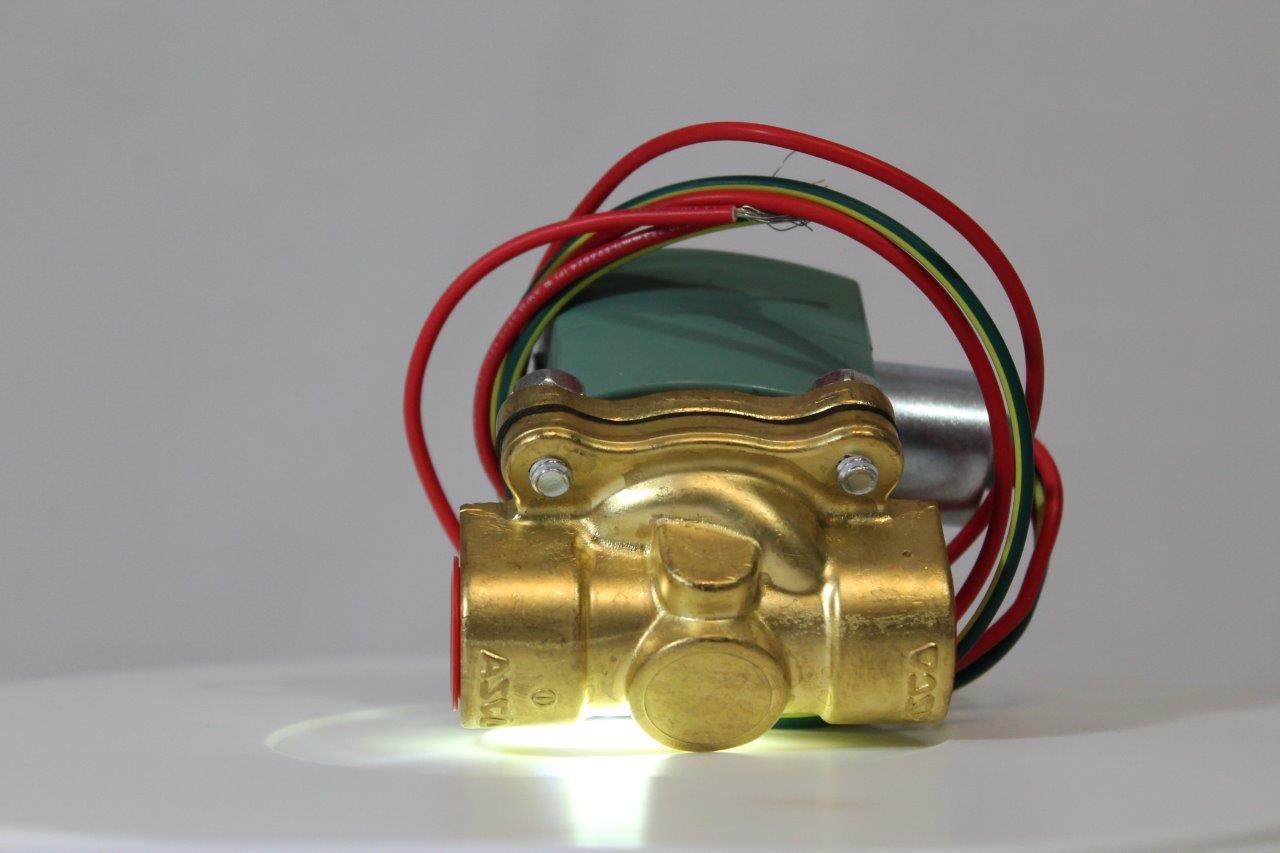

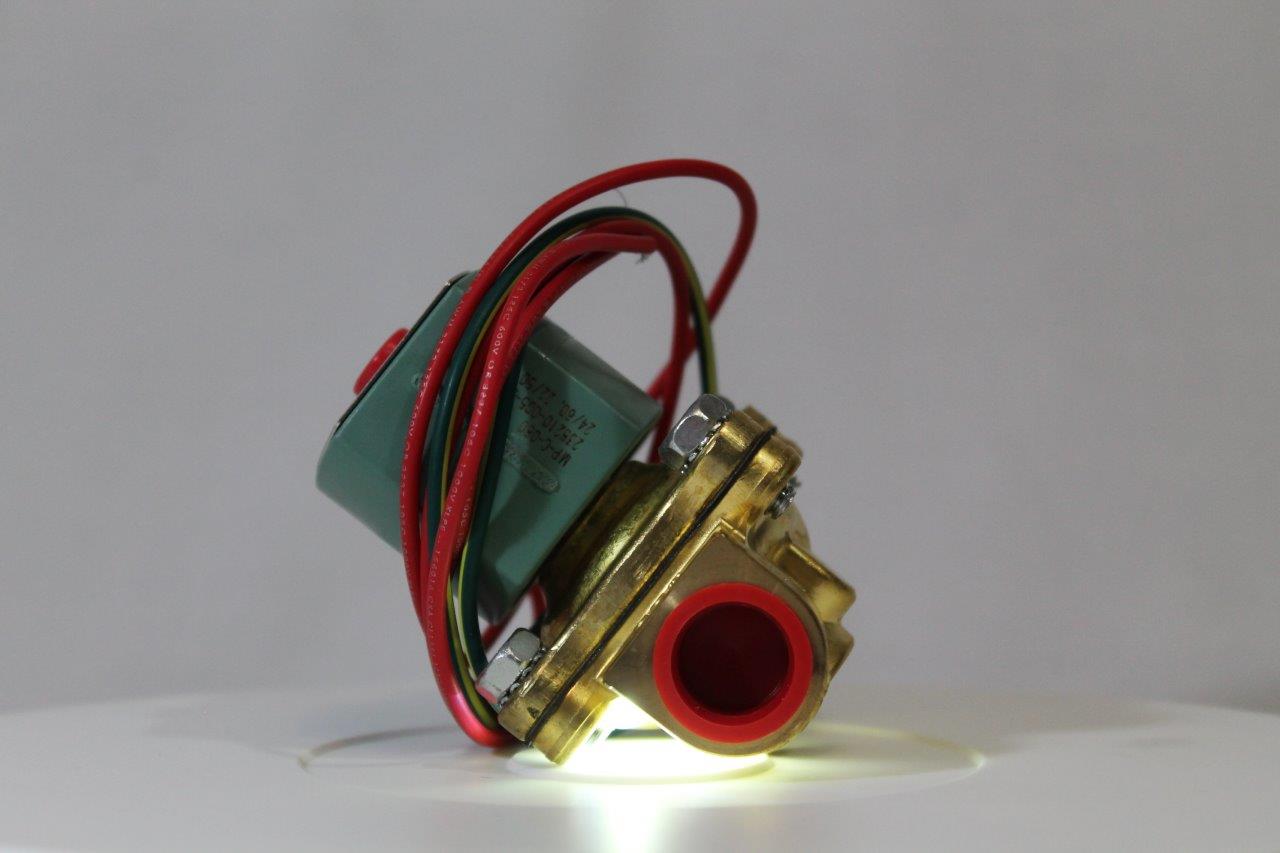

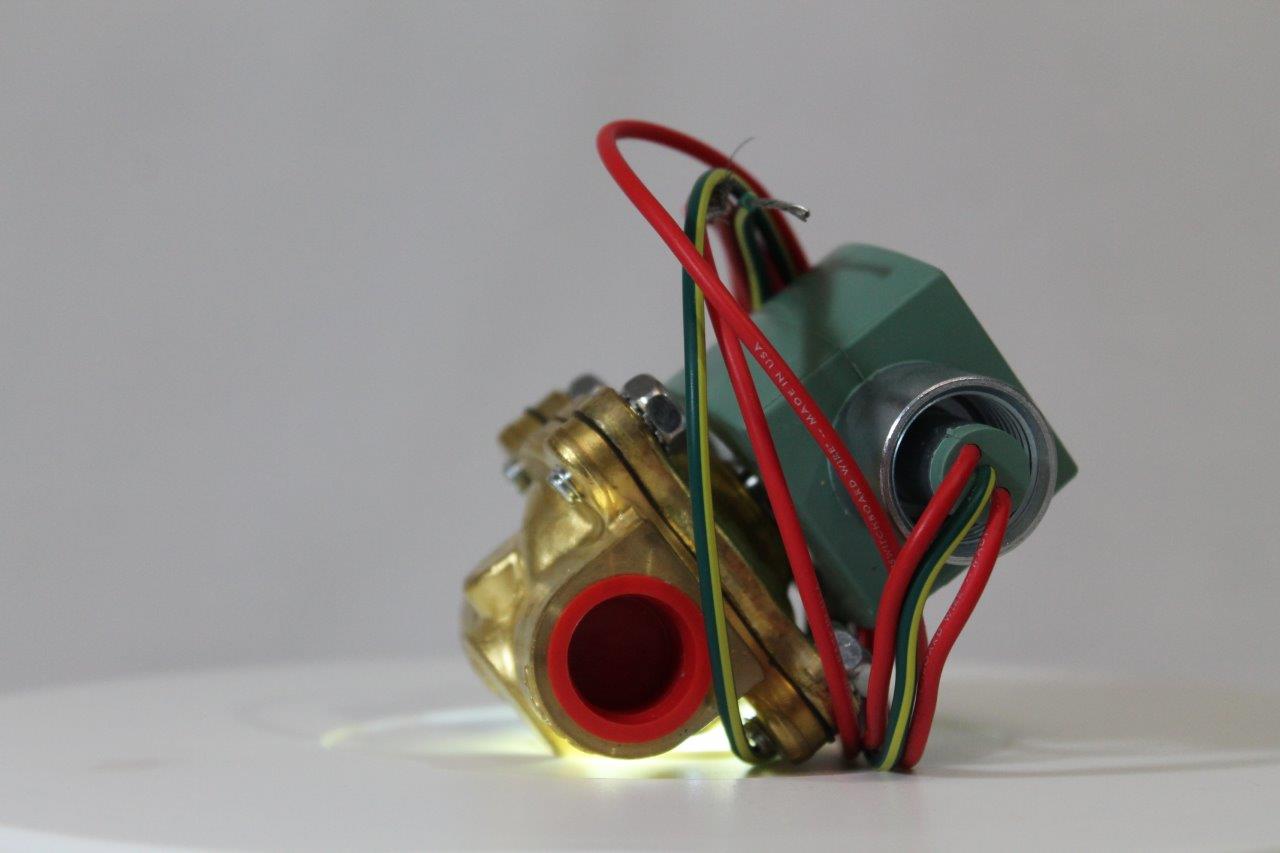

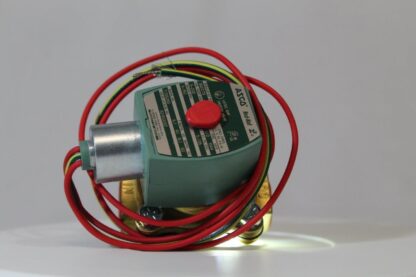

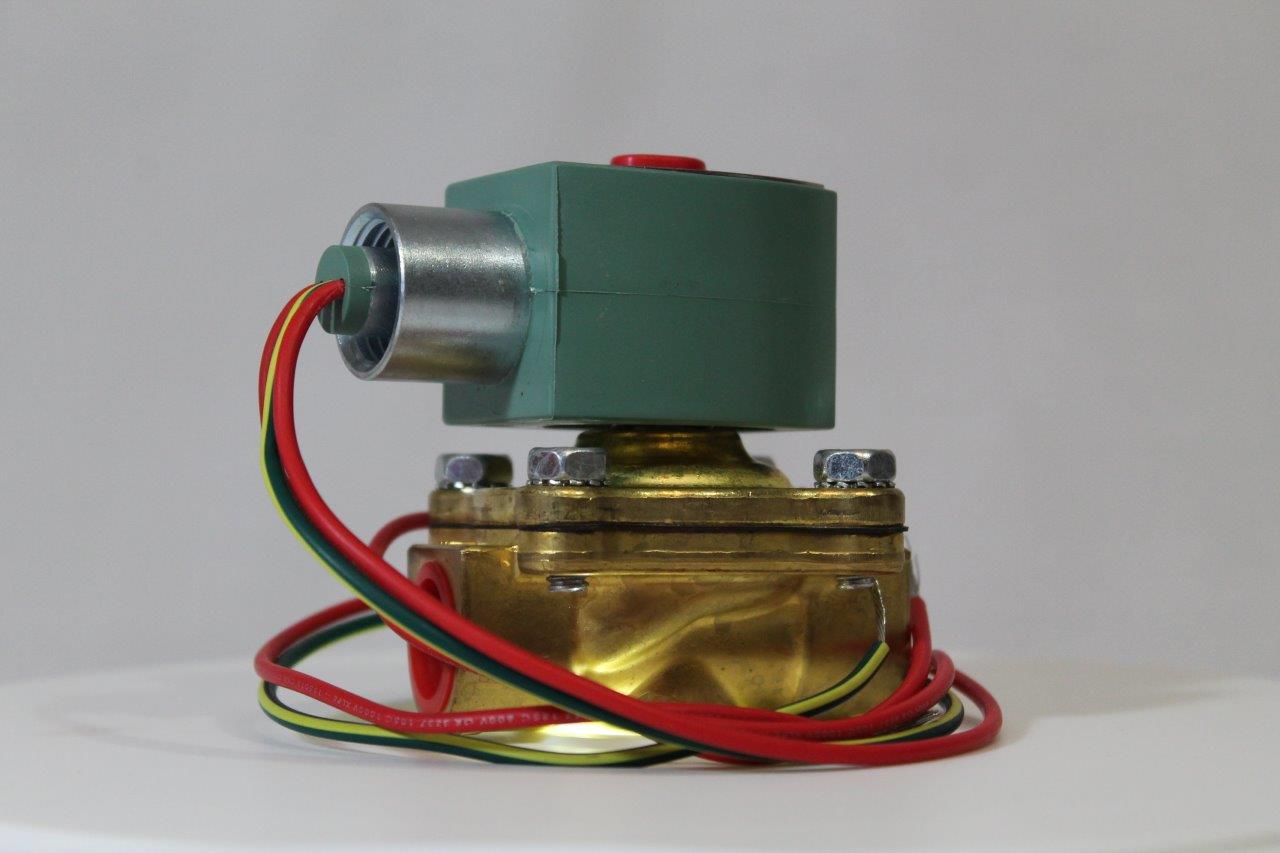

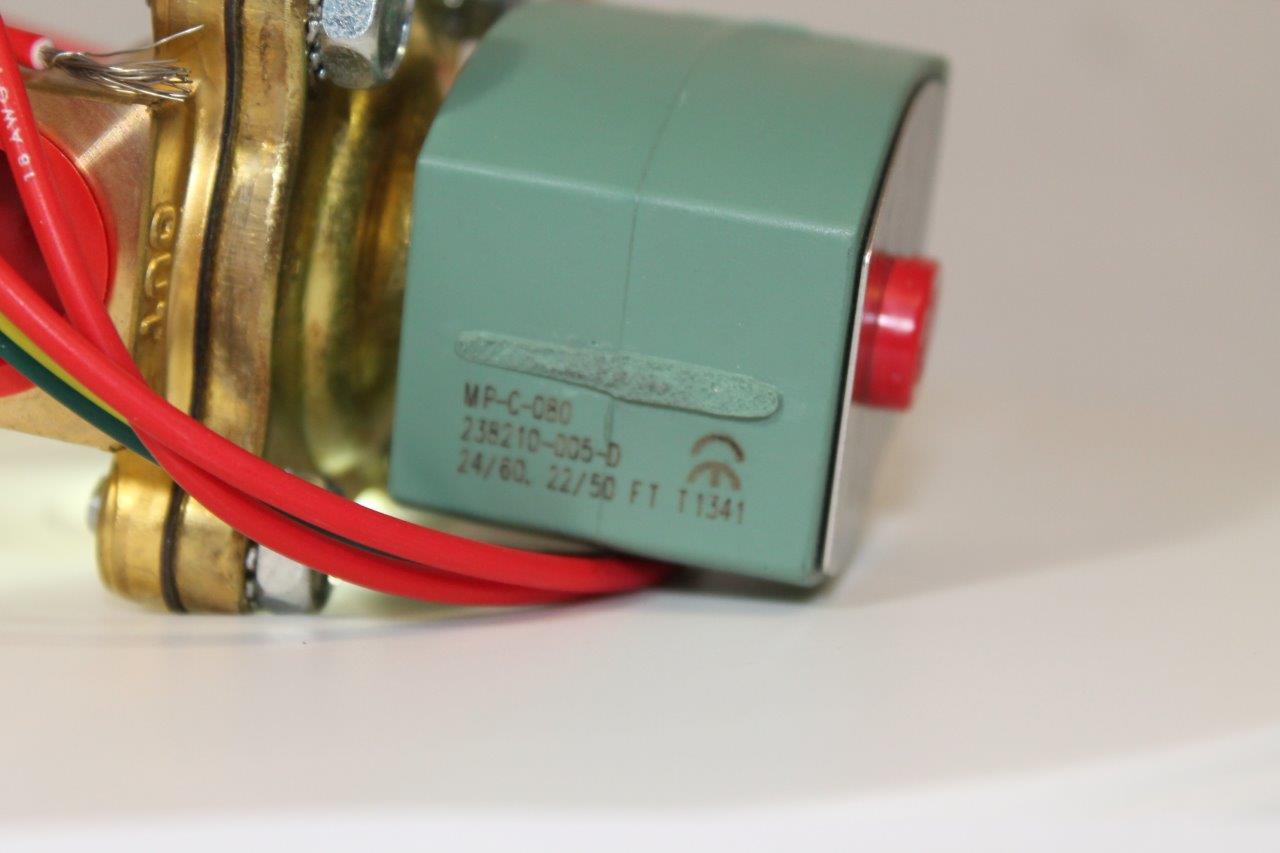

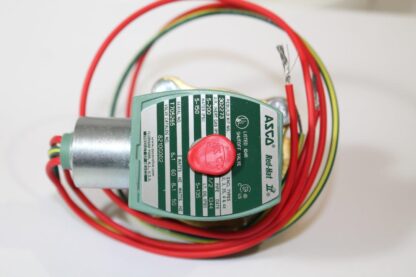

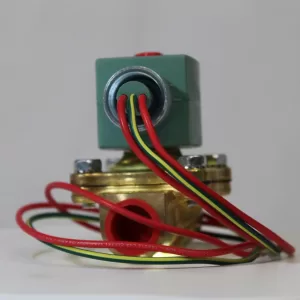

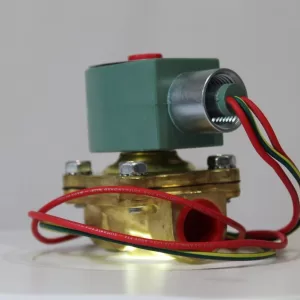

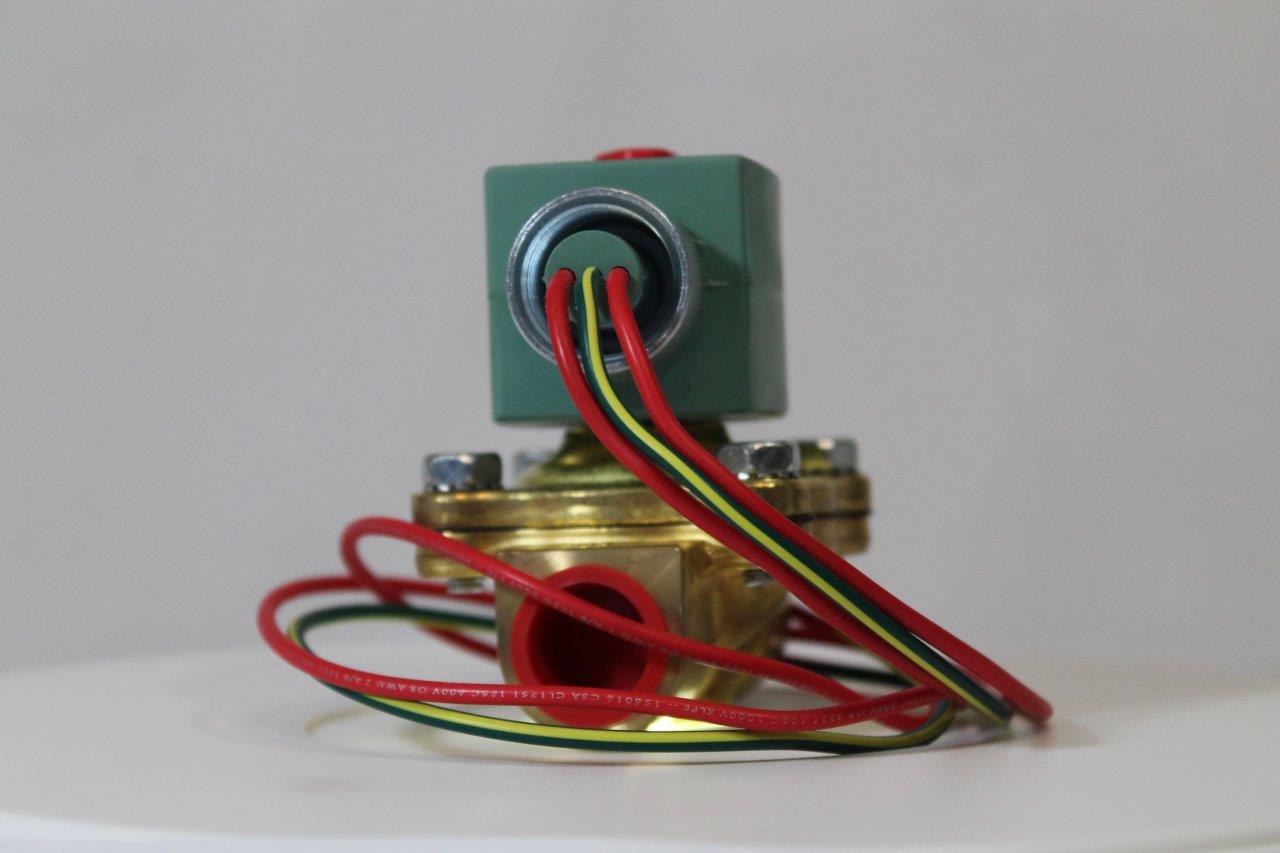

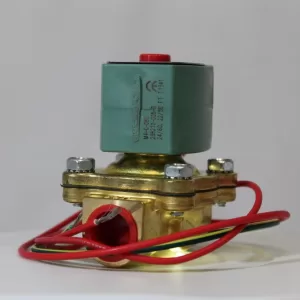

Asco T705265 Solenoid Valve 1/2 Pipe, 24V AC, 5 psi Min. 8210G002

Asco T705265 Solenoid Valve 1/2 Pipe, 24V AC, 5 psi Min. 8210G002

These solenoid valves feature a normally closed valve configuration. They are rated for indoor or outdoor work environments. Models are available for dispensing, collating, gas shutoff, vacuum holding, and tank draining. High-flow valves are ideal for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control. Explosionproof models are designed to contain internal explosions without causing an external hazard.
Specifications:
Valve Ways and Positions: 2-Way/2-Position
Valve Configuration: Normally Closed
Pipe Size – Valves: 1/2 in
Min. Operating Pressure Differential: 5 psi
Max. Operating Pressure Differential Air/Inert Gas: 200 psi
Max. Operating Pressure Differential Light Oil: 135 psi
Max. Operating Pressure Differential Water: 150 psi
Environmental Rating – Valves: Indoor, Outdoor
Voltage: 24V AC
Coefficient of Volume: 4
Body Material – Valves: Brass
Coil Insulation Class: F
Seal Material – Valves: NBR
Orifice Dia.: 5/8 in
NEMA Rating: 1; 2; 3; 3S; 4; 4X
IP Rating: 66
Max. Fluid Temp.: 180 °F
Hz: 60
Watts: 6.1 W
Coil Enclosure: Watertight No Junction Box
Electrical Connections: 1/2 in Conduit w/18 in Leads
Overall Length: 2-3/4 in
Overall Width: 2-5/16 in
Overall Height: 3-3/8 in
Center Line Pipe Center Size: 1-15/16 in
Application: Air Compressors; Car Wash; Industrial Water Control; Laundry Equipment; Pumps
Country of Origin: Mexico

The Asco T705265 Solenoid Valve 1/2 Pipe is a type of on/off valve that is commonly used in industrial and commercial applications. The main uses of this valve include controlling the flow of liquids, gases, and steam in various applications such as water treatment, HVAC systems, food and beverage processing, and chemical processing.

The main advantages of the Asco T705265 Solenoid Valve include:

• Reliability: The valve is made with high-quality materials and is designed for long-lasting performance, ensuring reliable operation even in demanding environments.
• Ease of use: The valve can be easily installed and operated, making it a user-friendly option for a variety of applications.
• Energy efficiency: The valve is designed to consume minimal power and is energy efficient, making it an economical option for a range of applications.
• Compatibility: The valve is compatible with a wide range of fluid types, making it a versatile option for various applications.
• Safety: The valve is designed to meet safety standards and provides reliable protection in a variety of applications.

The main features of the Asco T705265 Solenoid Valve include:

1. 1/2 inch pipe size
2. 24V AC voltage
3. 5 psi minimum operating pressure
4. 8210G002 model number
5. On/off valve operation
6. Durable construction
7. Easy installation and maintenance.
