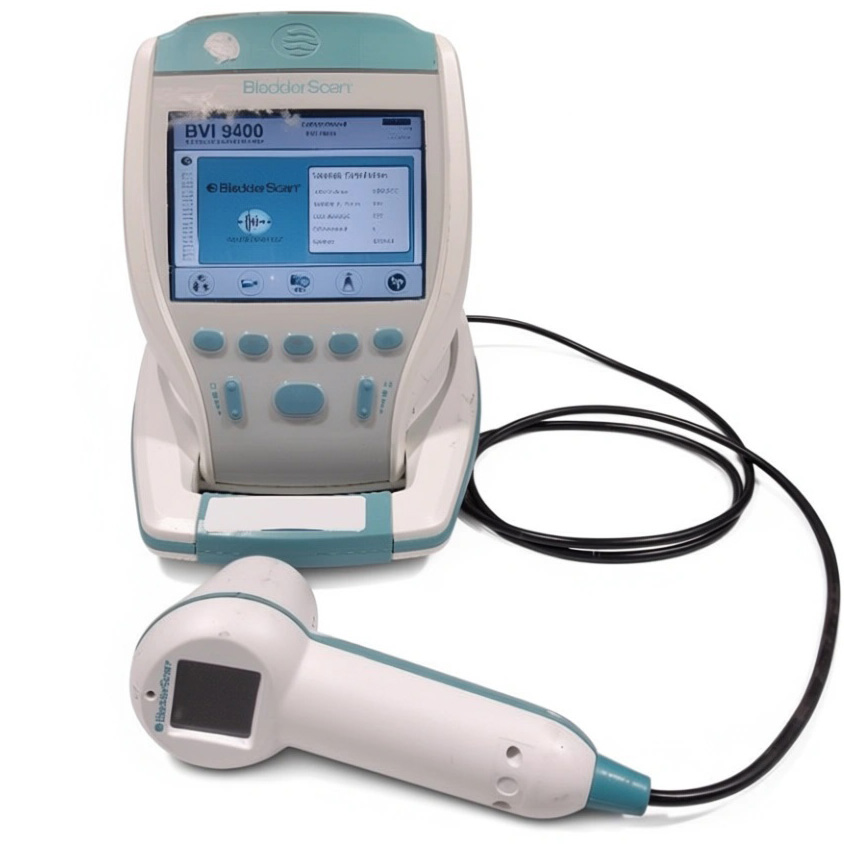

Verathon BladderScan® BVI 9400 Bladder Volume Instrument with Probe (P/N 0570-0190), NeuralHarmonics™ 3D Ultrasound, Non-Invasive Bladder Scanner — Portable Console + Hand Probe

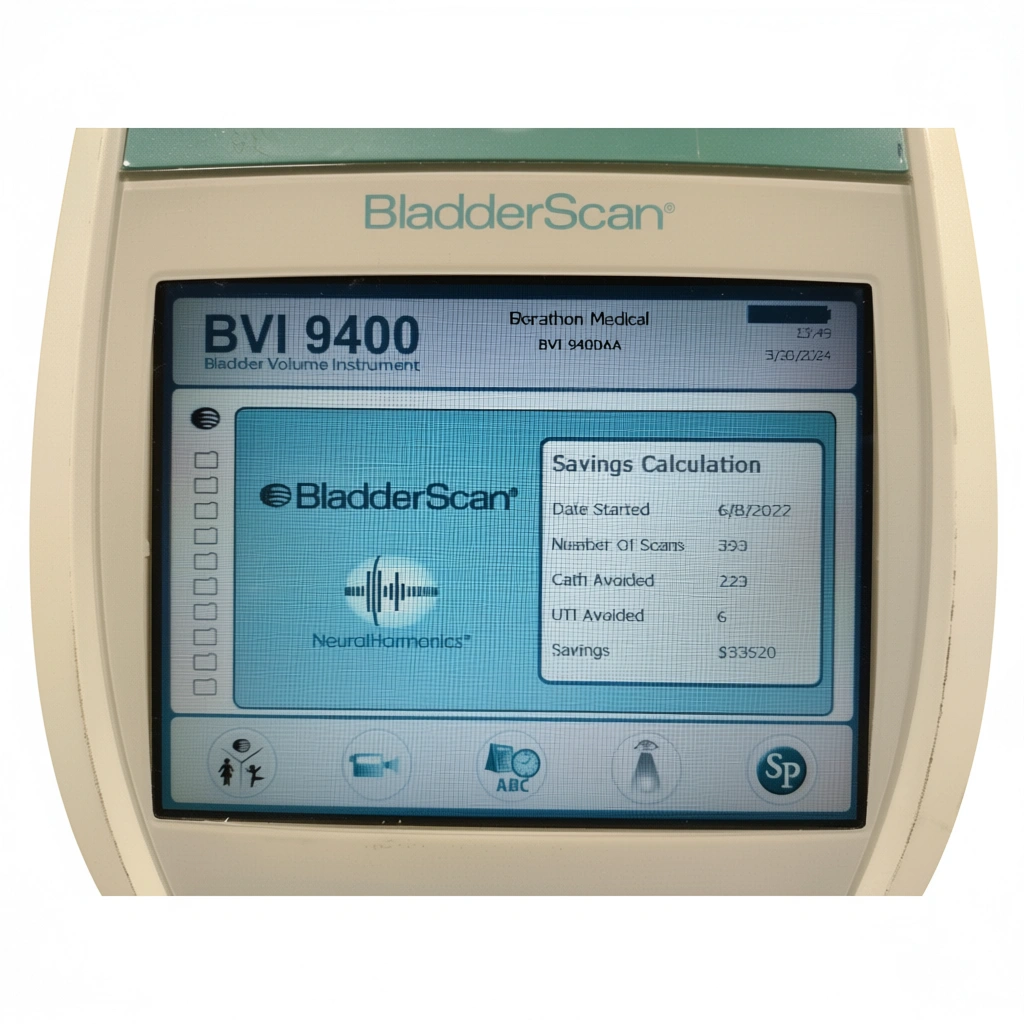

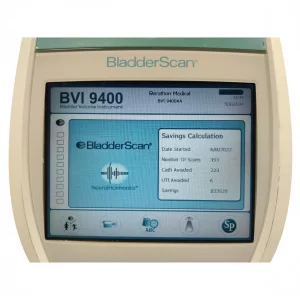

Condition: Used; pulled from a clinical environment. Powers on and displays BladderScan® interface (see photos). Includes BVI 9400 console, ultrasound probe with on-probe aiming display. Consumables and accessories not shown (e.g., gel, printer, power supply/cord, manuals) are not included.

The BVI 9400 is a portable, non-invasive bladder volume scanner used to quickly estimate bladder volume and post-void residuals at the bedside. Verathon’s NeuralHarmonics™ processing forms a 3D image set from multiple ultrasound slices, helping clinicians reduce unnecessary catheterizations and monitor urinary retention. The ergonomic hand probe has a mini display with aiming arrows to guide positioning; results are shown on the console’s color screen and can be stored or printed (printer not included).

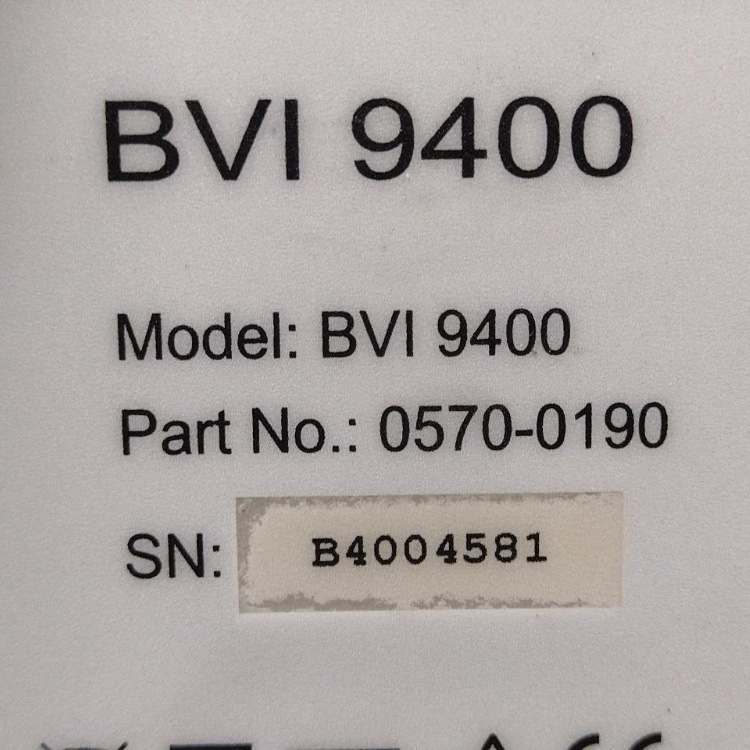

IDs on unit: Model BVI 9400 · Part No. 0570-0190 · SN (pictured): B4004581.

Features

• NeuralHarmonics™ 3D ultrasound algorithm for rapid, non-invasive bladder volume estimation.

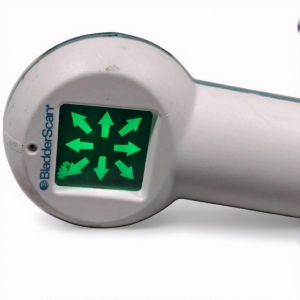

• Hand probe with on-probe direction arrows for fast alignment over the bladder.
• Color touch display with intuitive workflow (adult/peds modes, scan review).

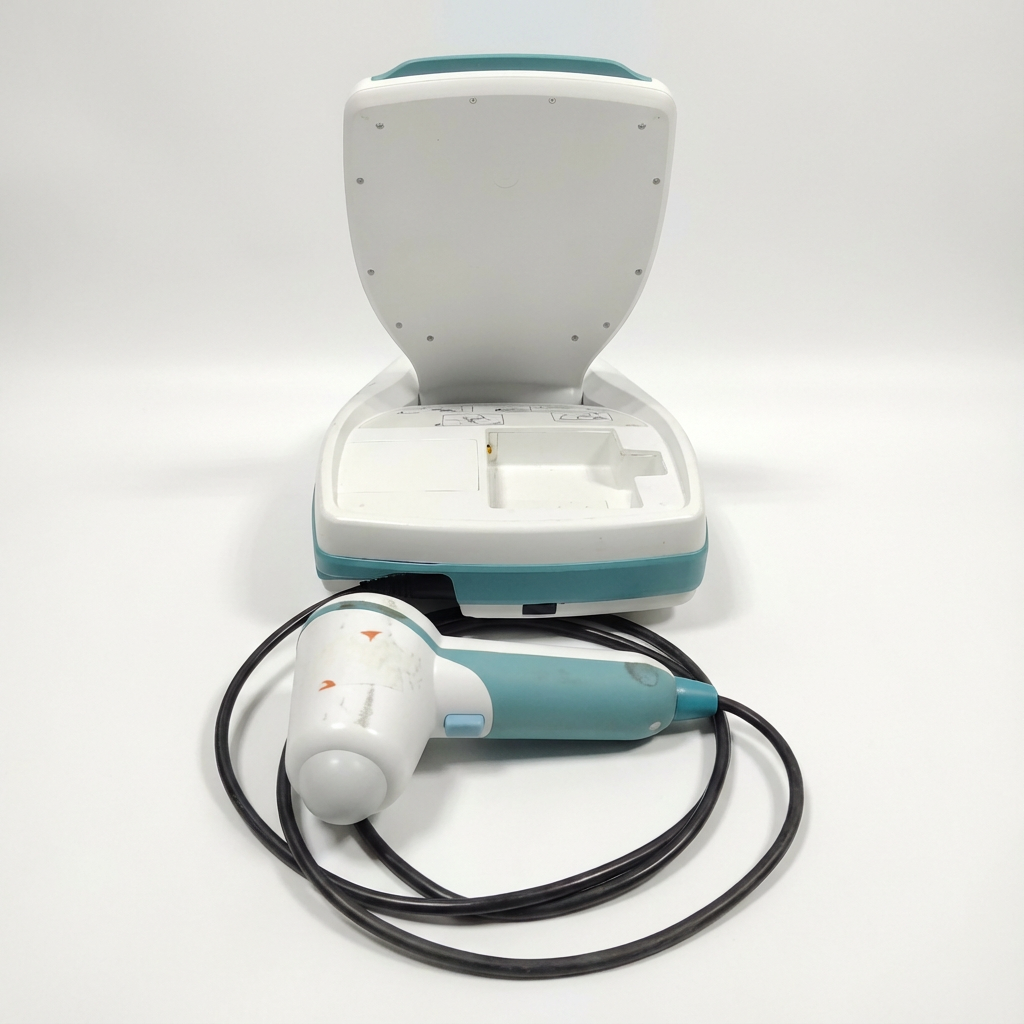

• Portable console; probe holster built into the dock.
• Data options (by configuration): save scans, basic reporting; compatible with optional accessories (e.g., thermal printer—not included).
• Hygienic workflow: use standard ultrasound gel; wipeable housing surfaces.

What’s Included

• Verathon BVI 9400 console (P/N 0570-0190)
• Ultrasound probe with integrated aiming display
• (Only items shown in photos are included; no printer, no extra cables, no gel, no accessories.)

Approximate Dimensions & Weight (for listing/shipping)

• Console on dock: ~11 in H × 8.5 in W × 9.5 in D (28 × 22 × 24 cm)
• Probe cable length: ~6 ft (1.8 m)
• Total system weight (console + dock + probe): ~7–8 lb (3.2–3.6 kg)
  (Measurements taken by hand—allow minor variance.)

Applications / Spheres of Use

• Acute care & med-surg: assess urinary retention and post-void residual (PVR).
• Urology, rehab, long-term care: reduce unnecessary catheterizations and monitor voiding.
• ED & perioperative: rapid triage for bladder distension or retention.

Cross-Referenced / Compatible Models

• Verathon BVI 6100 / 6300 / 6400 / 9000 series (earlier gens)
• Verathon BVI 9500 / Prime / Prime Plus (newer gens)
  (This listing is specifically the BVI 9400; supplies/accessories may differ across generations.)

Comparable Products

• Portable bladder scanners from Vitacon, Caresono, MDPro, and other vendors (feature sets vary; probe style and accessories may differ).

In Larger Systems / How It’s Used (plain language)

Apply ultrasound gel above the symphysis pubis, place the probe with arrows centered using the on-probe aiming display, and press scan. The system acquires multiple slices, calculates bladder volume, and shows results on the screen. Clinicians use the reading to decide whether to catheterize, re-scan after voiding, or continue monitoring.

Trademarks

Verathon® and BladderScan® are trademarks or registered trademarks of Verathon Inc. NeuralHarmonics™ is a Verathon technology name. All other marks belong to their respective owners and are used strictly for identification.

Related

verathon bvi 9400 bladder scanner; bladder volume instrument 0570-0190; handheld ultrasound bladder scan; non invasive pvr measurement; portable bladder ultrasound with probe; device to estimate bladder volume; neuralharmonics 3d scanner; bedside bladder scan system; used bladder scanner with dock; bvi probe with aiming display

Common Requests:

1. “Does this include the AC adapter/printer or just console, probe, and dock?”
2. “Can you provide a battery condition or runtime screenshot?”
3. “What software options (adult/pediatric modes, storage) are enabled on this unit?”
4. “Any service or calibration recently performed?”
5. “Do you have extra probes, gel holsters, or a printer for this model?”
