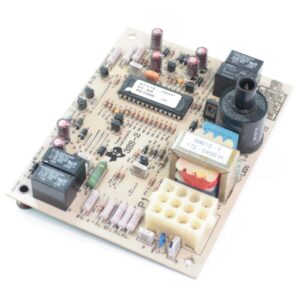

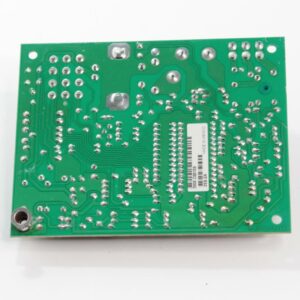

Texas Instruments Trane X13650877-02 Furnace Ignition Control Board


1 in stock


Texas Instruments Trane X13650877-02 Furnace Ignition Control Board

Condition: Used, pulled from working environment.
30 Day Refund Only. No other warranty expressed or implied.

Texas Instruments Trane X13650877-02 Furnace Ignition Control Board

Brand: Texas Instruments
Type: Control Board
Power Source: Corded Electric
Material: Fiberboard
Type: Furnace Control Board
Voltage: 24 V
Power Phase: 1 Phase
Model: X13650877-02
Made in Mexico

The Texas Instruments Trane X13650877-02 Furnace Ignition Control Board is a crucial component in HVAC systems, specifically designed for Trane furnaces. This control board is responsible for managing the sequence of operations during the ignition process, ensuring safe and efficient furnace operation. Below is a detailed breakdown of its specifications, uses, pros and cons, and applications.

Product Specifications:

  • Manufacturer: Texas Instruments (specifically for Trane HVAC systems)
  • Model Number: X13650877-02
  • Compatibility: Designed for specific Trane furnace models; it’s essential to check compatibility with your furnace model.
  • Function: Controls the ignition sequence and monitors safety circuits within the furnace.


  • Ignition Control: Manages the furnace’s ignition process to ensure reliable start-up.
  • Safety Monitoring: Continuously checks various safety circuits to prevent potential hazards.
  • System Integration: Works cohesively with other furnace components for optimized performance.


  • Reliability: Texas Instruments is known for producing high-quality electronic components, enhancing the reliability of this control board.
  • Safety Features: Advanced monitoring of safety circuits reduces the risk of furnace malfunctions.
  • Ease of Installation: Designed for compatibility with Trane systems, ensuring a straightforward installation process.


  • Compatibility Limitation: Only compatible with certain Trane furnace models, which may limit its applicability.
  • Cost: As a specialized component, it may be more expensive than generic control boards.


This ignition control board is primarily used in residential and commercial HVAC systems where Trane furnaces are installed. Its advanced control features ensure efficient and safe operation in various environments, from homes to larger commercial buildings.

Related Items:

  • Furnace filters
  • Thermostats
  • HVAC circuit boards
  • Ignition modules
  • Safety switches


Texas Instruments and Trane are registered trademarks of their respective owners. The mention of their names is for descriptive purposes only and does not imply any affiliation with or endorsement by them.


Weight 0.7 lbs
Dimensions 6 × 5 × 3 in
