Terminator Resistor 209541B Honeywell

Terminator Resistor 209541B Honeywell

Condition: New.

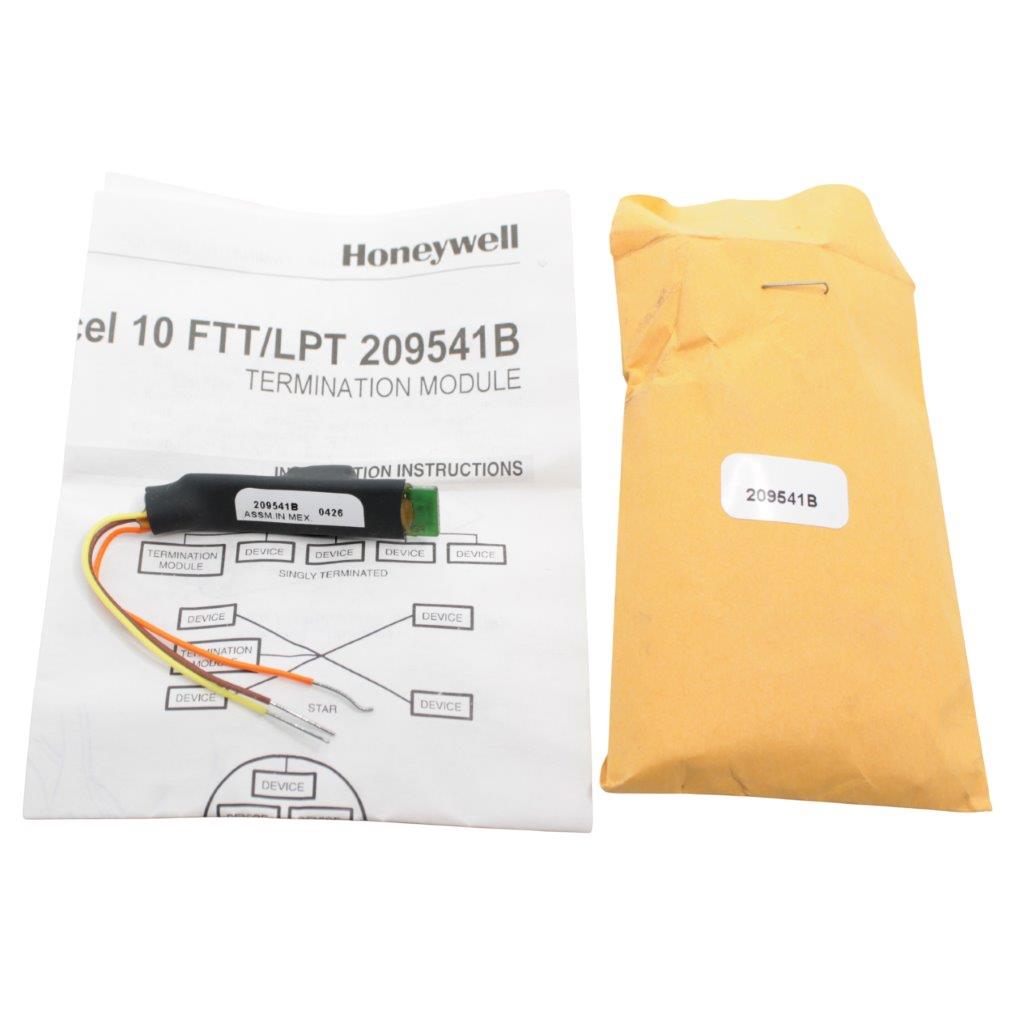

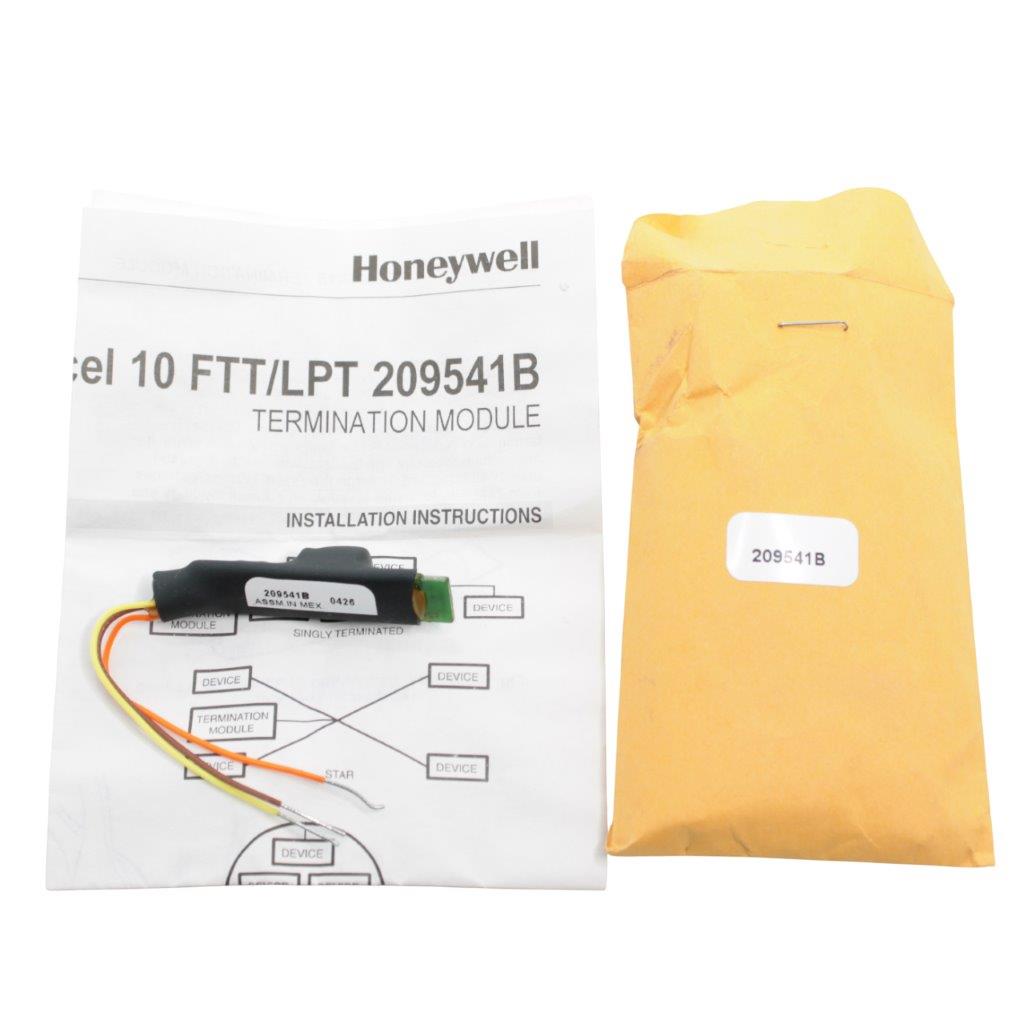

The Honeywell 209541B/B is a termination module designed for use in Free Topology Transceiver (FTT) and Linked Power Transceiver (LPT) networks, particularly within Honeywell’s Excel 10™ Building Management System (BMS). Proper network termination is essential for maintaining signal integrity and ensuring reliable communication across the E-Bus network. This module provides a straightforward solution for terminating various network topologies, thereby enhancing overall system performance.

Features
Versatile Topology Support: Compatible with T-tap, star, loop, mixed, and daisy-chain network configurations.
Termination Requirements:
Single module required for T-tap, star, loop, or mixed topologies.
Two modules required for daisy-chain topologies.
Flexible Installation: Can be installed at controller nodes, wall modules, or wiring junctions.

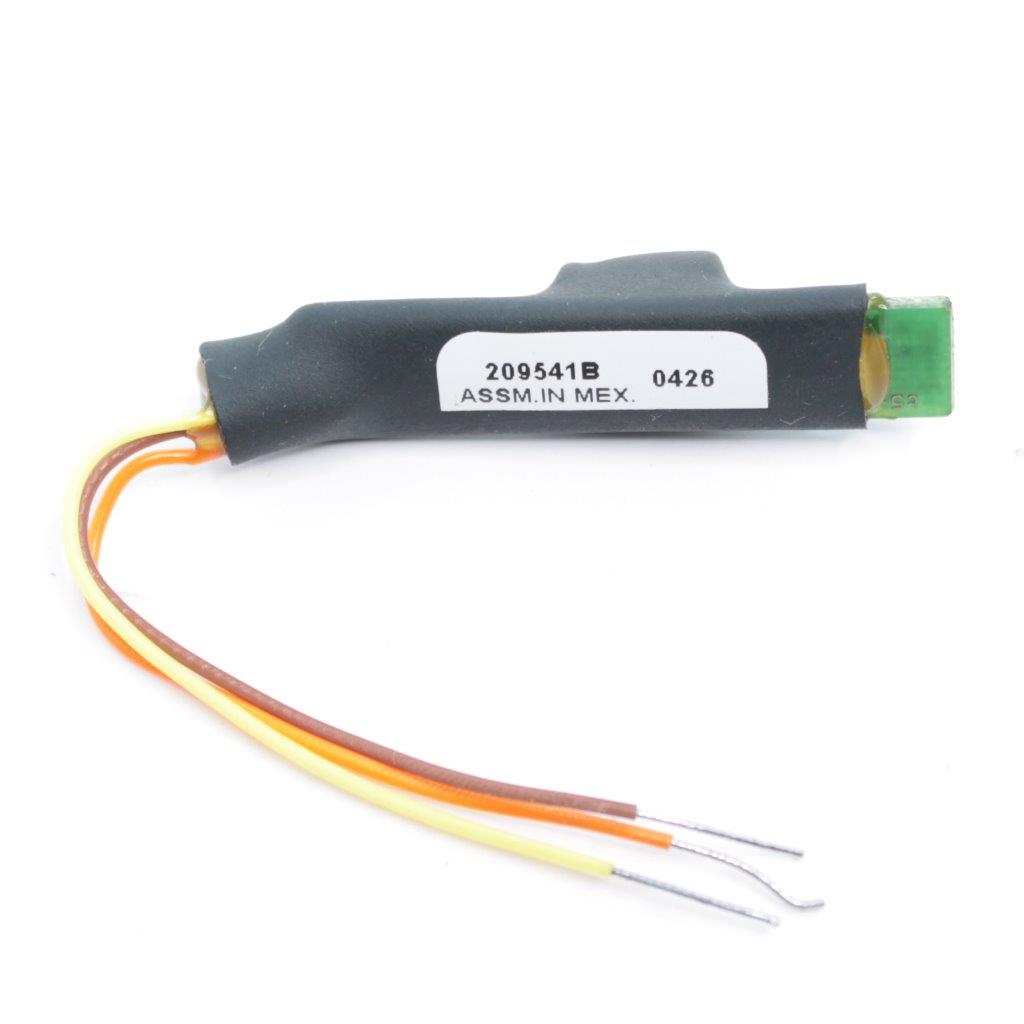

Simple Wiring: Features three lead wires (brown, yellow, and orange) for easy connection; only two are used depending on the termination type.
Polarity Insensitive: E-Bus connections do not require polarity matching, simplifying installation.
Compact Design: Small form factor allows for installation in various locations without requiring additional space.

Applications
Building Automation Systems: Ensures reliable communication in Honeywell Excel 10™ BMS networks.
HVAC Control Systems: Maintains signal integrity in heating, ventilation, and air conditioning networks.
Industrial Automation: Supports robust data transmission in industrial control systems utilizing FTT/LPT networks.
Energy Management Systems: Facilitates accurate data exchange in systems monitoring and controlling energy usage.

Cross-Referenced Models
Honeywell Q7740A/B FTT Repeater: Includes onboard termination; can be used in place of the 209541B/B in certain configurations.
Honeywell W7762B1027 Excel 10 Hydronic Controller: Compatible controller requiring proper network termination.
Honeywell W7763C1016 Excel 10 Hydronic Controller: Another compatible controller within the Excel 10™ family.
Honeywell W7751H2025 Excel 10 Smart VAV Controller: Utilizes FTT/LPT networks; requires termination for optimal performance.

Comparable Products
Johnson Controls FTT-10A Termination Module: Designed for use in LONWORKS networks; provides similar termination functionality.
Schneider Electric TAC Vista FTT-10 Termination Module: Offers termination solutions for FTT networks within Schneider Electric systems.
Echelon 44100R-001 Termination Module: Suitable for terminating FTT-10 networks in various applications.

Installation Guidelines
Determine Network Topology: Identify whether the network is T-tap, star, loop, mixed, or daisy-chain.
Select Termination Points: Install the module at appropriate locations based on the network configuration.
Connect Wires:
For single termination (T-tap, star, loop, mixed):
Connect brown and yellow wires to the E-Bus.
For double termination (daisy-chain):
Connect brown and orange wires to the E-Bus.
Cap the unused wire with a wire nut to prevent grounding issues.
Verify Connections: Ensure all connections are secure and that the module is properly integrated into the network.

Related
Honeywell 209541B/B terminator module
Excel 10 network termination device
FTT/LPT network termination
E-Bus network terminator
Honeywell building automation accessories
HVAC network communication modules
Free topology transceiver terminator
Linked power transceiver termination module
Honeywell Excel 10 BMS components
Network topology termination solutions

Common Requests:
-What is the purpose of the Honeywell 209541B/B terminator module?
It ensures proper termination in FTT/LPT networks, maintaining signal integrity and reliable communication within Honeywell Excel 10™ systems.
-How many terminator modules are needed for different network topologies?
One module is required for T-tap, star, loop, or mixed topologies; two modules are needed for daisy-chain configurations.
-Can the 209541B/B be used with other Honeywell controllers?
Yes, it is compatible with various Honeywell controllers that utilize FTT/LPT networks, such as the W7762B1027 and W7751H2025.
-Is the module polarity-sensitive during installation?
No, E-Bus connections are polarity-insensitive, simplifying the installation process.
-Are there onboard terminators in some devices that can replace the 209541B/B?
Yes, certain devices like the Honeywell Q7740A/B FTT Repeater have onboard terminators that can be used instead of the 209541B/B in specific configurations.
