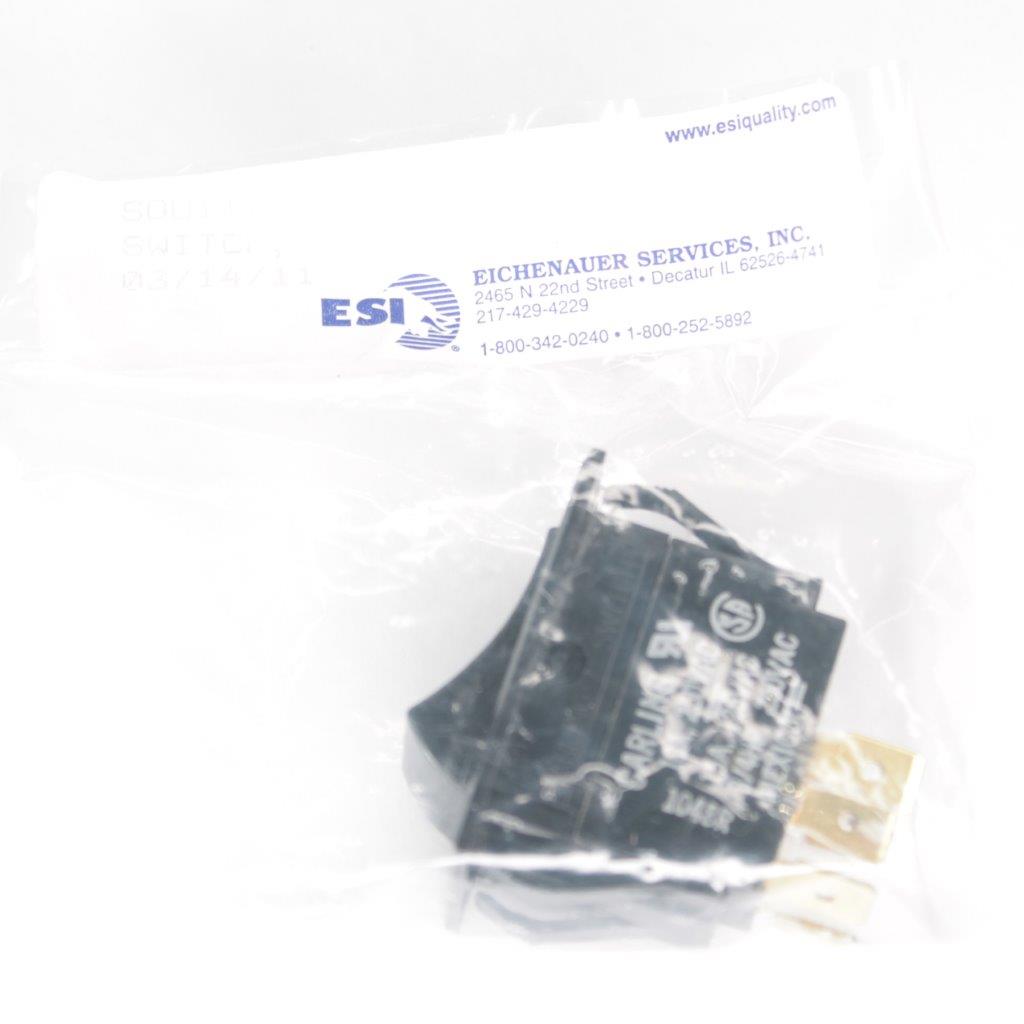

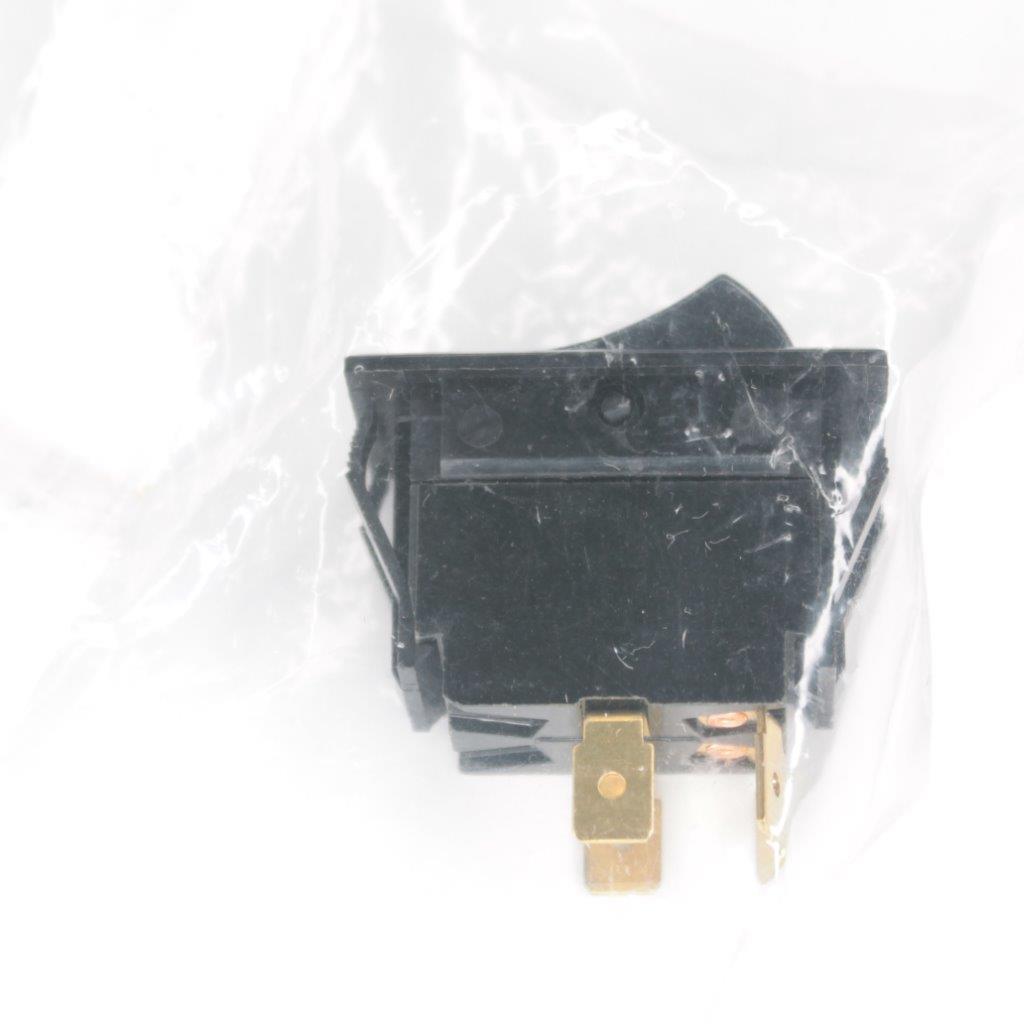

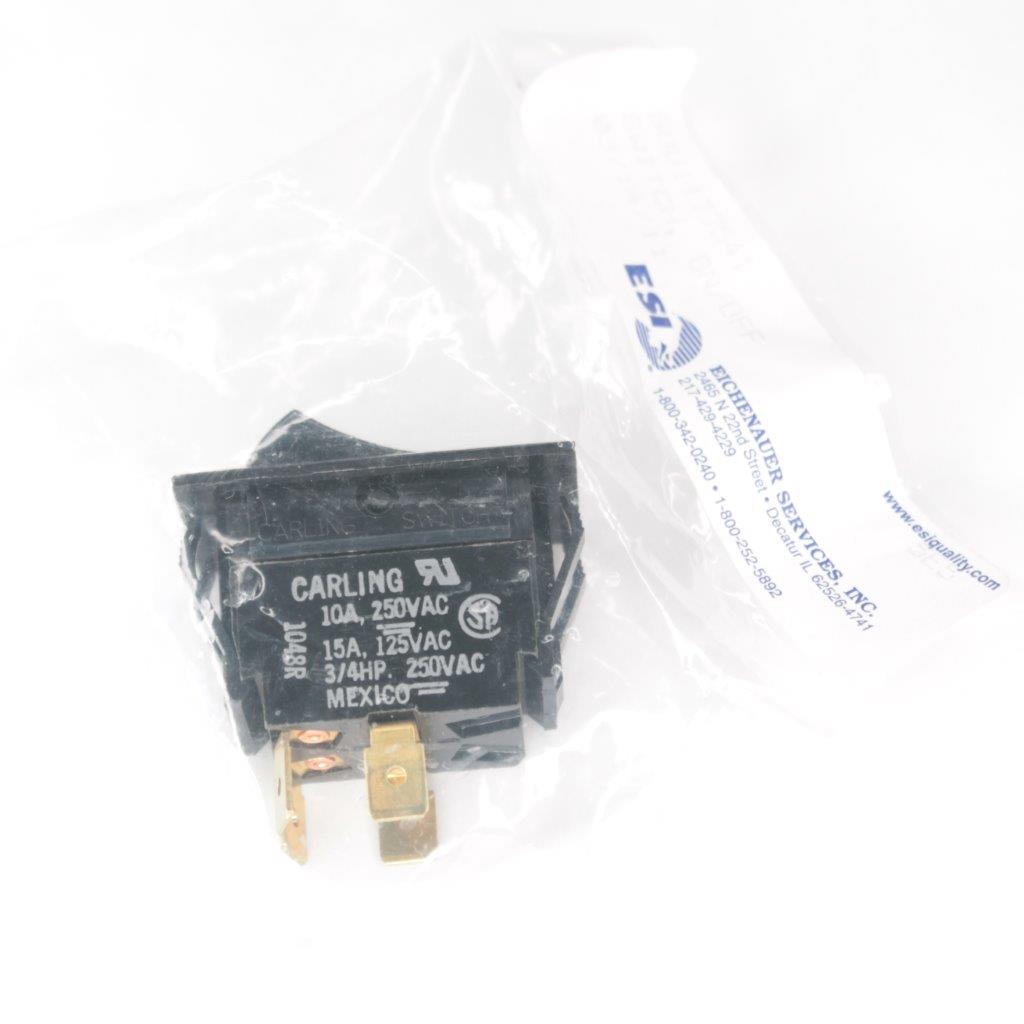

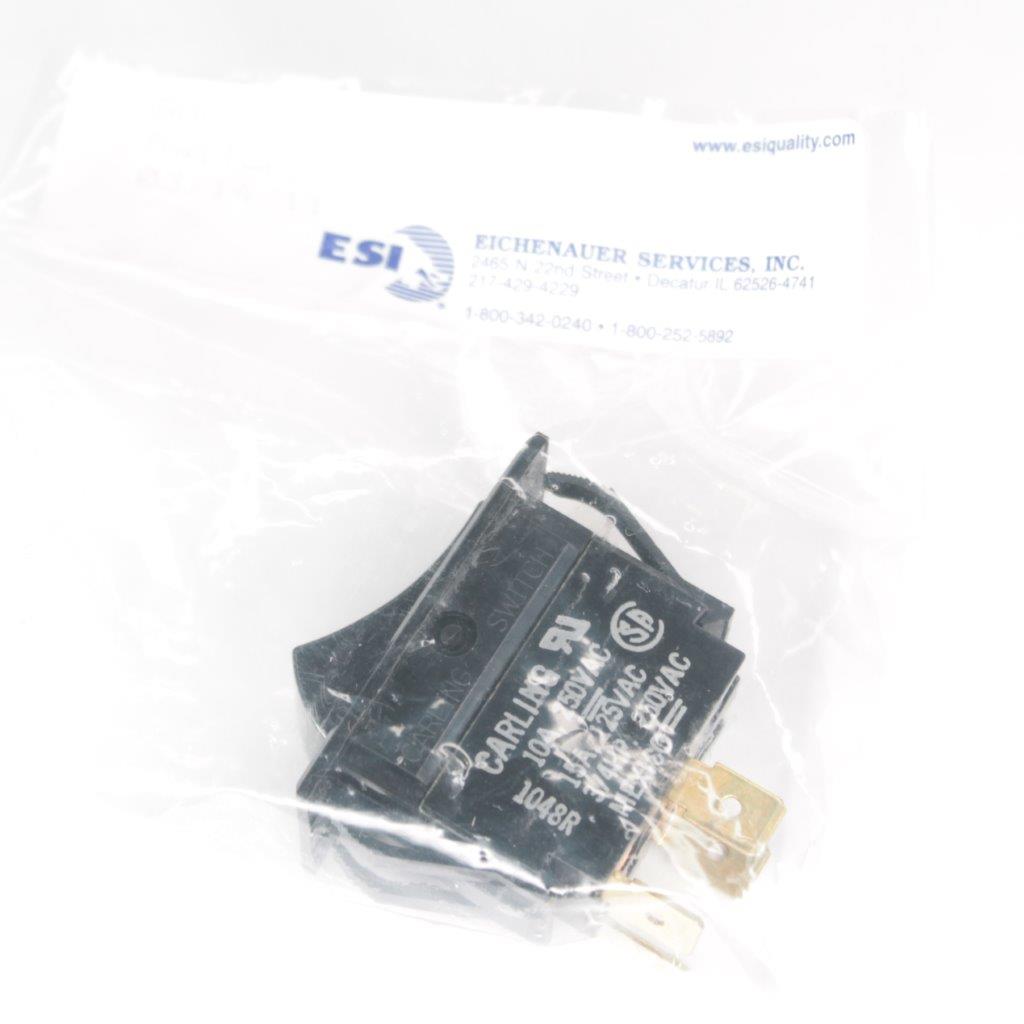

Southbend 1177541 Rocker Power Switch – OEM 3-Position Rocker Switch for Commercial Ranges and Ovens

Condition: New

The Southbend 1177541 Power Switch is a genuine OEM rocker switch designed for controlling power or heating modes in Southbend commercial cooking equipment, including ranges, ovens, and steamers. This durable, panel-mount switch is typically configured in a 3-position (On-Off-On) or 2-position (On-Off) layout depending on the application, and it features a high-visibility rocker actuator for quick access by kitchen staff. Built to withstand high-moisture, high-temperature environments, it ensures safe and reliable operation of key cooking functions like thermostats, lights, or heating elements.

🔧 Features:

• OEM Part Number: 1177541
• Switch Type: Rocker-style, likely 2-position (On-Off) or 3-position (On-Off-On)
• Mounting Style: Panel mount – fits standard Southbend control panel cutouts
• Electrical Ratings: Typically 16A @ 125/250VAC (confirm based on label or model)
• Terminals: Quick-connect blade terminals for easy replacement
• Actuator Style: Illuminated or non-illuminated rocker (model-dependent)
• Durability: Rated for commercial kitchen conditions (grease, heat, moisture)
• Material: Heat-resistant plastic rocker, sealed edges for moisture resistance

🔌 Applications:

Used across a variety of Southbend commercial kitchen appliances, including:

• Gas and Electric Ranges
• Convection and Combination Ovens
• Steamer Cabinets
• Griddles, Broilers, and Hot Tops
• Proofers and holding cabinets

Functions typically controlled include:

• Main power
• Oven or thermostat activation
• Steam or fan motor enable/disable
• Light controls or auxiliary device switching

🔁 Cross-Referenced Models:

The 1177541 switch is commonly used in or replaces switches in models such as:

• Southbend S-Series Ranges (S36D, S60DD, etc.)
• Southbend SL-Series Ovens
• Southbend P32, HDC, and HDG cooking lines
• Other OEM part numbers it may replace or resemble (must verify):
  • 1177539 (non-illuminated variant)
  • 1177164 (alternate circuit style)
  • 82613 (older switch references)

🔄 Comparable Products:

Comparable switches from other commercial appliance OEMs (verify pinout and size):

• Vulcan 00-417855-0002 – Power switch for convection ovens
• Beverage-Air 502-289D – Rocker switch for refrigeration/heating
• Hatco R02.15.007.00 – Lighted On-Off switch
• Aftermarket SPST/SPDT 20A rocker switches – general use, not OEM matched

🧩 Part of Larger Systems:

This switch is an integral part of:

• Control panels on Southbend commercial cooklines
• Heater or thermostat control circuits
• Interlock circuits for gas valves or ignition systems
• Pilot light or element actuation loops

It may be wired alongside:

• High-limit thermostats
• Power transformers
• Indicator lights
• Gas ignition controls

📝 Legal Disclaimer for Trademark Use:

All trademarks (including Southbend) and brand names are the property of their respective owners. This listing references them solely for identification and compatibility purposes. This part is sold as OEM or OEM-equivalent where applicable.
