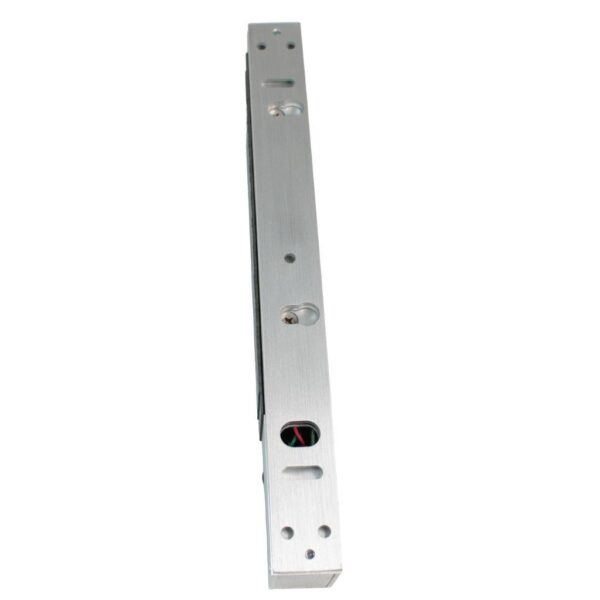

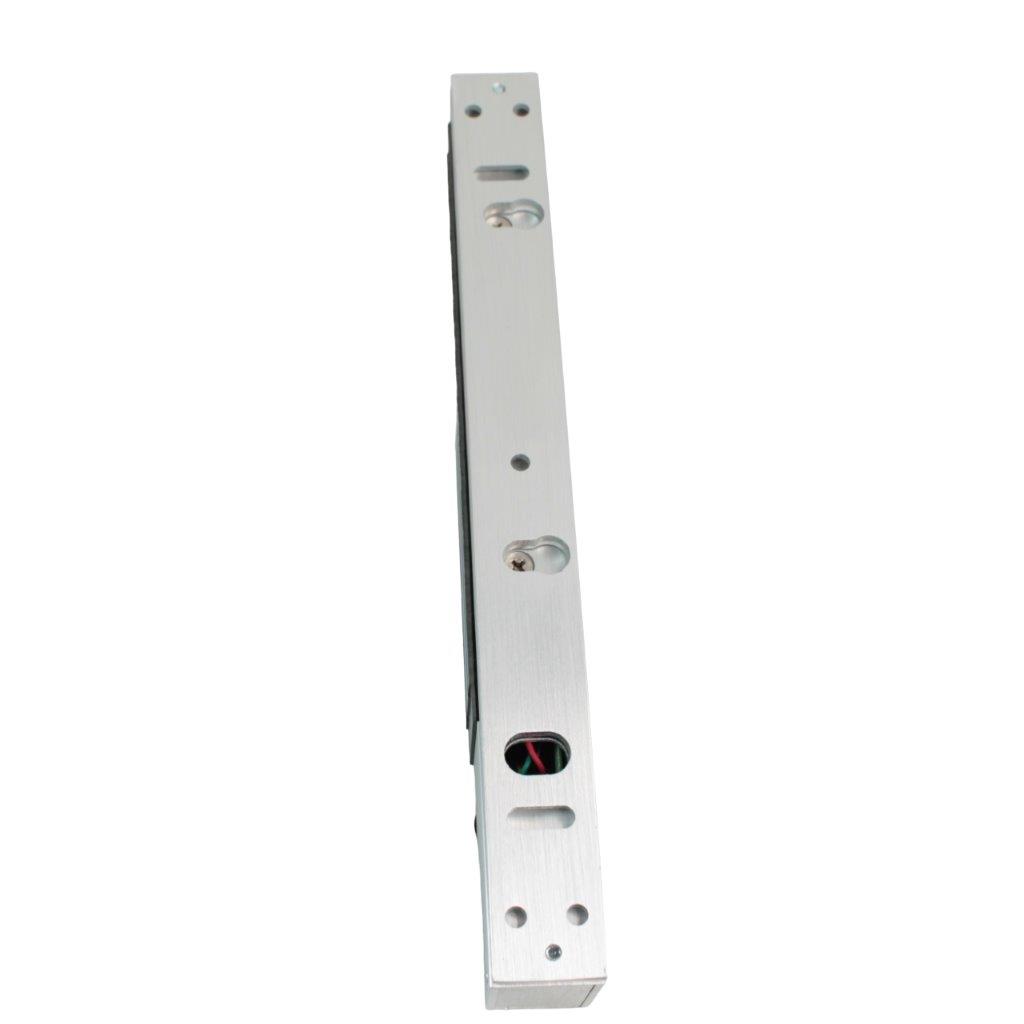

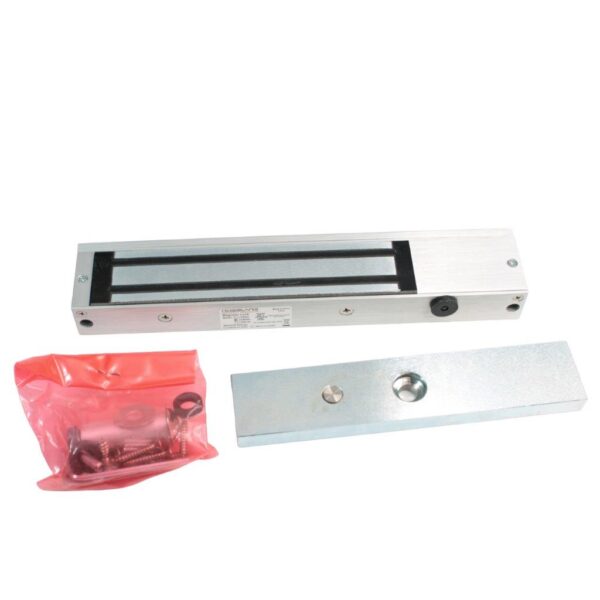

Rosslare Security LKM06L Magnetic Lock with Lock Status and Indicator, 600 LBS 12/24 VDC

Original price was: $120.00.Current price is: $59.00.

1 in stock

ROS-LK-M06L

Rosslare Security, LKM06L Magnetic Lock with Lock Status and Indicator, 600 LBS 12/24 VDC

Condition: A brand-new, unused, undamaged item in its original packaging.



The Rosslare LKM06L is a high-quality magnetic lock designed for secure access control in various applications. With a holding force of 600 lbs, dual voltage capability, and built-in status indicators, it provides reliable and robust security for doors.

Product Specifications:

  • Brand: Rosslare
  • Model Number: LKM06L
  • Type: Magnetic Lock
  • Voltage: Dual voltage: 12/24 VDC
  • Current Consumption:
    • 12 VDC: 500 mA
    • 24 VDC: 250 mA
  • Holding Force: 600 lb (272 kg)
  • Material: Anodized aluminum housing
  • Operating Environment: Suitable for indoor use
  • Status Indicators: LED status indicator
  • Bond Status Relay: Single Pole Double Throw (SPDT)
  • Certifications: UL Listed

Key Features:

  • Strong Holding Force: Provides 600 lbs of holding force, ensuring secure locking of doors.
  • Dual Voltage Operation: Can operate on either 12 VDC or 24 VDC, offering flexibility in installation.
  • Low Current Consumption: Efficient power usage with 500 mA at 12 VDC and 250 mA at 24 VDC.
  • LED Status Indicator: Built-in LED for easy status monitoring of the lock.
  • Bond Status Relay: SPDT relay provides a signal to indicate the lock’s bond status.
  • Voltage Spike Suppressor: Protects the lock from voltage spikes, ensuring long-term reliability.
  • No Residual Magnetism: Designed to eliminate residual magnetism, preventing the door from sticking after unlocking.
  • Durable Construction: Anodized aluminum housing for enhanced durability and resistance to corrosion.
  • UL Listed: Meets safety and performance standards set by Underwriters Laboratories (UL).

Applications:

  • Access Control Systems: Ideal for securing doors in offices, commercial buildings, and institutional facilities.
  • Emergency Exits: Suitable for emergency exit doors where reliable locking and quick release are essential.
  • Restricted Areas: Perfect for areas that require controlled access, such as server rooms, labs, and storage areas.

General Guidelines for Installation and Setup:

  1. Preparation:
    • Ensure the power supply is turned off before beginning the installation.
    • Gather necessary tools, including a screwdriver, drill, and mounting hardware.
  2. Mounting the Magnetic Lock:
    • Determine the appropriate location for the magnetic lock on the door and frame.
    • Use the provided template to mark and drill holes for mounting the lock and armature plate.
    • Secure the magnetic lock to the door frame using the provided screws.
    • Attach the armature plate to the door, ensuring it aligns properly with the magnetic lock.
  3. Electrical Connections:
    • Connect the power supply wires to the magnetic lock, ensuring the correct voltage is used (12 VDC or 24 VDC).
    • Connect the SPDT bond status relay wires to the access control system or monitoring device.
    • Ensure all electrical connections are secure and insulated to prevent short circuits.
  4. Testing and Calibration:
    • Restore power to the system and test the magnetic lock by closing and opening the door.
    • Verify that the LED status indicator functions correctly, showing the lock’s status.
    • Check the bond status relay signal to ensure it accurately reflects the lock’s status.
  5. Final Checks:
    • Inspect the installation for any loose screws or misaligned components.
    • Ensure the lock holds securely when powered and releases smoothly when deactivated.

Maintenance Tips:

  • Regular Testing: Periodically test the lock and status indicators to ensure proper functionality.
  • Cleaning: Keep the lock and armature plate clean and free of dust or debris that could affect performance.
  • Inspect Electrical Connections: Regularly check the electrical connections for signs of wear or damage and replace if necessary.

Safety and Compliance:

  • Handling: Handle the magnetic lock with care during installation to avoid damaging internal components.
  • Voltage Matching: Ensure the input voltage matches the specifications to prevent damage to the lock.
  • Compliance: Follow local building and electrical codes during installation to ensure compliance and safety.

Conclusion:

The Rosslare LKM06L Magnetic Lock is a reliable and efficient solution for securing doors in various indoor environments. Its strong holding force, dual voltage capability, and built-in status indicators make it a versatile and effective choice for access control systems. Proper installation and regular maintenance will ensure long-term performance and security.



NL28

Weight 4.7 lbs
Dimensions 12 × 4 × 2 in
