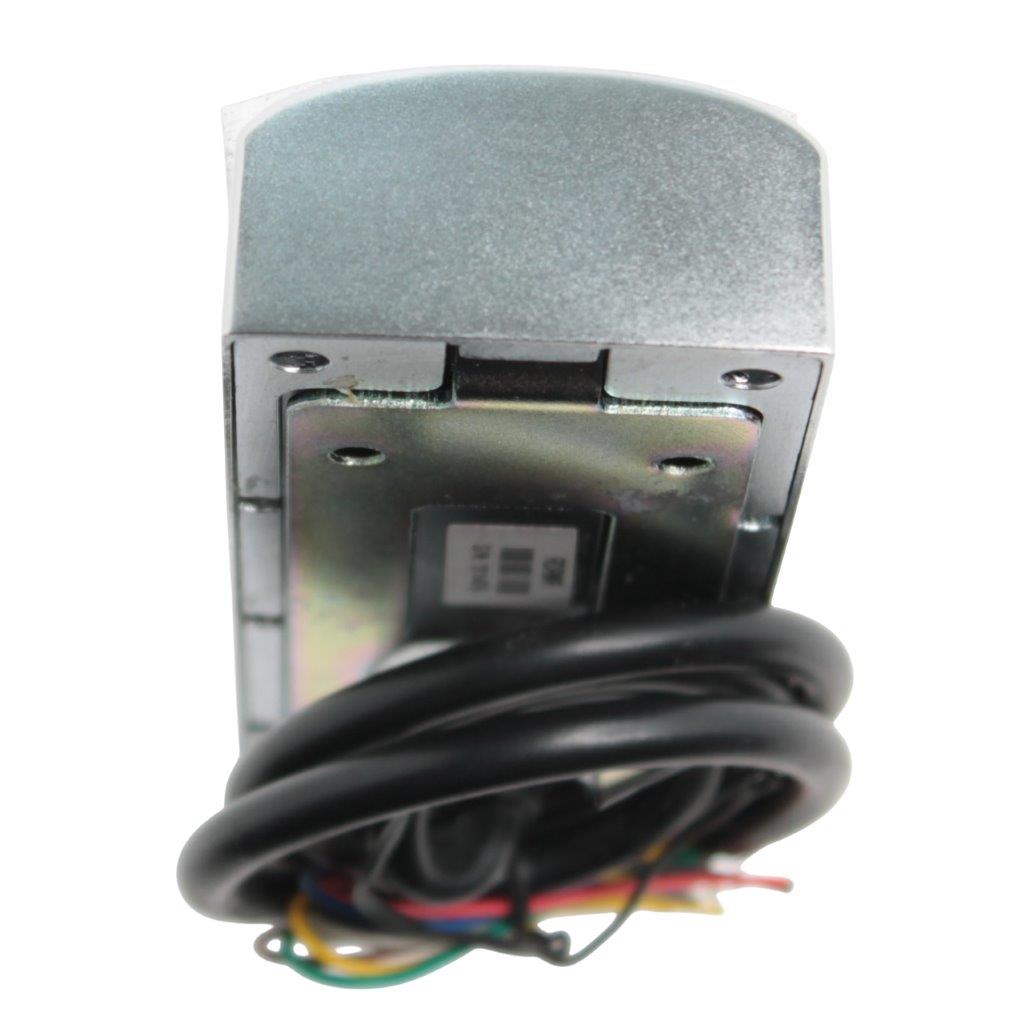

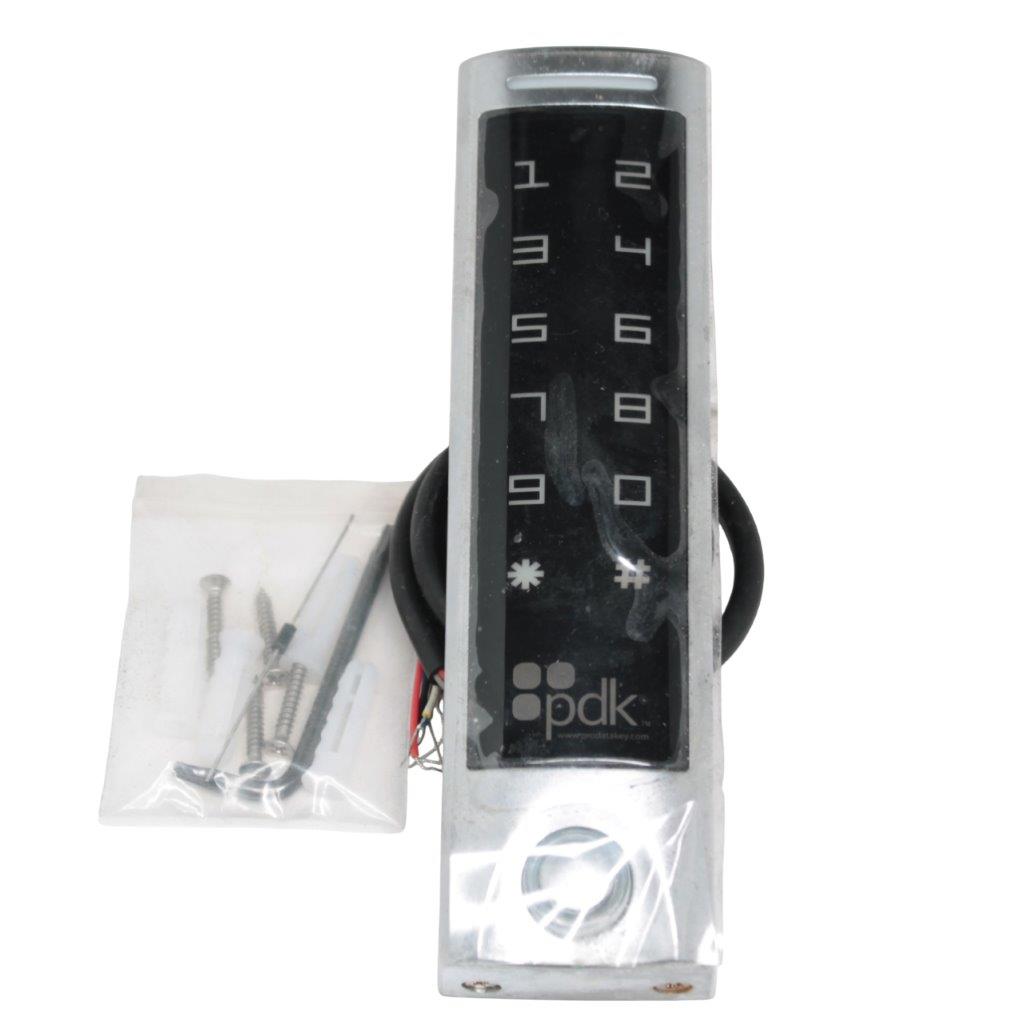

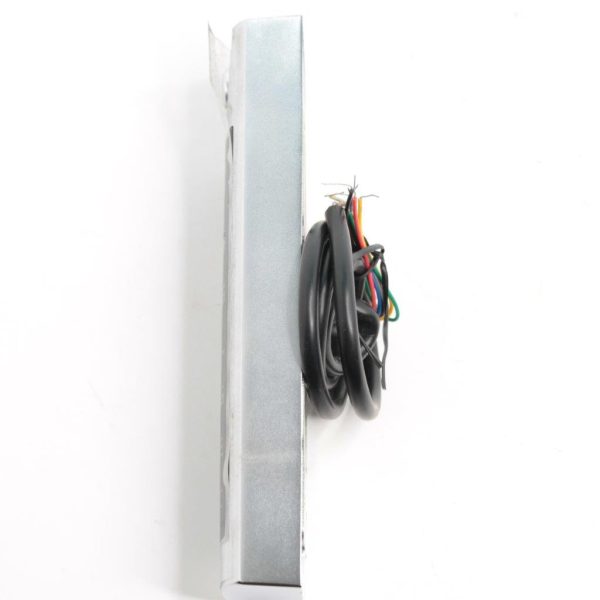

ProDataKey PDK RDRMR Rugged Mullion RFID Access Control Reader, vandal-resistant narrow-stile form factor, potted electronics, outdoor-rated housing, Wiegand interface (typical 26-bit), mullion 1.8″ x 4.6″ class

ProDataKey PDK RDRMR Rugged Mullion RFID Access Control Reader, vandal-resistant narrow-stile form factor, potted electronics, outdoor-rated housing, Wiegand interface (typical 26-bit), mullion 1.8″ x 4.6″ class

Condition: New, never installed, without a box. No cards/credentials or hardware kit included unless stated; minor handling marks possible from open storage.

The PDK RDRMR is ProDataKey’s ruggedized mullion reader designed for harsh and high-traffic entries where durability and reliability matter most. Built for narrow-stile aluminum storefront frames and other tight door conditions, the RDRMR uses a sealed, impact-resistant housing with fully potted electronics to shrug off weather, dust, and casual vandalism. It pairs cleanly with ProDataKey (pdk) controllers in cloud-managed systems and also works as a standard Wiegand reader for many third-party access panels. Typical deployments include retail storefronts, schools, garages, and exterior perimeter doors where a standard plastic reader won’t last.

Notes on technology: The RDRMR family is commonly offered in 125 kHz proximity and/or 13.56 MHz smart-card variants. Exact credential support (e.g., Prox, MIFARE®/DESFire®) and read ranges vary by sub-model and card type—verify your credential technology before ordering or enrolling cards.

Features

• Rugged, vandal-resistant mullion housing for narrow-stile frames and tight jambs
• Fully potted electronics for moisture and vibration resistance (exterior-door friendly)
• Outdoor-rated enclosure with gasketed backplate; suitable for most climates
• Standard Wiegand output (commonly 26-bit; other formats typically supported via panel settings)
• Visual/audible feedback (multicolor LED and beeper; behavior controlled by panel in most installs)
• Field-selectable LED/buzzer control lines for door status and access granted/denied indications
• Wide input voltage range (typical readers accept 5–16 VDC; check your power budget)
• Low current draw for easy retrofit on long cable runs
• Tamper-resistant mounting with hidden screws (standard mullion hole pattern)
• Backward-compatible with many existing Prox/smart credentials when ordered in the matching technology

Applications

• Exterior perimeter entries (storefront, campus buildings, industrial sites)
• Parking and service doors exposed to weather or wash-down
• Schools and municipal facilities with high-abuse risk
• Mixed fleets of readers on cloud-managed ProDataKey systems
• Retrofits where mullion width limits device choice

Cross-Referenced Models (same brand / series)

• PDK RDRM — Standard Mullion Reader (non-rugged housing; same footprint)
• PDK RDRK — Mullion Reader with integrated keypad (verify technology match)
• PDK RDRSG — Single-Gang Reader (same credentials in larger form factor)
• PDK RDRPB — Prox “box”/mini reader for tight spaces (technology-dependent)

Cross-reference suitability depends on credential technology (125 kHz vs 13.56 MHz), output format, and housing needs. Match these before substitution.

Comparable Products (functionally similar, other brands)

• HID® Signo™ 20/20K (rugged mullion class; multi-tech options)
• HID® iCLASS SE® R10 (mullion; 13.56 MHz smart)
• Schlage® MT11/MT15 (multi-tech readers; mullion/single-gang)
• WaveLynx™ ET10 (mullion; multi-tech, OSDP-capable)
• Allegion/Von Duprin® NDE compatible readers (check panel compatibility)

Integration & System Use

• Controller compatibility: Works with ProDataKey (pdk) door controllers and Cloud Node systems; also integrates with many third-party panels that accept standard Wiegand readers.
• Interface: Wiegand data lines (D0/D1), +V and GND; typical auxiliary lines for LED and beeper.
• Power: Typical readers operate at 5–16 VDC (verify on unit label/datasheet); budget 75–150 mA depending on LED/beeper use.
• Mounting: Mullion/narrow-stile (approx. 1.7–1.8″ wide x ~4.5–4.7″ tall); concealed screws.
• Cabling: 22/6 or 22/4 stranded, shielded recommended; max run length per controller spec.
• Environment: Designed for outdoor exposure; install on flat, sealed surface with gasket to maintain rating.

What’s Included (this listing)

• PDK RDRMR Rugged Mullion Reader (new, never installed, no box)
• No credentials/cards or mounting hardware guaranteed unless noted

Specifications (typical for the RDRMR class; verify on label for your exact sub-model)

• Form factor: Mullion (narrow-stile)
• Technologies: 125 kHz proximity and/or 13.56 MHz smart (model-dependent)
• Output: Wiegand (26-bit default; additional formats usually supported)
• Indicators: Tri-color LED + beeper (panel-controlled)
• Supply voltage: 5–16 VDC (typ.)
• Current draw: ~75–150 mA (typ., by state)
• Operating environment: Outdoor-rated, potted electronics, gasketed mount
• Dimensions: ~1.7–1.8″ W × 4.5–4.7″ H × 0.8–1.0″ D (typ. mullion footprint)
• Covers: Tamper-resistant front, hidden fasteners
• Credential read range: typically 1–2″ (125 kHz Prox) and 1–3″ (13.56 MHz smart), card- and environment-dependent
• OSDP: Some recent PDK reader revisions support OSDP/secure channel; confirm on label or spec if required
• UPC/GTIN: Not provided on this unit

Related

pdk rugged mullion reader; ProDataKey RDRMR; narrow stile door badge reader; outdoor RFID door reader; vandal resistant access control reader; Wiegand mullion reader; weatherproof card reader; 125 kHz proximity reader; 13.56 MHz smart card reader; cloud access control reader; device to read access badges; door reader for storefront frames; potted electronics access reader; perimeter door credential reader; access control hardware

Common Requests:

1. “Is my PDK RDRMR the 125 kHz Prox version or the 13.56 MHz smart-card version?”
2. “Will the RDRMR work with my third-party panel via 26-bit Wiegand?”
3. “What’s the exact mullion hole pattern and depth clearance for storefront frames?”
4. “Can I mix this rugged reader with standard PDK mullion readers on the same system?”
5. “Does my RDRMR support OSDP secure channel or only Wiegand?”
