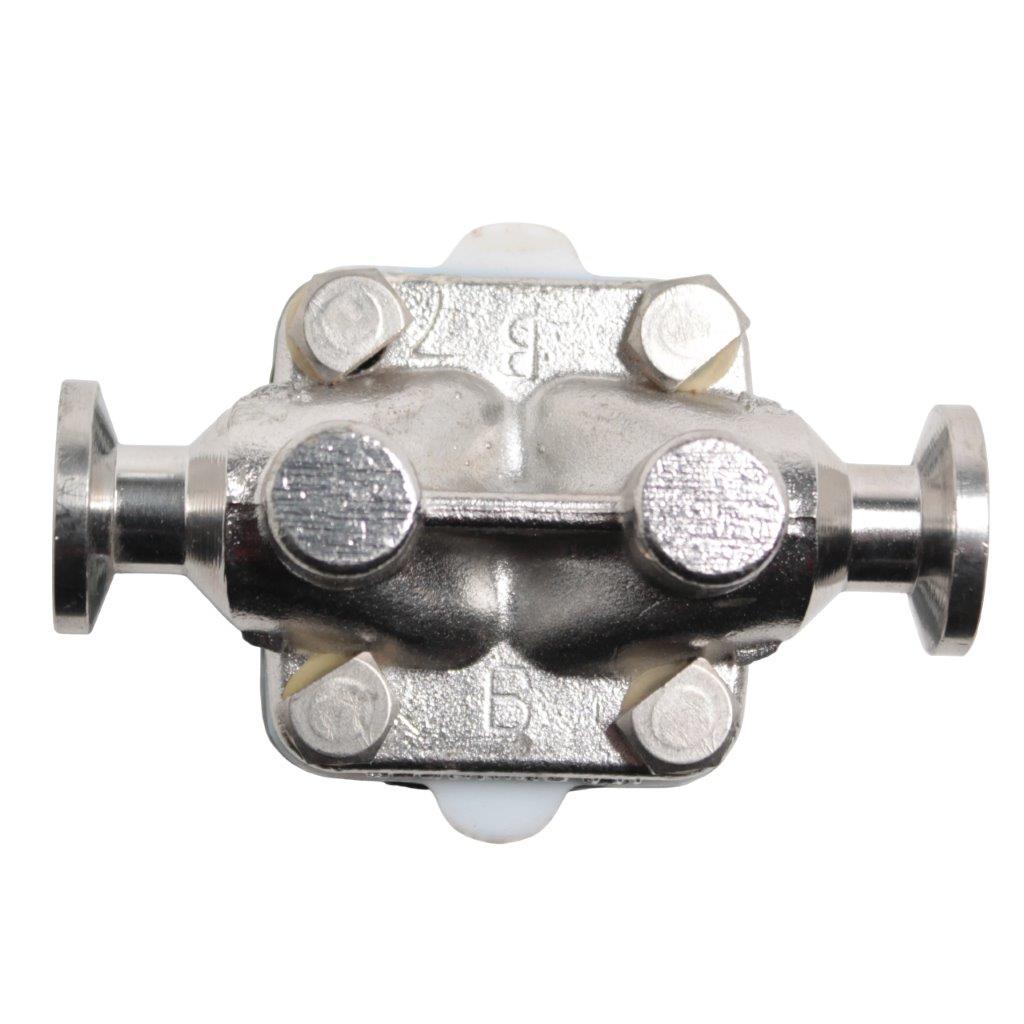

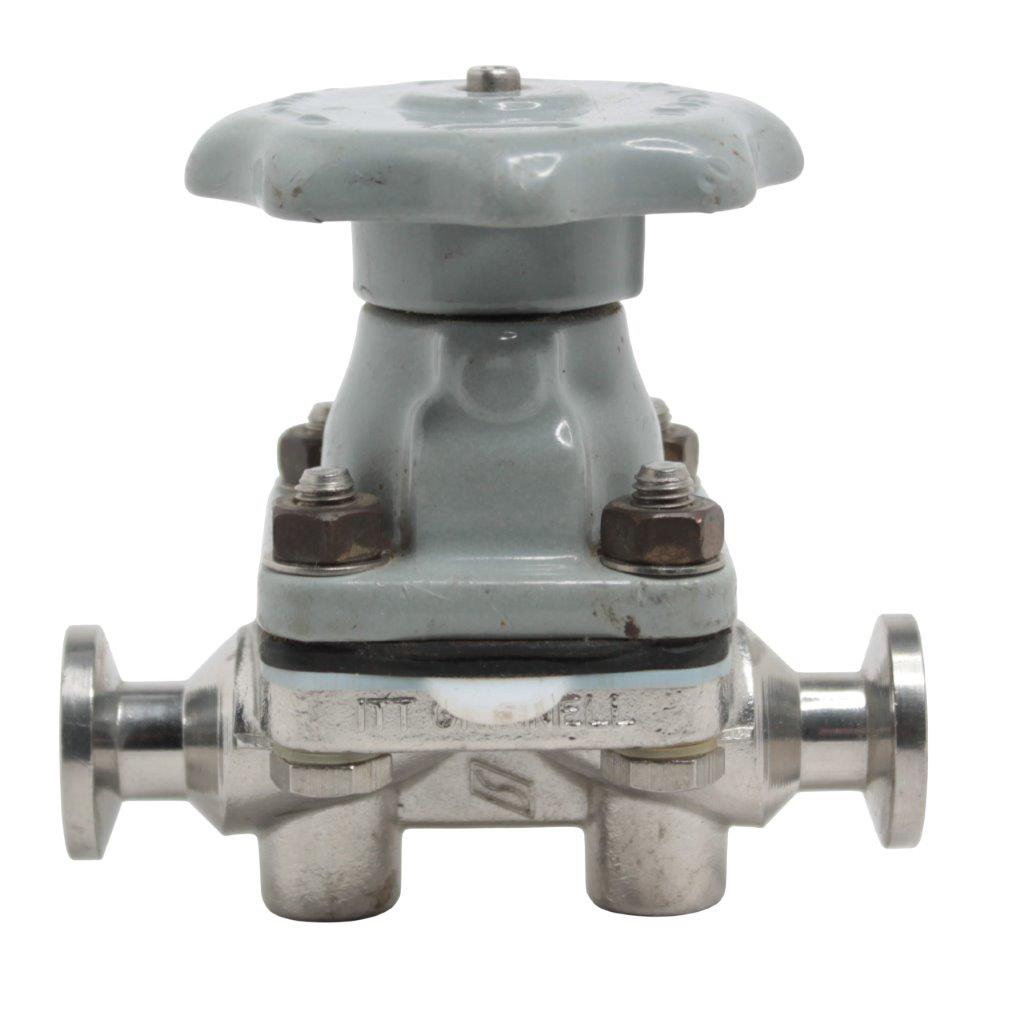

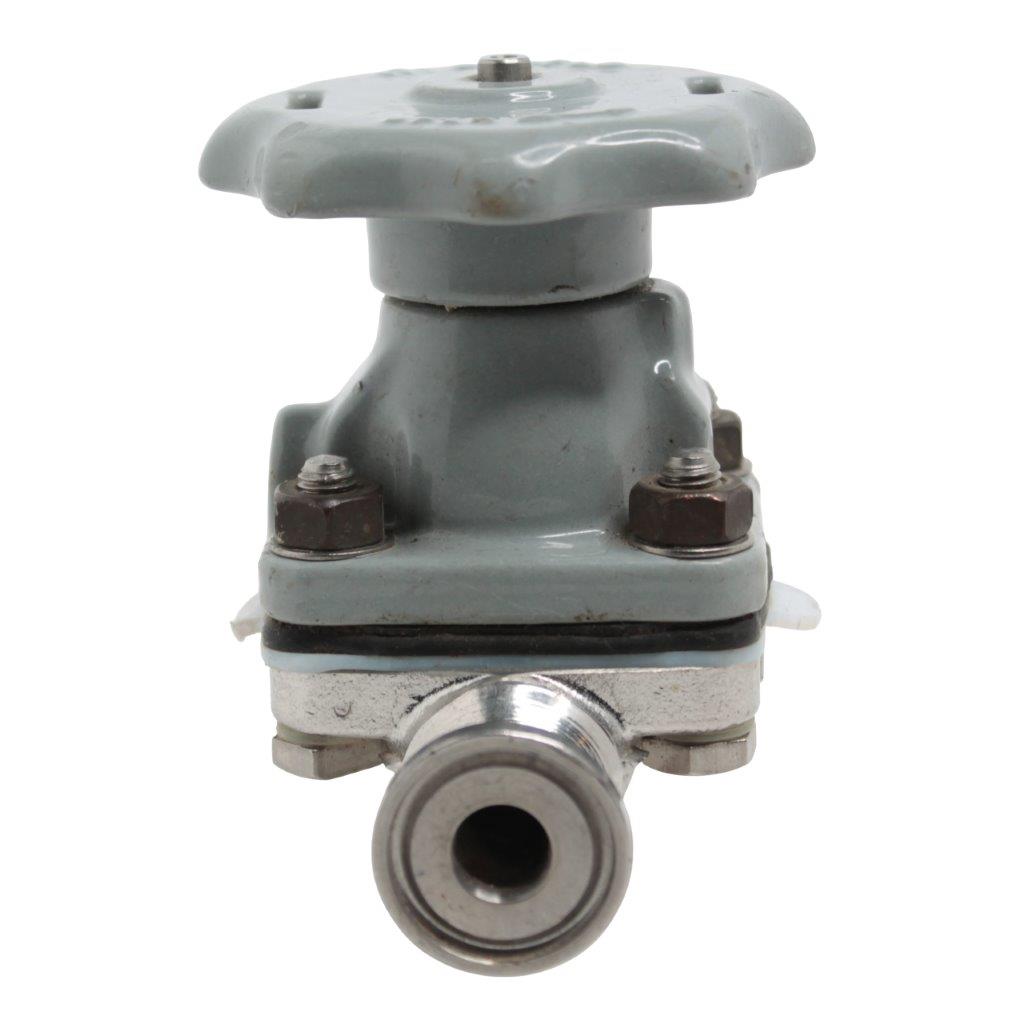

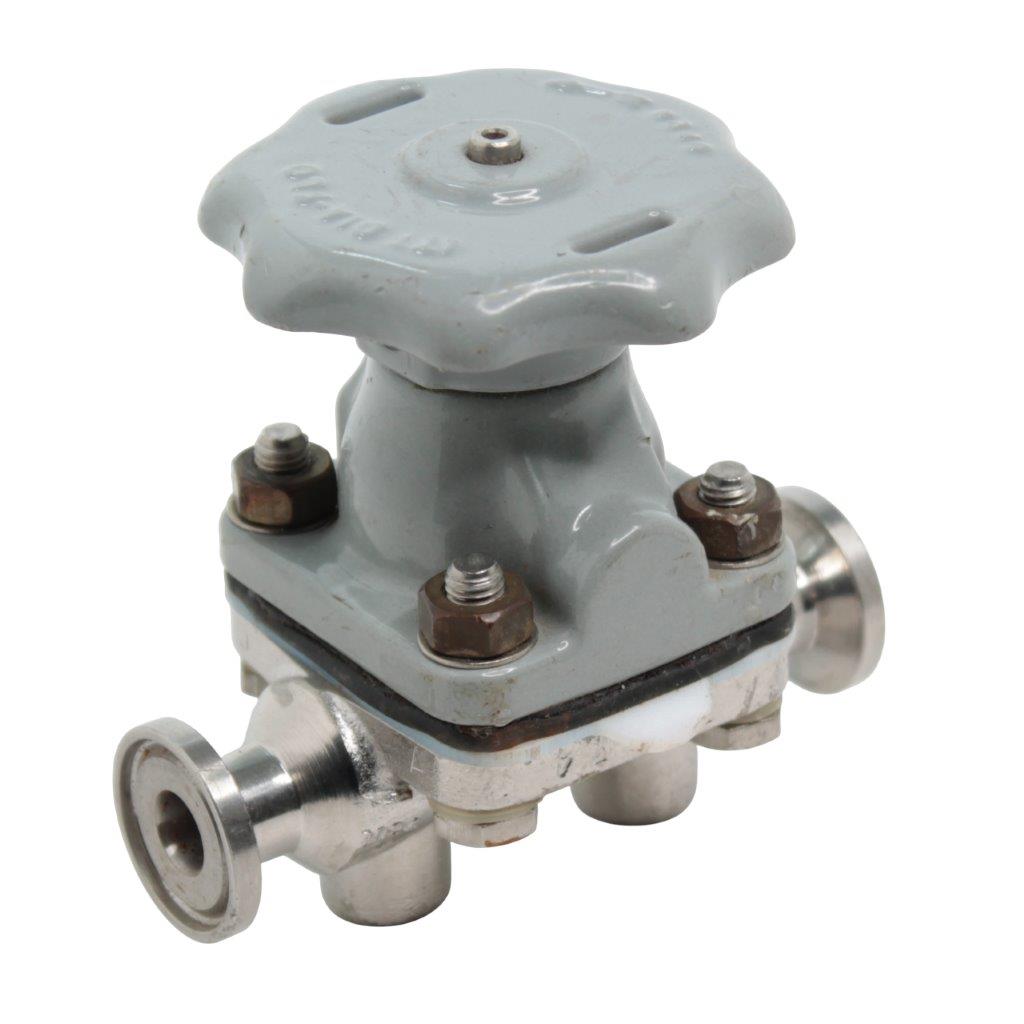

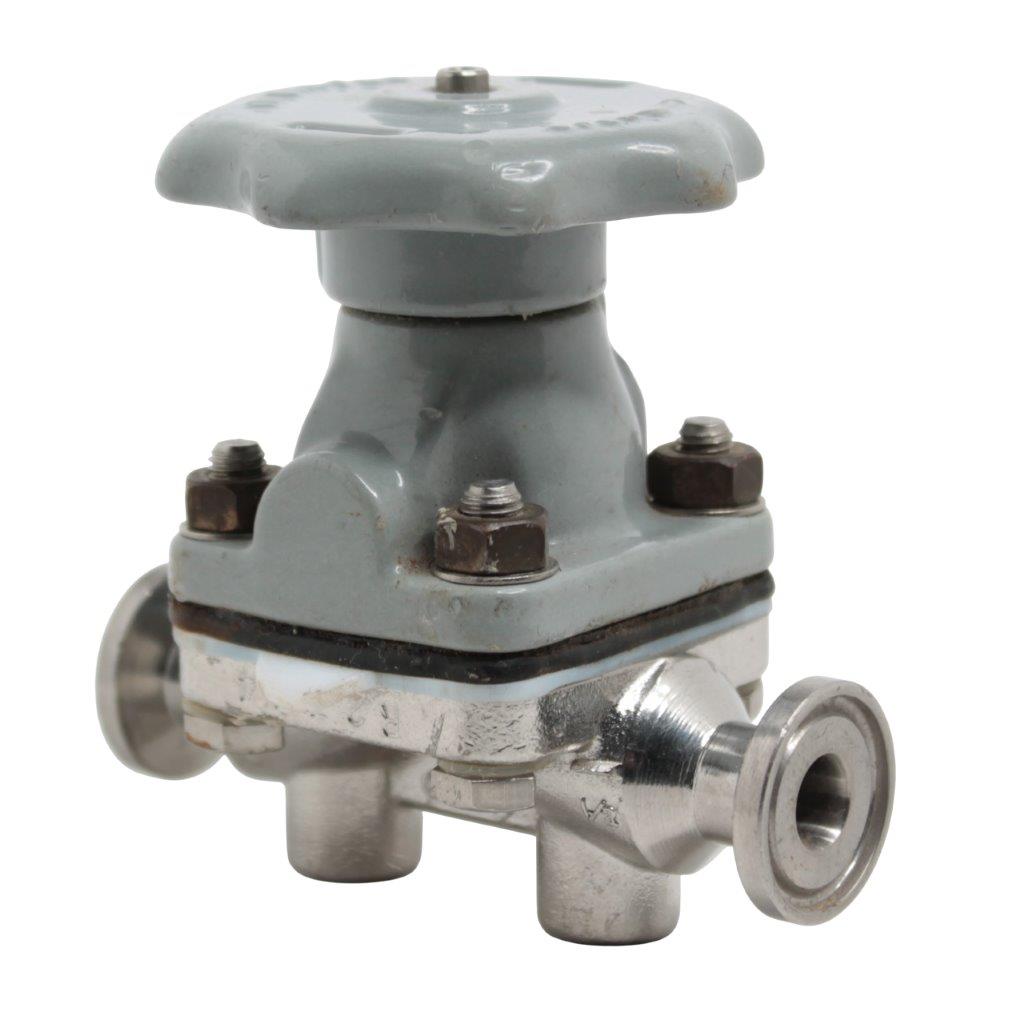

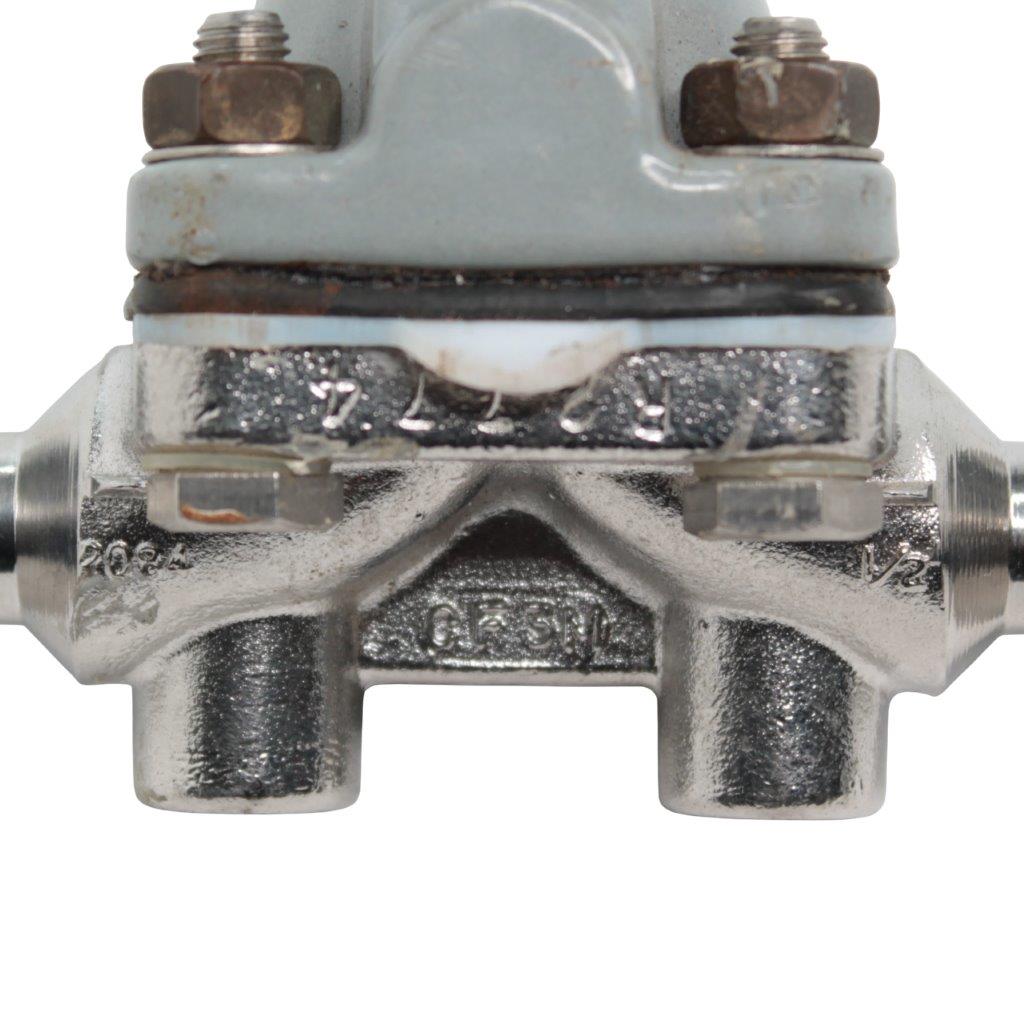

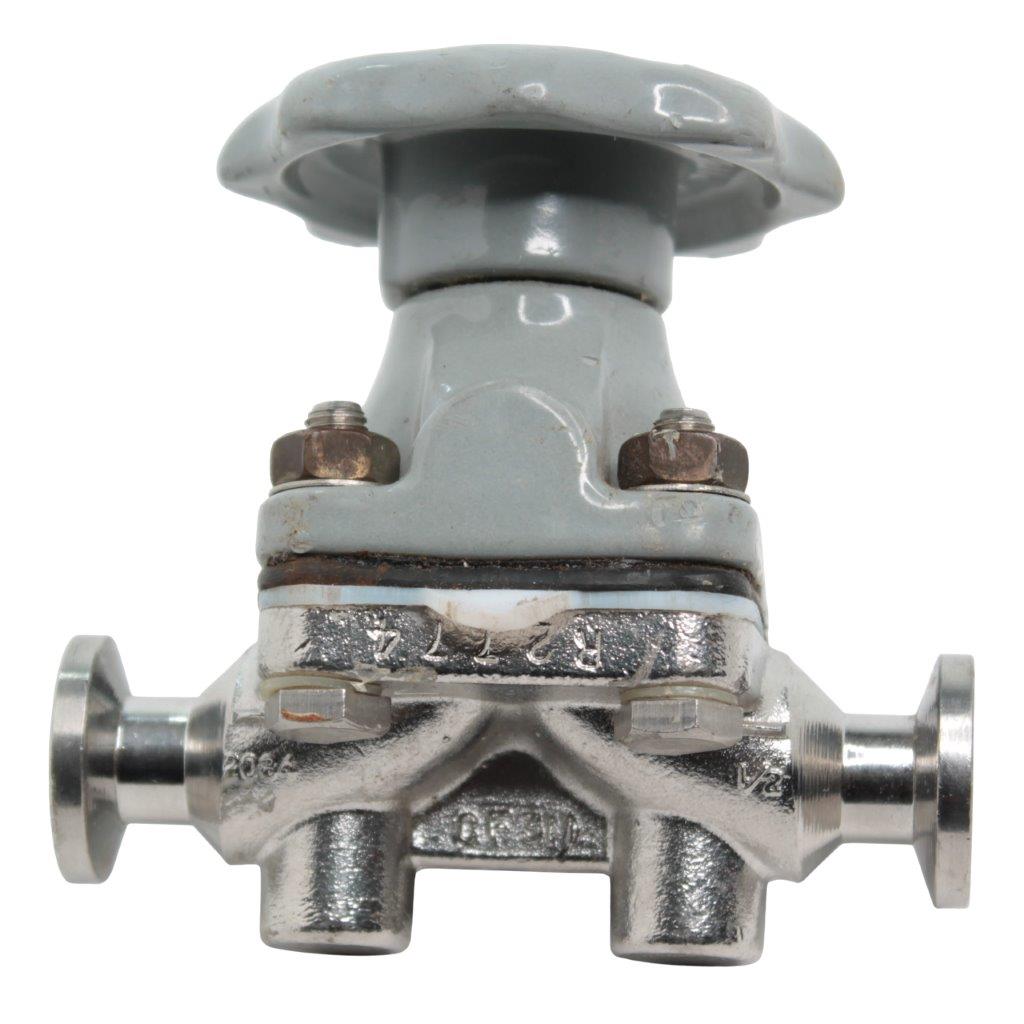

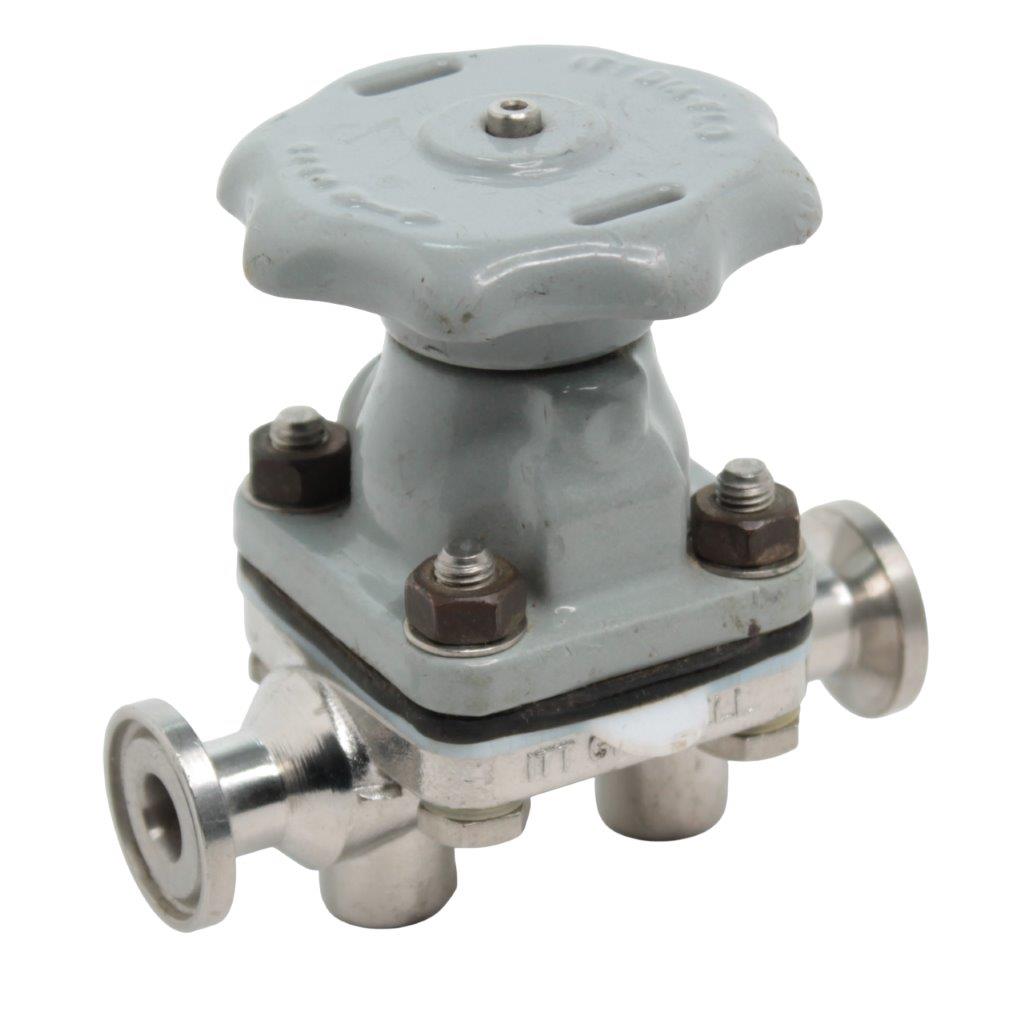

ITT Grinnell Dia-Flo R2774 CF3M ½” Diaphragm Valve – Stainless Steel Body, Flanged Ends, Manual Handwheel, Designed for Corrosive and Sanitary Applications

ITT Grinnell Dia-Flo R2774 CF3M ½” Diaphragm Valve – Stainless Steel Body, Flanged Ends, Manual Handwheel, Designed for Corrosive and Sanitary Applications

Condition: Used. Unit shows normal cosmetic wear from service. Stainless steel housing intact.

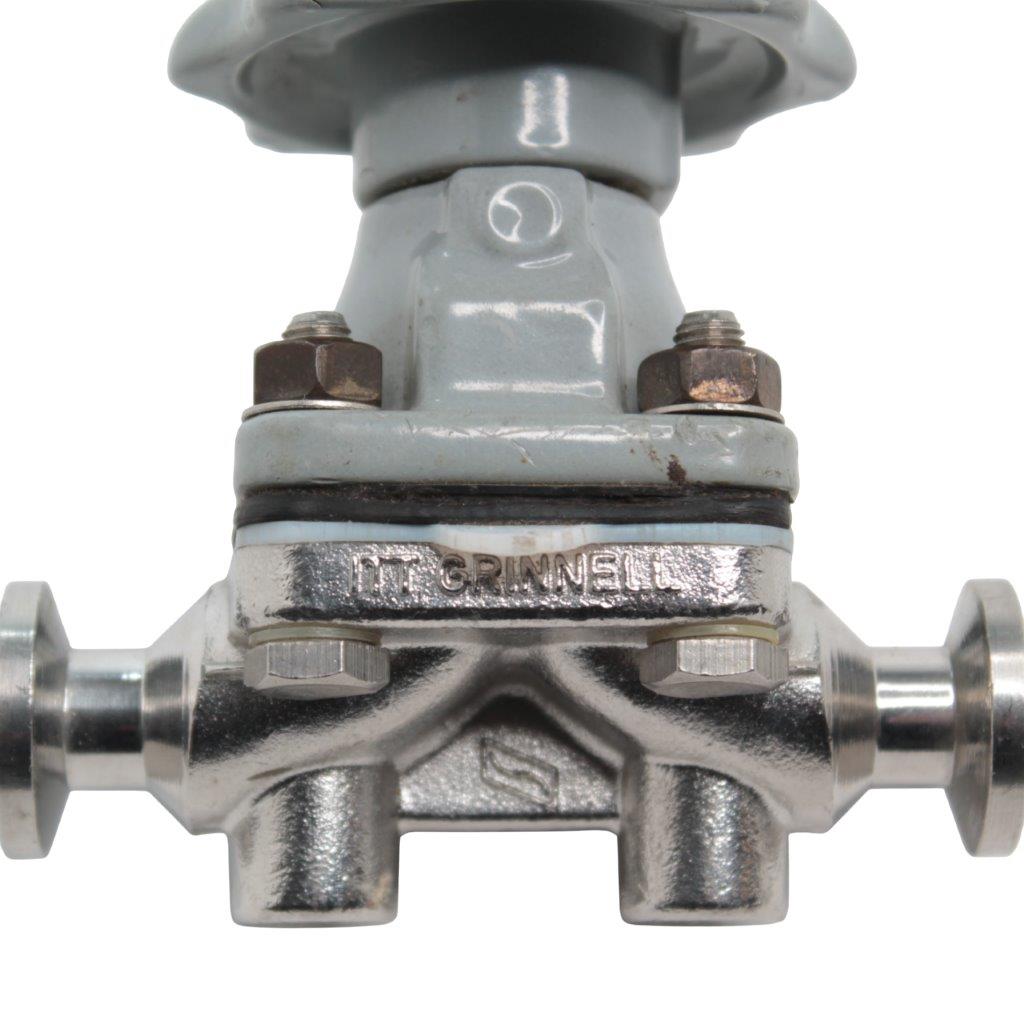

The ITT Grinnell Dia-Flo R2774 CF3M ½” diaphragm valve is a compact, corrosion-resistant valve used in high-purity, chemical, and sanitary processing environments. This valve features a CF3M stainless steel body (also known as 316L stainless with extra low carbon), offering superior resistance to corrosive chemicals and making it ideal for pharmaceutical, food-grade, and chemical processing applications.

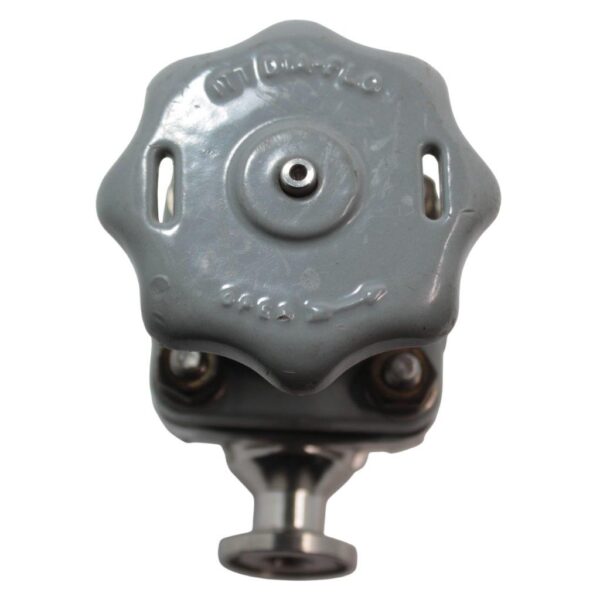

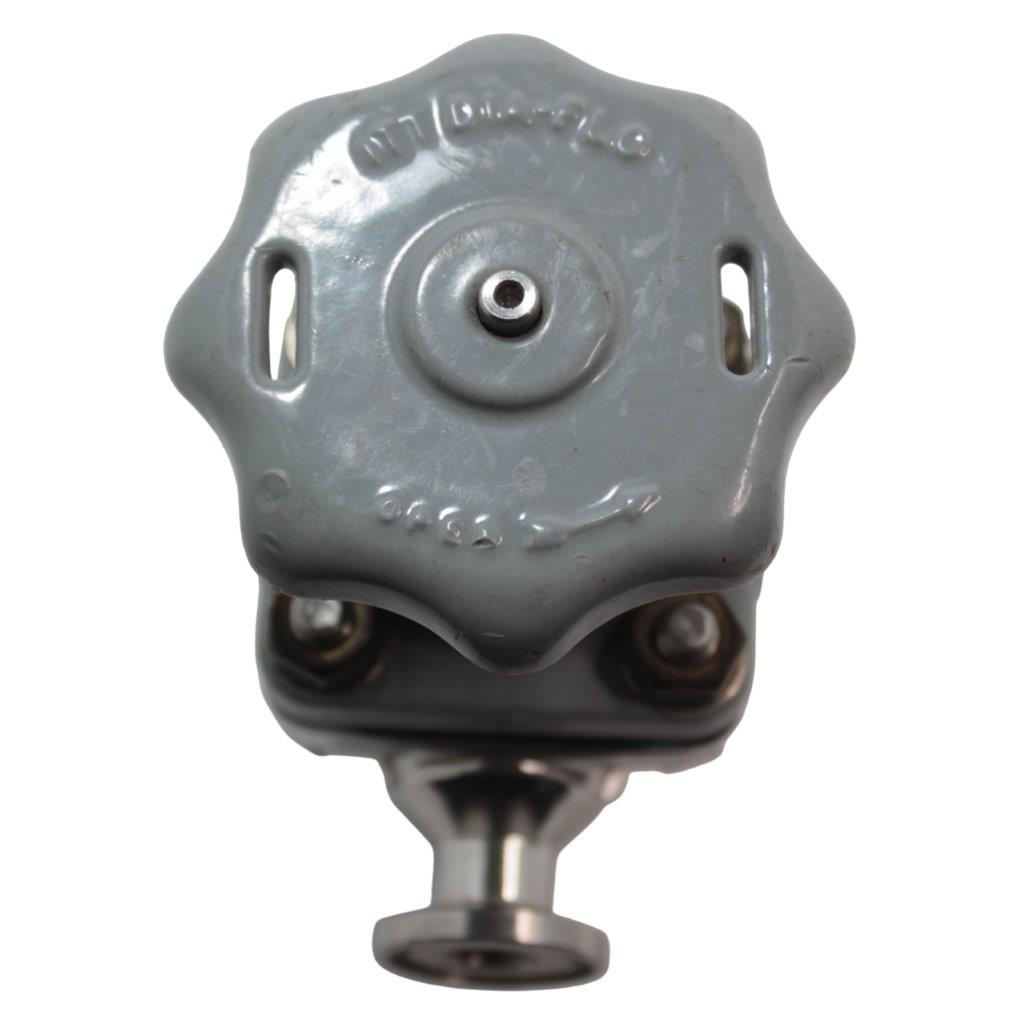

The manual handwheel actuator provides precise flow control and reliable shutoff via a top-entry bonnet design. As with all Dia-Flo® series diaphragm valves, the internal diaphragm (typically PTFE, EPDM, or a composite) forms a leak-proof seal between the actuator and the media, preventing contamination and ensuring clean operation. The R2774 model number corresponds to a diaphragm valve with weir-type body and flanged connections, rated for service in demanding process systems.

🔧 Features
Model: R2774
Connection Size: ½ inch (0.5″)
Connection Type: ANSI flanged ends
Body Material: CF3M (ASTM A351 cast stainless steel, equivalent to 316L)
Valve Type: Diaphragm – weir type
Operation: Manual handwheel
Seal Type: Flexible diaphragm (replaceable – likely PTFE or EPDM depending on original trim)
Top Entry: For easy diaphragm replacement
Corrosion Resistance: Excellent, suitable for high-purity or aggressive chemical service
Leak Path Isolation: Diaphragm barrier eliminates stem leakage

🛠️ Applications
Commonly used in:
Pharmaceutical manufacturing
Food and beverage processing
Biotech and life sciences
Chemical and acid dosing systems
High-purity water treatment systems
Cleanroom process systems
Semiconductor manufacturing (if specified as ultra-pure compatible)

🔁 Cross-Referenced Models
Direct equivalents or models with similar configurations include:
Saunders A-Type Diaphragm Valve ½” SS Flanged
ITT Dia-Flo G-Series ½” CF3M Valve
GEMU 650 Series (½” SS diaphragm valve, manual)
Burkert 2103 Classic or 2031 (1/2” stainless diaphragm valve)
GF+ Type 314 or 514 (if plastic body used instead)

🔄 Comparable Products
GEMU 601 or 650 Stainless Steel Valve (manual)
Saunders HC4 or I-series ½” diaphragm valves
Burkert Type 2103, stainless version
Alfa Laval Unique DV-ST UltraPure Valve
ITT Dia-Flo B Series ½” diaphragm valve with manual actuator

🧩 Assembly and System Compatibility
This valve is ideal for integration into:
CIP/SIP piping systems
Sterile process loops
Sanitary manifolds and skids
Chemical transfer panels
Often used in modular process systems with orbital weld flanges or tri-clamp reducers where space and purity are key
Compatible with position indicators, manual limit stops, or automated actuators (retrofit kits may be available)
