Invensys NSR MF4E-60430 24V Floating Damper/Valve Actuator for BAS HVAC Control

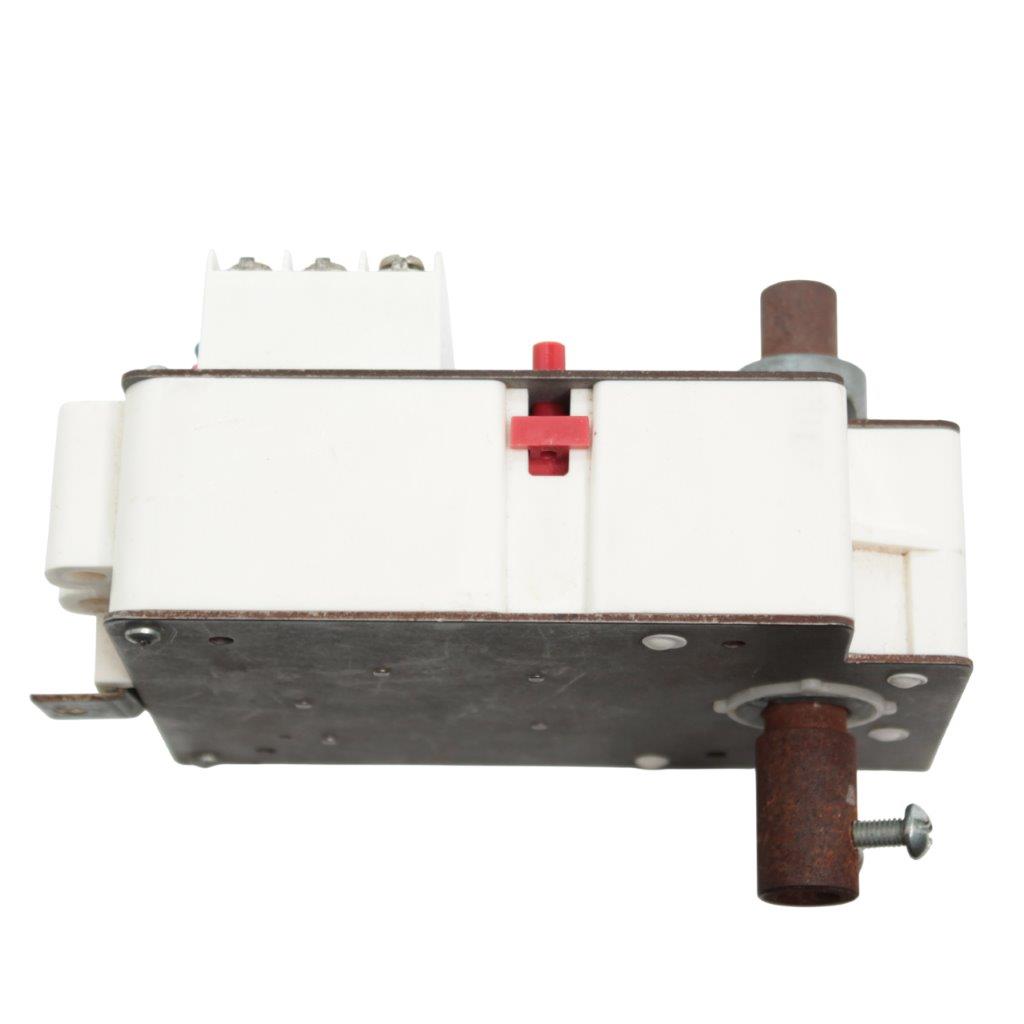

Condition: Used; rust present on the output shaft (may need cleaning). Cosmetic wear from prior service expected. No brackets, linkages, or wiring harnesses included — actuator only.

Product Description

The Invensys NSR MF4E-60430 is a 24V “floating” (tri-state) HVAC actuator used in building automation systems to position dampers or valves based on OPEN / STOP / CLOSE commands from a controller. Floating control is popular in commercial HVAC because it’s simple, robust, and integrates easily with many BAS/DDC controllers that provide tri-state outputs.

This actuator is typically installed on airside equipment (VAV boxes, AHU dampers, economizers) or on hydronic valve linkages where a floating signal is used. The noted rust on the shaft may affect clamping/coupling and should be cleaned before installation so the hub grips properly and the actuator can be removed/serviced later.

Specifications

• Manufacturer/Brand: Invensys (NSR series)
• Model: MF4E-60430
• Control type: Floating / Tri-state (Open–Stop–Close)
• Power: 24V (commonly 24 VAC in HVAC controls)
• Typical use: Damper or valve actuation in commercial HVAC/BAS

If you share a photo of the nameplate (or the terminal label), I can add the exact wiring designations, torque, timing, and rotation angle.

Features

• Floating (tri-state) control for reliable OPEN/HOLD/CLOSE positioning
• 24V low-voltage actuation suited to BAS/DDC control panels
• Commonly used for damper positioning (economizer, mixing, zone control) and valve control (with linkage)
• Designed for commercial HVAC duty cycles (frequent repositioning)
• Service-friendly form factor typical of NSR actuator families

Applications

• Air Handling Units (AHUs): outside air/return air/mixed-air dampers, economizer dampers
• VAV/zone control: terminal box dampers, bypass dampers
• Exhaust/relief systems: relief dampers, building pressurization dampers
• Hydronic systems: floating-controlled valve actuation (with correct linkage/valve kit)
• General BAS retrofits: replacing older floating actuators on dampers

Spheres of Application

• Commercial office buildings and retail
• Schools/campuses and municipal facilities
• Light industrial HVAC and warehouses
• Property management maintenance and retrofit projects

Condition Notes and Service Tips

• Rust on shaft:
  • Clean with a non-aggressive method (e.g., light Scotch-Brite or fine abrasive) to restore smooth, round contact for the clamp hub.
  • After cleaning, wipe and protect with a light corrosion inhibitor (avoid contaminating friction surfaces if a clamp relies on dry grip).
• Confirm the damper shaft size and ensure the actuator hub clamps evenly—rust can cause slip, misalignment, or difficulty tightening.

Cross-Referenced Models

(These are family/functional cross-references—verify torque, runtime, stroke angle, and mounting before substituting.)

• Invensys / NSR MF4E series floating actuators (same product family; different torque/timing variants)
• Invensys MF4E-xxxxx variants used for 24V floating control (exact suffix differs by rating/config)

Comparable Products

(Comparable floating/tri-state actuators often used in BAS HVAC—confirm torque and timing match your application.)

• Belimo floating-control actuators (TF/AF/NF floating variants)
• Honeywell MS-series floating actuators (model varies by torque)
• Johnson Controls M9xx floating actuators
• Siemens OpenAir floating actuators (GMA/GCA classes, application-dependent)
• Schneider Electric (legacy TAC/Invensys lines) floating actuators of similar torque class

Use in Larger Systems

This actuator is commonly one piece of a BAS-controlled assembly:

• DDC controller tri-state output → actuator (OPEN/CLOSE commands) → damper shaft (or valve linkage)
• Often paired with:
  • Damper hardware: crank arm, anti-rotation bracket, shaft adapter
  • Sensors: discharge air temp, mixed air temp, CO₂, static pressure (depending on sequence)
  • End-switches / interlocks: fan enable, minimum position proving (sequence-dependent)

Related

Invensys floating actuator, NSR damper motor, tri-state 24V actuator, open stop close HVAC actuator, economizer damper actuator, VAV damper actuator, building automation actuator, damper position motor, valve actuator floating control, device to position HVAC dampers
