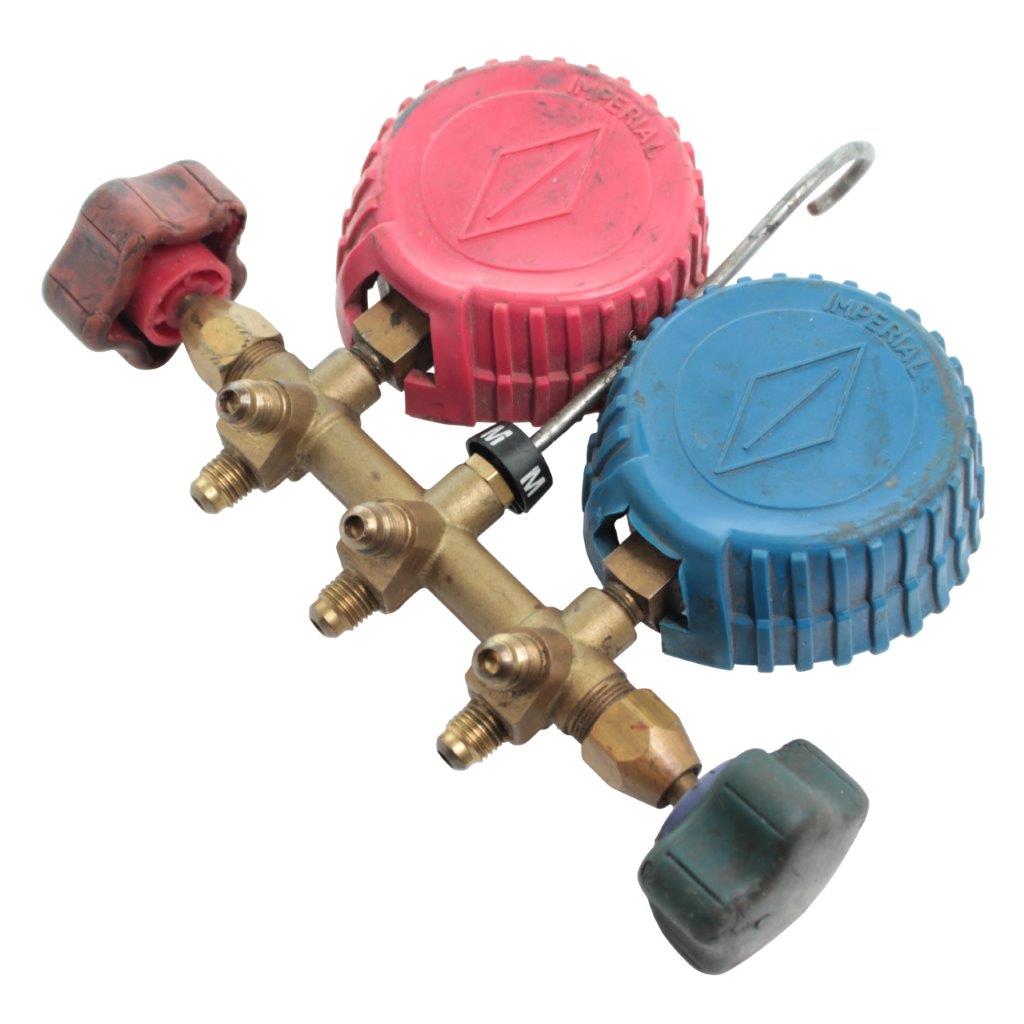

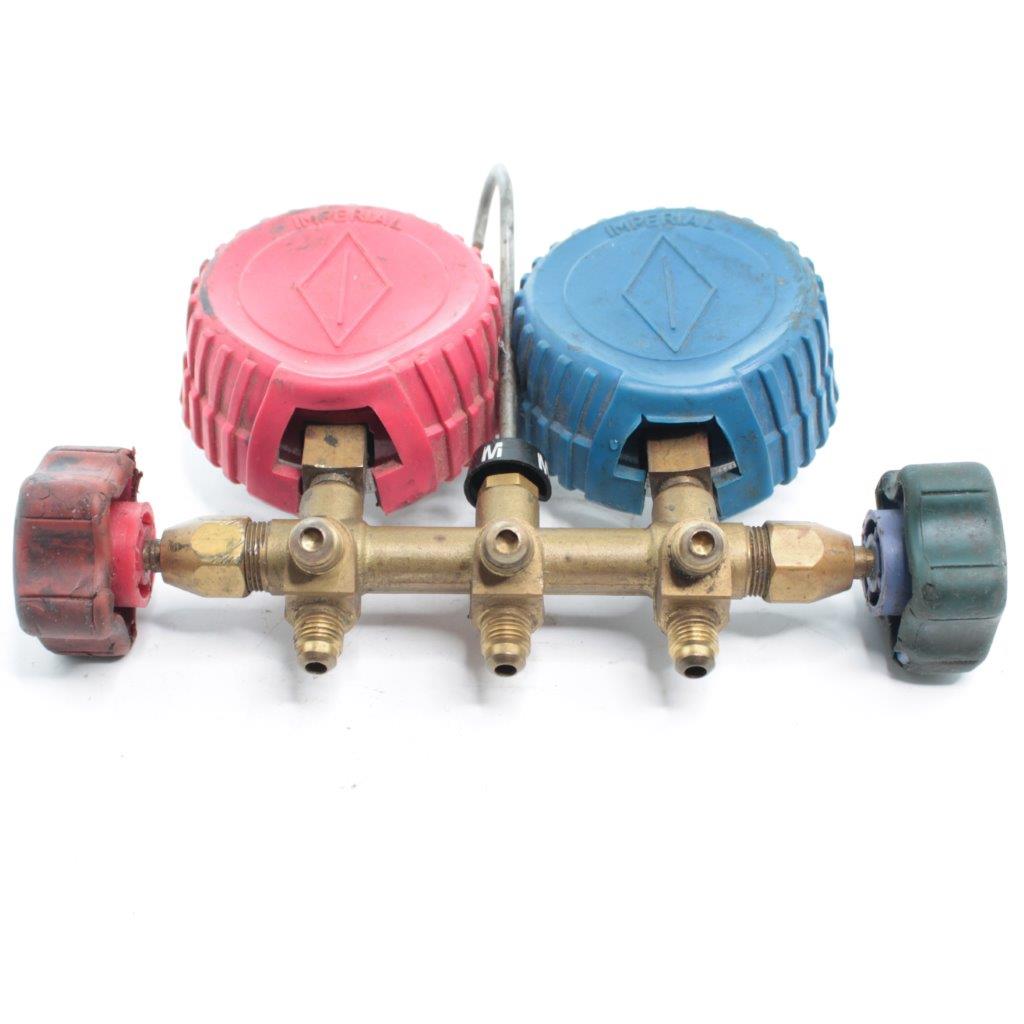

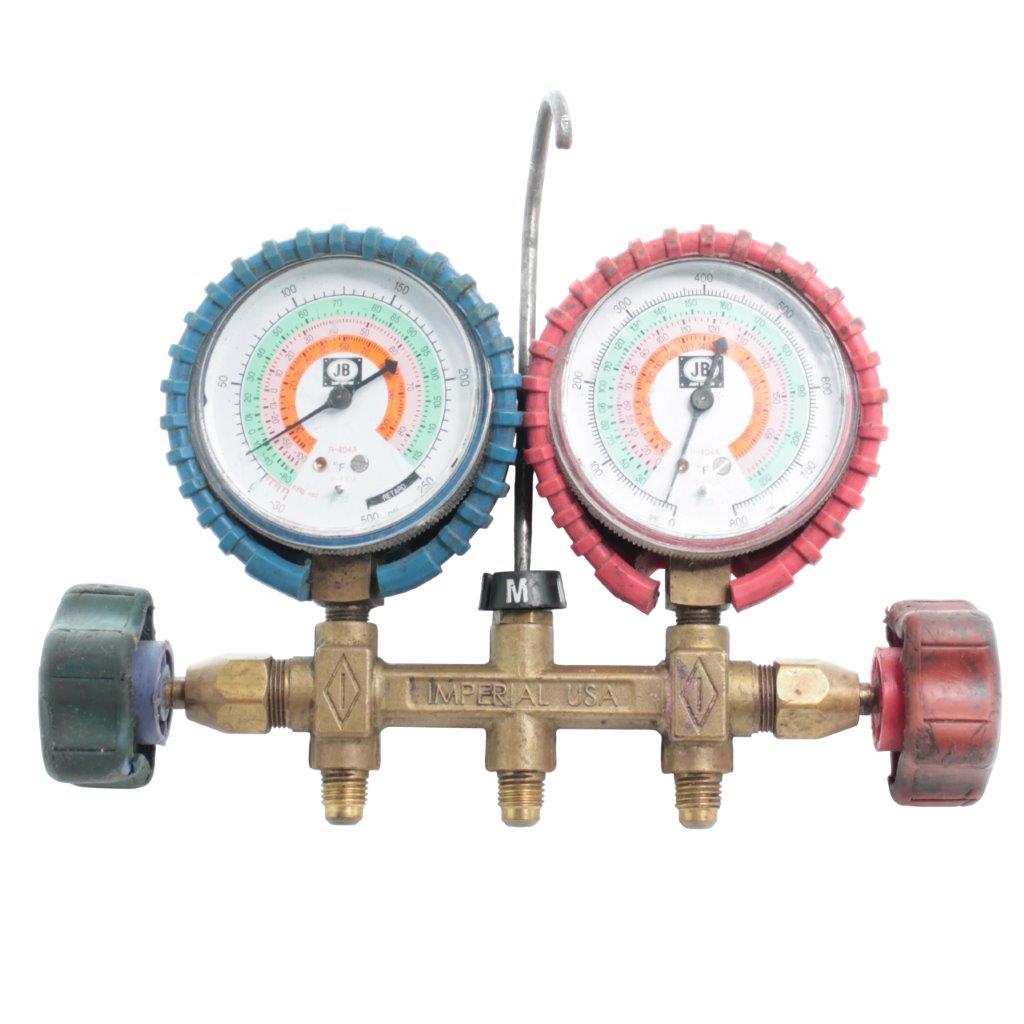

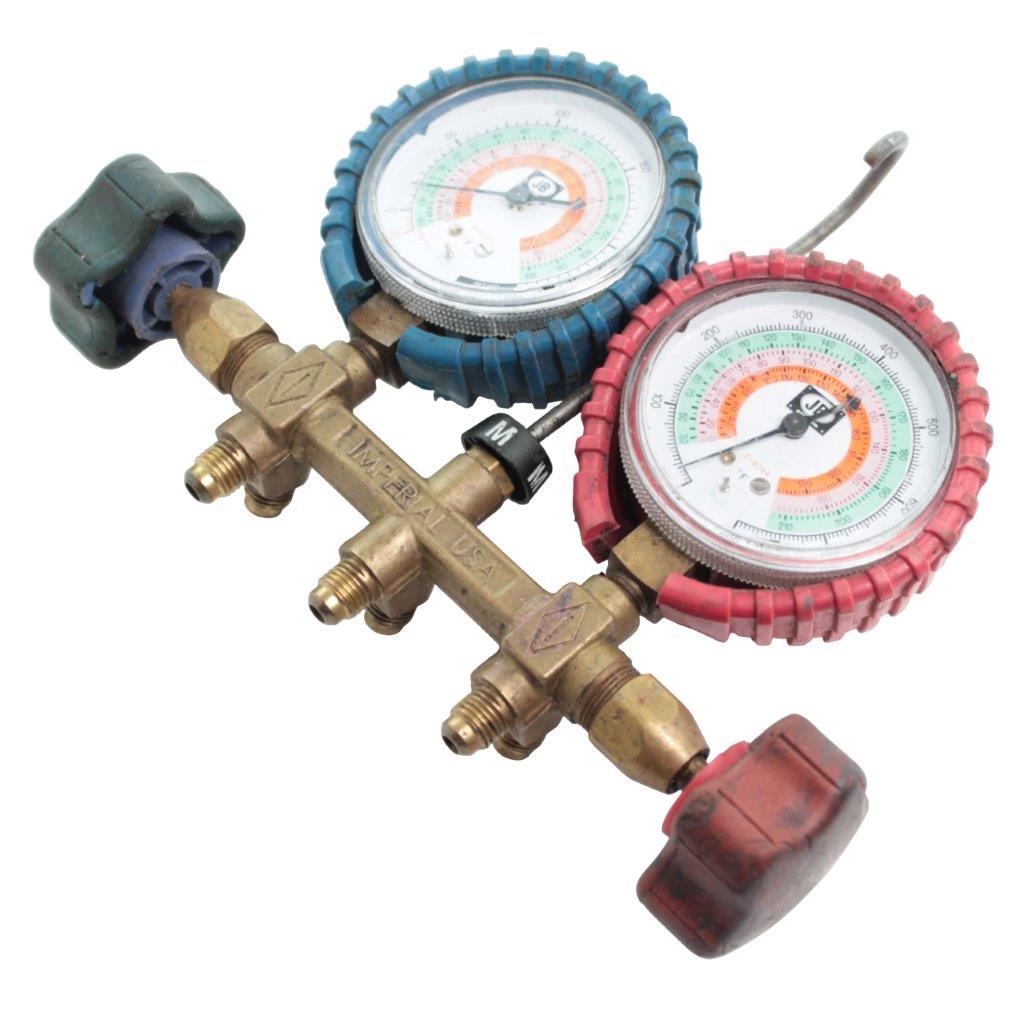

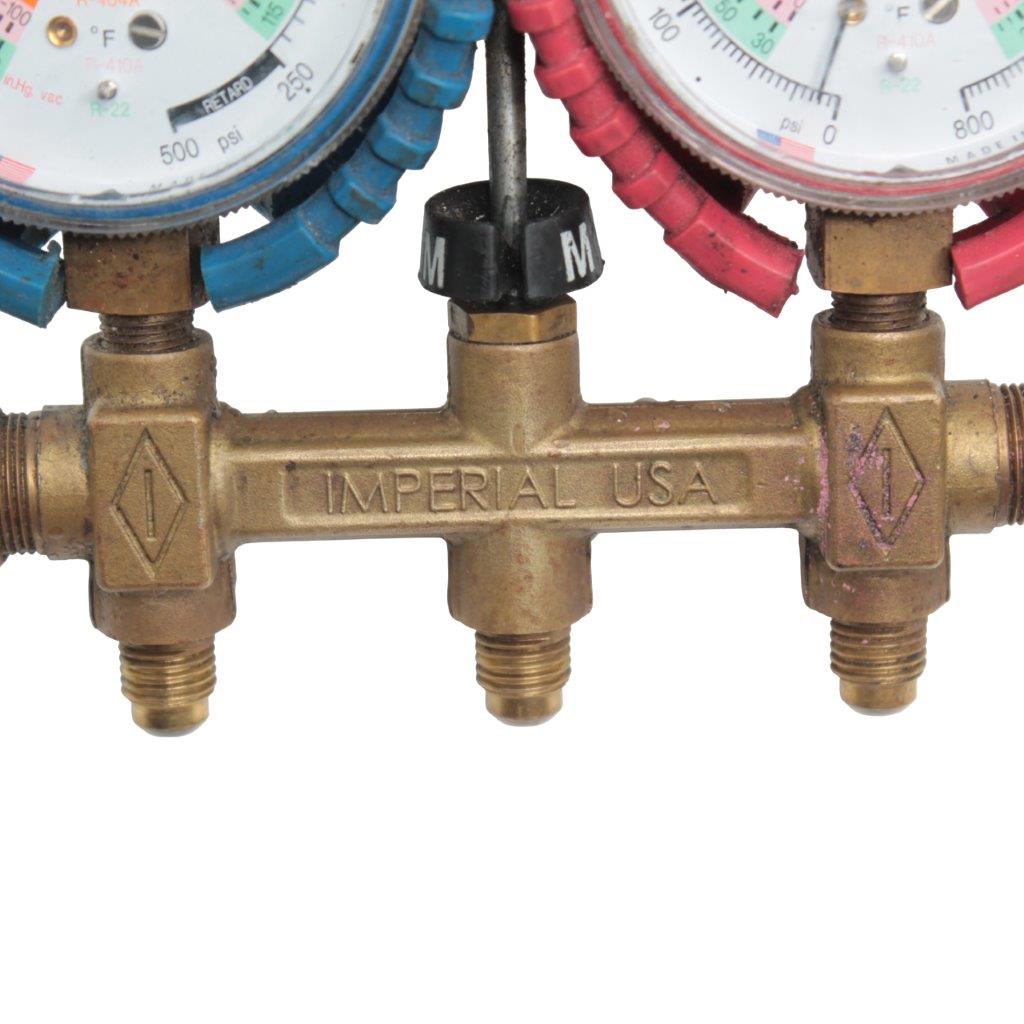

Imperial Mechanical 4-Valve Manifold Gauge Set – R410A/R22/R134a, Sight Glass, Aluminum Body, High-Precision Analog Gauges

Imperial Mechanical 4-Valve Manifold Gauge Set – R410A/R22/R134a, Sight Glass, Aluminum Body, High-Precision Analog Gauges

Condition: Used. Shows signs of field use including scuffs or light discoloration. Gauges and valves appear intact.

The Imperial Mechanical Manifold Gauge Set (4-Valve configuration) is a professional-grade HVAC/R service tool, ideal for charging, recovery, and system diagnostics of refrigerants including R-410A, R-22, and R-134a. This heavy-duty set features a rugged anodized aluminum manifold block with precision-machined internals and oversized handwheels for maximum control under pressure.
The 4-valve design enhances flexibility during vacuum, charging, and recovery operations by adding a dedicated valve for vacuum pump or recovery machine connection. It reduces cross-contamination and makes the evacuation and charging processes faster and more efficient. The integrated sight glass aids in monitoring refrigerant flow and moisture or contaminant presence during system servicing.

🔧 Features
Manifold Type: 4-valve (with separate vacuum/recovery port)
Compatible Refrigerants: R-410A, R-22, R-134a
Gauges: High-precision analog (PSI/bar, temperature scale may be included)
Sight Glass: Integrated for refrigerant flow monitoring
Construction: Forged aluminum body with knurled high-grip control knobs
Hose Fittings: Standard 1/4″ SAE with 5/16″ adapters for R410A possibly included
Service Ports: 4 total (High, Low, Vacuum, Refrigerant/Recovery)
Mounting Hook: Included for hands-free use during servicing

🛠️ Applications
Commonly used by:
HVAC service technicians
Refrigeration system installers
Appliance repair professionals
Automotive HVAC specialists (with compatible adapters)
Ideal for:
System diagnostics (pressure readings)
Refrigerant charging and evacuation
Leak testing
Refrigerant recovery operations
System maintenance for split systems, packaged units, and chillers

🔁 Cross-Referenced Models
Equivalent or comparable manifold sets include:
Imperial 416-C (4-valve with R410A capability)
Yellow Jacket 49967 TITAN 4-Valve Manifold
JB Industries DV-22N 4-Valve Aluminum Manifold Set
Robinair 48510 R410A Manifold Set
Fieldpiece SM480V (digital alternative)

🔄 Comparable Products
Yellow Jacket 49968 Manifold with 4 valves and sight glass
CPS Pro-Set 4-Valve Analog Manifold Set
NAVAC N2A4 Manifold Gauge Set
Mastercool 89661 4-Valve Brass Manifold with 60” Hoses
UEi AK900 Series (digital, comparable in function)

🧩 Assembly and System Compatibility
This manifold set is compatible with:
Mini-split and central A/C units using R410A or R22
Commercial refrigeration systems using R134a
Recovery machines and vacuum pumps (via dedicated 4th port)
Can be upgraded with low-loss fittings or ball valve hose sets for EPA compliance

Trademark Disclaimer:
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
