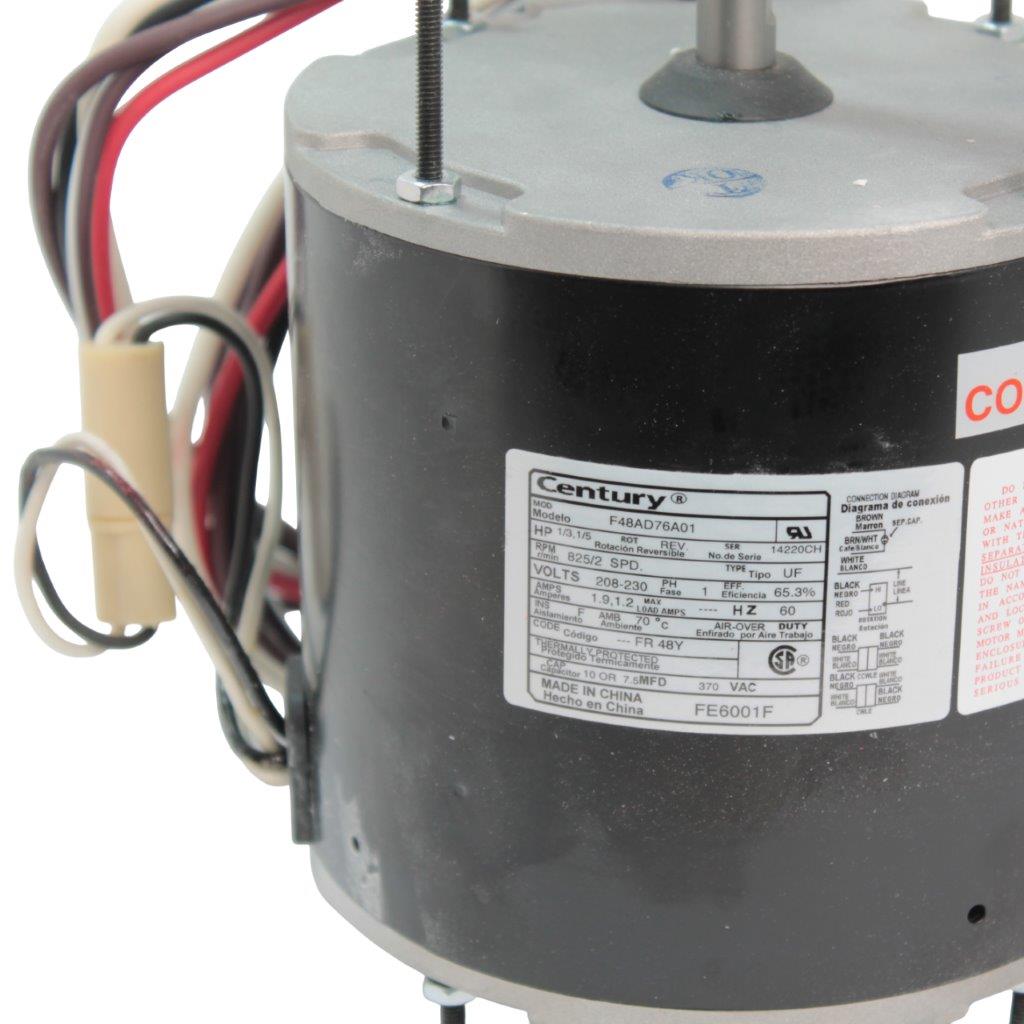

AO Smith / Century F48AD76A01 Masterfit Pro Condenser Fan Motor, 1/3 & 1/5 HP, 208-230V, 2-Speed, 825 RPM, Ball Bearing
$152.00
1 in stock
Condition: New

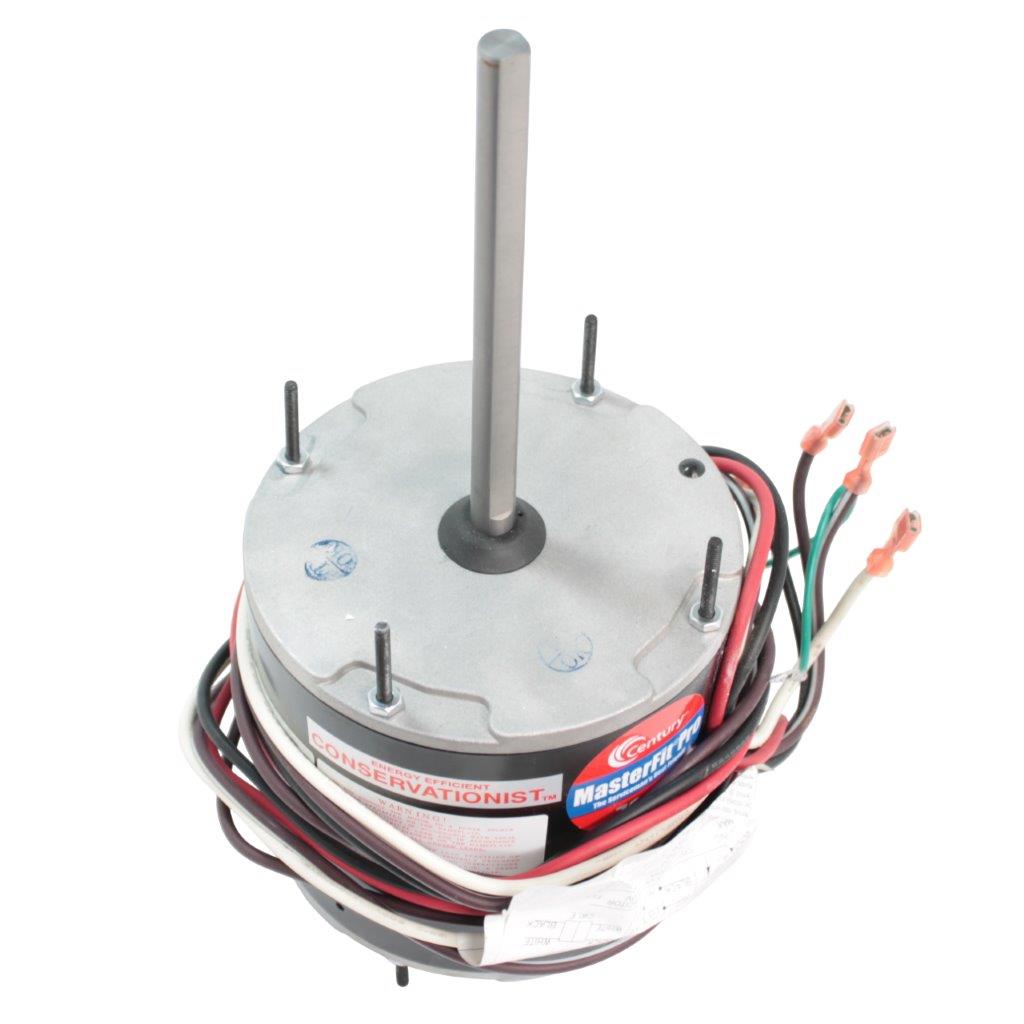

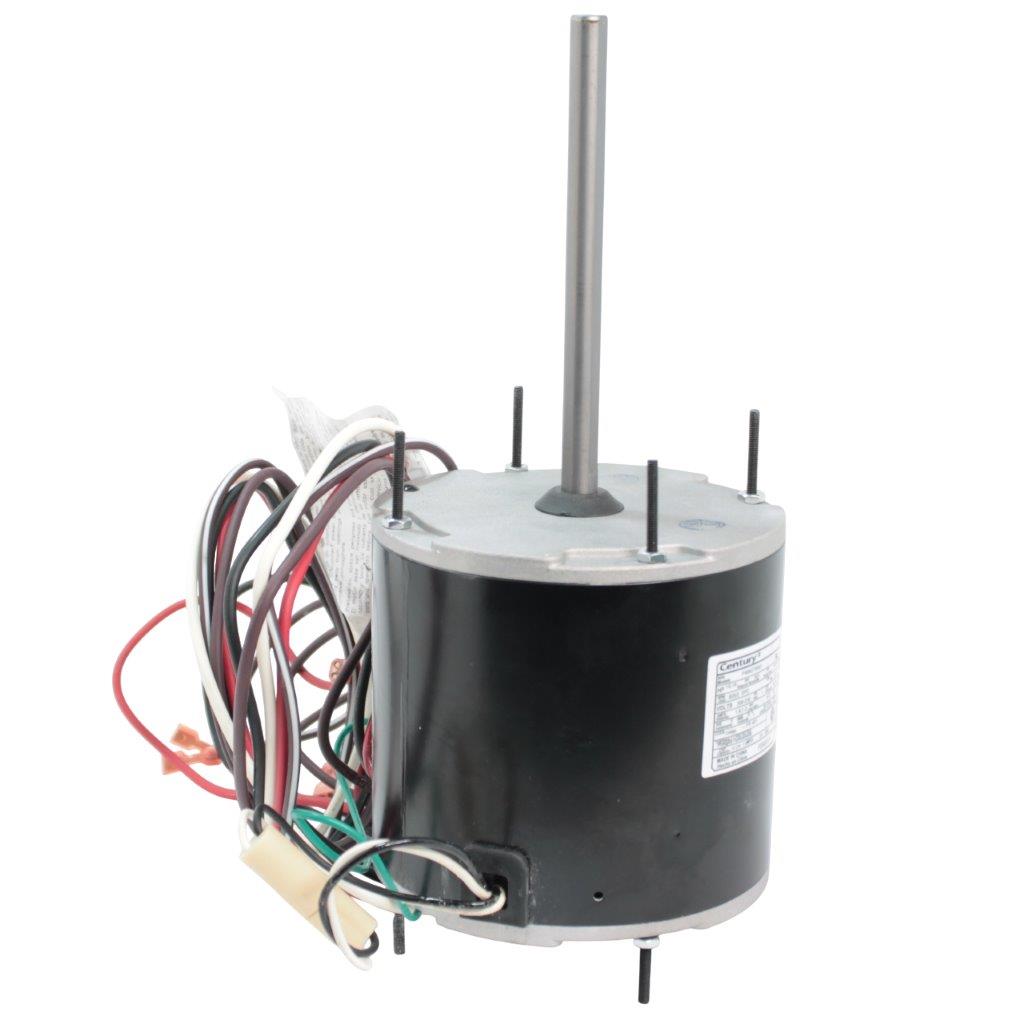

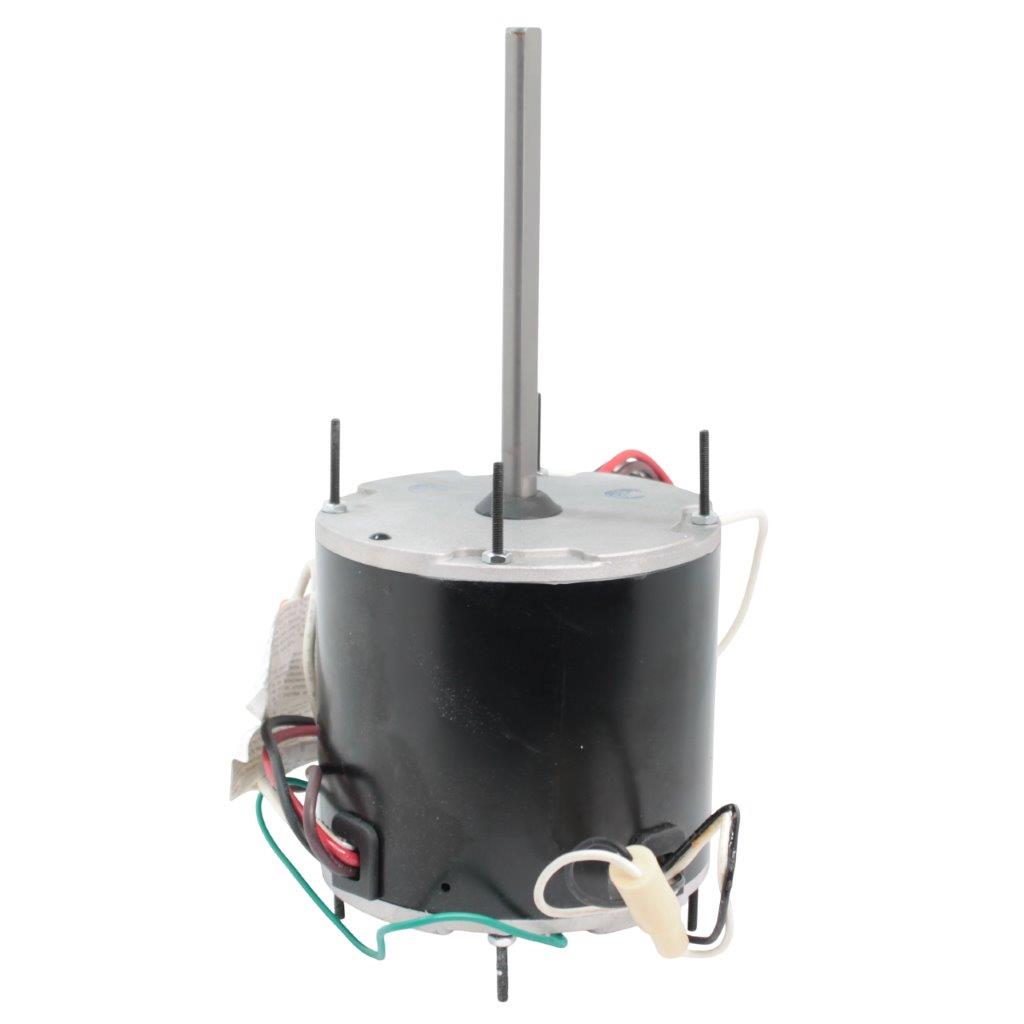

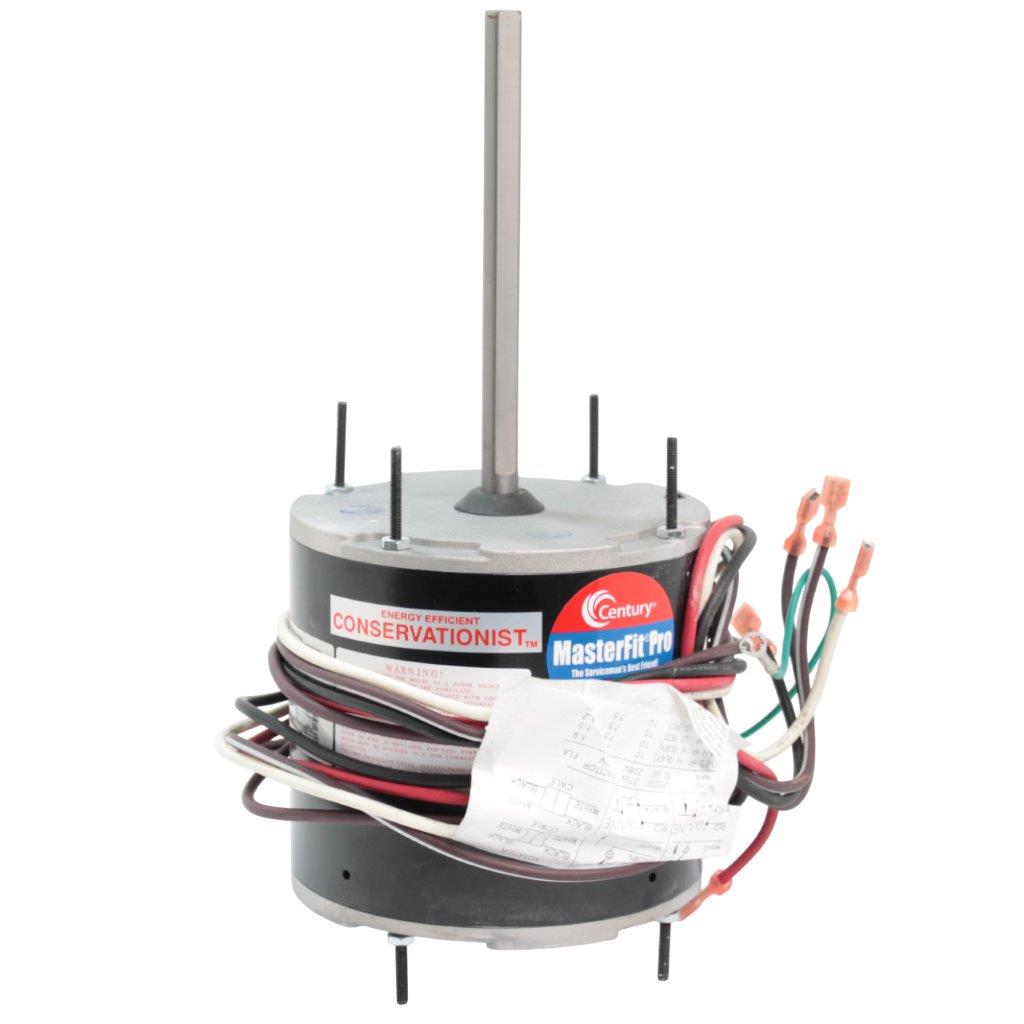

This AO Smith / Century Masterfit Pro FE6001F (OEM Part: F48AD76A01) is a premium-quality condenser fan motor designed for residential and light commercial HVAC systems. It operates at 1/3 and 1/5 HP, features two-speed functionality at 825 RPM, and is built for reliability with a totally enclosed air-over (TEAO) enclosure and ball bearings at both ends. Its extended 6.5″ double-flat shaft and universal stud mounting make it easy to install in a wide range of applications.
🔧 Features
-
Horsepower: 1/3 HP and 1/5 HP dual-rated
-
Voltage: 208-230V, Single Phase
-
Speed: 825 RPM, 2-speed
-
Full Load Amps: 1.9 A (high), 1.2 A (low)
-
Frame: 48 (5.6″ diameter)
-
Rotation: REV (Counterclockwise from Shaft End)
-
Service Factor: 1.00
-
Bearings: Ball (SE & OSE)
-

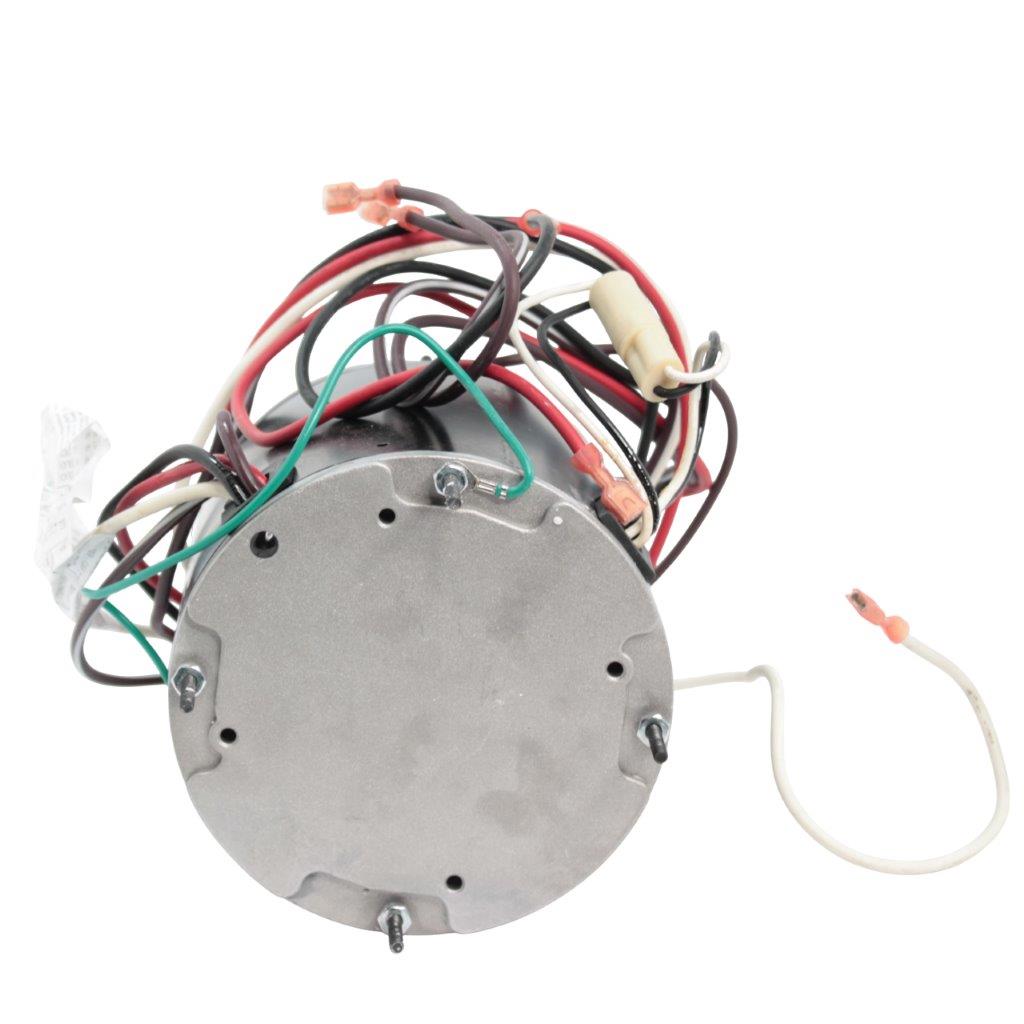

Mounting: Extended Studs
-
Enclosure: TEAO (Totally Enclosed Air Over)
-
Thermal Overload Protection: Auto-reset
-
Electrical Type: PSC (Permanent Split Capacitor)
-
Material: Rolled Steel
-
Shaft Type: Double Flat
-
Shaft Dimensions: 0.500″ diameter × 6.500″ length
-
Assembly Orientation: Any Position
-
Start Method: Across the Line
⚙️ Applications
This condenser fan motor is ideal for:
-
Residential and light commercial HVAC condenser units
-
Air-cooled condensing units
-
Compatible with systems requiring low-speed, high-efficiency fan motors
-
Replacement of original OEM fan motors in branded outdoor condensing units

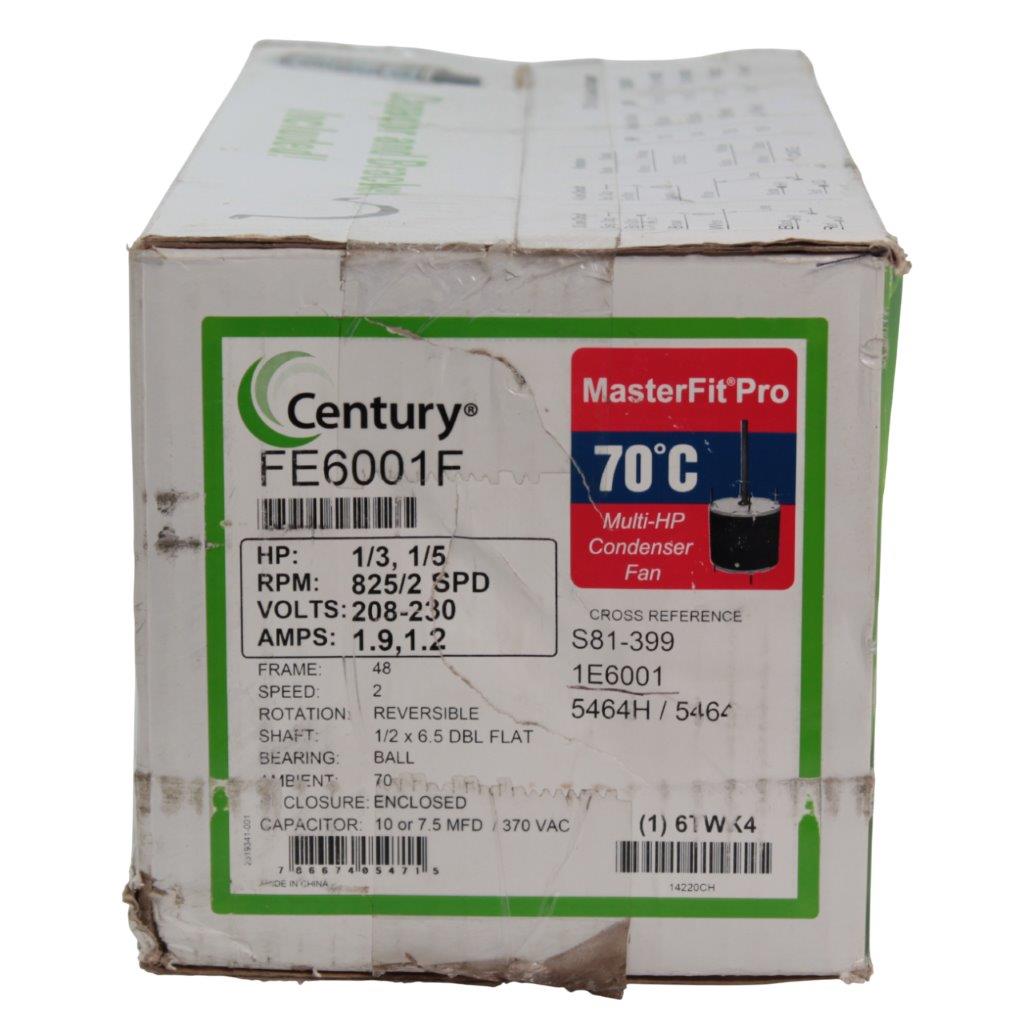

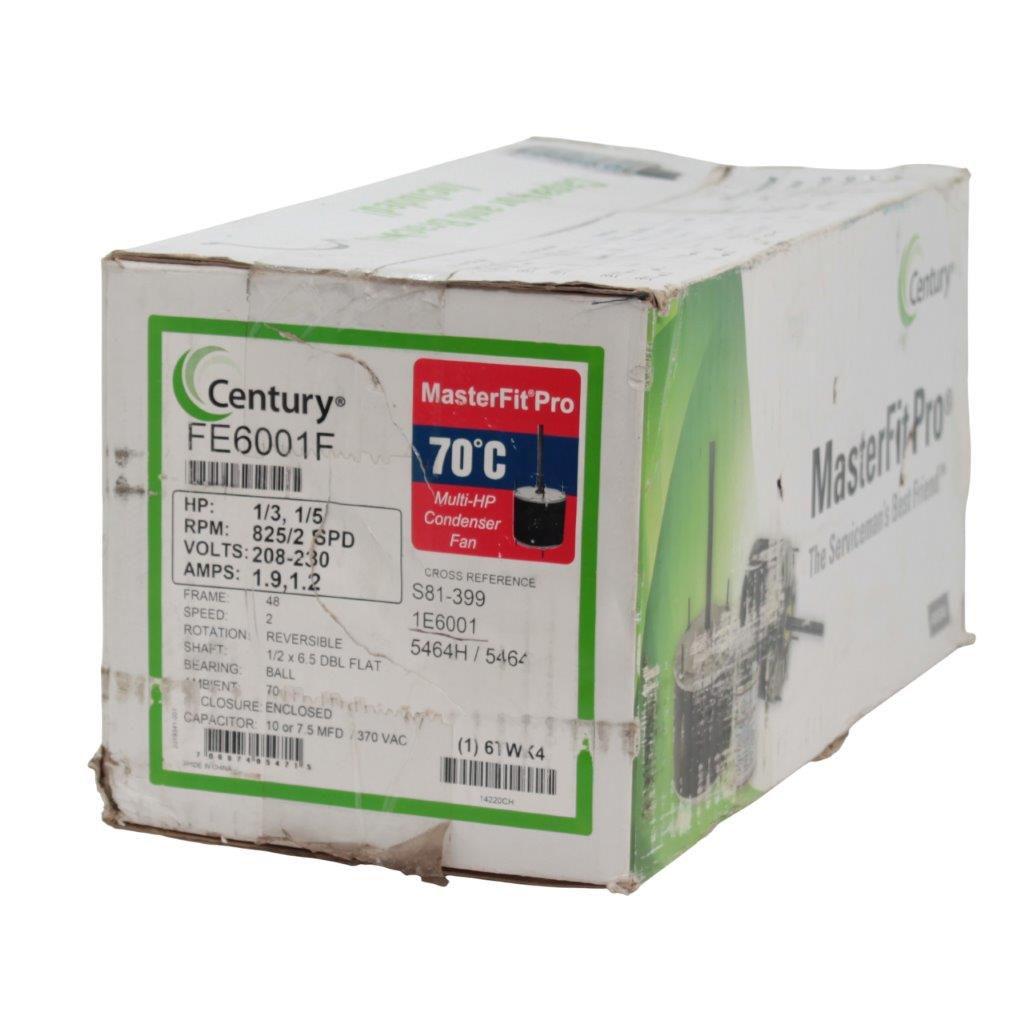

🔄 Cross-Referenced & OEM Equivalent Models
-
S81-399
-
1E6001
-
5464H / 5464
-
GENTEQ 5464 (1/3 HP, 825 RPM, 208-230V, REV)
-
Packard 5464
-
Mars 10860
🔩 System Compatibility
This motor can be used in many residential or light commercial condensing units from brands such as:
-
Rheem / Ruud
-
Goodman / Amana
-
Carrier / Bryant
-
Trane / American Standard
-
ICP / Heil / Tempstar
Each brand may use the OEM part numbers listed above for their system fan motors.
Related
-
condenser fan motor for AC unit
-
AO Smith F48AD76A01 replacement
-
1/3 hp 208-230v 2-speed hvac motor
-
ball bearing hvac motor
-
masterfit pro fe6001f
-
48 frame condenser motor
-
6.5″ shaft double flat condenser motor
-
825 rpm ao smith motor
-
ao smith psc motor 1/3hp
-
universal replacement condenser motor
Common Requests:
-
What size capacitor does this motor require?
→ Requires 7.5 MFD 370 VAC capacitor (not included) -
Can it be used as a direct replacement for 1E6001 or 5464?
→ Yes, it’s a compatible drop-in equivalent with matching specs -
Is it reversible rotation?
→ No, factory set for REV (counterclockwise from shaft end) only -
What kind of bearings does it have?
→ Dual ball bearings for extended motor life and smoother operation -
Can I install this vertically or horizontally?
→ Yes, motor is rated for use in any mounting position (universal assembly)
P110
Weight | 17 lbs |
---|---|
Dimensions | 15 × 8 × 8 in |
Brand | A.O. SMITH, Century |
Capacitor | 10MFD / 370VAC, 7.5MFD / 370VAC |
Color | Black |
Current | 1.2 A, 1.9 A |
Frame Size | 48 |
Horse Power (HP) | 1/3, 1/5 |
Speed | 825 RPM |
Power Phase | Single Phase |
Voltage | 208-230V |
