AssaAbloy HES 5000C-12/24D-630 Electric Strike Complete Pac

Original price was: $119.00.Current price is: $95.00.

1 in stock

UPC: 740090040042

AssaAbloy HES 5000C-12/24D-630 Electric Strike Complete Pac

New: A brand-new, unused, undamaged item in its original packaging.

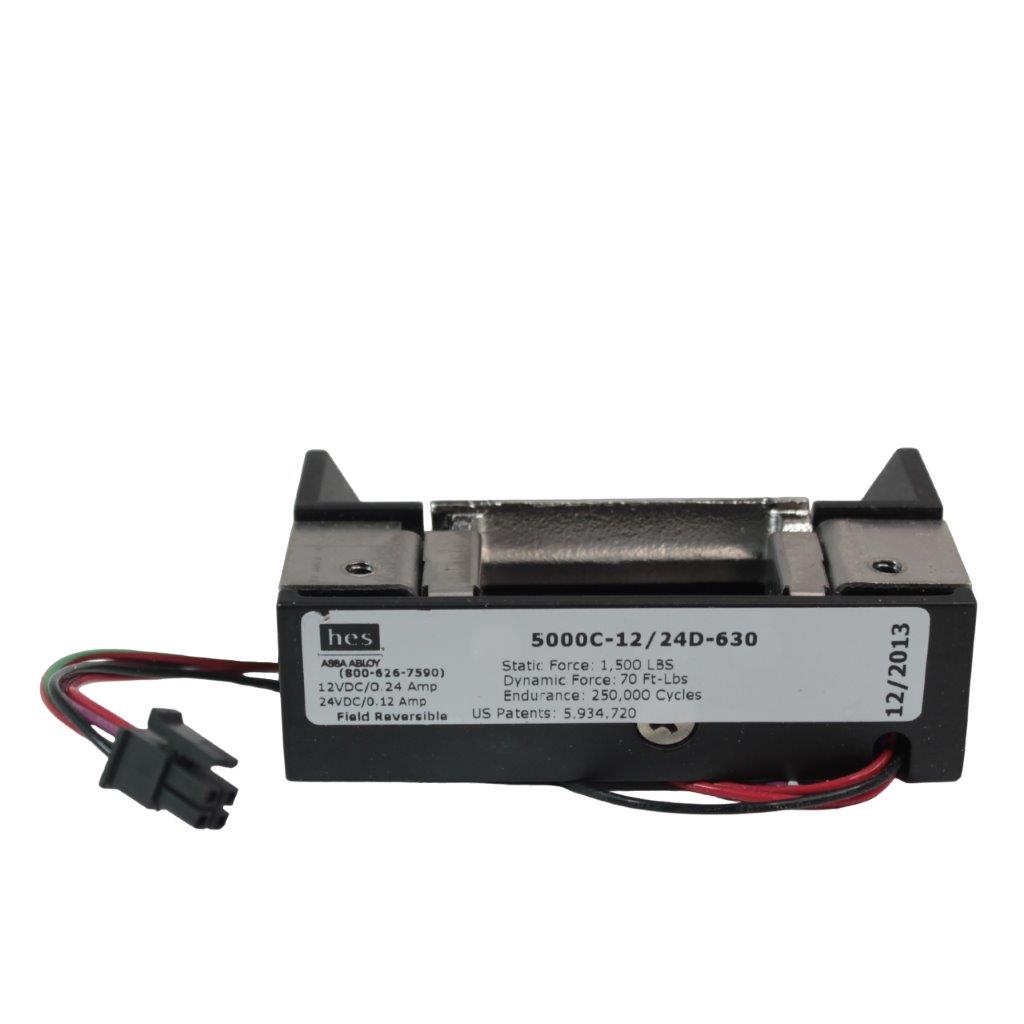

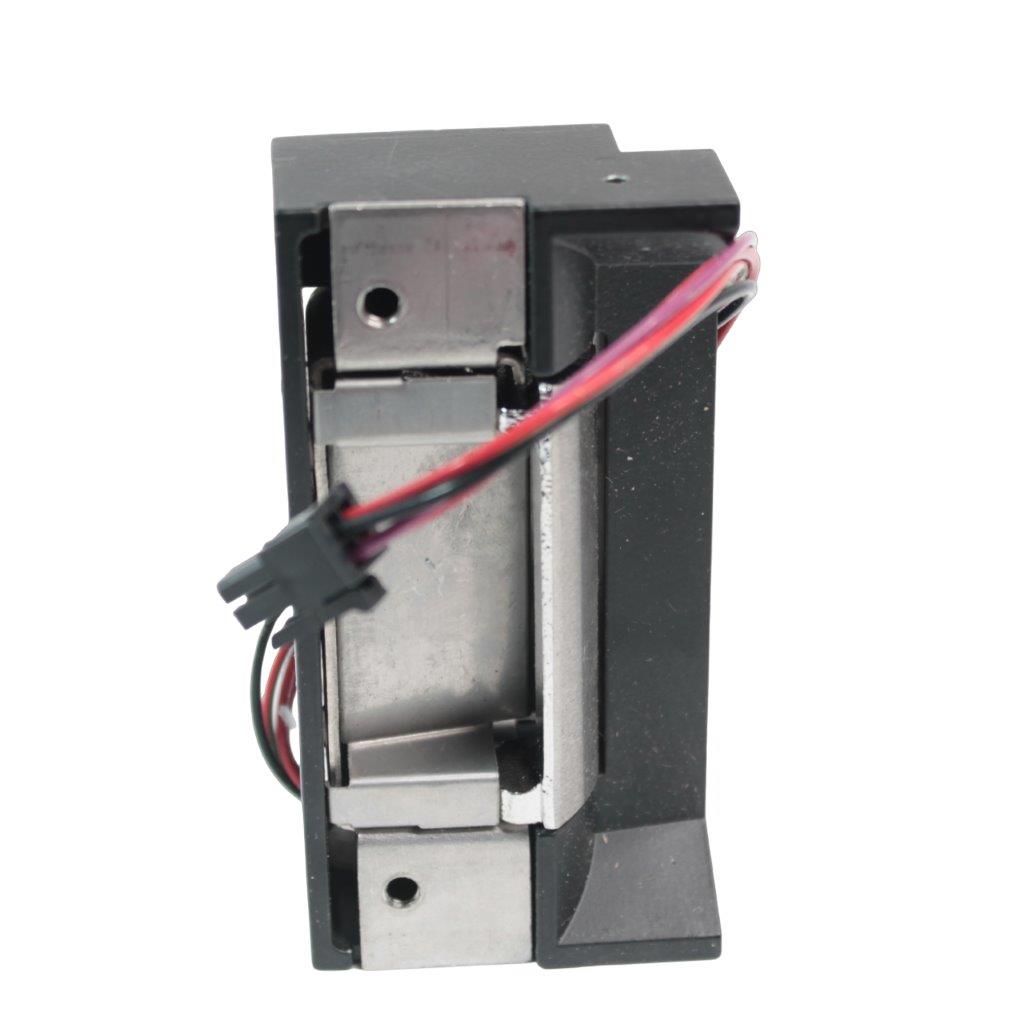

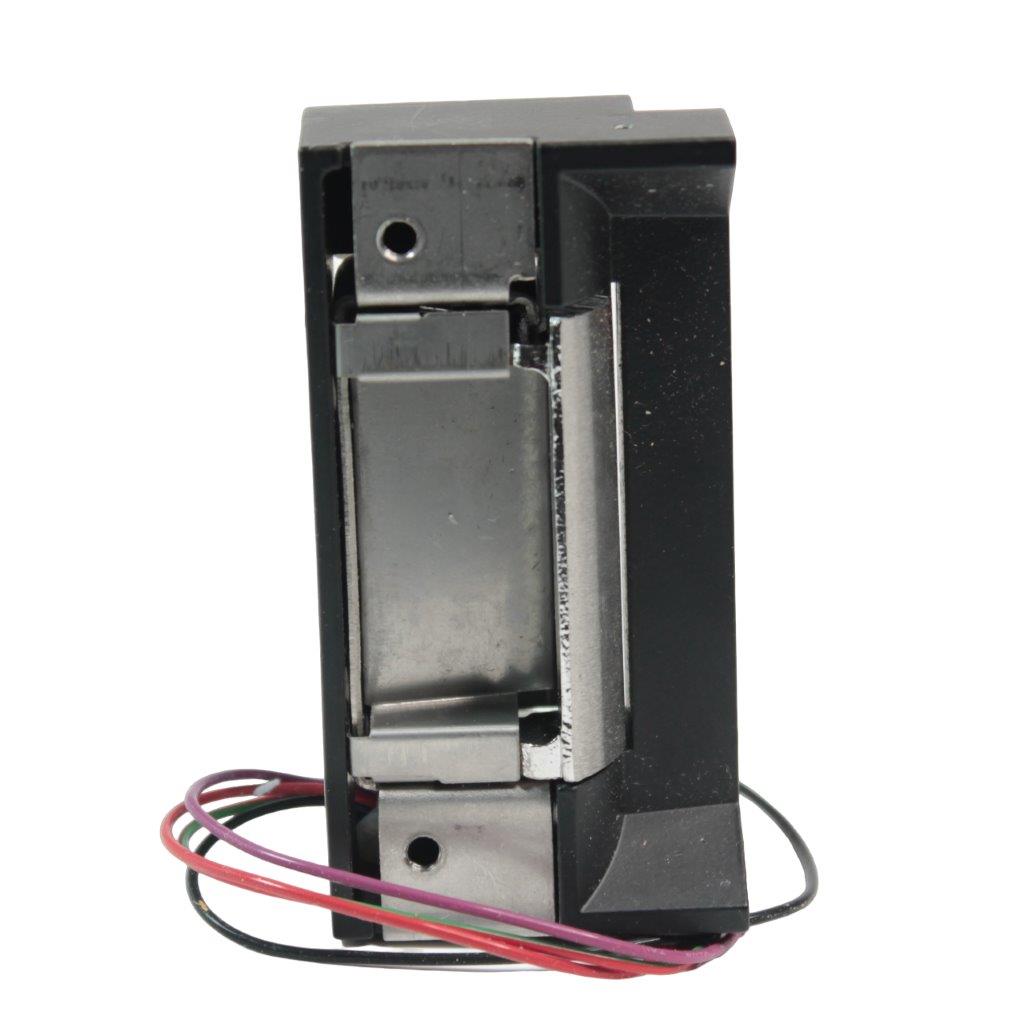

The AssaAbloy HES 5000C-12/24D-630 Electric Strike is a robust, high-performance solution designed for securing latchbolt locks in low-profile openings. The complete package includes multiple faceplates, making it versatile and easy to install across various door types.

Product Specifications:

  • Brand: HES by ASSA ABLOY
  • Model Number: 5000-12/24D-630
  • Series: 5000
  • Compatible Door Frame Type: Metal, Wood
  • Holding Strength: 1500 lb
  • Base Material: Stainless Steel
  • Finish: Satin Stainless Steel
  • Product Type: Electric Strike
  • Input Current:
    • 120 mA (12V)
    • 240 mA (24V)
  • Input Voltage:
    • 12V AC/DC
    • 24V AC/DC
  • UPC: 740090040042
  • Included Faceplates: 501 and 501A

Key Features:

  • Universal Compatibility: Designed to work with a variety of latchbolt locks and suitable for metal and wood door frames.
  • Dual Voltage Operation: Capable of operating on both 12V and 24V AC/DC power supplies, providing flexibility in different installations.
  • High Holding Strength: With a holding force of 1500 lbs, it ensures strong and secure door locking.
  • Compact and Low Profile: Fits into spaces where there is limited room behind the jamb, making it ideal for retrofits and new installations.
  • Unique Keeper Pin Locking Design: Provides enhanced strength, ensuring the electric strike surpasses the strength ratings of the frame, door, and locking hardware.
  • Satin Stainless Steel Finish: Durable and aesthetically pleasing, suitable for a variety of architectural styles.

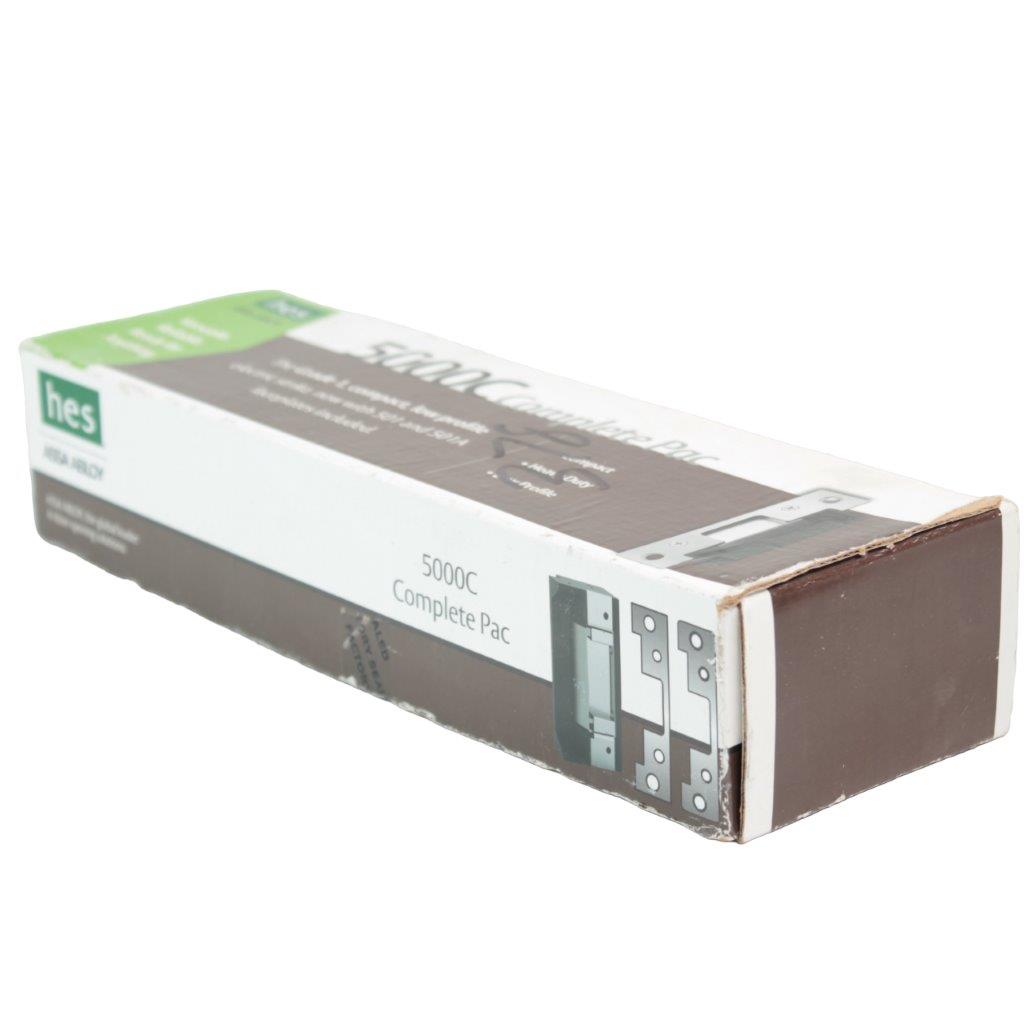

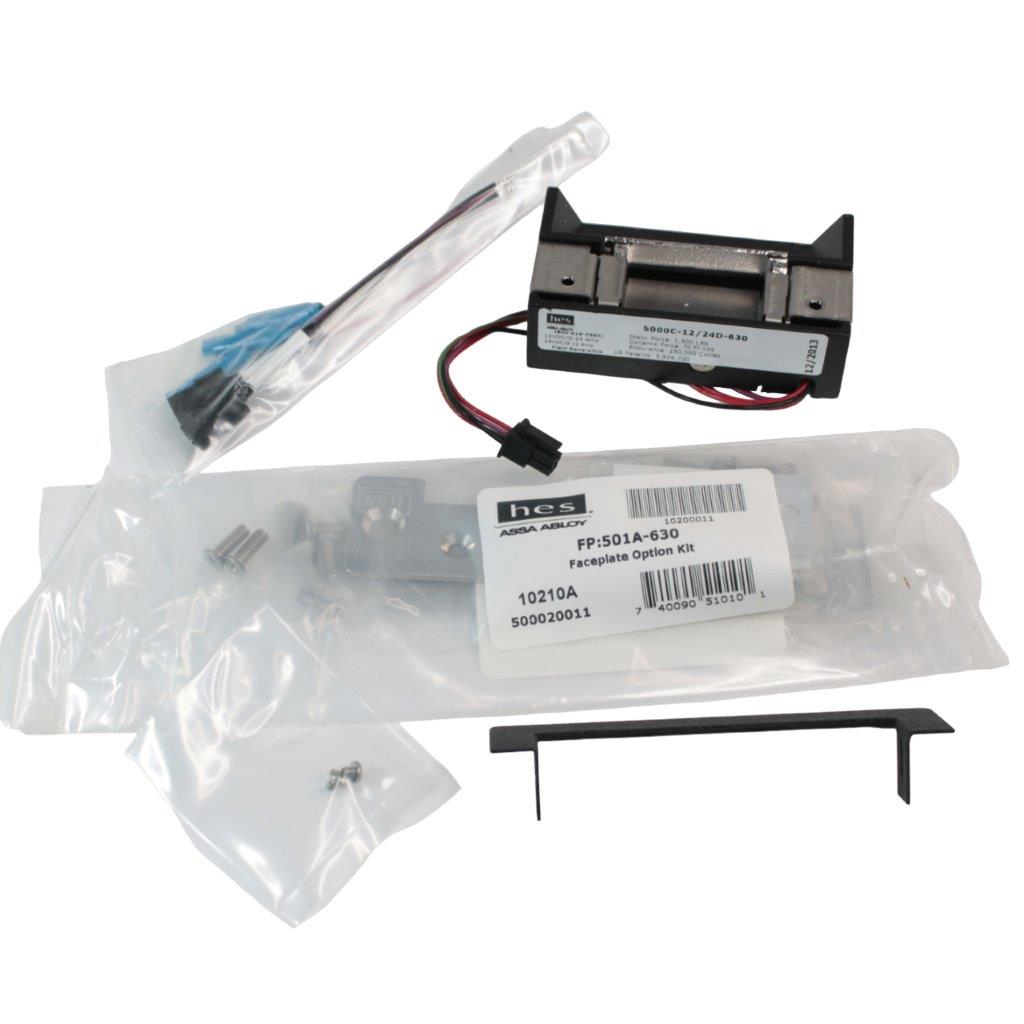

  • Complete Package: Includes the 501 and 501A faceplates, offering multiple installation options in one convenient package.


  • Residential Security: Ideal for homes, providing strong and reliable access control.
  • Commercial Buildings: Suitable for offices, retail spaces, and other commercial properties requiring secure entry systems.
  • Institutional Use: Perfect for schools, hospitals, and other institutions where controlled access is necessary.
  • Industrial Settings: Can be used in factories, warehouses, and other industrial environments.

Installation and Setup:

  1. Preparation:
    • Ensure the power supply is turned off before beginning installation.
    • Gather necessary tools, such as a screwdriver, drill, and wire strippers.
  2. Mounting the Strike:
    • Select the appropriate faceplate (501 or 501A) for your door frame type.
    • Mark and drill holes in the door frame where the electric strike will be installed.
    • Attach the electric strike to the door frame using the provided screws, ensuring it is securely fastened.
  3. Electrical Connections:
    • Connect the electric strike to the power supply using the appropriate voltage (12V or 24V AC/DC).
    • Use wire nuts or terminal blocks to secure the connections, ensuring there are no loose wires.
    • Test the voltage with a multimeter to ensure proper power delivery.
  4. Testing and Adjustment:
    • Power on the system and test the electric strike by engaging and disengaging the lock.
    • Make any necessary adjustments to ensure smooth operation.
    • Check that the door closes and locks securely without excessive force.
  5. Final Checks:
    • Ensure all connections are secure and the installation is stable.
    • Verify that the electric strike operates correctly and that the door locks and unlocks as intended.

Maintenance Tips:

  • Regular Inspections: Periodically check the electric strike and faceplates for signs of wear or damage.
  • Cleaning: Keep the electric strike clean and free of debris to ensure smooth operation.
  • Electrical Checks: Regularly check the electrical connections and power supply to prevent any operational issues.

Safety and Compliance:

  • Handling: Handle with care to avoid damaging the unit. Use anti-static wrist straps if necessary.
  • Compliance: Ensure installation complies with local electrical codes and safety standards.
  • Voltage Matching: Ensure the input voltage matches the specifications to avoid damaging the electric strike.


The AssaAbloy HES 5000C-12/24D-630 Electric Strike is a versatile and durable solution for securing latchbolt locks. Its dual voltage capability, high holding strength, and compact design make it suitable for a wide range of applications in residential, commercial, institutional, and industrial settings. Proper installation and regular maintenance will ensure reliable performance and long-term security.


Weight 1.5 lbs
Dimensions 10 × 3.5 × 2.5 in
